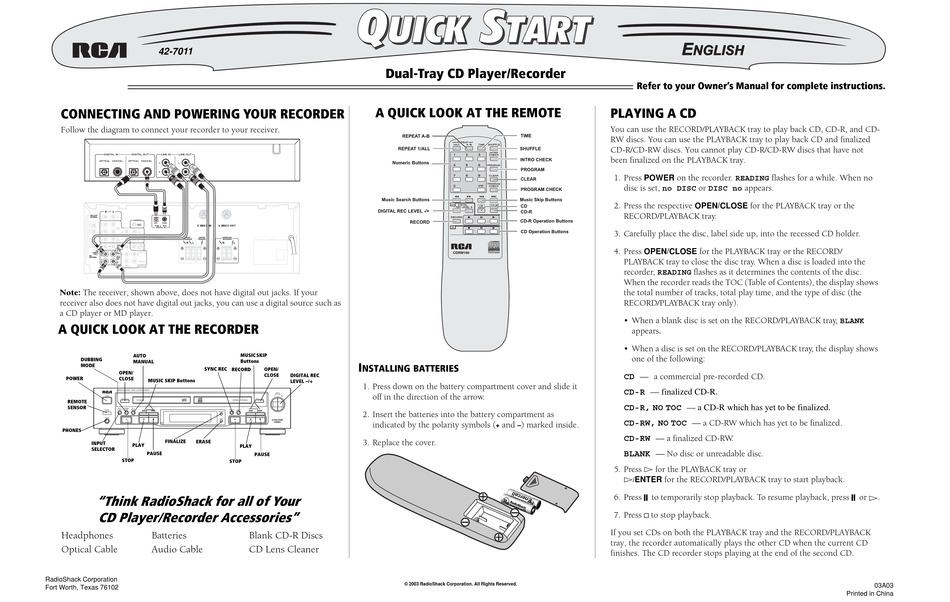

RCA 42-7011 Quick Start

Dual tray cd player/recorder.
Hide thumbs


Advertisement

42-7011
CONNECTING AND POWERING YOUR RECORDER
Follow the diagram to connect your recorder to your receiver.
S-VIDEO IN
S-VIDEO OUT
Note: The receiver, shown above, does not have digital out jacks. If your
receiver also does not have digital out jacks, you can use a digital source such as
a CD player or MD player.
A QUICK LOOK AT THE RECORDER
AUTO
DUBBING
MANUAL
MODE
SYNC REC RECORD
OPEN/
POWER
CLOSE
MUSIC SKIP Buttons
REMOTE
SENSOR
PHONES
FINALIZE
ERASE
INPUT
PLAY
SELECTOR
PAUSE
STOP
"Think RadioShack for all of Your
CD Player/Recorder Accessories"
Headphones
Batteries
Optical Cable
Audio Cable
RadioShack Corporation
Fort Worth, Texas 76102
Dual-Tray CD Player/Recorder
A QUICK LOOK AT THE REMOTE
MUSIC SKIP
Buttons
I
NSTALLING BATTERIES
OPEN/
CLOSE
DIGITAL REC
LEVEL –/+
1. Press down on the battery compartment cover and slide it
off in the direction of the arrow.
2. Insert the batteries into the battery compartment as
indicated by the polarity symbols (
3. Replace the cover.
PLAY
PAUSE
STOP
Blank CD-R Discs
CD Lens Cleaner
© 2003 RadioShack Corporation. All Rights Reserved.
Refer to your Owner's Manual for complete instructions.

PLAYING A CD

You can use the RECORD/PLAYBACK tray to play back CD, CD-R, and CD-
RW discs. You can use the PLAYBACK tray to play back CD and finalized
CD-R/CD-RW discs. You cannot play CD-R/CD-RW discs that have not
been finalized on the PLAYBACK tray.
1. Press
POWER
disc is set,
no DISC
2. Press the respective
RECORD/PLAYBACK tray.
3. Carefully place the disc, label side up, into the recessed CD holder.
4. Press
OPEN/CLOSE
PLAYBACK tray to close the disc tray. When a disc is loaded into the
recorder,
READING
When the recorder reads the TOC (Table of Contents), the display shows
the total number of tracks, total play time, and the type of disc (the
RECORD/PLAYBACK tray only).
• When a blank disc is set on the RECORD/PLAYBACK tray,
appears.
• When a disc is set on the RECORD/PLAYBACK tray, the display shows
one of the following:
CD — a commercial pre-recorded CD.
CD-R — finalized CD-R.
CD-R, NO TOC — a CD-R which has yet to be finalized.
CD-RW, NO TOC — a CD-RW which has yet to be finalized.
and
) marked inside.
+
CD-RW — a finalized CD-RW.
BLANK — No disc or unreadable disc.
5. Press ² for the PLAYBACK tray or
²
for the RECORD/PLAYBACK tray to start playback.
ENTER
/
6. Press † to temporarily stop playback. To resume playback, press † or ² .
7. Press G to stop playback.
If you set CDs on both the PLAYBACK tray and the RECORD/PLAYBACK
tray, the recorder automatically plays the other CD when the current CD
finishes. The CD recorder stops playing at the end of the second CD.
on the recorder.
flashes for a while. When no
READING
or
appears.
DISC no
OPEN/CLOSE
for the PLAYBACK tray or the
for the PLAYBACK tray or the RECORD/
flashes as it determines the contents of the disc.
BLANK
Printed in China
03A03
