Summary of Contents for PowaCycle Milan2
-

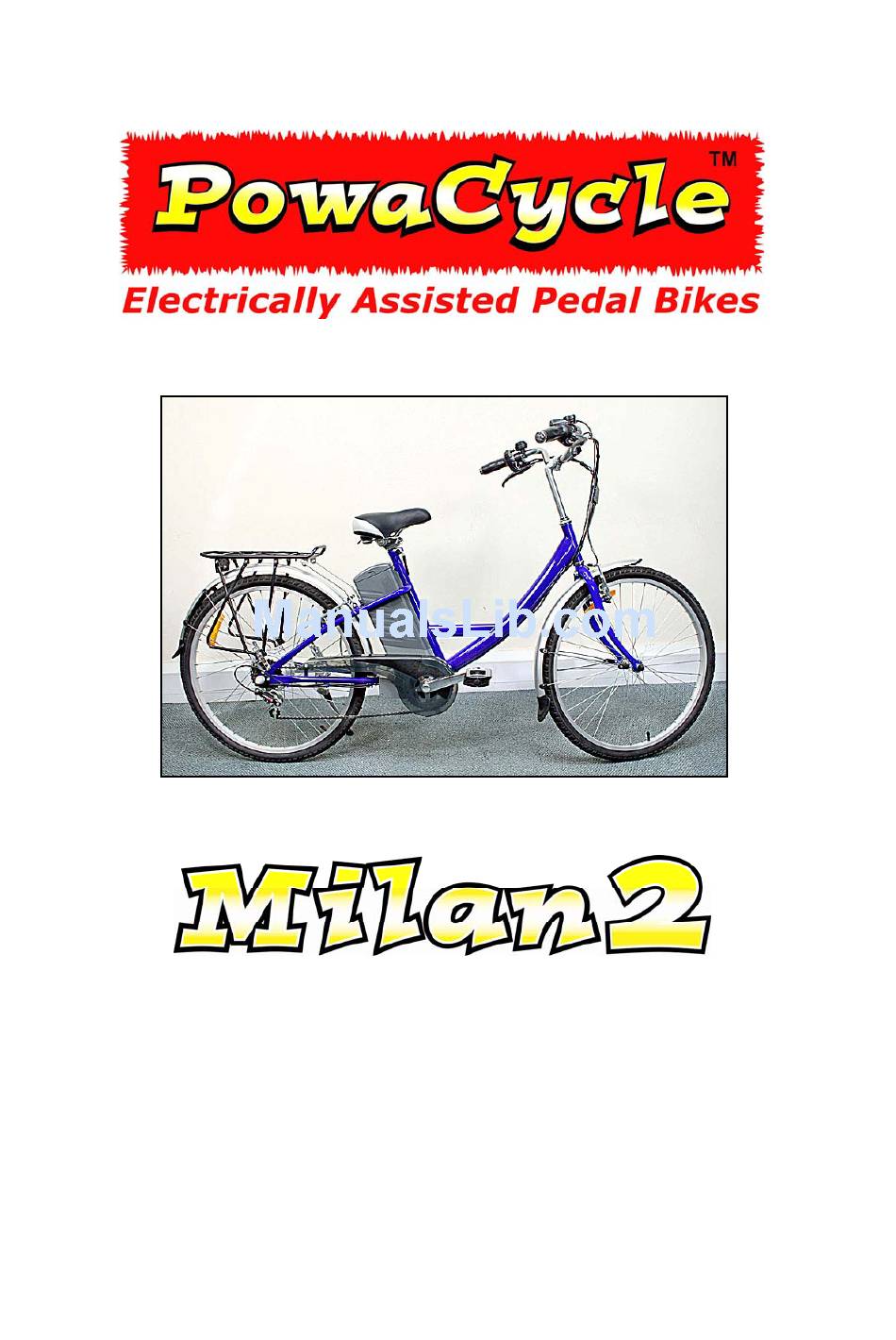

Page 1: Assembly Instructions
Assembly Instructions And User Guide Version 1 – 12 Sept 2006... - Page 2 Introduction Thank you for buying a PowaCycle Milan2 electric bike. We hope it brings you many hours of enjoyment. For safe and compact shipping, we have despatched your PowaCycle Milan2 part assembled. It therefore requires some simple assembly work before you can begin riding.
-
Page 3: Charge The Battery
Assembly Instructions Charge the Battery Before assembling your PowaCycle, you should charge the battery. This will allow you to test the electrical connections during assembly. Normally charging takes from 6 to 8 hours to fully charge the battery, however the first charge can take up to 12 hours. When charged, the LED turns from red to green. -
Page 4: Fitting The Pedals
Fitting the Handlebars The handlebars are already attached to the frame via cables. They must be inserted into the frame as shown at least the minimum depth marker line. Align the handlebars 90 degrees to the forks. Finally, use an Allen key or hexagonal tool to tighten the handlebars in place. - Page 5 Checking Brakes As a standard precaution check that the brakes are working Safety Check effectively, that brake blocks are clear of the wheels and evenly aligned. Wheels should turn freely until brakes are applied. As with all new cables some stretching will occur with use so adjustment should be carried out as soon as needed.
- Page 6 Completed PowaCycle Milan2 Finally … Before mounting your cycle to ride, remember to check that: • the battery is fully charged. • the tyres are inflated to the correct pressure. • the brakes are operating effectively. • the handlebars are correctly adjusted and secure •...
- Page 7 • Do not leave the battery permanently charging from the mains supply. • Only use the charger provided to charge the battery. • Do not use the battery to power anything other than the PowaCycle with which it was purchased.
-
Page 8: User Safety
Power Switch on the power by pressing the switch on the battery. The Milan2 can be operated as a “pedelec”. This means that, as soon as the rider begins to pedal, the motor supplies energy to support the cyclist’s efforts. If the rider prefers to cycle without the assistance of the motor, he or she should turn the power off. -
Page 9: Troubleshooting
Troubleshooting 1 – Brakes not working effectively Check the distance between the brake blocks and the wheel rim. Check that the blocks are parallel with the wheel rim. Check for any wear on the brake blocks Fine tuning to the brakes can be performed by the adjusters between the brake lever on the handlebars and the brake cable. - Page 10 PowaCycle, Ultima Networks PLC, Akhter House, Perry Road, Harlow, Essex, CM18 7PN 01279-821243 Tel: www.PowaCycle.co.uk Milan2 Assembly Instructions and User Guide – ref JN1006...
Need help?
Do you have a question about the Milan2 and is the answer not in the manual?
Questions and answers
What is the on/off red switch on handlebar for
The purpose of the on/off red switch on the handlebar of the PowaCycle Milan2 is to activate the throttle. Once pressed, the throttle can then be used to control motor power.
This answer is automatically generated
Why does the power keep cutting off
The power keeps cutting off on the PowaCycle Milan2 because the controller shuts off when the battery voltage drops too low. Unlike most controllers, it cuts back in when the voltage rises again after the motor load is removed, causing a constant on/off cycle. This usually happens when the batteries are low and need recharging or if the batteries are weak and need replacement.
This answer is automatically generated
What is the red switch on the handlebars for
The red switch on the handlebars of the PowaCycle Milan2 activates the throttle function. Once pressed, the throttle on the right handlebar can be used to control motor power.
This answer is automatically generated
