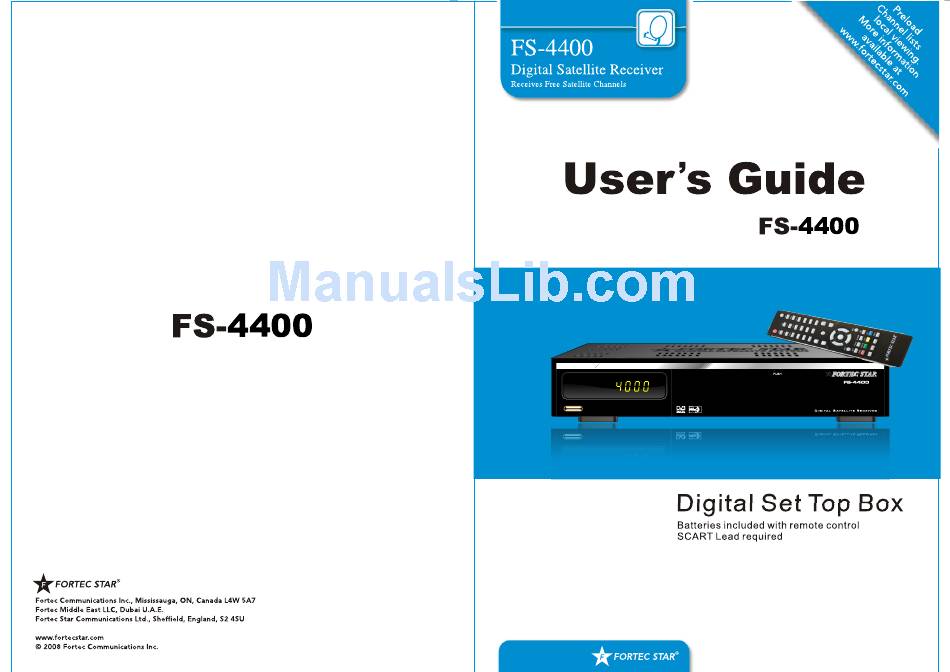

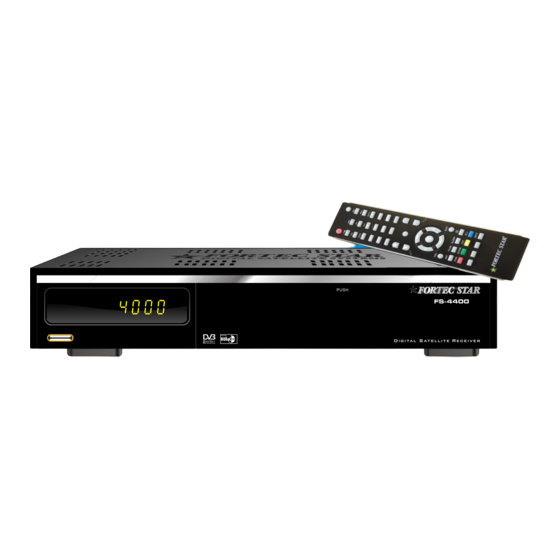

Fortec Star FS-4400 User Manual

Digital satellite receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Fortec Star FS-4400

Summary of Contents for Fortec Star FS-4400

  • Page 2: Table Of Contents

    GENERAL INFORMATION Main Features For your Safety Unpacking General Operation INSTALLATION Front Panel Rear Panel Connecting to TV& VCR using SCART support Connecting to TV using RCA support Connecting to Digital Amplifier MENU INFORMATION Main Menu 1. Channel List 1.1 TV Channel List 1.2 Radio Channel List 1.3 Delete Al 1.4 Delete channels by satellite...
  • Page 3 4. Tools 4.1 Information 4.2 Factory Setting 4.3 Upgrade by USB 4.4 USB 5. Game 6. REC 6.1 Record Mangager 6.2 HDD Information 6.3 HDD Format 6.4 PVR Setting 7. Hot key 7.1 Info 7.2 EPG 7.3 Find 7.4 Numer 7.5 TV/Radio 7.6 Up/Down 7.7 Left/Right...

  • Page 4: General Information

    A Digital Satellite Receiver is a convenient product that allows you to view a variety of programs provided through satellite. This user's guide covers the installation of the DSR and the necessary steps to implement various features. This also explains special features available only in this DSR in detail, which will allow you to make full of these feature.

  • Page 5: For Your Safety

    For Your Safety To avoid electric-shock hazards, do not Keep the receiver away from flower vases, open the cabinet, refer servicing to qualified tubs, sinks, etc., in order to avoid damaging personnel only. the equipment. Do not expose the receiver un-der the Do not block ventilation holes of the sunlight.

  • Page 6: Unpacking

    Remote Control Batteries Guide General Operation Throughout this manual you will notice that the everyday operation of the receiver is based on a series of user friendly on screen display and menus. These menus will help you get the most from your receiver, guiding you through installation, channel organizing, viewing and many other functions.

  • Page 7: Rcu

    Function Turns power ON/OFF of the DSR When watching a channel, mute the sound .,*?!@ Enter number of the required menu item or select a channel number to watch TV/RADIO Switches between TV and Radio mode PQRS WXYZ Switches back to previous channel Displays the favorite group list TV/RADIO Timeshift function key...

  • Page 8: Installation

    Rear Panel Front Panel Rear Panel Rear Panel LNB IN: CONNECT TO SATELLITE ANTENNA LNB OUT:CONNECT TO THE OTHER RECEIVER CONNECT TO A PC FOR S/W UPGRADE CONNECT TO TV AND VCR USING A SCART CABLE POWER ON/OFF CONNECT TO 12V TO AN EXTERNAL 0/12V SWITCH CONNECT VIDEO TO TV USING RCA JACK CONNECT TO AUDIO R/L TO TV OR AUDIO TUNER...

  • Page 9: Connecting To Tv Using Rca Support

    Connecting to TV using RCA support Satellite VIDEO AUDIO Dish Connecting to Digital Amplifier Satellite Dish DIGITAL AUDIO CONVERTOR OR AMPLIFIER DIGITAL AUDIO SPEAKER...

  • Page 10: Menu Information

    Main Menu Make sure that you have properly installed and connected the cables of the receiver well. If the receiver is the factory status or there is no program list, when power on, the Main Menu window will be displayed on the screen. During the normal TV/Radio mode, press MENU key on the RCU to enter into the Main Menu window.

  • Page 11: Channel List

    If there is no program, you can not exit from the Main Menu window by pressing MENU or EXIT key. System will inform "No channel" and the following items turn grey. Sub-menu Turn grey when there is no program Channel List TV Channel List Radio Channel List Delete all...
  • Page 12 3. Press FAV key to move the FAV button upward. Select the program and press OK key to pop up the favourite group list. In the list, select the group that you want to add into and press OK key, and then you will find favourite mark is displayed at the right side of the selected program.
  • Page 13 7. Press blue colour key to enter into the E d i t c h a n n e l w i n d o w . i . Sort (red colour key) Press red colour key to pop up the Sort drop- down list.

  • Page 14: Radio Channel List

    If the name is empty, system will pop up a dialogue informing "Name" once yellow colour key is pressed. Press OK key to close this dialogue. iii. Delete (blue colour key) In Delete window, press blue colour key to move the Delete button upward. Select the program and press OK key to mark this program with the deletion mark.

  • Page 15: Installation

    2. Installation 1. Press OK key or key to pop up the "Input Password" dialogue, you can not enter into the menu unless the correct password is inputted. The default password is "0000". 2. Press PR+, PR- keys to move the cursor up or down.

  • Page 16: Antenna Setup

    4. Press green colour key to pop up the Add Satellite window. Since the same operation as the above Edit Satellite window, here we don't explain any more. 5. Press blue colour key to pop up the dialogue "Are you sure to delete?". Select Yes button and press OK key to delete the selected satellite.
  • Page 17 3. Delete All: Press OK key to pop up the dialogue "Are you sure to clear set satellite position of this tuner?". Press OK key at the Yes button to clear all the memories about the position of the satellites that has connected to the current turner.

  • Page 18: Single Satellite Search

    6. If select USALS, Delete All item will turn grey. Local Longitude, Local Latitude: Press keys to switch between West and East, press keys to switch between North and South. Press OK key to enter into the editing mode. Use numeric keys (0-9) to input the longitude or latitude, press MENU key or EXIT key to exit.

  • Page 19: Multi Satellite Search

    2.5 Multi Satellite Search From the Multi Satellite Search window, you can search several satellites at the one time. 1. Satellite: All selected satellites in the satellite list window are displayed on the down part. You can press keys to switch among them. 2.

  • Page 20: System Setup

    4. Press yellow colour key to pop up dialogue " Are you sure to delete?". Press OK key at the Yes button to delete the selected TP, or press EXIT key to cancel the operation. 5. Press blue colour key to pop up the TP Search window.

  • Page 21: Local Time Setting

    3.2 TV Press PR+, PR- key to move the cursor up or down, while press keys to change the setting and the setting will take effect immediately. 1. Display Mode: Select among Auto,PAL, PAL-M, PAL-N, NTSC. 2. Aspect Mode: Select among 4:3LetterBox, 4:3PanScan, 16:9.

  • Page 22: Parental Control

    2. Timer Service: Select between Channel and Message. If Channel is selected, the Wakeup Channel is displayed in the following item. If Message is selected, the Wakeup Message is displayed in the following item. In wakeup message, you can select among Birthday, Anniversary, General.

  • Page 23: Osd Setting

    3.6 OSD Setting 1. Subtitle Display: Press keys to select between On and Off. 2. OSD Timeout: Press keys toselect from 1 to 10 by step1. The default values Is 5. 3. OSD Transparency: Press keys to select among Off, 10%, 20%, 30%, 40%. The default option is Off.

  • Page 24: Information

    4.1 Information Press OK key to the Information window. 4.2 Factory Setting Press OK key to enter into the Factory Setting window. Select Yes button and press OK key to return to the factory setting. All searched channels and set information will be erased. Select No button and press OK key to cancel this operation, or press MENU or EXIT key to cancel and exit.

  • Page 25: Usb

    4.4 USB USB menu will be automatically shown when insert U disk to USB port except auto scan, multi picture, upgrade. Or open USB menu according to Menu -> Tools-> USB. Press OK to enter into this window. USB menu will be disabled when no USB device is plugged.

  • Page 26: Game

    3.Blue Key: Press Blue Key, will delete all image files in play list, but system will remind Are you sure? before practical operation, if you select Yes, all file will be deleted and Play list window will be closed. 4.Green key: Press Green Key will show Setup Menu, please see the besides setup menu.

  • Page 27: Hdd Format

    6.3 HDD format Press OK at the HDD Format button to pop up the dialogue Are you sure to format the disc? You can select FTA,NTFS or Cancel. 6.4 PVR Setting 1.Timeshift:If you set timeshift , it will r e c o r d t h e c u r r e n t c h a n n e l y o u w a t c h automatically.

  • Page 28: Find

    : Press OK key at this button to move the cursor to the current time line. : Press OK key to push the time forward or backward by half an hour. : Press OK key to push the time forward or backward by half an hour. : Press OK key to push the time forward or backward by a day.

  • Page 29: Mute

    7.8 Mute Press key to close the volume. You can press key once again to restore the volume, or press keys to open the volume. 7.9 Pause During the viewing, you can press PAUSE key to stop the picture while the volume continues.

  • Page 30: Fav

    7.13 FAV 1. Press FAV key to pop up the favourite group window. 2. Press keys to select the favorite group. Press PR+, PR- keys to select the channel up or down.. Press OK key at the selected channel to view it in full-screen. Press MENU or EXIT key to exit.
  • Page 31 Problem Possible causes What to do The display on the front Check that the main cable is plugged into Main cable is not connected. panel does not light up. the power socket. No sound or picture, but the receiver is in standby mode. Press the standby button.
