Fortec Star SN6B5BA User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

SN6B5BA
User Manual
0

Advertisement

Table of Contents
loading

Related Manuals for Fortec Star SN6B5BA

Summary of Contents for Fortec Star SN6B5BA

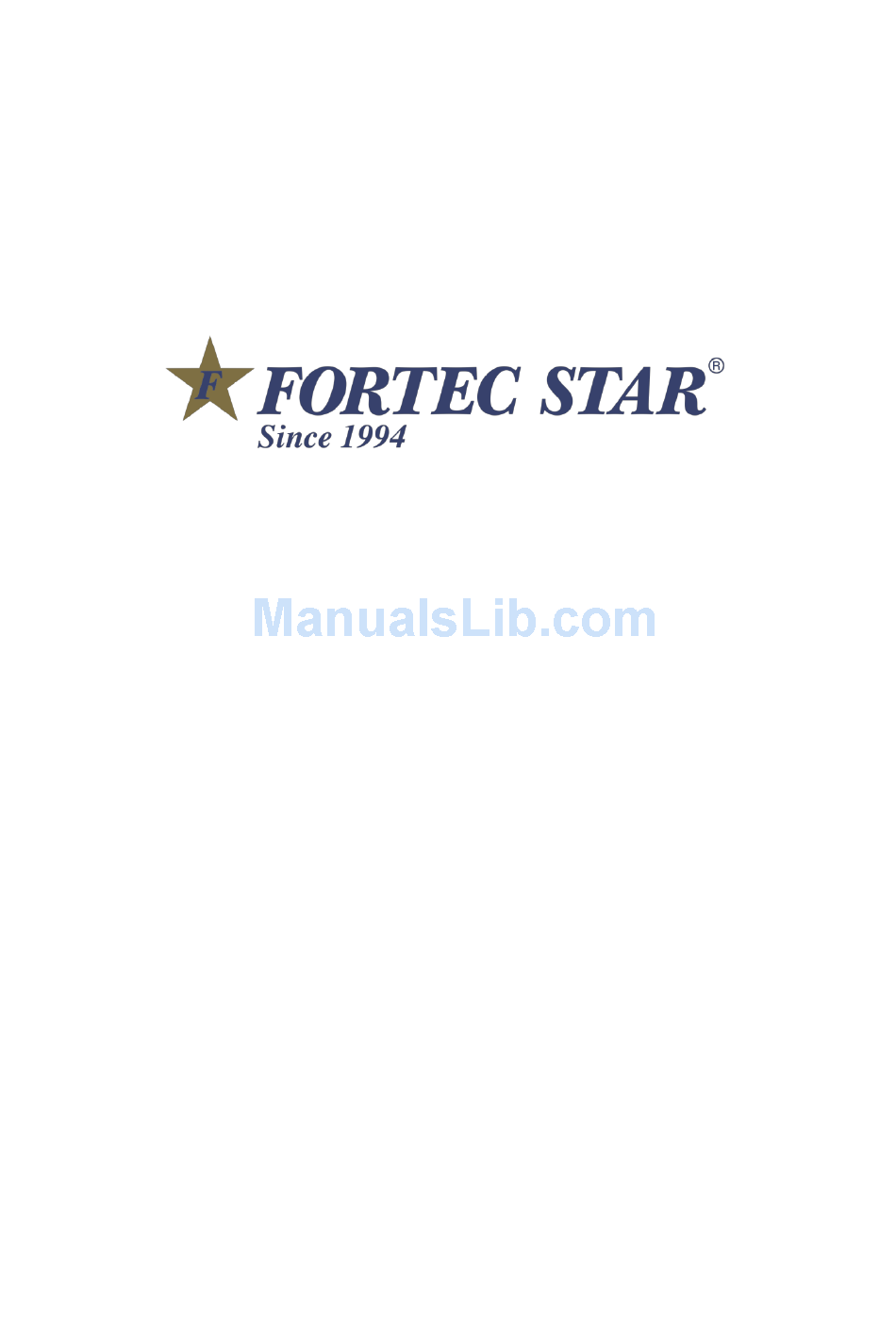

  • Page 1 SN6B5BA User Manual...

  • Page 2: Table Of Contents

    CONTENTS CONTENTS ............................1 1SAFE CAUTION ..........................3 2UNPACKING AND SETUP HARDWARE ..................6 2.1 F RONT PANEL ..........................6 2.2 R EAR PANEL ........................... 6 2.3 T IGHT EFT VIEW ........................6 2.4 H ARDWARE INSTALLATION ......................7 3REMOTE CONTROL .......................... 9 4ENTERTAINMENT ON ANDROID MEDIA BOX ................
  • Page 3 4.2 S YSTEM UPGRADE ........................17 6TROUBLESHOOTING ........................19 6.1 N UHD TV ....................... 19 O SIGNAL ON THE 6.2 C ................... 19 ANNOT TURN ON YOUR MEDIA BOX 6.3 C ANNOT CONNECT TO NETWORK ....................19 6.4 S UHD TV CAN NOT DISPLAY THE ENTIRE PICTURE ............

  • Page 4: 1Safe Caution

    1 Safe Caution NOTICE: To prevent fire and electric shock, do not expose this receiver to rain or moisture. In order to avoid any possible risk of electric shock, never attempt to open the unit. In case of the unit breaking down, repair of the unit should be carried out by qualified technicians.
  • Page 5 Do not put anything above the unit (for example, CDs or magazines).  Sufficient Ventilation Place the receiver in a well-ventilated location to prevent accumulation of internal heat.  Allow a gap of at least 10cm to the rear and the top of the unit, as well as a space of 5cm to both sides to avoid overheating.
  • Page 6 The plug must remain readily accessible after the installation of the product. ...

  • Page 7: 2Unpacking And Setup Hardware

    Unpacking and setup hardware The pictures shows what our product looks like and how to setup the hardware. 2.1 Front panel 2.2 Rear panel 2.3 Top/Right/Left view NOTICE: The pictures are for references only; please make the object as the standard.

  • Page 8: Hardware Installation

    2.4 Hardware installation As shown, connect the interfaces on the television with the corresponding interfaces on the product (such as connect the product with TV sets through the HDMI cable), then after the power is connected, turn on the switch and you can use the product.
  • Page 9 NOTICE: The picture is for references only, please make the object as the standard.

  • Page 10: 3Remote Control

    Remote control NOTICE: The picture is for references only, please make the object as the standard.

  • Page 11: 4Entertainment On Android Media Box

    Notes: The default password is 0000 for this media box. All the Instructions and pictures here are for reference only, please make the product you have as the standard and refer to the actual items. Entertainment on Android Media Box Thanks to the power full Android platform, the media box convert your TV set to smart screen.

  • Page 12: Install App From External Usb/Sd Card Storage

    Login to the Google Play Store with your account and then you could install your prefer APP for entertainment on your TV set. 4.2 Install APP from external USB/SD Card storage Download APP install file(*.apk) on the computer and copy to USB/SD card storage. Plug USB/SD Card storage in to the media box and press Home button to show launcher.

  • Page 13: Install App From Tv App Store

    Launch FileBrowser to choose USB/SD card storage and browse APK file, press OK button to install it. 4.3 Install APP from TV APP Store TV APP Store built in the most popular APP for entertainment on TV set. You could launch TV APP Store to install video APP, games for entertainment.

  • Page 14: Customize Your Launcher

    4.4 Customize your launcher You could add your prefer APP to home page and launch it quickly. Press Home button to show launcher and choose + icon by press OK button and then your could add your prefer APP to the home page. You could delete APP shortcut from home page or uninstall the APP by press...

  • Page 15: Miracast/Airplay/Dlna

    menu button when you move the cursor to the APP shortcut icon. 4.6 Miracast/Airplay/DLNA The media box support Miracast/Airplay/DLNA, means you could share your Android Phone/iPhone screen to the TV set or share video/music/picture from your Android Phone/iPhone, Android Pad/iPad to the TV set through media box. Launch S Link to start Miracast receiver and mirroring your Android Phone/Pad screen to the TV set.

  • Page 16: 5System Settings And Upgrade

    Download and install AirPin from Google Play Store on the media box to receive iPhone/iPad Airplay mirroring and DLNA from all DLNA compatible APP. System Settings and upgrade System settings and upgrade helps you to setup the media box in advance settings such...

  • Page 17: System Settings

    as video/audio output, network connection, Bluetooth etc... 5.1 System Settings You could open system settings menu from Launcher by choose Settings icon and press OK button. You could setup Network, Bluetooth, Video/Audio output, Language etc... Choose More Settings to open Android system settings for advance settings. Although the media box supply System settings for configure it in advance settings mode, we don’t recommend the user configure the media box without skillful master.

  • Page 18: System Upgrade

    4.2 System upgrade Media box could be upgraded through USB/SD card storage and OTA. You might see online update notification on the home page when new software available on internet. Click notification to download new software and upgrade the media box.
  • Page 19 You could download the new version from our customer service website and upgrade the media box through USB/SD card storage. Go to Settings--->About--->Upgrade--->Local update. Choose the upgrade package from USB/SD card storage to update the media box.

  • Page 20: 6Troubleshooting

    Troubleshooting 6.1 No signal on the UHD TV Check if the HDMI cable is securely connected.(HDMI 2.0 Cable required)  Check if you have selected the correct HDMI input on your UHD TV.  Check the antenna cable, replace the cable, or connect the cable to the receiver tightly. ...

  • Page 21: The Remote Control Does Not Work

    On your UHD TV, go to Menu >Screen >Press arrow buttons to select the ratio type >  Choose automatically display the entire screen. 6.5 The remote control does not work Make sure the batteries are good and they are inserted correctly in the remote control. ...
  • Page 22 7. Specification Hardware Chipset Amlogic S905 DDR3 1GB Flash eMMC 8GB Video H.264/H.265 HEVC MP@L5.0 up to 4K UHD@60fps Video Decoding H.264/H.265 AVC MP@L5.1 up to 4K UHD@60fps H.264/H.265 MVC up to 4K UHD@60fps MPEG-4 ASP@L5 up to 1080P@60fps AVS Jizhun Profile up to 1080P@60fps MPEG-2 MP@HL up to 1080P@60fps MPEG-1 MP@HL up to 1080P@60fps RealVideo 8/9/10 up to 1080P@60fps...
  • Page 23 Video resolution 4K@60Hz 4K@50Hz 1080p/i 720p Audio Audio Decoding Dolby Digital/Digital Plus, MEPG, AAC, HE-AAC, OGG,OGA,FLAC,ALAC,Ape,M4A,RM, MPEG-1 layer1/2, MPEG-2 Layer II ( DTS, WMA, WMA Pro,WMV Optional) Audio mode Mono/Stereo/Left/Right Power DC Input Range 5V / 2.0A Power Consumption Maximum 10 W Interface Left Panel 2*USB, Micro SD Slot...
  • Page 24 DC Adaptor Physical Features Operating Temperature 0℃-40℃ Storage Temperature -10℃-65℃ Size(WxDxH)in mm Weight...
