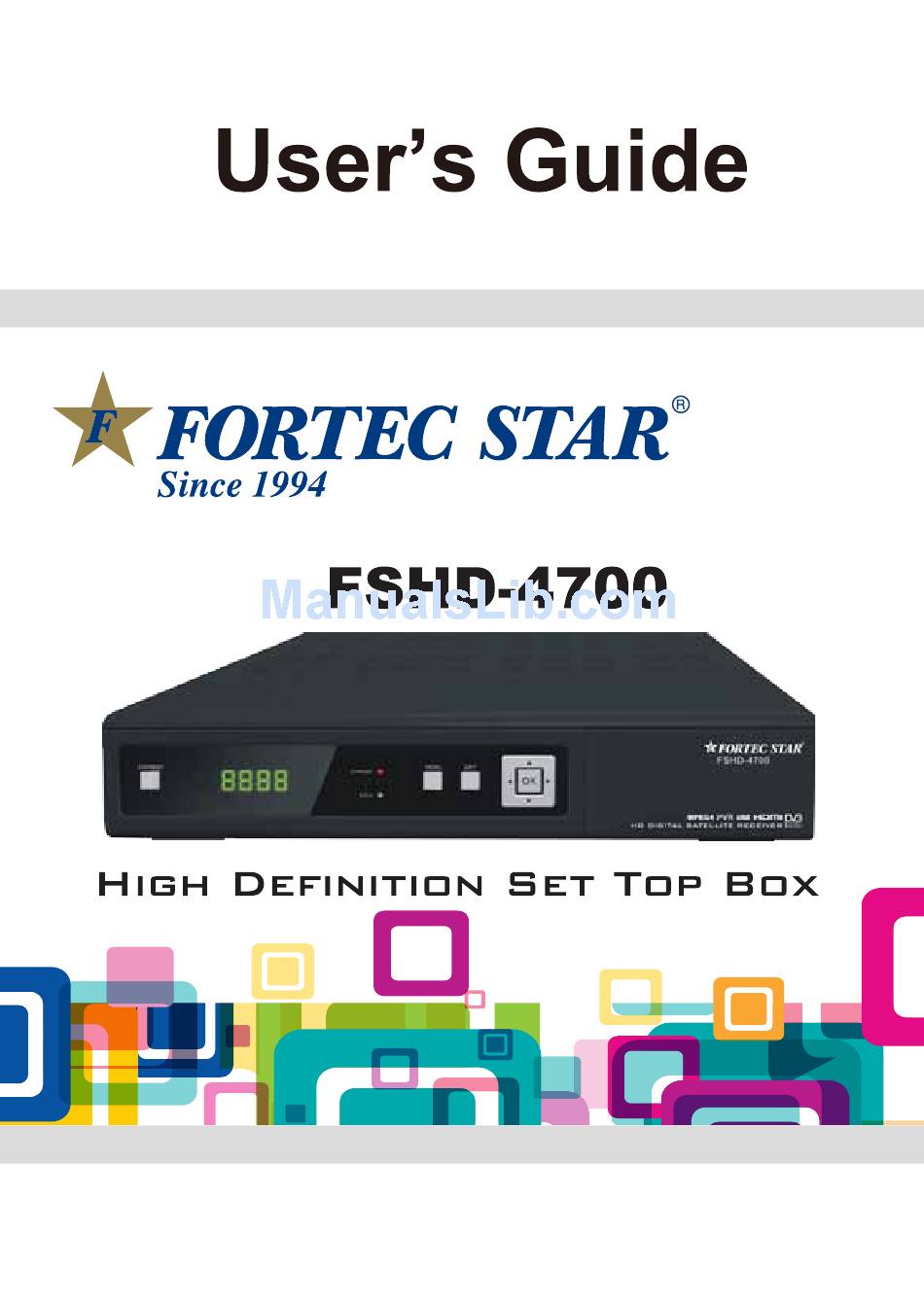

Fortec Star FSHD-4700 User Manual

High definition set top box
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FSHD-4700 and is the answer not in the manual?

Questions and answers

Related Manuals for Fortec Star FSHD-4700

Summary of Contents for Fortec Star FSHD-4700

  • Page 2: Table Of Contents

    GENERAL INFORMA TION Main Features For your Safety Unpacking General Operation Rear Panel INSTALLATION MENU INFORMA TION Main Menu 1. Edit Channel 1.1 TV Channel List 1.2 Radio Channel List 1.3 Delete channels by satellite 2. Installation 2.1 Antenna Connection 2.2 Satellite List 2.3 Antenna Setup 2.4 Single Satellite...
  • Page 3 4. T ools 4.1 Information 4.2 Factory Setting 4.3 Conditional Access Upgrade by USB Network Local Setting WiFi Manager Upgrade by Network Weather Forecast 4.9 RSS Reader 5. Game 6. REC Media Player 6.2 PVR Storage Information 6.3 PVR Setting Remove USB device safely 7.

  • Page 4: General Informa Tion

    A Digital Satellite Receiver is a convenient product that allows you to view a variety of programs provided through satellite. This user's guide covers the installation of the DSR and the necessary steps to implement various features. This also explains special features available only in this DSR in detail, which will allow you to make full use of these feature.

  • Page 5: For Your Safety

    For Y our Safety To avoid electric-shock hazards, do not Keep the receiver away from ower vases, open the cabinet, refer servicing to quali ed tubs, sinks, etc., in order to avoid damaging personnel only. the equipment. Do not expose the receiver un-der the Do not block ventilation holes of the sunlight.

  • Page 8: Unpacking

    Remote Control Batteries Guide AV cable General Operation Throughout this manual you will notice that the everyday operation of the receiver is based on a series of user friendly on screen display and menus. These menus will help you get the most from your receiver, guiding you through installation, channel organizing, viewing and many other functions.

  • Page 9: Rcu

    Function Standby/On, Standby/O When watching a channel, mute the sound Enter number of the required menu item or select a channel number to watch T V /R A D IO Switches between TV and Radio mode Switches back to previous channel Displays the favorite group list F AV S AT...

  • Page 10: Rear Panel

    Rear Panel Rear Panel CONNECT TO AUDIO R/L TO TV OR AUDIO TUNER CONNECT TO A DIGITAL AMPLIFIER CONNECT TO A PC FOR S/W UPGRADE POWER ON/OFF CONNECT TO USB DEVICE CONNECT TO TV SET DV-OUT INPUT CONNECT VIDEO TO TV USING RCA JACK CONNECT TO TV SET OR VIDEO PROJECTOR...
  • Page 11 Connecting to TV using SCART support A U D IO V ID E O Satellite Dish Connecting to Digital Ampli er Satellite Dish DIGITAL AUDIO CONVERTOR OR DIGITAL AUDIO AMPLIFIER SPEAKER The picture is only for reference,please make the object as the standard.

  • Page 12: Installation

    Main Menu Make sure that you have properly installed and connected the cables of the receiver . If the receiver is the factory status or there is no program list, when power on, the Main Menu window will be displayed on the screen. During the normal TV/Radio mode, press MENU key on the RCU to enter into the Main Menu window.

  • Page 13: Edit Channel

    If there is no program, you can not exit from the Main Menu window by pressing MENU or EXIT key. System will inform "No channel" and the following items turn grey . Sub-menu Turn grey when there is no program Edit Channel TV Channel List Radio Channel List...
  • Page 14 3. Press FAV key to move the FA V button upward. Select the program and press OK key to pop up the favourite group list. In the list, select the group that you want to add into and press OK key, and then you will nd the favourite mark is displayed at the right side of the selected program.
  • Page 15 i . Sort (red colour key) Press red colour key to pop up the Sort drop-down list. Name(A-Z): The ascending order , omitting the $ character, the number is ahead, then the capital letter, at last the lowercase. Name (Z-A): The opposite order of the above Name (A-Z).

  • Page 16: Radio Channel List

    iii. Delete (blue colour key) In Delete window, press blue colour key to move the Delete button upward. Select the program and press OK key to mark this program with the deletion mark. You can cancel this mark by pressing OK key again. Press EXIT key to pop up the dialogue "Are you sure to save?".

  • Page 17: Satellite List

    2.2 Satellite List 1. Press PR+, PR- keys to select the satellite up or down. Press OK key to select and mark, and you can press OK key again to cancel the selection and the mark. 2. If there is no satellite, the red colour and blue colour keys will be invalid.

  • Page 18: Antenna Setup

    2.3 Antenna Setup Part A : Fixed Suppose that you have selected Fixed Antenna in the Antenna Connection window. 1. Satellite: All selected satellites in the satellite list are displayed in this item. Press keys to select the satellite in circle. Or press OK key to pop up the drop-down list, then select the desired satellite in the list and press OK key to con rm.
  • Page 19 Position No., & Save: The range is from 0 to 63. "0" delegates the original position. You can select the proper value when you has rotated the antenna. Go to X: Press OK key to pop up the drop-down list, select the proper position (reference or from 1to 63) to realize the selected position.

  • Page 20: Single Satellite Search

    7. Motor Setting : Press OK key to enter into the Motor setting window. Satellite, Transponder: Press keys to select satellite or transponder, or press OK key to pop up the drop-down list and select in the list. 2.4 Single Satellite Search 1.

  • Page 21: Tp List

    4. Network Search: Select between No and Y es. This item turns grey when Auto Scan is selected in the following Scan mode item. 5. Scan Mode: Press keys to select between Auto Scan and Preset Scan. Auto Scan is Blind scan, while Preset Scan is to search the preset frequencies. 6.

  • Page 22: System Setup

    4. Press yellow colour key to pop up dialogue " Are you sure to delete?". Press OK key at the Yes button to delete the selected TP , or press EXIT key to cancel the operation. 5. Press blue colour key to pop up the TP Search window.

  • Page 23: Tv System

    3.2 TV System Press PR+, PR- key to move the cursor up or down, while press keys to change the setting and the setting will take e ect immediately. 1. Display Mode: Select among 1080p_50, 1080p_60, 720p_60, 720p_50, 576p, 576i, 480p, 480i, By Native TV and By source.

  • Page 24: Timer Setting

    3.5 Timer Setting If there is no program, you can not enter into this window. There are 8 timers that can be set. Select Timer up or down, and press OK key to enter into the setting window. 1. Timer mode: The default mode is of f. Y ou can set the timer once, daily and o .

  • Page 25: Osd Setting

    3.7 OSD Setting 1. OSD Timeout: Press keys toselect from 1 to 10 by step1. The default values Is 5. 2. OSD Transparency: Press keys to select among Of f, 10%, 20%, 30%, 40%. default option is O . Press MENU or EXIT key to save and exit. 3.8 Favorite There are 32 favorites group listed in this window.

  • Page 26: Factory Setting

    4.2 Factory Setting Press OK key to enter into the Factory Setting window. Select Yes button and press OK key to return to the factory setting. All searched channels and set information will be erased. Select No button and press OK key to cancel this operation, or press MENU or EXIT key to cancel and exit.

  • Page 27: Upgrade By Usb

    4.3.4 Maturity Level Input the PIN then Move cursor to Select Maturity level,you can select A-Over18,X- Erotic,G-General audience,PG-Parental Guidance,move cursor to Change Maturity level button and press OK key,and then system will pop up a dialogue informing you the changing result. 4.3.5 Subscription Status Know the detail information of Subscription Status.

  • Page 28: Upgrade By Network

    4.7 Upgrade by Network 1. Protocol: Select between HTTP and FTP 2. URL Type: Select between number and string. 3. URL: press number key 0-9 to input. 4. User: Press number key 0-9 to input the user name. 5. Press number key 0-9 the input the password. 6.

  • Page 29: Pvr Storage Information

    In edit window: Red key: Press red key to enter the rename window, you can rename the le by press number 0-9 on RCU. Green key: Press green key to enter the copy window, press key to select the place you want to copy to, and press green key to begin copying.

  • Page 30: Pvr Setting

    6.3 PVR Setting 1. Time shift: Select between O and On. 2. Jump: Select among 30sec,1min, 5mi,10min,30min. 3. Timeshift to Record: Select between On and O . 6.4 Remove USB device safely Press OK on this item it will pop up a dialogue:"Y ou can safely remove USB device now! ", then you can move your USB device safely.

  • Page 31: Find

    7.3 Find Press FIND key on to pop up the Find window. Use numeric keys to enter into the character and use the colour keys to realized the corresponding operation. 7.4 Number Use the numeric keys (0-9) to input the number of the desired channel. If the inputted number is beyond the valid channel number, system will "No such a channel"...

  • Page 32: Audio

    7.11 Audio 1. Press keys to enter into the Audio window. 2. Press keys to select among Left, Right, Stereo, and Mono. 3. Changing the audio mode is only connected with the current channel, not all the channels. 4. Press MENU or EXIT key to close this window. 7.12 Recall Press key to...
  • Page 33 Problem Possible causes What to do The display on the front Check that the main cable is plugged into Main cable is not connected. panel does not light up. the power socket. No sound or picture, but the receiver is in standby mode. Press the standby button.
