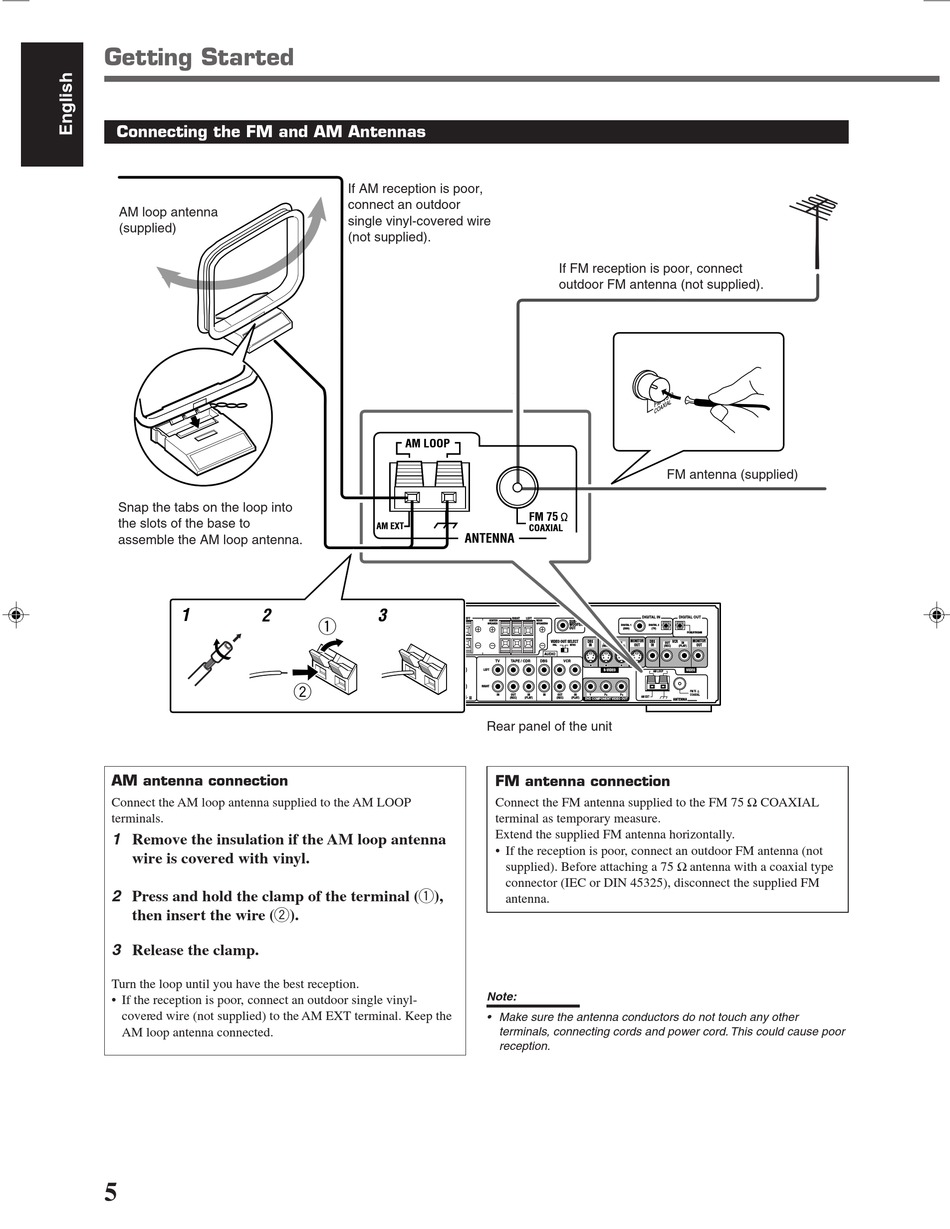

Connecting the FM and AM Antennas

AM loop antenna
(supplied)
Snap the tabs on the loop into
the slots of the base to
assemble the AM loop antenna.
1 2
230-240V
AM antenna connection
Connect the AM loop antenna supplied to the AM LOOP
terminals.
1 Remove the insulation if the AM loop antenna
wire is covered with vinyl.
2 Press and hold the clamp of the terminal (1),
then insert the wire (2).
3 Release the clamp.
Turn the loop until you have the best reception.
• If the reception is poor, connect an outdoor single vinyl-
covered wire (not supplied) to the AM EXT terminal. Keep the
AM loop antenna connected.
5
If AM reception is poor,
connect an outdoor
single vinyl-covered wire
(not supplied).
B
AM LOOP
AM EXT
3
VOLTAGE
110V SELECTOR 1
220V
127V
CAUTION:
SPEAKER
IMPEDANCE
8
2
If FM reception is poor, connect
outdoor FM antenna (not supplied).
FM 75
COAXIAL
ANTENNA
RIGHT LEFT RIGHT LEFT
FRONT CENTER REAR SUB-
SPEAKERS SPEAKER SPEAKERS
WOOFER
OUT
VIDEO OUT SELECT DBS
PAL NTSC IN
AUDIO
TV TAPE / CDR DBS VCR
16
LEFT
RIGHT
IN OUT IN IN OUT IN Y
AV COMPU LINK-
(REC) (PLAY) (REC) (PLAY)
DVD COMPONENT VIDEO OUT
Rear panel of the unit
FM antenna connection
Connect the FM antenna supplied to the FM 75 Ω COAXIAL
terminal as temporary measure.
Extend the supplied FM antenna horizontally.
• If the reception is poor, connect an outdoor FM antenna (not
supplied). Before attaching a 75 Ω antenna with a coaxial type
connector (IEC or DIN 45325), disconnect the supplied FM
antenna.
Note:
• Make sure the antenna conductors do not touch any other
terminals, connecting cords and power cord. This could cause poor
reception.
FM antenna (supplied)
