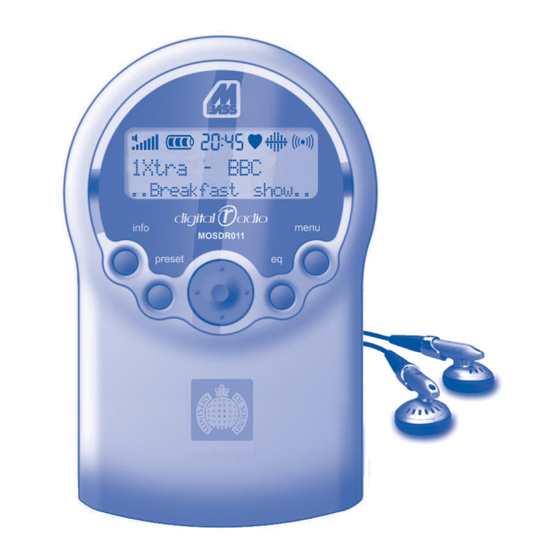

- Page 1 User Guide Personal DAB Tuner www.ministryofsound.com/audio MOSDR011...
- Page 2 The brief was just a few simple words on a single sheet of paper - yet the task was enormous: "Create the best sound in the world regardless". Two years after delivering the brief to our sound technicians, our club sound-system was ready. Housed in a specially constructed room simply referred to as 'The Box', it was the result of intensive research across the globe, utilising specialists in all areas of sound and electronics.
- Page 3 After 10 years of refinement, tweaking and pampering, and with the advent of advanced chip technology, we can bring you your very own 'M-Bass' - the true sound of The Box right in to your very own home, or the palm of your hand. So times may have changed, as has technology, but whether it's for our club or audio products, the brief's as true today as it ever was - "Create the best sound in the world regardless".
-
Page 4: Table Of Contents
Contents What is digital radio? ............. 6 Getting Started ............... 7 In the box ................7 Battery installation ..............7 The screen ................8 Fixed Icons ................8 Switching the radio on ............9 Battery level indicator ............10 Headphones ................. 10 Switching the radio off ............ - Page 5 Using the Radio ..............16 Introduction ................16 Control buttons ..............16 Operation ................18 Additional information ............20 Power on and Tuning ............21 Tuned and Playing ..............23 Features ................24 Factory Reset ............... 32 Station not available ............. 32 Battery Removal ..............
-
Page 6: What Is Digital Radio
What is digital radio? DAB (Digital Audio Broadcasting) is the next caused because radio waves do not generation of radio. behave in an orderly fashion, but bounce and reflect off buildings and DAB was developed in Europe by a mountains etc. DAB sees this as an consortium of broadcasters and advantage and uses the direct and manufacturers. -
Page 7: Getting Started
Getting Started Carefully remove your Ministry of Sound MOSDR011 Digital Radio from the box. You may wish to store the packaging for future use. Read these instructions before operating the radio. In the box Inside the box you should find the following... -
Page 8: The Screen
supply socket on the radio, the The screen backlight is turned on and remains on The radio employs an STN transflective blue while the radio is powered externally. backlit LCD screen. It has a row of fixed icons across the top of the screen that indicate Fixed Icons user settings and provide information to the Volume level indicator... -
Page 9: Switching The Radio On
Switching the radio on Time The time is displayed in a 24-hour digital Check that the batteries have been • format. The clock is only displayed when installed correctly. DAB is being received. It shows the time • Ensure that the lock switch on the top broadcast by the DAB stations. -
Page 10: Battery Level Indicator
Switching the radio off Press the power switch on the top panel. Press the power push-button switch on the top panel and hold for about two seconds. The screen will be backlit (blue) during this period. Release the switch as the on screen information is cleared. -
Page 11: Control Buttons
Control buttons The operation of these buttons to tune in and play the received digital audio stations When switched on, all functions of the radio are described in Using the Radio starting on are controlled by the five push buttons on page 16 of this guide. -
Page 12: Quick Views - Front
Quick Views - Front LCD Screen menu button eq button Central Navigator button: Volume control, Scroll and Select preset button info button... -
Page 13: Top And Side
- Top and side power on-off switch lock switch Headphone socket Battery compartment cover External power supply connector... -
Page 14: Headphones
- Headphones Headphone connector, stereo jackplug Right earpiece Left earpiece In-line aerial element... -
Page 15: Lcd Screen
- LCD screen Row of icon indicators Time received from tuned radio station First line of alphanumeric text Indicator shown to indicate your favourite stations function is set Second line of alphanumeric text Equalisation set indicator Volume level indicator Received signal strength indicator Battery level indicator... -
Page 16: Using The Radio
A blue light (backlight) illuminates the screen - this stays on for about five seconds The MOSDR011 is a portable digital radio. It (or three seconds after the last button press, can be worn or carried in a pocket or bag to if button presses have been made). - Page 17 Central Navigator While the radio is playing, the Central Navigator button has three functions: As a volume control. • Push the button forward (UP) to increase the volume and backward (DOWN) to reduce the volume. Its action can be heard immediately in the headphones and is indicated on the screen by the appearance of the volume icon.
-
Page 18: Operation
(described earlier). Operation There are four primary options: Station The MOSDR011 Digital radio uses an LCD order, Manual tune, Autoscan local and screen and a unique key arrangement to Version number of the embedded software. -
Page 20: Additional Information
The radio may be powered by means of a screen. In general, when a timeout suitable external d.c. supply. In these completes, the display will return to the top- circumstances, when the adaptor level interface. connector is inserted, the radio circuitry Power down detects this and turns on the backlight. -
Page 21: Power On And Tuning
Power on and Tuning On the very first power on, or following a factory reset (or if a factory reset was carried out prior to power down), the radio operates as shown in the following flow diagram. Stage 1. The LCD screen displays a welcome message. - Page 22 Adjust the volume to a comfortable listening On subsequent power-ups the radio will level using the Central Navigator button. acquire/tune to the last station selected and If no stations can be found (unsuccessful) the icons will reflect the system status, as then the screen at stage 3 will be displayed shown below.
-
Page 23: Tuned And Playing
Tuned and Playing Once the station is tuned and playing, the Station name will appear on the upper line of text. The bottom line can be customised as described below. The information that can be displayed on the second line comprises: 1Xtra : BBC •... -
Page 24: Features
Features Station selection and navigation While one station is playing, you can scroll through other located stations using the Central Navigator - scroll button. Press the right and/or left sides of the Central Navigator button to step through the acquired station list . Once the end of the list is reached, it will automatically wrap around to the start of the list. - Page 25 Select button signal function The signal strength icon on the screen The select button has a continues to be displayed at the same time. second function in addition to Press SELECT again to cancel the signal the one where, in normal level function.
- Page 26 Preset You can store up to ten stations using the preset function. To access the preset function press the preset button. A list of the ten presets becomes available on the bottom line of the screen. To select and play a preset scroll the list until you find one you wish to listen to and then press select to tune to the stored preset.
- Page 27 The lower text line shows the first preset channel of the Preset list, and its status i.e. the name of the station it is allocated to number, or whether it is empty. Both display the preset channel number, 1 to 10. Use the Central Navigator button (Left or Right) to scroll through the list until you find an empty preset channel or a preset channel...
- Page 28 Continue to press the eq button until you reach the desired equalisation from the The EQ function is called via the eq button. following : MBass, Monitor, Studio, Club, The current equalisation is represented by Arena and Flat. the EQ icon on the screen. To change to another setting, press the eq The EQ setting is saved on power down.
- Page 29 Menu settings The station order function is accessed by The menu function allows you to scroll the scrolling to the Station order option in the system settings and make certain changes list using the Central Navigator buttons and to them as follows. then pressing the SELECT button.
- Page 30 When this station order is selected the heart When the station order is set to Favourites, icon will be displayed on the screen. and you browse the station order list, an additional option called Favourite Presets becomes available. This automatically allocates your favourites to the presets and overrides any presets previously allocated.
- Page 31 To exit this menu press SELECT. NOTE. The MOSDR011 radio is designed for use in the UK and consequently can only receive stations on Band III. The UK frequency allocations for DAB Band III Services are: Channels 11B, 11C, 11D, 12A, 12B, 12C and 12D.
-
Page 32: Factory Reset
Factory Reset Station not available Carrying out a factory reset clears any If no stations are found, then a message settings that you have implemented in the advising that a station is not available is memory and reboots the radio. displayed. -
Page 33: Power On/Power Off
Power on/Power off Press and hold the power button until the the screen clears and the radio turns off. Press and hold the power button to turn the radio on. The screen will light and the radio will revert to the station you were listening to previously (if still available). -
Page 34: Care & Maintenance
Care & Maintenance Cleaning Wipe with a soft cloth. If the radio is very dirty, dampen a cloth with a weak solution of detergent and water and then wipe clean. Dry thoroughly with a clean soft cloth. -
Page 35: Help & Advice
Help & Advice The radio is not working and there is Radio locks up nothing displayed on the screen • If the radio is operational but the Make sure the Power button has been buttons do not appear to work, check •... -
Page 36: Safety Instructions
Safety instructions Safety considerations Listening to headphones at high volume for extended periods can cause permanent damage to your hearing. Do not use while driving a vehicle. Servicing This radio contains no user-serviceable parts. Battery disposal Please ensure batteries are disposed of safely. -
Page 37: Guarantee
Guarantee This unit is guaranteed for 12 months from the date of original purchase. If any defect arises due to faulty materials or workmanship, the unit will either be replaced, a refund given or repaired free of charge where possible during this period by the dealer from whom you purchased the unit. -
Page 38: Technical Specifications
Technical specifications Power supply: ..........2 x AA (Alkaline batteries) 2 x AA (Ni-MH rechargeable cells, 1100mAh) Battery life: ..........Duracell, standard alkaline. (8 hours normal usage) Ni-MH, 1100mAh cell. (4 hours normal usage) External power supply: ........ 4.5V DC 250mA, 2.1 mm power jack positive tip (not supplied). - Page 40 www.ministryofsound.com/audio Customer Helpline No: 0870 010 5676...
