Summary of Contents for Mede8er MED300X
-

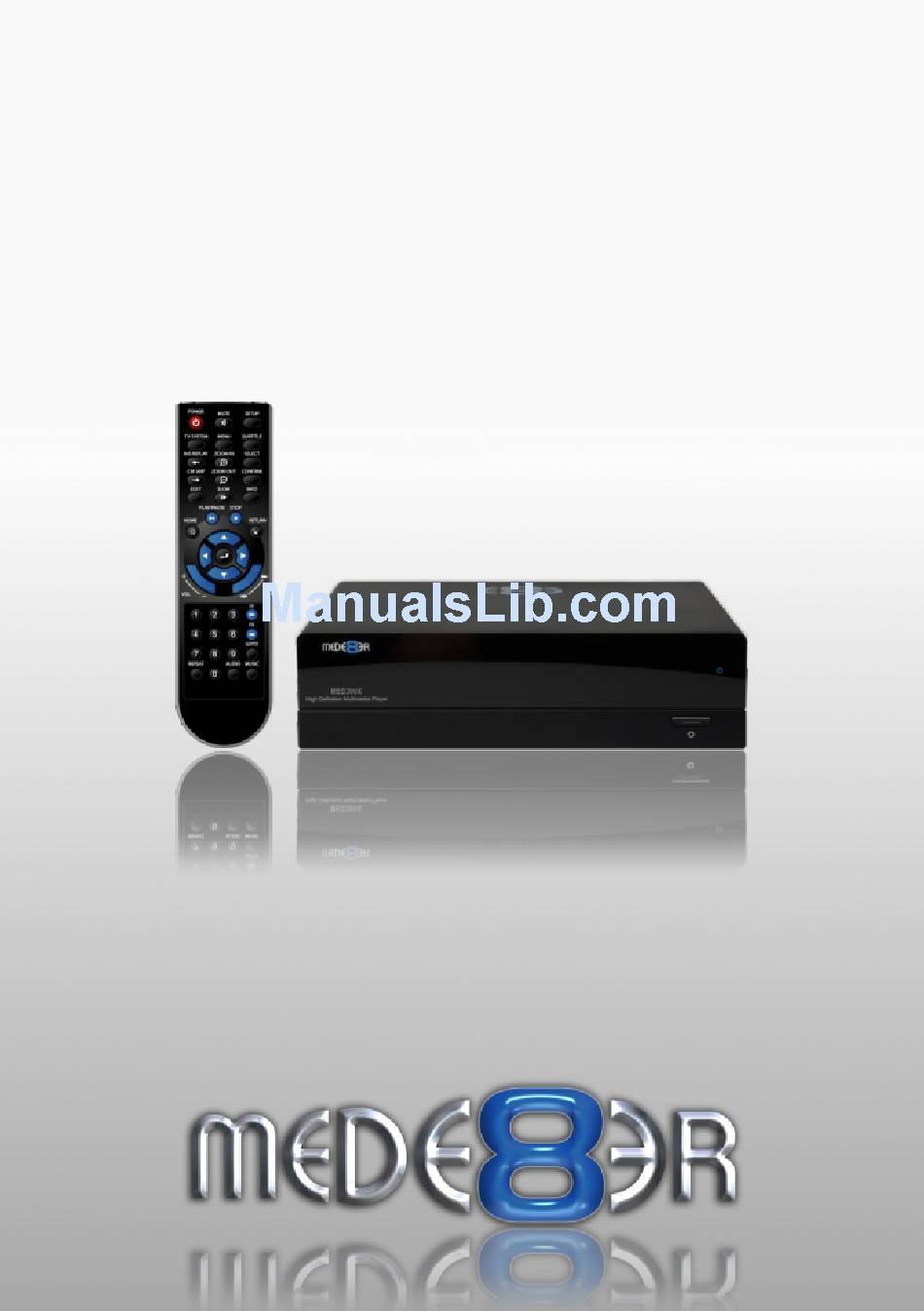

Page 1: User Manual
User Manual MED300X High Definition Multimedia Player... -
Page 2: Table Of Contents
INDEX page 1 Index page 2 Introduction General Overview page 3 page 4 Installing a Hard Drive - Formatting the Hard Drive page 5 Connections page 6 Power Up & Standby / USB to PC page 7 TV Output Settings page 8 Remote Functionality - Firmware Upgrade page 9... -
Page 3: Important Safety Instructions
Thank you for purchasing the Mede8er Multimedia Player. The MED300X was developed by Sanji for those who demand the best in picture and audio without all the fuss. Simple yet very functional in operation and design. The MED300X is ideal for large size internal 3.5"... -
Page 4: General Overview
GENERAL OVERVIEW USB Slave USB Host SD Card Status Led On/Off Page3... -
Page 5: Installing A Hard Drive
Connect the hard drive power connector and the red SATA data connector from the player to the hard drive diagram c. Re fit the hard drive cover into the Mede8er body and tighten the two securing screws x and y. -
Page 6: Connections
For digital audio connection to your Home Theatre System you can either use the TOSLINK Optical or the Coax Digital output. The MED300X supports both Passthrough and Downmix for both Dolby Digital and DTS signals. If you want your Home Theatre Amplifier to decode the surround sound stream you should use either Digital Audio output and set the Audio Output to SPDIF RAW in the Setup menu. - Page 7 Press the On/ Off button on the Mede8ers front panel and front facia LED will turn on Blue. You can put your Mede8er into standby by pressing the On/ Off button on the remote.
-
Page 8: Tv Output Settings
Connect the Mede8er to your TV by one of the connection options as shown on page 5 and change the input option on your TV to match the option you selected. If you do not get to see the Mede8er GUI on your... -
Page 9: Remote Functionality
Copy this file to the root directory of a Flash Drive. Plug the flash drive into the Mede8er. Disconnect the power jack at the rear of the Mede8er then plug it back in - Now press the on/off button and hold it pressed for 10 seconds and then release. -
Page 10: Home Page
HOME PAGE The Mede8er Home Page is the central point where you can launch all the user applications. Press the Right/Left Navigation buttons on the remote to navigate the Home Page and press “Enter” to launch the selected page. MEDIA LIBRARY... -
Page 11: Media Scanner
MEDIA SCANNER The Mede8er has a built in Media Scanner that will scan all your Media Files and allow user functionality such as Search, Genre, Last Played etc. You can select “Auto Scan” options in the Setup menu. The Media Scanner will automatically update the database when the Mede8er is powered “on”... -
Page 12: Media Library
MEDIA LIBRARY Use the Media Library to browse all your media files. The Mede8er allows you to customise the Media Library view to suit your personal needs. To change the view just press the “Menu” button on the remote and a dialogue screen will open on the bottom right hand side of the screen. The current selection will be highlighted in yellow. -
Page 13: File Manager - Single Files
FILE MANAGER The Mede8er has a built in File Manager to manage and transfer files between your media sources. The File Manager is launched by pressing the “Edit” button on the remote Control while you are Media Library. FILE MANAGER - SINGLE FILE To Copy, Delete, Move or Rename a single file just focus on the file (that you require to perform the action on) and press the “Edit”... -
Page 14: File Manager - Multiple Files
FILE MANAGER - MULTIPLE FILES To Copy, Delete, Move or Rename multiple files just press the “Edit” button on the remote control while you are in Media Library view. Select “Multiple Select” and a new dialogue screen will open. Navigate to the files or folders on the left screen “A” that you want to perform the action on and press the “Select”... -
Page 15: Music Playlists
MUSIC PLAYLISTS With the Mede8er you can create multiple music Playlist’s from the remote control. Open Media Library and press the “Edit” button and select Multiple Select. On left hand side screen “A” navigate to your music files and press “Select” on the music files you want to add to the File List Window “B”. -
Page 16: Music Playlists Continued
MUSIC PLAYLIST’S CONTINUED With the Mede8er you can create multiple music Playlist’s from the remote control. Open Media Library and press the “Edit” button and select Multiple Select. On left hand side screen “A” navigate to your music files and press “Select” on the music files you want to add to the File List Window “B”. -
Page 17: Media Library Music Player
MEDIA LIBRARY - MUSIC PLAYER If you select “Menu“ and then “Thumbnail View” you will be able to browse your music collection by embedded cover art. Page16... -
Page 18: Video File Cover Art Preview
VIDEO FILE COVER ART PREVIEW To browse your Media Library by cover art just select “Menu” and then “Thumbnails” and the Mede8er will preview the cover art in a grid view. You can navigate the library by using the Navigation Buttons ie Left, Right, Up and Down. - Page 19 TIME BAR - INFO SCREEN To display the Mede8er Time Bar press the Right or Left Navigation buttons on the remote during video play. The Time Bar screen will show and display the current time and the total length of the video. The Time Bar will dynamically update the current position in minutes as you press the right or left navigation buttons.
-
Page 20: Goto - Video Search
GOTO - VIDEO SEARCH Press the GOTO button on the remote and the GOTO dialogue screen will open. The GOTO screen allows you to change Time, Title, and Chapter. Press the Up/Down/ Left/Right Navigation buttons to change the value then press “Enter” once you have made your selection. To remove the screen press GOTO button again or press the Return button. -
Page 21: Subtitles
SUBTITLES Mede8er supports various types of subtitle files. If the subtitle is embedded into the video file it will automatically be available on the Subtitle Dialogue Screen. External Subtitles must be placed into the same folder as the video file and must be named to be exactly the same name as the video file eg Cloudy.With.A.Chance.Of.Meatballs.2009.720p.BluRay.HebDub.x264-WiKi.mkv... -
Page 22: Pictures
PICTURES If you select “Menu“ and then “Thumbnail View” you will be able to browse your picture collection by grid thumbnail view. Select a picture and it will zoom to full screen. Now for more options press the “Menu” button on the remote and you will have a host of extra options. - Page 23 High Definition Multimedia Player www.mede8erforum.com MED300X www.mede8er.com www.mede8er.eu For more information or support please visit www.mede8er.eu/support/ or call +31(0)10-7142861 during business hours. Sanji Electronics (Pty) Ltd 106 16th Rd Midrand, Gauteng, South Africa. Tel: 2711 2667500 Fax: 2711 2667501 Email sales@mede8er.com...
