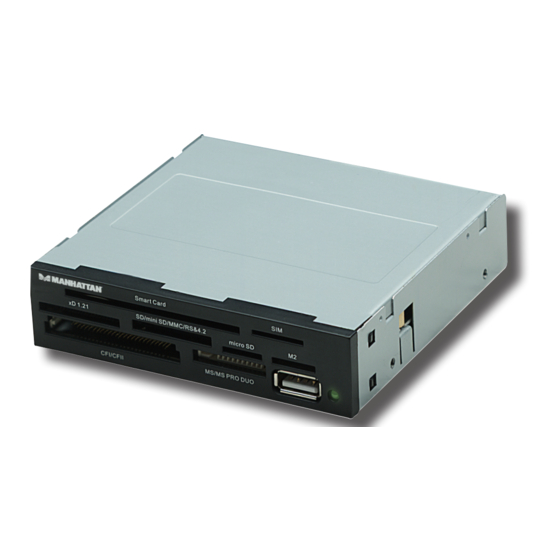

Multi-card reader, writer

Advertisement

Quick Links

Multi-Card
reader/Writer
uSer MaNual
MODEL 100953
MAN-100953-UM-0909-01

Advertisement

loading
Need help?

Need help?

Do you have a question about the 100953 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Manhattan 100953

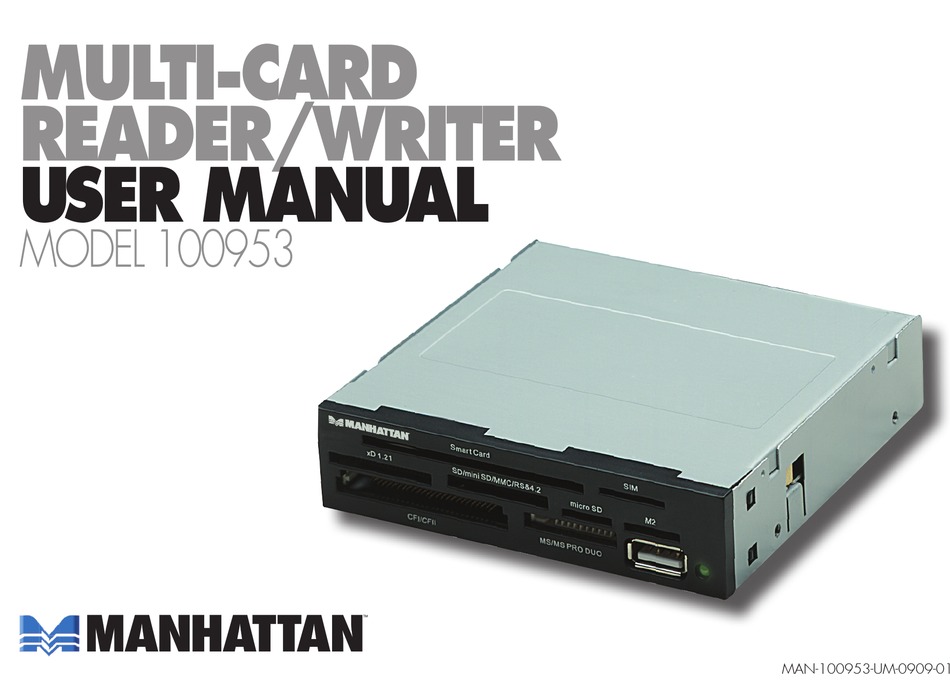

  • Page 1 Multi-Card reader/Writer uSer MaNual MODEL 100953 MAN-100953-UM-0909-01...
  • Page 2 • Supports Automatic Card Detection and data transfer speeds up to 480 Mbps • Eliminates need for direct connection of media device to save battery power • Plug and Play; hot-swappable — Windows and Mac compatible • Lifetime Warranty NOTE: Installation images are representative of the full line of MANHATTAN Multi-Card Reader/ ® Writer models. Some devices or device parts may not look exactly like the model that corresponds to this manual; and software screen images may vary, depending on your operating system.
  • Page 3: Hardware Installation

    hardWare iNStallatioN 1. Turn off the power to your PC and remove the two side panels as shown at right. 2. Using the split ("Y") end of the internal cable, make the connections as shown to the Card Reader’s circuit board (near right) and the USB pins (far right).
  • Page 4 3. Insert the Multi-Card Reader/ Writer into the front panel of the PC. 4. Secure the Multi-Card Reader/Writer Side view, showing the approximate position of in place on both sides using the the mounting screw holes enclosed mounting screws.
  • Page 5: Software Installation

    5. Connect the other end of the internal cable to the USB pins on the PC’s motherboard. NOTE: The white dot inside the red highlight box at right indicates the postion of Pin 1. 6. Replace the side panels on the PC. SoftWare iNStallatioN Windows XP: 1. With the Card Reader connected properly, turn on the PC. NOTE: It isn’t necessary to install a driver with Windows XP.
  • Page 6 Memory Card Formatting: XD users may need to format their memory card(s) prior to use, indicated by a "write protection" or "read/write error" message. If this is the case, follow the steps below to use the attached program for formatting the memory card. 1. Go to "Start" "Programs" "Multimedia Card Reader" "Memory Card Low Level Format." → → → 2. Select the XD icon, then click "Low Level Format."...
  • Page 7: Specifications

    SpeCifiCatioNS Standards and Certifications Gate PRO Duo, High Speed MagicGate PRO, High Speed • CE, FCC MagicGate PRO Duo, SecureDigital (SD), Elite Pro SD, Extreme SD, Extreme III SD, High Speed miniSD, High Connections Speed SD, microSD (T-Flash), miniSD, Pro SD, SDHC, Ultra • Hi-Speed USB A-type female SD, Ultra II SD, Ultra II SD Plus, Ultra Speed SD, Ultra-X SD, • Card slots: CompactFlash, Memory Stick and Memory MMC, MMC 4.0, MMC 4.2, MMCmobile, MMCplus, Stick Micro (M2), microSD, Smart, SIM, SecureDigital, xD High Speed MMC, High Speed RS-MMC, RS-MMC, • Internal connection: 9-pin USB header (for motherboard RS-MMC 4.0, XD, XD 1.21, SIM* and Smart Card* mount) * For SIM and Smart Card Editor, software installation is required. General Physical • LED activity indicator • Dimensions: 102 x 100 x 25 mm (4 x 3.8 x 1 in.) • Transfer rates: 480 Mbps / 12 Mbps / 1.5 Mbps • Weight: 192.7 g (6.8 oz.) • CPU card: meets ISO 7816- 1 , 2, 3, 4 (supports T=0 and T=1 protocols) System Requirements • Memory card: synchronous 2-line, 3-line and I2C interface • Internal USB connection...
  • Page 8 PC Components, Peripherals, Cables ® and Accessories. Ask your local computer dealer for more information or visit us online at www.manhattan-products.com Copyright © MANHATTAN All products mentioned are trademarks or registered trademarks of their respective owners.
