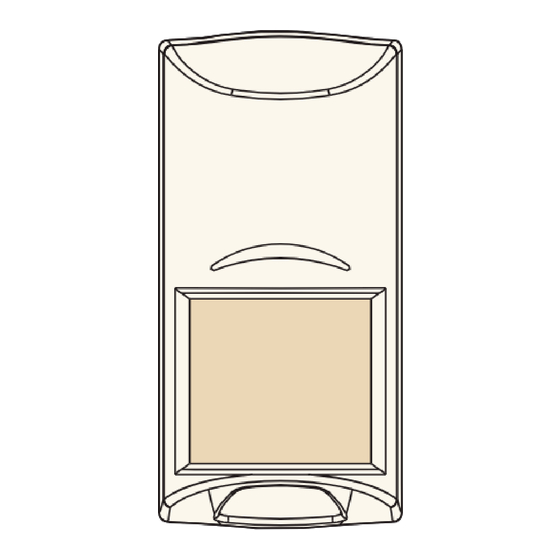

Bosch RF940E Series Installation Manual

RF940E Series Wireless
Passive Infrared Detector
Intrusion Detector with
Pet Immunity
en Installation Guide
Notice:
Batteries must not be disposed of in household
waste. Dispose of batteries in suitable collection
points. For futher information refer to
http://boschscurity.com/standards
Reading Bosch Security Systems, Inc.
Product Date Codes
For Product Date Code information, refer to the
Bosch Security Systems, Inc. Web site at:
http://www.boschsecurity.com/datecodes/.
Installation
1
Gently insert a fl at-bladed screw-
driver into notch for the section you
wish to remove, and then lift on the
section to unhinge.
NOTICE:
Do not twist.
© 2011 Bosch Security Systems, Inc.
2,2 m - 2,75 m
(7.5 ft - 9 ft)
Recommended:
2,2 m (7.5 ft)
1
Receiver Range:
300 m (984 ft)
Recommended:
100 m (300 ft)
Mount the detector
2 m (6.5 ft) above the fl oor.
Specifi cations
General
- Dimensions (HxWxD): 11.2 cm x 6.5 cm x 4.4 cm
(4.4 in. x 2.4 in. x 1.7 in.)
- Coverage Area: 12 m x 12 m.
- Operating temperature range of 0°C to +49°C (+32°F to +120°F).
- Relative humidity range of 0% to 95% (non-condensing).
- Maximum RF Power: less than 10mW.
- Operating Voltage: Suplied by two 3 VDC lithium batteries.
a) Remove the board from the case by pressing the mounting tabs toward
the side of the case and gently lifting the board.
b) Punch out appropriate holes in the mounting plate (for surface or cor-
ner applications). For optional swivel mount bracket, see instructions that
come with the bracket.
NOTICE: To avoid possible circuit board damage, use only the mounting
hardware provided in the appropriate punch-out mounting holes.
c) In non-pet applications only, if look-down is desired, peel away the look-
down mask. Do not remove the clear plastic lens.
d) Mount the detector between 2.3 m and 2.7 m high.
6.5 ft.
(2 m)
Do not point where
pets can climb.
- Battery Life: approxiately 5 years under normal operation
conditions using the recommended battery types.
- Recommended Battery Types: Duracell DL123A, Energizer
EL123AP, or Panasonic CR123A.
- Compatible Receivers: RF3212E, RF3222E, or RF3224E.
- Compliance: CE 0165 - this device complies with EN 300683,
EN 300220, and 89/336/EEC.
- Options: B335 Low Profi le Swivel Mount Bracket (the use of
brackets may reduce range and increase dead zone areas)
Mask Removal for non-pet applications
2
Pet Friendly
1 dog ≤ 13 kg
(28 lb), or up to
two cats
The upper areas are
not pet immune.
Peel away the mask.
