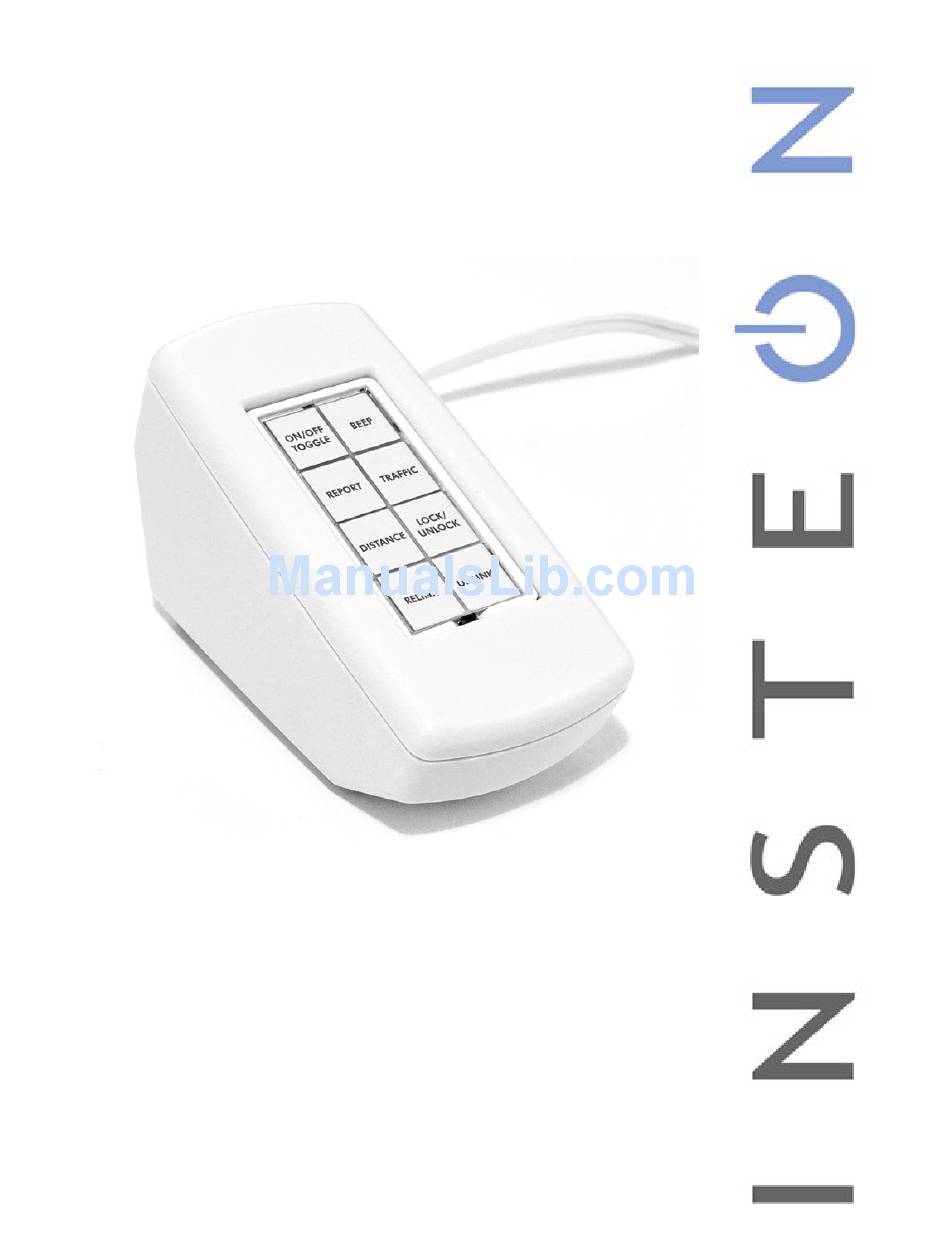

- Page 1 INSTEON Diagnostic Keypad Owner’s Manual 2993-xx2 Page 1 of 10 2993-xx2 - Rev: 3/11/2014 9:21 AM 9:21:55 AM...
-
Page 2: Table Of Contents
Features ..................................3 Installation ..................................3 Test Button Descriptions ............................. 4 ON/OFF TOGGLE ............................... 4 BEEP ................................... 4 REPORT* ..................................4 TRAFFIC ..................................4 DISTANCE ................................... 4 LOCK/ UNLOCK* ................................. 4 RELINK* ..................................4 UNLINK* ..................................4 Directions ..................................4 ON/OFF TOGGLE –... -
Page 3: Features
Remove guesswork for placement of Access Points specifically intended to communicate to RF-only devices Installation Before using the Diagnostic Keypad, follow the instructions that are included with the Keypad Tabletop Enclosure. Page 3 of 10 2993-xx2 - Rev: 3/11/2014 9:21 AM 9:21:55 AM... -
Page 4: Test Button Descriptions
Directions Note: This manual presumes user has a moderate to expert understanding of INSTEON and INSTEON products. Diagnostic Keypad only contains a single link. When you are finished testing a device, be sure to UNLINK it from Diagnostic Keypad before linking your next device. If you link a second device without unlinking the first, it will overwrite the existing link and the first device will still contain a half-link to Diagnostic Keypad. -
Page 5: On/Off Toggle - Control Test
If the delay is longer, it may be an indication of difficulty in communications to one or more responders. TRAFFIC – Corruption and Noise Monitor This test allows you to monitor in-band noise and INSTEON traffic on the powerline. This does not ON/OFF BEEP require any links. -
Page 6: Distance Mode
Note: If you LOCK a unit under test and then link Diagnostic Keypad to another device, Diagnostic Keypad cannot UNLOCK the first unit under test. You will need to use software (such as HouseLinc) to UNLOCK it or perform a factory reset. Page 6 of 10 2993-xx2 - Rev: 3/11/2014 9:21 AM 9:21:55 AM... -
Page 7: Relink
Activate scenes from various locations (or activate DISTANCE mode to create traffic). • If you hear more beeps, that means more noise in the INSTEON band. Beeping indicates bad CRC (a message in which the Cyclic Redundancy Check indicates that there is at least one incorrect bit in the message). -
Page 8: Determining Source Of Signaling Problems
• When you have identified the noise source, install a FilterLinc to isolate the noise source from the INSTEON network. Determining Source of Signaling Problems • A problem area would be an outlet in which the tester has difficulty talking to the unit under test. - Page 9 Hardwired remote control Retains all settings without power Yes, saved in non-volatile EEPROM Standby power consumption < 1 watt FCC ID N/A, powerline only Safety approval(s) ETL (Intertek Testing Services) Page 9 of 10 2993-xx2 - Rev: 3/11/2014 9:21 AM 9:21:55 AM...
-
Page 10: Certification And Warranty
The repair, replacement, or refund that is provided for above shall be the full extent of Seller’s liability with respect to this product. For repair or replacement during the warranty period, call INSTEON at 800-762-7845 with the Model # and Revision # of the device...
