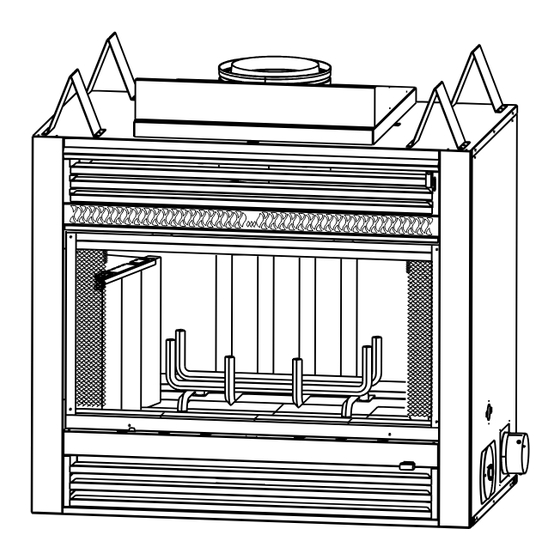

Woodburning fireplace
Hide thumbs Also See for SC60:
Table of Contents

Advertisement

Models:
SC60

Woodburning Fireplace

Important operating
a n d m a i n t e n a n c e
instructions included.
WARNING
If the information in these instruc-
tions is not followed exactly, a
fi re may result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of
this or any other appliance.
• Do not overfi re. Overfi ring will void your
warranty.
• Comply with all minimum clearances to
combustibles as specifi ed. Failure to
comply may cause house fi re.
Installation and service of this fi replace should
be performed by qualifi ed personnel. Hearth &
Home Technologies suggests NFI certifi ed or
factory-trained professionals, or technicians
supervised by an NFI certified
professional.
CAUTION
DO NOT DISCARD THIS MANUAL
Read, understand
and follow these
instructions for safe
i n s t a l l a t i o n a n d
operation.
Heatilator • SC60 • 32838 Rev T • 11/07
Owner's Manual
Installation and Operation
Leave this manual with
party responsible for
use and operation.
WARNING
Hot glass will cause burns.
Do not touch glass until it is cooled
NEVER allow children to touch glass
Keep children away
CAREFULLY SUPERVISE children in same room
as fi replace.
Alert children and adults to hazards of high
temperatures.
High temperatures may ignite clothing or other
fl ammable materials.
Keep clothing, furniture, draperies and other
fl ammable materials away.
WARNING
Fire Risk
For use with solid wood fuel or decorative
gas appliance only.
Do not install unvented gas logs.
HOT SURFACES!
Glass and other surfaces are
hot during operation AND
cool down.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Heatilator SC60

  • Page 1: Woodburning Fireplace

    Home Technologies suggests NFI certifi ed or • For use with solid wood fuel or decorative factory-trained professionals, or technicians gas appliance only. supervised by an NFI certified • Do not install unvented gas logs. professional. Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 2 Your new Heatilator wood burning fi replace will give you years As the owner of a new fi replace, you’ll want to read and care- of durable use and trouble-free enjoyment.
  • Page 3: Table Of Contents

    C. Installation of Fan......27 Note: An arrow ( ) found in the text signifi es change in content. Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 4: Listing And Code Approvals

    fi replace installation. Not intended for use as a primary heat source. Heatilator is a registered trademark of Hearth & Home Tech- This fi replace is tested and approved as a decorative fi re- nologies Inc.
  • Page 5: Getting Started

    Basement installations should be avoided due to stack effect. Stack effect creates negative pressure in lower levels. Hearth & Home Technologies recommends the use of direct vent fi replaces in basements. Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 6 Consider the fi replace location relative to fl oor and ceiling and attic joists. Recommended Recommended Location Location Marginal Location Location Recommended Location Recommended Windward Outside Air Intake Leeward Multi-level Roofs Figure 2.1 Recommended Chimney Locations Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 7: Typical Fireplace System

    V-shaped standoffs (spacers) Mantel and surround Decorative facing and trim Hearth extension Outside combustion air Factory-built fireplace Protective metal hearth strip(s) Figure 2.2 Typical Fireplace System Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 8: Tools And Supplies Needed

    Read all the instructions before starting the installation. Follow these instructions carefully during the • Keep fi replace dry. installation to ensure maximum safety and benefi t. • Mold or rust may cause odors. Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 9: Framing And Clearances

    5/8 in. (16 mm) all divider configurations 48 in. (1219 mm) 25-5/8 in. (651 mm) Model # 53-1/4 43-1/4 93-3/8 24-1/4 SC60 1353 1099 2372 1194 1676 Figure 3.1 Fireplace Locations Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 10: Clearances

    Must have 2 in. (51 mm) minimum clearance to header 0 in. to level of standoffs 1/2 in. (13 mm) to side of appliance 0 in. to floor Figure 3.2 Clearances to Combustible Materials Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 11: Sidewalls/Surrounds

    41-1/4 in. (1048 mm) header height. Use 41-1/4 in. only noncombustible (1048 mm) 43-1/4 in. material below the top (1099 mm) of the front standoffs. 25-5/8 in. (651 mm) Figure 3.4 Framing the Fireplace Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 12: Construct The Chase

    Figure 3.5 Chase Assembly above the fi replace • Maximum unsupported chimney above roof 6 ft 1.83 m Note: A maximum of two pairs of offsets and returns may be used. Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 13: Installation Of Fireplace

    See Figure 4.3 for proper placement of outside air inlet. See Figure 4.4 for handle location/operation. Outside Air Kit Assy. Flexible Duct (not supplied) Outside Air Shield 2 Wire Ties Figure 4.1 Outside Air Installation Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 14 (preferably with short run or mainly straight duct, except small dip for cold air trap which will help prevent flow of cold air). Figure 4.3 Outside Combustion Air Placement Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 15: Secure The Fireplace

    fi replace opening for square. Measure diagonal dis- tances of the opening to make sure they are equal. If they are not, continue to shim the fi replace until those diagonals are equal. Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 16: Chimney Assembly

    Figure 5.1 Typical Chimney System - Guidelines for Chimney System Installation NOTE: • Chimney performance may vary. • Trees, buildings, roof lines and wind conditions affect performance. • Chimney height may need adjustment if smoking or overdraft occurs. Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 17: Chimney Requirements

    SL312 10-3/4 servicing another appliance. SL318 16-3/4 • Do NOT connect to any air distribution duct or SL324 22-3/4 system. SL336 34-3/4 SL348 46-3/4 1187 * Dimensions refl ect effective height. Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 18: Using Offsets/Returns

    fi ts your application is Proper assembly of air-cooled chimney parts result in an overlap at chimney joints of 1-1/4 in. (32 mm). Effective one SL324. length is built into this chart. Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 19: Assemble The Chimney Sections

    fl oor or every 10 ft (3.05 m) of clear space. • Use same dimensional lumber as joists. Ceiling fi restop slows spread of fi re and reduces cold air infi ltration. Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 20: Install The Attic Insulation Shield

    • Maintain specifi ed cleaances around chimney. • Check instructions and local codes for further details. 3 in. (76 mm) overlap Figure 5.6 Prepare Attic Insulation Shield Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 21: Double-Check The Chimney Assembly

    Secure returns with strapping. • Straight chimney sections may be secured with screws (not to exceed 3/4 in./19 mm in length) at the joints. Keep chimney sections from separating or twisting. Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 22: Complete The Enclosure

    A Gas Termination Wood or Fuel Oil Termination need to be increased. Refer to the installation instruc- 6 in. 20 in. (152 mm) min. (508 mm) min. tions supplied with the decorative cap cover. Figure 6.2 Multiple Chimneys Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 23 Install the Chimney Air Kit (required in Canada): When installing the chimney air kit, follow the instructions provided with this accessory. Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 24: Chase Top

    All seams must be caulked to prevent leaks. • A chase installation must use a chase top. Chase tops Fire Risk are available from your Heatilator dealer or may be fi eld • The minimum overlap of cap to pipe constructed.
  • Page 25 2 - 6 in. chase (51-152 mm) 2 in. (51 mm) (metal or masonry) SL pipe typical inner flue Figure 6.10 Installing a European Copper Series Termination Cap (CT3-King shown) Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 26: Accessories

    Repack beyond 4 in. (102 mm) Insulation from fireplace side. Knockout 4 in. (102 mm) Figure 7.4 Gas Line Installation Figure 7.3 Gas Line Installation Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 27: Installation Of Fan

    C. Installation of Fan WARNING The SC60 is a heat circulating fi replace that comes equipped with a fan kit, junction box, and an ON/OFF variable speed Asphyxiation Risk control (wall mount type). • Damper must be locked open when gas logs 110 VAC service must be connected to the fan kit by a li- installed.
  • Page 28: Finishing

    Cement Mortor 0.20 5-1/8 in. Common Brick 0.20 5-1/8 in. Ceramic Tile 12.50 0.08 12-1/4 in. Armstrong™ Privacy Guard Plus 0.46 2.18 1/2 in. Marble 14.3-20.0 0.07-0.05 14-5/8 in. - 20-3/8 in. Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 29 High temperatures or hot embers may ignite concealed combustibles. 36 in. 8 in. (914 mm) (203 mm) 8 in. 16 in. min. (203 mm) 52 in. (406 mm) (1321 mm) Figure 8.3 Hearth Extension Dimensions Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 30: Finishing Material

    Section 12.B. Fireplace Components. Please Figure 8.5. Short stub walls are also acceptable if they are refer to the manual packed with each set of doors for instal- contained within the shaded area. lation instructions. Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 31: Operating Instructions

    Fire Risk • For use with solid wood fuel or decorative gas appliance only. • Do not install unvented gas logs. Figure 9.1 General Operating Parts Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 32: Outside Air

    • Doors must be fully opened or fully closed when operating fi replace. Partially opened doors may draw fl ame, smoke or heat from fi replace. Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 33: Grate

    This sounds ridiculous but that is exactly what you are • Closer than required clearances to doing if you burn unseasoned wood. combustibles to fi replace. • Within space required for loading or ash removal. Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 34: Starting A Fire

    Combustible materials may ignite. fi replace and the refractory and paint to cure. You may notice an industrial odor the fi rst few fi res. This is consid- ered normal. Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 35: Troubleshooting

    Overhead fan operating? Creosote buildup in flue? Air register from furnace near fireplace? Damper closed? Doors opening and closing? Outside air Window closed closed? for start-up? Figure 10.1 Factory-built Fireplaces: Troubleshooting Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 36: Diagnostics And Problem Solving

    No: Add blower if available. No: Need for all heat boosts possible How much heat output do you • Unrealistic expectations Explanation of decorative nature of fi replace; suggestion of expect? approved fi replace insert. Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 37 Is the chimney clean? • No: Creosote odor Have chimney cleaned. • Yes: Damper closed too early Wait until fi re completely out before closing damper. Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 38: Maintenance And Servicing The Fireplace

    TCT375 ST375 TS345/TS345P TR344/TR342 European Copper Series Terra Cotta Square Square Termination Cap Round Termination Cap Termination Cap Termination Caps (CT-King shown) Termination Cap Figure 11.1 Chimney & Termination Cap Cleaning Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 39: Maintenance Task List

    Failure to replace damaged components and make conduct a minimum of an NFPA 211 Level 2 inspection proper repairs creates risk of fi re. of the chimney. Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 40: Reference Materials

    (914 mm) 10-1/4 in. 1-1/8 in. 3-7/8 in. (197 mm) (29 mm) (98 mm) (260 mm) 42-1/8 in. 10-1/4 in. (260 mm) (1070 mm) 3-1/2 in. 18-3/4 in. (89 mm) (476 mm) Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 41: Fireplace Components

    Integral Grate Bi-fold Glass Doors Gasketed Glass Doors DM1936B AT1936 AT1936B 52 in. (1321 mm) 16 in. (406 mm) FK-23 Fan Kit BC10 HX3 Hearth Extension Blower Control 1/2 in. (13 mm) Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 42: Chimney Components

    4-3/4 in. (121 mm) Diameter (305 mm) Effective Height 10-1/2 in. 5-1/4 in. (267 mm) (133 mm) 4 in. (102 mm) 10-1/2 in. (287 mm) SL3 Chimney Stabilizer CAK4A Chimney Air Kit Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 43 (305 mm) (267 mm) 2 in. (51 mm) 24-5/8 in. 31 in. (625 mm) (787 mm) JB877 Chimney Joint Band RF371 Roof Flashing 10-1/2 in. (267 mm) CB876 Chimney Joint Band Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 44 13-1/4 in. (337 mm) 16-1/4 in. (413 mm) 22 in. (559 mm) 23-1/8 in. (587 mm) LDS-BV Decorative Shroud Catalog # 18 in. (457 mm) 12-1/2 15-1/2 LDS-BV TS345/TS345P Square Termination Cap Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 45 (610 mm) CT3-King CT3-Queen CT3-Bishop 16 in. (406 mm) 21 in. (533 mm) 38-3/8 in. (975 mm) 25-3/4 in. (654 mm) 16 in. 20-5/8 in. (406 mm) (524 mm) CT3-Knight CT3-Pawn Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 46: Woodburning Termination Cap

    Minimum Height is measured from the bottom of the termination cap: Minimum height is established with the bottom of the termination cap 7 in. above the chase top. Minimum height must increase accordingly for any height above 7 in. Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 47 This page intentionally left blank. Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 48: Service Parts

    D. Service Parts SC60 Service Parts Beginning Manufacturing Date: N/A Service Parts Diagram Ending Manufacturing Date: Active 16/17 (Screens) Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 49 Gas Line Brick Support 28158 Damper Kit 4016-006 Smoke Shield Kit SRV4016-126 Smoke Splitter 28154 Damper Lever Knob 27971 Damper Handle 32612 Top Grille Assembly 32832 Filligree Front Face 32833 Lower Grille Assembly 32836 Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 50 This page intentionally left blank. Heatilator • SC60 • 32838 Rev T • 11/07...
  • Page 51: Limited Warranty

    Limited Warranty HHT warrants the following components of your Heatilator woodburning fi replace to be free from original defects in material and workmanship during the applicable periods described: fi ve years for the fi rebox assembly, chimney system and roof termination; two years for refractory fi rebox liners;...
  • Page 52: Contact Information

    1915 W. Saunders Street Mt. Pleasant, Iowa 52641 www.heatilator.com Please contact your Heatilator dealer with any questions or concerns. For the number of your nearest Heatilator dealer, please visit www.heatilator.com. – NOTES – CAUTION DO NOT DISCARD THIS MANUAL •...
