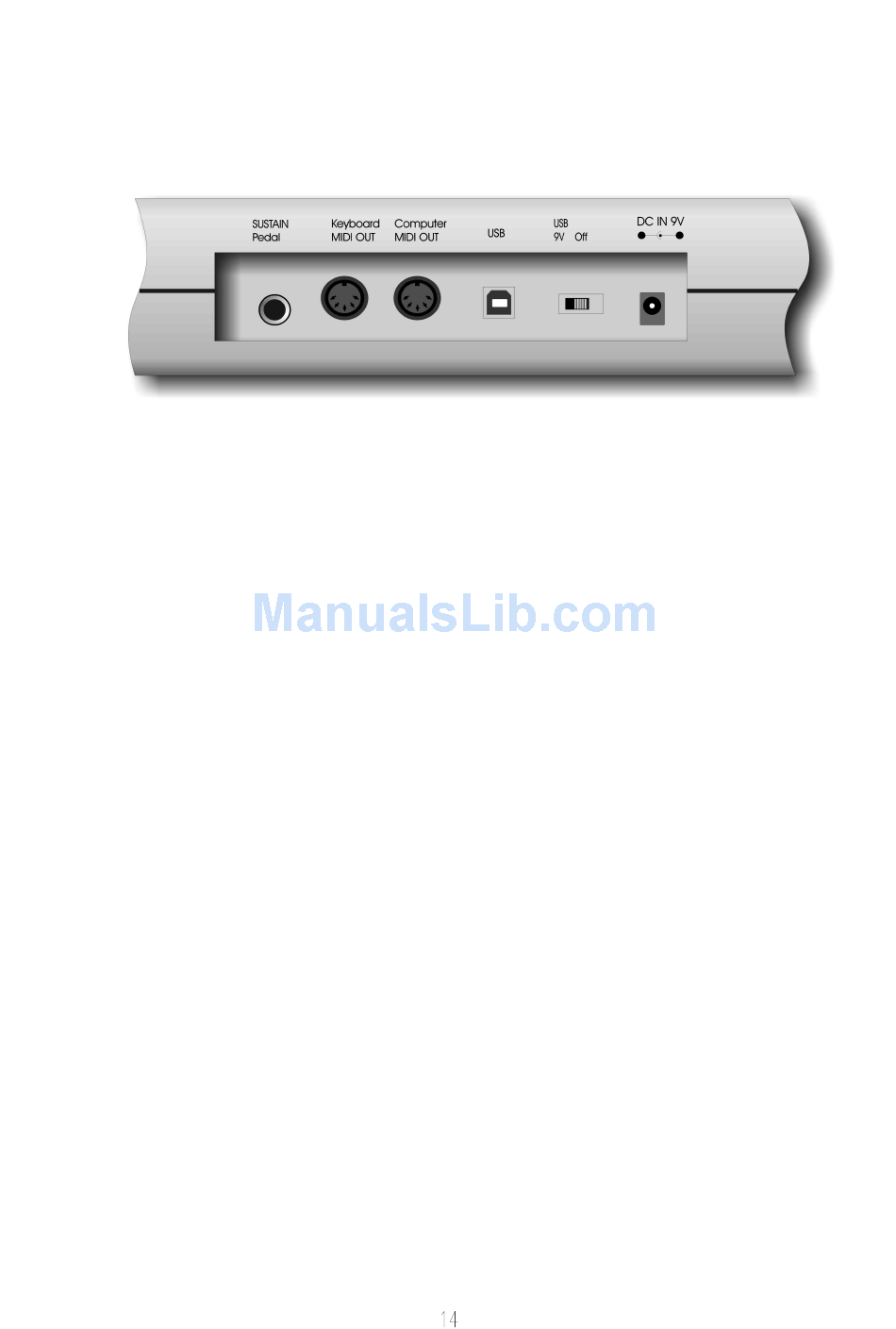

Rear Panel

Sustain jack

This jack allows you to connect an optional Sustain Footswitch to the keyboard.

MIDI OUT jacks

This standard MIDI jacks is used to send MIDI messages to another MIDI instrument (such as
sound module).

USB Port / power port

This jack is used to connect the keyboard with the computer, to get power and send MIDI
messages directly to the sound card.

Power switch

The 2-way power switch turns the keyboard's power to external power/USB Power or power
off.
