Summary of Contents for Faroudja DVP2200

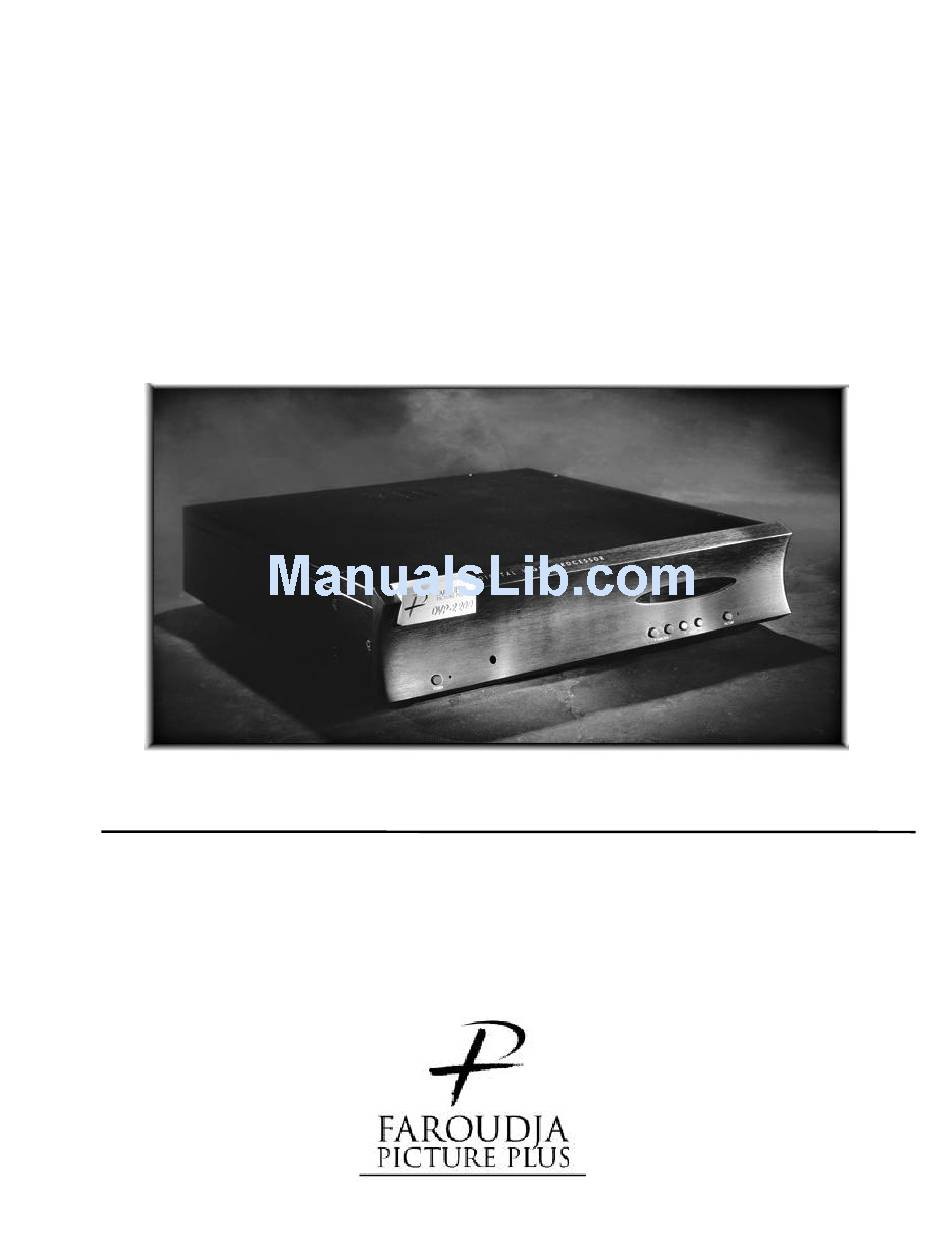

- Page 1 DVP2200 Digital Video Processor Installation and Operations Manual...
-
Page 2: Table Of Contents
No part of this document may be copied, photocopied, reproduced, translated, or reproduced to any electronic medium or machine readable form without prior consent, in writing, from Faroudja Laboratories, Inc. The Faroudja name, logo and Picture Plus are registered trademarks of Faroudja, Inc. Specifications subject to change without notice. All Rights Reserved. -
Page 3: Product Description
CRT, LCD, DLP or Plasma based display. First the DVP2200 is a Scaler that offers two scan rates, 480p for NTSC, 576 for PAL or 800x600 for both NTSC and PAL, depending on the requirements of the display device. - Page 4 Product Description The greatest benefit of the DVP2200 is the image quality, a result of a complex three stage process Faroudja’s patented Film/Video Motion logic called Picture Plus™ Technology. actively tracks the signal and activates different motion tracking algorithms depending if the Stage 1 –...
-
Page 5: Installation
Installation Unpacking Rear Panel I/O Remove the DVP2200 unit from the shipping Inputs container and examine it for any signs of shipping damage or missing items (check 1. S-Video (4 Pin DIN) inventory list below). All shipping materials should be saved if the unit is to be moved or 2. - Page 6 DVP2200. monitors or to a second display device. Because of the high performance of the DVP2200 it is very important to use the highest 6. BNC connectors for main output to display quality cables possible, for both input and output devices.
-
Page 7: Setup
(as long as the native resolution exceeds 800x600). Sync (Sync on Green, RGB output mode only): Screen Shape: The DVP2200 has different On/Off aspect ratio calculations depending on the type Scan Rate: of screen being used. The correct screen shape 480p(576pPAL) –... - Page 8 4:3 Screens Screen Shape This setting should be used with any fixed panel The DVP2200 has a unique Aspect Ratio control display device (LCD, DLP, etc.) or CRT with a to allow for maximum performance from a display 4:3 Aspect Ratio screen.
-
Page 9: Operating Instructions
Operating Instructions Front Panel Controls The available control functions are listed below in the order they appear on screen: 1. Power/Standby: Press to turn the unit On (Green) or to Standby (Red) Input Video – S-Video – YCrCb - HDTV 2. -
Page 10: Remote Control
4 = User Preset 4 3. By Direct Access + 1, 2, 3 keys The Presets store all picture adjustment information plus Aspect Ratio. To Store the To activate the control of the DVP2200 press: settings press: STORE FDJA ENTER... - Page 11 Operating Instructions To change Aspect Ratio press: Then adjust the Values by pressing the buttons. For direct access, press the COLOR button, then enter the value on the keypad such ASPECT MENU as 150. Repeat pressing will toggle through the different Tint can be accessed by pressing: Aspect Ratios (if available).
- Page 12 Pin Configuration: Pin 5 = Ground Pin 3 = Rx Pin 2 = Tx All commands to the DVP2200 are sent using ASCII text strings. Note: A command must start with the string header DVP2200. Following the header, a comma is used to delimit the header from the command.
- Page 13 RS232 Instructions Command Description Range Notes = Factory Default, % = Must be a SINGLE command) Aspect Ratio *1,2 or 3 1 = Anamorphic 2 = Letterbox 3 = 4:3 (Note: not available if a 4:3 screen shape is selected in the Setup menu) B### Brightness 0 –...
- Page 14 Power On ---- ---- Power Off ---- Places the DVP2200 in standby mode. On Screen Display % Off/On/0-255 Setup the OSD menu. OFF will disable the OSD ON will enable the OSD 0 – 255 will set the height of the OSD on the display.
- Page 15 The ‘ST’ command returns a text string of all the current settings so the user/host controller can verify the units status. This string is a fixed length so that if used in a controller type system, string parsing is made simpler. An example of the string is shown below: DVP2200:X,NTSC,P0,A1,B128,C175,K128,T128,D06,N10,M1,G0,W2,S1,I0,F1,OSD000 |--OSD ### OSD OFF...
-
Page 16: Specifications
Specifications DVP2200 Inputs (Interlaced) (NTSC/PAL B, M, N) Composite 1vpp S-Video Y - 700mv pp C -286mv pp Component (YCrCb) Y - 1vpp Cr – 700mv pp Cb – 700mv pp Computer/HDTV D15F (Progressive or Interlaced) Remote Control "D9F" RS-232 ASCII... -
Page 17: Warranty
All warranty claims should be made at the place of purchase. No products may be returned to Faroudja without its consent. If requested by Faroudja, purchaser agrees to provide proof of purchase and to return defective products to Faroudja, transportation charges prepaid.
