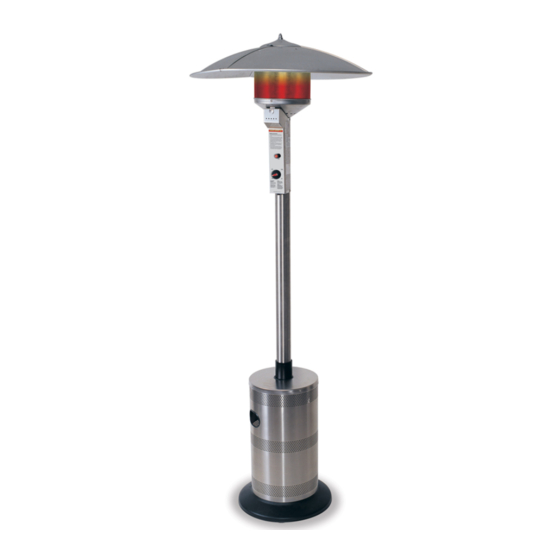

Owners Manual
Manual del Usuario
Model No.
200209
U.S. Patent Number: 6,470,877; All Other
Foreign Patents May Apply.
For Outdoor Use Only
(Outside any enclosure)
Solamente Para Uso En
Exteriores
(Fuera de cualquier recinto)
Improper installation,
adjustment, alteration,
service or maintenance
can cause injury or property
damage. Read the installation,
operation and maintenance
instructions thoroughly before
installing or servicing this
equipment.
WARNING
FOR YOUR SAFETY
WARNING
FOR YOUR SAFETY
Advertisement
Table of Contents
Related Manuals for Endless Summer 200209
Summary of Contents for Endless Summer 200209
- Page 1 Owners Manual Manual del Usuario Model No. 200209 U.S. Patent Number: 6,470,877; All Other Foreign Patents May Apply. WARNING FOR YOUR SAFETY For Outdoor Use Only (Outside any enclosure) Solamente Para Uso En Exteriores (Fuera de cualquier recinto) WARNING FOR YOUR SAFETY...
- Page 2 Do not store or use gasoline from areas where flammable or other flammable vapors or liquids, gasoline, vapors, or liquids in the vicinity of this or explosives are stored or used. any other appliance. Owner’s manual: model 200209 outdoor patio heater 7/28/04...
-
Page 3: Table Of Contents
Storage and Handling of Liquid Petroleum Gases, ANSI/NFPA 58 or CSA B149.1, manual to him or her to Natural Gas and Propane Installation Code. save for future reference. Owner’s manual: model 200209 outdoor patio heater 7/28/04... -
Page 4: Safety First
(approximately 45 minutes after use). Notice: This product should not be used with any fuel other than liquid propane. Use of other fuels will detract from heaters performance and will void your warranty. Owner’s manual: model 200209 outdoor patio heater 7/28/04... - Page 5 For your nearest Blue Rhino retailer visit • Do not clean heater with combustible or corrosive cleaners. Use warm, www.bluerhino.com. soapy water. • Do not paint engine, engine access panel or dome. Owner’s manual: model 200209 outdoor patio heater 7/28/04...
-
Page 6: Component Listing & Hardware
Assembly ..56-01-188 Legs (3) ..56-01-193 Base ..56-01-329 Weight Plate . . . 56-01-198 Owner’s manual: model 200209 outdoor patio heater 7/28/04... -
Page 7: Assembly Instructions
(1) Precision Filled LP Gas Grill Tank with Acme Type 1 external threaded valve connection (4-5 gallon size) Note: You must follow all steps to properly assemble heater. Note: Unpacking note for 200209 patio heater. When unpacking your heater from the carton, you will find that the engine assembly and the base have been bolted together for shipping purposes. -
Page 8: Step 2 Attach Platform To Legs
Insert Carriage Bolt through center holes of Base and Plate. Using 9/16” wrench, secure Plate to Base using (1) Large Lock Washer and (1) Large Nut. Place Base Assembly upright. Owner’s manual: model 200209 outdoor patio heater 7/28/04... -
Page 9: Step 4 Insert Gas Line Through Platform / Attach Shroud Cover
Insert (4) Small Screws enough to hold Engine in place. They will be fully tightened at the end of Step 7. Note: Do not replace Engine Access Panel until Step 13. Owner’s manual: model 200209 outdoor patio heater 7/28/04... -
Page 10: Step 6 Attach Engine/Post To Platform
Gently tug on line to test for proper connection. If Gas Line moves it is not properly connected. Do not proceed until you have a proper connection. Fully tighten the (4) screws from Step 5. Owner’s manual: model 200209 outdoor patio heater 7/28/04... -
Page 11: Step 8 Assemble Dome
Secure with three nuts. Place dome cap over center bolt, making sure that the three slots in cap lay over each Rib Thread on finial until tight. Owner’s manual: model 200209 outdoor patio heater 7/28/04... -
Page 12: Step 10 Secure Gas Line
Note: Be careful not to kink flexible hose of Gas Line. for leaks even if your unit was • Secure tank in place by attaching loose end of Tank Restraint Chain to assembled for you at the store. hole in right leg. Owner’s manual: model 200209 outdoor patio heater 7/28/04... -
Page 13: Step 12 Check For Leaks
• Release Gas Line fitting from Tank valve and re-attach making sure connection is secure (see Step 11). • If you continue to see bubbles after several attempts, contact 1-800-762-1142 for assistance. • Turn Tank Valve OFF. Owner’s manual: model 200209 outdoor patio heater 7/28/04... -
Page 14: Step 13 Replace Engine Access Panel
• Install (1) AA battery. Negative end of battery goes in first. • Replace battery cover cap by turning cap clockwise. Note: Once you have successfully completed assembly steps 1-14 you are ready to begin operating your heater. Owner’s manual: model 200209 outdoor patio heater 7/28/04... -
Page 15: Operation
• Release Control Knob after 30 seconds. Pilot Light will remain lit. If not, return to step 1. • Turn Control Knob to ON. Main Burner will light immediately. Flame is HIGH HIGH visible through Viewing Hole. If not, return to step 1. Owner’s manual: model 200209 outdoor patio heater 7/28/04... -
Page 16: Re-Lighting
Handle with extreme care. clockwise to OFF. Turn Tank Valve clockwise to OFF and disconnect Regulator when heater is not in use. Note: After use, some discoloration of the emitter screen is normal. Owner’s manual: model 200209 outdoor patio heater 7/28/04... -
Page 17: Operation Checklist
After Operation q Gas control is in OFF position. q Gas tank valve is OFF q Disconnect Gas line. q Heater is upright in a secure location. Owner’s manual: model 200209 outdoor patio heater 7/28/04... -
Page 18: Troubleshooting
Heater is level Clean burner Dirt or film on reflector and emitter Clean reflector and emitter Carbon build-up Blockage in burner Remove blockage and clean burner Thick black smoke inside and outside Owner’s manual: model 200209 outdoor patio heater 7/28/04... -
Page 19: Maintenance
Frequently check for corroded areas and repair them promptly. TIP: Use high-quality automobile wax to help maintain the appearance of your heater. Apply to exterior surfaces from the pole down. Do not apply to emitter screen or domes. Owner’s manual: model 200209 outdoor patio heater 7/28/04... -
Page 20: Specifications
Maximum – 150 PSI Minimum – 5 PSI Manifold Pressure: 11.00 in. W.C. Engine: IPP E8 Safety Features: 100% Burner shut-off Tilt Switch Manufacturer: Blue Rhino Global Sourcing, LLC Made In: China Owner’s manual: model 200209 outdoor patio heater 7/28/04... -
Page 21: Storage
Caution: Use only original equipment replacement parts. Use of unauthorized parts or modification of parts will void warranty and create an unsafe condition. Caution: Always allow heater to cool before attempting service. Owner’s manual: model 200209 outdoor patio heater 7/28/04... -
Page 22: Limited Warranty
Vendor. Blue Rhino Global Sourcing, LLC 104 Cambridge Plaza Drive Winston-Salem, North Carolina 27104 USA (800) 762-1142 24 Hour Fax: (336) 659-6743 CustomerService@BlueRhino.com Owner’s manual: model 200209 outdoor patio heater 7/28/04... -
Page 23: Specifications
Contact 1-800-762-1142 for assistance. ® Do not return to place of purchase. Specifications Certifications: CSA International Requirement 5.90 Canadian National Standard CAN1-2.23-M82 Rating: Maximum 40,000 BTU/hr. input Heat Range: Up to 20 foot diameter Fuel: Liquid Propane Gas (LP) Cylinder Size: Nominal 20 lb / 5 Gallon Inlet gas supply pressure: Maximum –...
