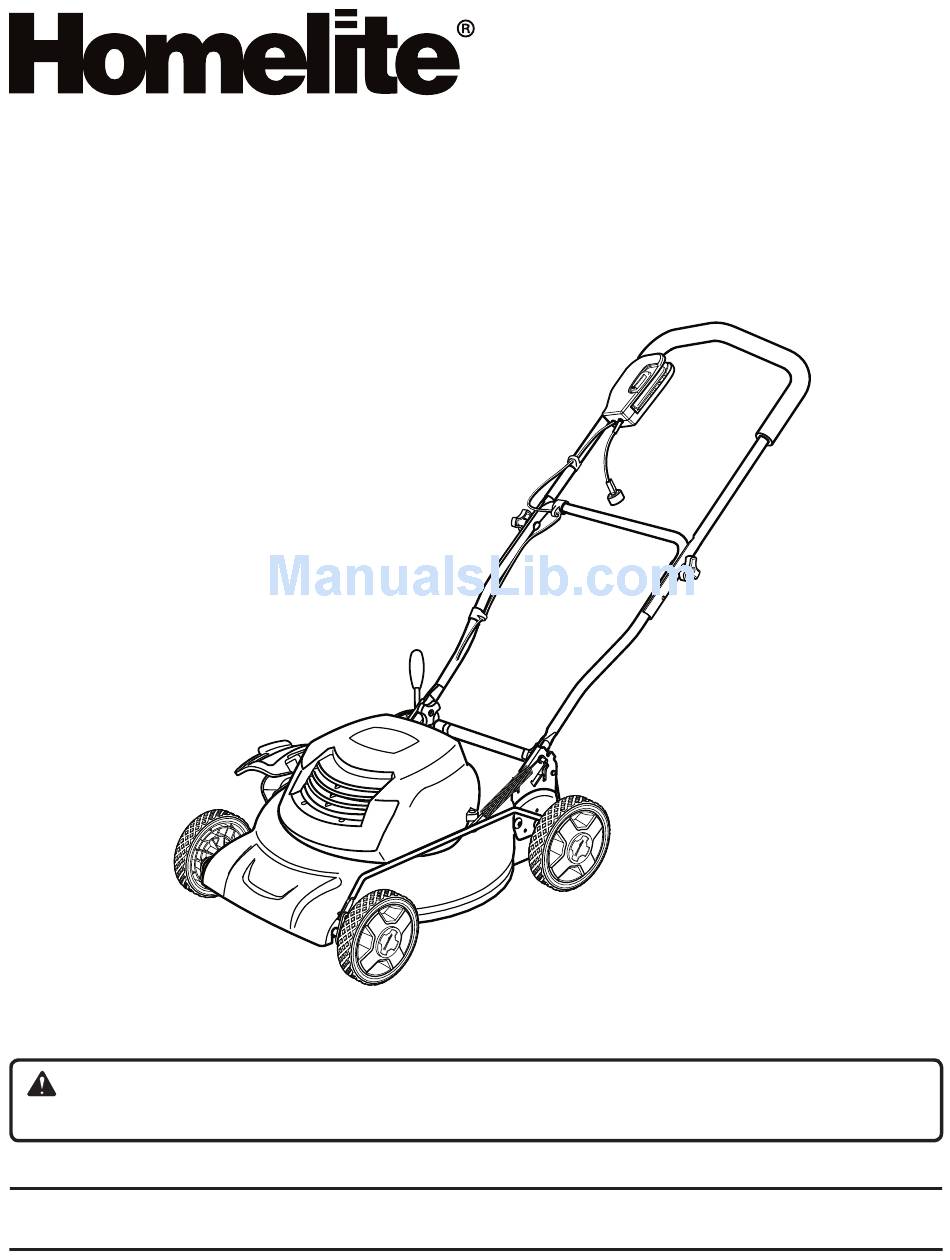

OPERATOR'S MANUAL
ELECTRIC LAWN MOWER
18 in. – UT13118
20 in. – UT13120
Your lawn mower has been engineered and manufactured to our high standard for dependability, ease of operation, and
operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.
WARNING:
using this product.
Thank you for your purchase.
SAVE THIS MANUAL FOR FUTURE REFERENCE
To reduce the risk of injury, the user must read and understand the operator's manual before
Advertisement
Table of Contents
Related Manuals for Homelite UT13120
Summary of Contents for Homelite UT13120
- Page 1 18 in. – UT13118 20 in. – UT13120 Your lawn mower has been engineered and manufactured to our high standard for dependability, ease of operation, and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ... 2 General Safety Rules ...3-4 Specific Safety Rules ... 4 Symbols ...5-6 Electrical ... 7 Features ...8-9 Assembly ...9-11 Operation ...12-13 Maintenance ...14-16 Troubleshooting ... 17 ... -
Page 3: General Safety Rules
Use the right appliance. Do not use the lawn mower for any job except that for which it is intended. Do not force the lawn mower. It will do the job better and safer at the rate for which it was designed. -
Page 4: Specific Safety Rules
Inspect extension cords periodically and replace if damaged. Keep handles dry, clean, and free from oil or grease. SPECIFIC SAFETY RULES If the lawn mower strikes a foreign object, follow these steps: • Stop the lawn mower and release the switch control lever. -
Page 5: Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME Volts Amperes Hertz Watt Hours Class II Construction Wet Conditions Alert Read The Operator’s Manual... -
Page 6: Symbols
To avoid serious personal injury, do not attempt to use this product until you read thoroughly and understand com- pletely the operator’s manual. If you do not understand the warnings and instructions in the operator’s manual, do not use this product. Call Homelite customer service for assistance. Page 6... -
Page 7: Electrical
DOUBLE INSULATION Double insulation is a concept in safety in electric power tools, which eliminates the need for the usual three- wire grounded power cord. All exposed metal parts are isolated from the internal metal motor components with protecting insulation. Double insulated tools do not need to be grounded. -
Page 8: Features
No-load Speed ... 3,600 r/min. (RPM) Cutting Path ... 18 in. Height Adjustments ... 1-3/4 in. to 3-3/4 in. Wheel Size ... 7 in. Weight ... 42 lb. (MODEL UT13120 ONLY) HEIGHT ADJUSTMENT FEATURES UT13120 Input ... 120 V, 60 Hz, AC only, 12 Amps No-load Speed ... -
Page 9: Assembly
If any parts are damaged or missing, please call 1-866-457-5888 for assistance. PACKING LIST Mower Side Discharge Deflector Mulching Plug (Model UT13120 only) Grass Catcher (Model UT13120 only) Operator’s Manual FEATURES MOTOR/BLADE CONTROL ASSEMBLY The motor/blade control, located on the upper handle of the mower, engages and disengages the motor and blade. - Page 10 Release the deflector and door. INSTALLING THE MULCHING PLUG (MODEL UT13120 ONLY) See Figure 5. NOTE: When using the mulching plug, do not install either the side discharge deflector or the grass catcher.
- Page 11 INSTALLING THE GRASS CATCHER (MODEL UT13120 ONLY) See Figure 6. NOTE: When using the grass catcher, do not install either the side discharge deflector or the mulching plug. Lift the rear discharge door. Lift the grass catcher by its handle and place under the rear discharge door so that the hooks on the grass catcher are seated on the door rod.
-
Page 12: Operation
Such objects could be accidentally thrown by the mower in any direction and cause serious personal injury to the operator and others. To reduce the likelihood of disconnecting the lawn mower from the extension cord, be sure to use the cord retainer provided. -
Page 13: Operation
Do not mow near drop-offs, ditches, or embankments; you could lose your footing or balance. EMPTYING THE GRASS CATCHER (MODEL UT13120 ONLY) See Figure 11. Lift the grass catcher by its handle and lift to remove from mower. -
Page 14: Maintenance
WARNING: When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. WARNING: Always wear safety goggles or safety glasses with side shields during power tool operation or when blowing dust. If operation is dusty, also wear a dust mask. GENERAL MAINTENANCE Avoid using solvents when cleaning plastic parts. -
Page 15: Sharpening The Blade
Place the new blade on the shaft against the fan assembly. Make sure it is installed with the curved ends pointing up toward the mower deck and not down toward the ground. Replace the blade insulator and spacer, then thread the blade nut on the shaft and finger tighten. -
Page 16: Maintenance
REPLACING WHEELS See Figure 16. To replace a wheel: Disconnect the mower from the power supply. Turn the mower on its side. Using a flat blade screwdriver, pry off the hubcap. Remove the cotter pin from the wheel axle, then remove the wheel. -
Page 17: Troubleshooting
Blade is unbalanced. Bent motor shaft. CALL US FIRST For any questions about operating or maintaining your product, call the Homelite Your product has been fully tested prior to shipment to ensure your complete satisfaction. Page 17 Solution... -
Page 18: Exploded View/Parts List
EXPLODED VIEW/PARTS LIST MODEL UT13118 Part Description 3330390 Mower Motor/Deck Assy..1 3110137-2 Front Axle Assembly ... 1 3110237-2 Rear Axle Assembly ... 1 3220575 Screw (M5 x 10 mm Pan Hd.) ... 4 3320237 Wheel Cover Ferrule (B) ... 3 3420190 7 in. - Page 19 EXPLODED VIEW/PARTS LIST MODEL UT13120 Part Description 3130191 Mower Motor/Deck Assy..1 3110139-1 Front Axle Assembly ...1 3110239-1 Rear Axle Assembly ...1 3220575 Screw (Pan Hd.) ...4 3420191 7 in. Wheel ...2 3410391 Wheel Cover ...4 3420291 8 in. Wheel ...2 3331638 Washer (13.5 x 20 x 1.5t) ...4...
-
Page 20: Warranty
ANY NON-RESIDENTIAL USE OR COMMERCIAL USE VOIDS ALL WARRANTIES. Call us first with questions about operating or maintaining your lawn mower at 1-866-457-5888 between 7:30 a.m. – 4:30 p.m. Eastern Standard Time, or send emails to homelite@reelin.com. WARRANTY CALL US FIRST !! - Page 21 NOTES Page 21...
- Page 22 20 in. – UT13120 SERVICE For parts or service, contact your nearest Homelite authorized service dealer. Be sure to provide all relevant information when you call or visit. For the location of the authorized service dealer nearest you, please call 1-866-457-5888 or visit us online at www.homelite.com.
