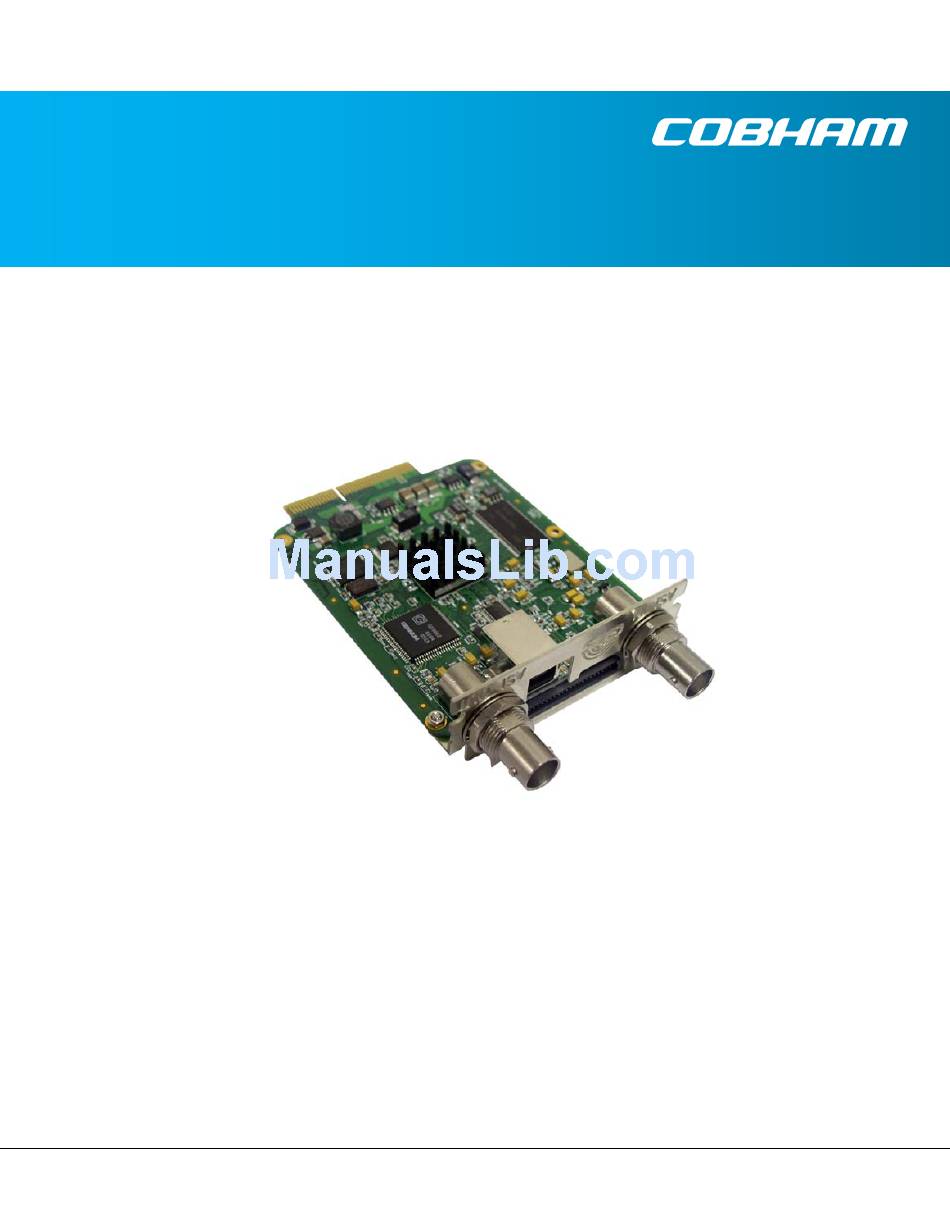

- Page 1 User’s Manual The most important thing we build is trust. Digital Data Processor Card (DDPC) Cobham Surveillance GMS Products 1916 Palomar Oaks Way Ste 100 Carlsbad, CA 92008 100-M0070X2 05/14/2009 T: 760-496-0055 F: 760-496-0057 www.cobham.com/gms...
-
Page 2: Table Of Contents
4.1.3 User Data w/wo AES Decryption Setup ..................... 9 4.1.4 High Throughput 4K Setup ........................10 Hardware Overview ............................. 12 DDPC CONNECTION DIAGRAM ........................13 DDPC BACK PANEL .............................. 13 5.2.1 System Active LED ............................ 14 5.2.2 Function Active LED ..........................14 5.2.3... - Page 3 Figure 2 System Configuration for DDPC with AES Decryption only ..............8 Figure 3 System Configuration for DDPC with High Speed Data, AES Decryption optional....9 Figure 4 System Configuration for DDPC with User Data w/wo AES Decryption Setup ......10 Figure 5 4K System Configuration for DDPC with 4K ....................
-
Page 4: Acronyms
Messenger Basic Scrambling 8 bit Asynchronous Serial Interface Block Down Converter COFDM Coded Orthogonal Frequency Division Multiplexing CVBS Composite Video Down-Converter DDPC Digital Data Processing Card DVB-T Digital Video Broadcasting - Terrestrial Forward Error Correction Graphical User Interface Input/ Output Kbaud... -
Page 5: Introduction
ASI/SDI via BNC serial cable, and/or LVDS/LVTTL via 50-pin connector, computer communications through two RS-232 ports, and can be programmed for custom applications. The DDPC is designed to fit one of the slots of the GMS Messenger Smart Receiver (MSR) or stand-alone. -
Page 6: System Overview
For example, if connected to a GPS the transmitter location could be known at any time. Without disrupting the video stream, the DDPC will extract the User Data and send it to a computer through a RS232 port. All connections to the DDPC are located on the back panel. -
Page 7: Figure 1 Three Ch Msr W/Optional Bdc's And Ddpc
Figure 1 Three CH MSR w/optional BDC-s and DDPC The DDPC can be controlled through the MSR USB or serial port (future), and it can also be controlled separately through its own USB or serial port from its back via an IBM PC using a Window’s based control program. -
Page 8: Getting Started
DDPC is in is on. 9. When turned on, click on the Apply box. Click on Configuration/Save Settings, to save. 10. Now that the System Active LED is on or blinking you can set up the DDPC. See section 6.3.1. -
Page 9: High Speed Data W/Wo Aes Decryption Setup
DDPC is in is on. 9. When on click on the Apply box. Click on Configuration/Save Settings, to save. 10. Now that the System Active LED is on or blinking you can set up the DDPC. See section 6.3.1. -
Page 10: High Throughput 4K Setup
DDPC is in is on. 11. When on click on the Apply box. Click on Configuration/Save Settings, to save. 12. Now that the System Active LED is on or blinking you can set up the DDPC. See section 6.3.1. -
Page 11: Figure 5 4K System Configuration For Ddpc With 4K
3. Attach the other end of the short BNC cable to the ASI IN connector. 4. Attach one end of the USB cable to the DDPC and the other end to the PC. 5. Attach one end of BNC cable to the DDPC ASI OUT connector and the other to the Decoder. -
Page 12: Hardware Overview
Hardware Overview The DDPC is designed to fit in one slot of the MSR or in an optional external 4”x3”x1” enclosure. All user interface connectors (RS-232, USB, ASI in/out and 50 pin LVDS/LVTTL) and two led indicators (System Active and Function Active) are located on the rear of the DDPC unit panel. -
Page 13: Ddpc Connection Diagram
The DDPC fits into any slot in the MSR except #1 if diversity tuners are loaded. The MSR’s “switched 12 VDC” must be turned on for the card slot that the DDPC is in. The MSR can talk to the DDPC through the 80-pin connector via I2C port on the connector. -
Page 14: System Active Led
Function Active LED The Function Active LED indicates that data is being processed by the DDPC. If the light is off then the data is not being processed and is leaving the same as it enters. For example if the AES Decryption mode is turned on and the Function Active LED is on, the ASI stream is being decrypted. -
Page 15: Table 2 Usb Connector
Signal Description 5V POWER USBDM USBDP USB GND Table 2 USB Connector 100-M0070X2 15 of 26 www.cobham.com/gms... -
Page 16: 50 Pin Io Port
2Positive Clock 2Negative Valid 2Positive Valid 2Negative Sync 2Positive Sync Ground Ground 2Negative Data 5 2Positive Data 5 2Negative Data 6 2Positive Data 6 2Negative Data 7 2Positive Data 7 Table 3 50 PIN IO Connector 100-M0070X2 16 of 26 www.cobham.com/gms... -
Page 17: Ddpc Top Side
SAMTEC MEC1-140-02-F-D-A. This gives the DDPC power and I2C control. The connector also passes through diversity tuner data from one tuner to the next. Table 5 shows the MSR MOTHER BOARD INTERFACE Connections. NOTE: The DDPC should not be placed in slot 1 if turners are used in the same MSR. SIGNAL... -
Page 18: Software Overview
AES decryption key and mode, high-speed data lost connection byte, and other needed settings. The DDPC can be setup once and will continue to run without flaw even when powered down, except when AES Decryption is set to “AES, NEVER Store the key in the DDP”... -
Page 19: Function Aes Decryption
Decryption key must be reloaded every time it is powered off. This is for higher security. AES, Store the key in DDP mode: This mode does AES Decryption and the DDPC remembers the Decryption key so when the DDPC is powered on it will come up working. -
Page 20: Function High-Speed Data
Serial Port Selector and connection region. There is no need to change any settings to make the DDPC function in High-Speed Data mode. The Option menu will only be enabled if you have purchased the AES Decryption option. -
Page 21: 6.3.2.1 Function High-Speed Data Buttons And Selects
Value of Data when No Link: This box loads the No Link byte. This byte will be outputted when the DDPC is no longer receiving valid data through the link. PCR PID: This box loads the 13-bit PCR PID into the DDPC. The PCR PID of the DDPC must match the High-Speed Data transmitter’s PCR PID. -
Page 22: Function User Data Buttons And Selects
Descrambling Key. Apply Button: Load the DDPC with the new Descrambling Mode and Descrambling Key. Save Button: Clicking this button will save the settings to the DDPC so when power is recycled the DDPC will remember the last settings. -
Page 23: Specifications
Descrambling Key. Apply Button: Load the DDPC with the new Descrambling Mode and Descrambling Key. Save Button: Clicking this button will save the settings to the DDPC so when power is recycled the DDPC will remember the last settings. - Page 24 Case (go to www.cobham.com/gms for details) MSR (Sold Separately) See separate data sheets Rack-Mount (Sold Separately) 100-M0070X2 24 of 26 www.cobham.com/gms...
-
Page 25: Appendix A: Cable, Ddpc To High-Speed Data Out
Appendix A: Cable, DDPC to High-Speed Data out 100-M0070X2 25 of 26 www.cobham.com/gms... -
Page 26: Appendix B: Cable, User Data Rs-232
Appendix B: Cable, User Data RS-232 100-M0070X2 26 of 26 www.cobham.com/gms...
