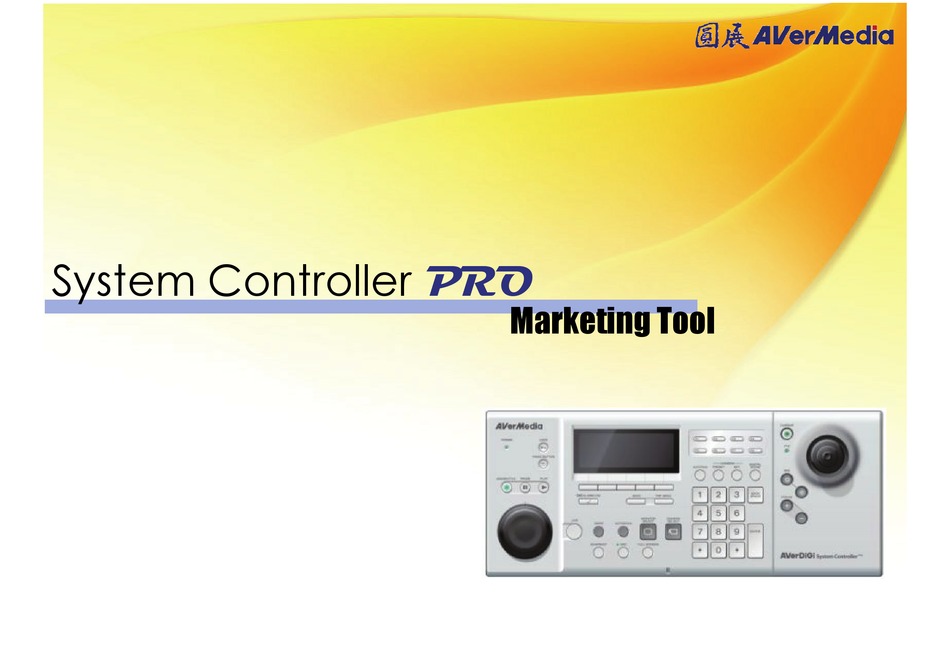

- Page 1 System Controller Marketing Tool Marketing Tool...
- Page 2 Overview...
- Page 3 Panel and Chassis Design of Panel and Chassis Design of SYSTEM CONTROLLER...
- Page 4 Professional Panel Design g Panel *Real case color may be different from image LCD display for handy operation Jog shuttle for professional playback operation Joystick for efficient PTZ control Shortcut keys for quick every day system operation Mouse mode to actually control every detail of DVR/CMS...
- Page 5 Professional Chassis Design g Side Panel USB port x2 for easy external device connection to your DVR/CMS Easily backup your DVR without any hassle! Easily backup your DVR without any hassle! Audio output x1 and Mic input x1 at side panel You don’t have to fight with all the cables to hear the audio! Grooves at the bottom for you to staw your cables neatly Grooves at the bottom for you to staw your cables neatly...
- Page 6 Application Diagram of Application Diagram of SYSTEM CONTROLLER...
-
Page 7: Application Diagram
Application Diagram Application Diagram •Supported device showed in above diagram may be different based on different DVR products... - Page 8 Function Introduction of Function Introduction of SYSTEM CONTROLLER (WHEN WORK WITH DVR)
- Page 9 Live Monitoring g Layout Switch Change live display layout from single channel to 32 channel Camera Select Select focus channel for display or detail setting Auto Scan Auto Scan Start/Stop live monitoring channel auto scan Enable/Disable; Covert/Display Disable or enable selected cameras, or hide and display selected camera Audio control Set audio volume of each selected channel...
- Page 10 Camera Configuration Enable Enable and disable camera Display Display or hide camera Attribute Attribute Configure Hue / Saturation / Brightness / Contrast of camera De-interlace S t d i t l Set de-interlace mode 1/2/off d 1/2/ ff IP output Trigger IP camera relay output...
- Page 11 Playback & PTZ Operation Playback Operation One click to switch to playback Two levels jog shuttle for intuitive playback Upper level to move forward and backward Bottom level to set playback speed from 1x to 32x Play/Pause button PTZ Operation PTZ Operation Control PTZ through DVR 2 Level Jog Shuttle...
-
Page 12: General Operation
Panic / Alarm Button Panic / Alarm Button Trigger those alarm button actions configured in DVR system Press Panic Button on System Controller PRO panel is equivalent to press alarm button in DVR GUI Alarm Log Show system alarm log... - Page 13 Others System Controller Lock Lock the system controller to prevent malicious operation Mode Selection CM3000 / DVR / PTZ mode switch without reboot the controller Mi I Mic Input Enable/Disable Mic input Mouse Control S it h j Switch joystick to mouse mode to operate ti k t Cursor mode switch Left Click...
- Page 14 Data Sheet of Data Sheet of SYSTEM CONTROLLER...
-
Page 15: Data Sheet
Data Sheet General Specifications Detail: I t f Interface USB 2 0 l USB 2.0 low-speed device (Cable Length - Approx 2m; 6ft. 6.8in.) (C bl L th A 6ft 6 8i ) External Interface USB 2.0 (2), Microphone stereo mini jack (plug-in power) (1) ,Headphone stereo mini jack (1), RS-485 port Dimensions 409.0 (W) x 111.5 (H) x 170.0 (D) mm, (16 1/8 x 4 1/2 x 6 3/4 inches)
