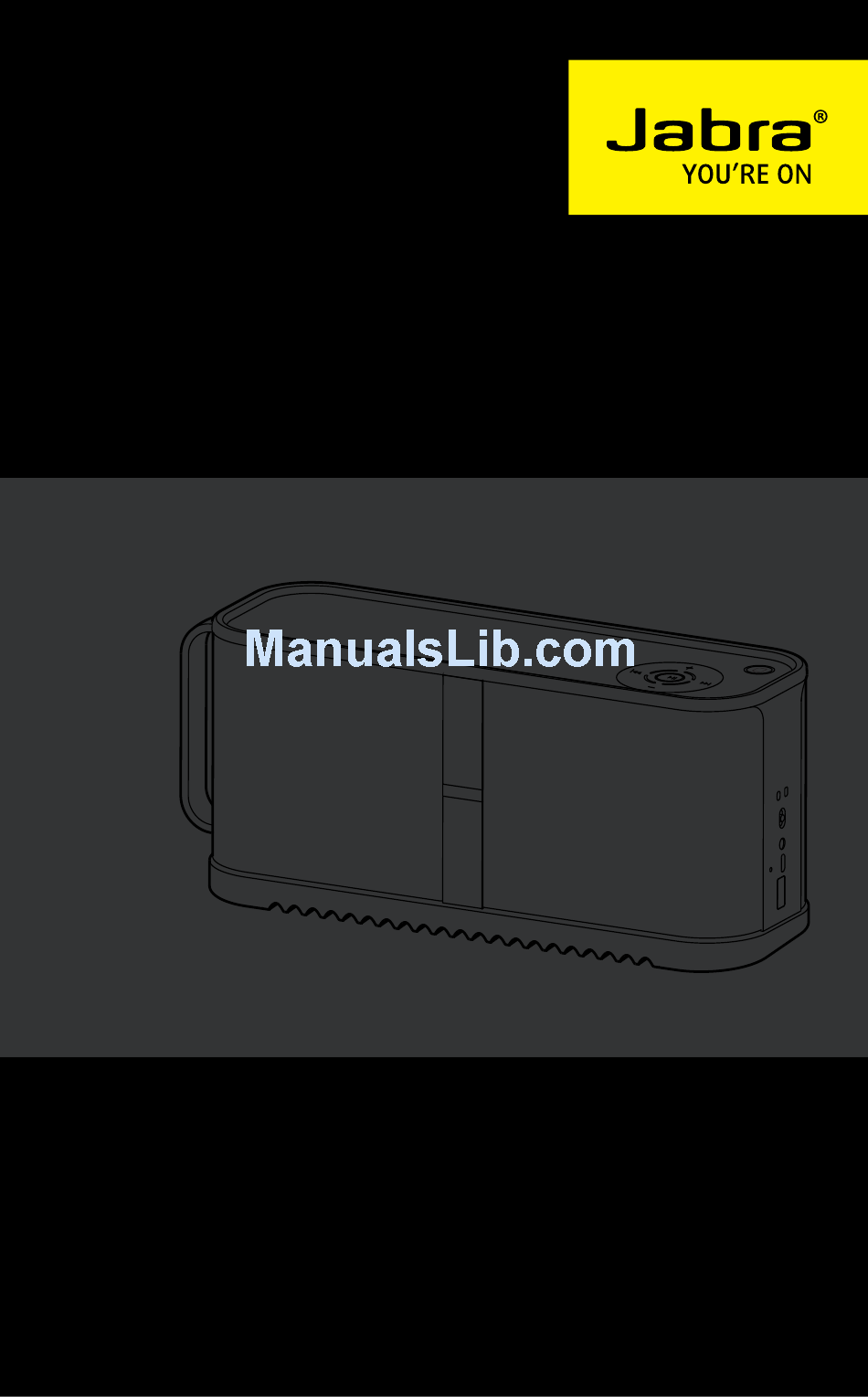

- Page 1 JABRA SOLEMATE MAX N F C j a b r User Manual jabra.com/solematemax...
- Page 2 ® © 2013 GN Netcom A/S. All rights reserved. Jabra is a registered trademark of GN Netcom A/S. All other trademarks included herein ® are the property of their respective owners. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by GN Netcom A/S is under license.
-
Page 3: Table Of Contents
6.2 TURN VOICE GUIDANCE OFF 6.3 SWITCH BETWEEN MALE/FEMALE VOICE GUIDANCE 6.3 LISTEN TO VOICE GUIDANCE 7. UPDATE FIRMWARE ......17 8. SUPPORT ..........18 8.1 FAQ 8.2 HOW TO CARE FOR THE JABRA SOLEMATE MAX 9. TECHNICAL SPECIFICATIONS ..20 JABRA SOLEMATE MINI... -
Page 4: Welcome
1. WELCOME Thank you for using the Jabra Solemate Max. We hope you will enjoy it! JABRA SOLEMATE MAX FEATURES ƒ Two tweeters, two woofers and a custom- designed bass built into a lightweight design. ƒ Connect with Bluetooth or NFC and control your playlists from across the room –... -
Page 5: Speaker Overview
On/Off/Pairing 3.5mm jack connector USB connector port Phone charging port 3.5mm audio cable (under the sole) Wall charger port (On the back) 3.5 mm audio cable Micro-USB cable (under the sole) Charger adapter Charger cable JABRA SOLEMATE MINI... - Page 6 2.1 POSITIONING THE SPEAKER The Jabra Solemate Max functions best when placed flat on any surface, and angled for optimal sound. N F C j a b ra 2.2 TURNING ON THE SPEAKER Slide the On/Off/Pairing switch to the On position to turn the Jabra Solemate Max on.
-
Page 7: How To Charge The Battery
3. HOW TO CHARGE THE BATTERY The Jabra Solemate Max can only be charged using the wall charger. 3.1 BATTERY STATUS WHAT YOU SEE WHAT IT MEANS The battery is full The battery is half full The battery is low... - Page 8 3.2 CHARGE YOUR PHONE Your mobile phone will charge when connected to the Jabra Solemate Max using the USB cable supplied with your mobile phone. Note: Tablets and larger devices will not charge when connected to the Jabra Solemate Max.
-
Page 9: How To Connect
3. Follow the voice-guided pairing instructions to connect. j a b ra Note: If connection is lost (e.g. out of range) tap the Answer/end button when the Jabra Solemate Max is in range and powered on to reconnect. JABRA SOLEMATE MINI... -
Page 10: Connect Using Nfc
NFC is a faster, simpler way to connect using Bluetooth. 1. Ensure that NFC is enabled on your mobile phone. 2. Locate and gently touch the NFC zone on your mobile phone against the NFC zone on the Jabra Solemate Max. NFC zone JABRA SOLEMATE MINI... - Page 11 4.3 CONNECT USING 3.5 MM JACK CONNECTOR Connect the Jabra Solemate Max to any audio device with a 3.5 mm Jack Connector, using the supplied audio cable. The microphone is disabled on the Jabra Solemate Max when connected via the 3.5 mm Jack Connector.
- Page 12 Plug the Jabra Solemate Max into any available USB port on your PC. The Jabra Solemate Max microphone is enabled when connected via USB. NOTE: If you cannot hear anything, set the Jabra Solemate Max as the default audio device under ‘Sound and Audio devices’ in Windows.
-
Page 13: Play Music & Chat
5. PLAY MUSIC & CHAT 5.1 PLAY MUSIC Music played on your connected device will automatically transfer to the Jabra Solemate Max. If you cannot hear audio, ensure the device is connected via Bluetooth, NFC, USB or 3.5mm Jack Connector, or turn up the speaker volume. The volume can be adjusted on the speaker, or on the connected device. -
Page 14: Chat Using Mobile Phone
5.2 CHAT USING MOBILE PHONE When the Jabra Solemate Max is connected to your mobile phone via Bluetooth, NFC or USB calls will automatically transfer to the Jabra Solemate, which will function as a speakerphone. Note: Music will automatically pause during a call, and will resume when the call is ended. -
Page 15: Voice Guidance
6.1 TURN VOICE GUIDANCE ON 1. Turn off the Jabra Solemate Max. 2. Press and hold the Volume up button while turning on the Jabra Solemate Max. Release the Volume up button when you hear ‘Sound prompts on’ . 6.2 TURN VOICE GUIDANCE OFF 1. -
Page 16: Listen To Voice Guidance
MALE FEMALE WHAT YOU HEAR Go ahead and connect me. Use the Bluetooth setting on your phone Connected Battery full Battery medium Battery low Recharge battery Muted un-muted Redialing Sound prompts off Sound prompts on Connection cancelled JABRA SOLEMATE MINI... -
Page 17: Update Firmware
1. Visit jabra.com/solematemax and download the latest firmware from the support section. 2. Run the downloaded file and follow the on-screen instructions to update the firmware. NOTE: The Jabra Solemate Max must be connected to a PC via USB to update firmware. JABRA SOLEMATE MINI... -
Page 18: Support
Ensure the speaker and the connected device are within range (up to 10 meters or 33 feet). Q What is the range of the speaker? A The Jabra Solemate Max supports the following maxi- mum ranges: 10m/33ft. Q I am having Bluetooth connecting problems A You may have deleted your Jabra Solemate pairing connection in Bluetooth device. - Page 19 8.2 HOW TO CARE FOR THE JABRA SOLEMATE MAX ƒ Always store the speaker with the power off. ƒ Avoid storage at extreme temperatures (below -20°C/-4°F or above 85°C/185°F). This can shorten battery life and may affect speaker operation. ƒ Do not expose the speaker to rain or other liquids.
-
Page 20: Technical Specifications
9. TECHNICAL SPECIFICATIONS JABRA SOLEMATE MAX SPECIFICATION Weight: Dimensions: H 138mm x W 102mm x L 302mm Microphones: Omni directional microphone 2 x 76 mm Mid-woofers Speakers: 2 x 20 mm Tweeters 1 235mm X 92mm Passive radiator Operating range:... - Page 21 JABRA SOLEMATE MINI...
