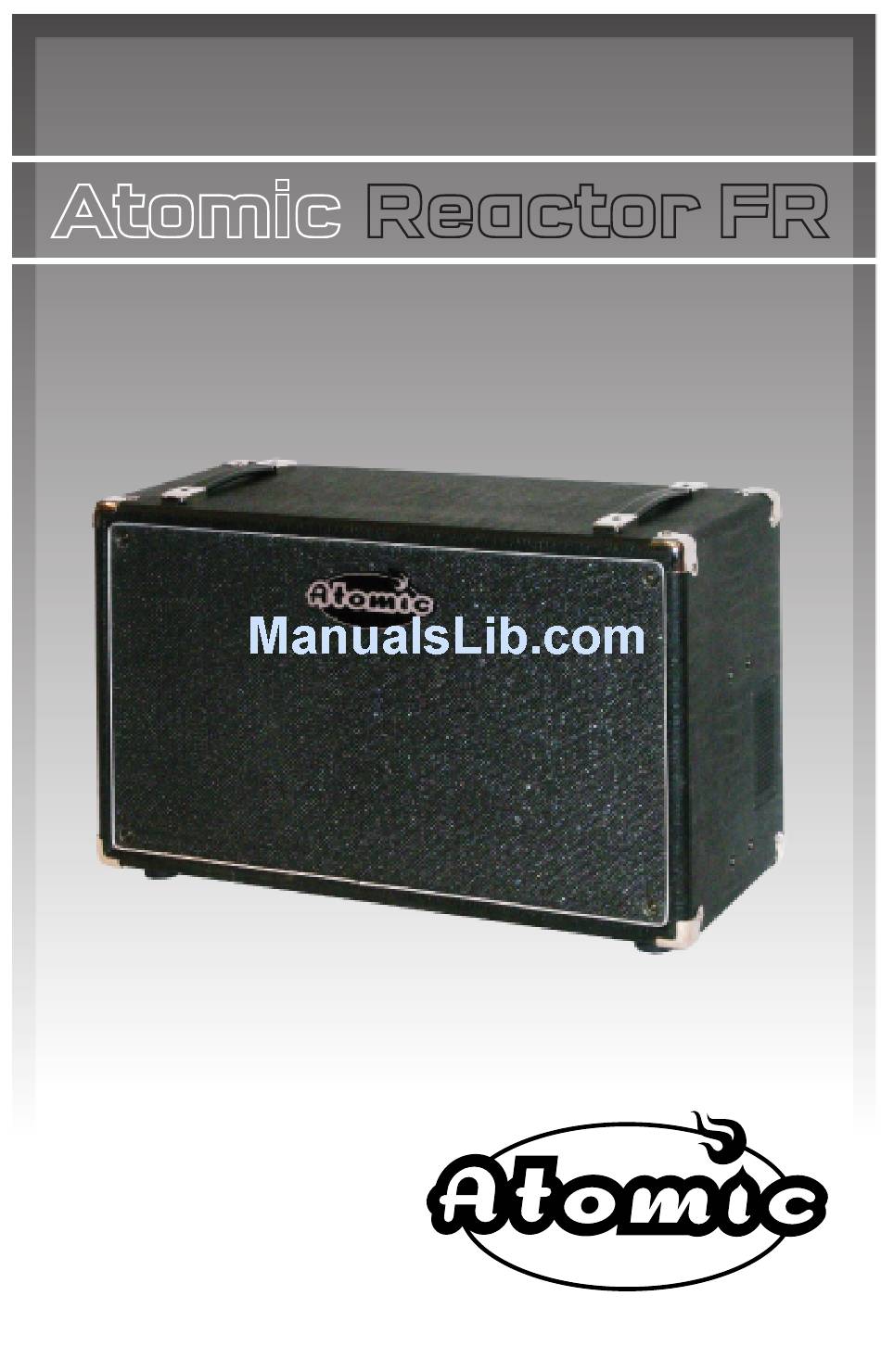

- Page 1 Atomic Reactor FR THE WORLD’S FIRST AND ONLY TUBE-POWERED FULL RANGE GUITAR AMP/PERSONAL MONITOR OWNER’S MANUAL www.atomicamps.com...
- Page 2 THIS UNIT MUST BE EARTH GROUNDED. Atomic Amplifiers and Atomic Reactor FR are trademarks of Atomic Amplifiers LLC. Any other product names, trademarks or names are the property of their respective owners which are in no way associated with or affiliated with Atomic Amplifiers LLC ©...
-
Page 3: Table Of Contents
R E A C T O R F R U S E R M A N U A L T A B L E O F C O N T E N T S The Atomic Reactor Summary of Components Controls & Connections Using the Reactor FR Rig Diagrams Maintenance Service Trouble... -
Page 4: The Atomic Reactor
The Atomic Reactor FR is the result of our design team’s tireless efforts to create a superior sounding amplifier for the modern digital guitar rig. A... -
Page 5: Summary Of Components
S U M M A R Y O F C O M P O N E N T S The Reactor FR is made up of two independent systems: a 50 watt RMS tube audio power amplifier, and a very high efficiency tuned speaker system. -
Page 6: Controls & Connections
Balanced ( XLR) Thru – This male XLR connector produces exactly the same signal that is connected to the balanced XLR input jack, whether or not the Reactor FR is switched ON. Note that the THRU only passes the XLR input and NOT the ¼" input signal. - Page 7 Reactor FR is powered on. Power Input - This is where you connect the supplied AC line cord to provide power to the Reactor FR. The power inlet also houses the Fuse Compartment which must be opened to replace the fuse. In order to convert the Reactor FR from 115v (US) to 230v (EU) operation (or vice versa) remove, rotate, and replace the fuse compartment.
-
Page 8: Using The Reactor Fr
U S I N G T H E R E A C T O R F R The Reactor FR is easy to use and offers a range of controls to fit a great range of musical performance requirements. NOTE: Before connecting the Reactor FR, it is advised that you should lower the output level of your preamp, processor, or other source device. -
Page 9: Rig Diagrams
Reactor FRs to create a wide, 3D sound. DUAL MONO Connected as in the mono setup above, but with the THRU of the first Reactor FR connected to the input of a second Reactor FR (XLR only.) -
Page 10: Maintenance
For continued optimum performance from your Reactor FR, tubes should only be replaced with tubes of the same type. The power section is built to work with any properly biased 6L6 or EL34 tube. -
Page 11: Service
If your amplifier should require service, you have two options. The first is to take it to an authorized service center in your area. A list of service centers is available on the ATOMIC AMPLIFIERS website (www.atomicamps.com) or through our Customer Service Department at info@atomicamps.com or (646) 201-9543. - Page 12 • Is the fuse blown? The Reactor powers up but produces no sound. • Is the reactor FR really turned on? (“Tubes glow and fan blows.”) • Is the standby switch also set to the “On” position? • Is the output level control on your source device turned up? •...
- Page 13 S P E C I F I C A T I O N S Intended Applications: Full Range Sound Reinforcement 115V AC, 50/60 Hz 105W Power Requirements: OR 230v Ac, 50 Hz 105W Remove/rotate/replace fuse holder to select between 115 (US) and 230 (EU) Amplifier Power Output: 50W into 8 ohms at 3% THD Power Amp Input...
-
Page 14: Warranty
Atomic Amplifiers warrants to the original purchaser that this product (exclusive of tubes) will be free of defects in material and workmanship for a period of 1 year from the original date of purchase. Atomic Amplifiers warrants to the original purchaser of this product that tubes will be free of defects in material and workmanship for a period of period of 90 from the original date of purchase by the original purchaser. - Page 15 Atomic Amplifiers will not be held liable for any incidental consequential, special, punitive, or exemplary damages resulting from any defect or failure of this product other than the repair of the Atomic Amplifiers product subject to the terms of this limited warranty. Any product...
- Page 16 Atomic Amplifiers LLC 476 Grace Trail • Orange, CT 06477 (646) 201-9543 [tel] info@atomicamps.com www.atomicamps.com www.atomicamps.com...
