American Standard Regalyn 4867.004 Specification Sheet

BARRIER FREE

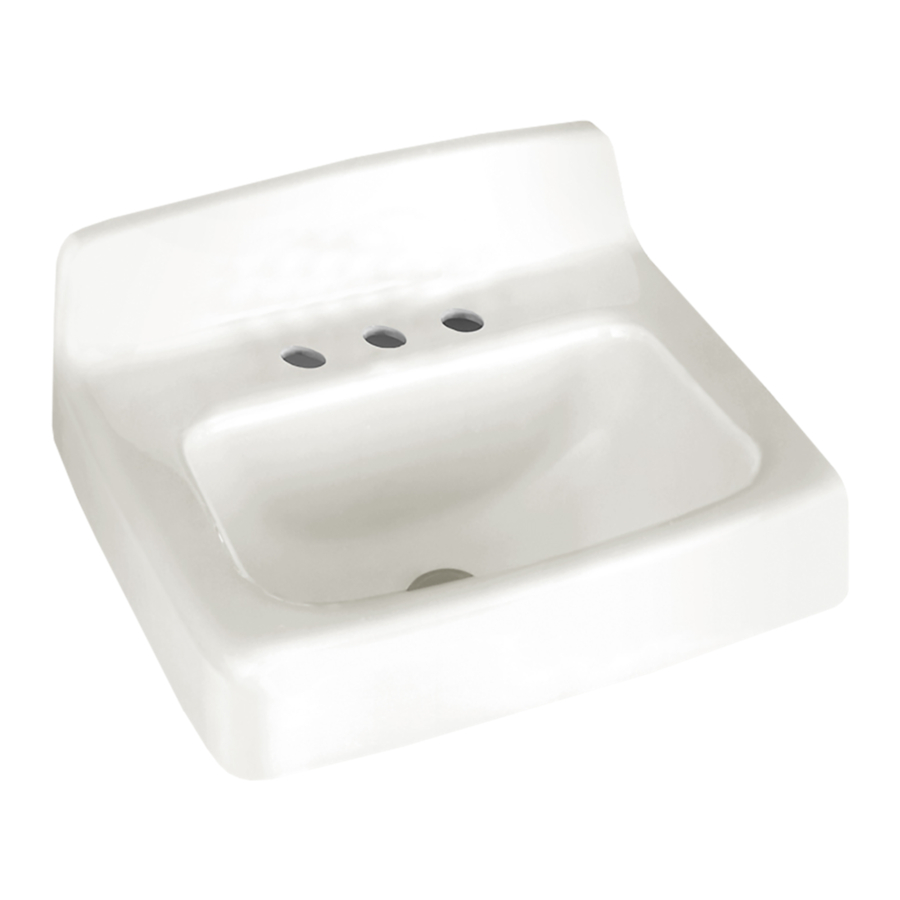

REGALYN™ WALL-MOUNT SINK
• Enameled Cast Iron
• Glossy porcelain finish
• Wall-hung installation
• Front overflow
• One soap depression
• Supplied with wall hanger
• Choice of faucet holes on 4" or 8" centers
❏ 4867.008 Faucet holes on 8" (203mm) centers
❏ 4867.004 Faucet holes on 4" (102mm) centers
(shown)
Nominal Dimensions:
19" x 17"
(483 x 432mm)
Bowl sizes:
394mm (15-1/2") wide
251mm (9-7/8") front to back
152mm (6") deep
Compliance Certifications -
Meets or Exceeds the Following Specifications:
• ASME A112.19.1 for Cast Iron Plumbing Fixtures
To Be Specified:
❏ Color: ❏ White
❏ Faucet*:
❏ Faucet Finish:
❏ Supplies with Stop:
❏ 1-1/4" Trap:
* See faucet section for additional models available
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDE-
LINES AND ANSI A117.1 ACCESSIBLE AND USABLE
BUILDINGS AND FACILITIES - CHECK LOCAL CODES.
Top of front rim mounted 864mm (34") from finished floor.
© 2008 AS America Inc.

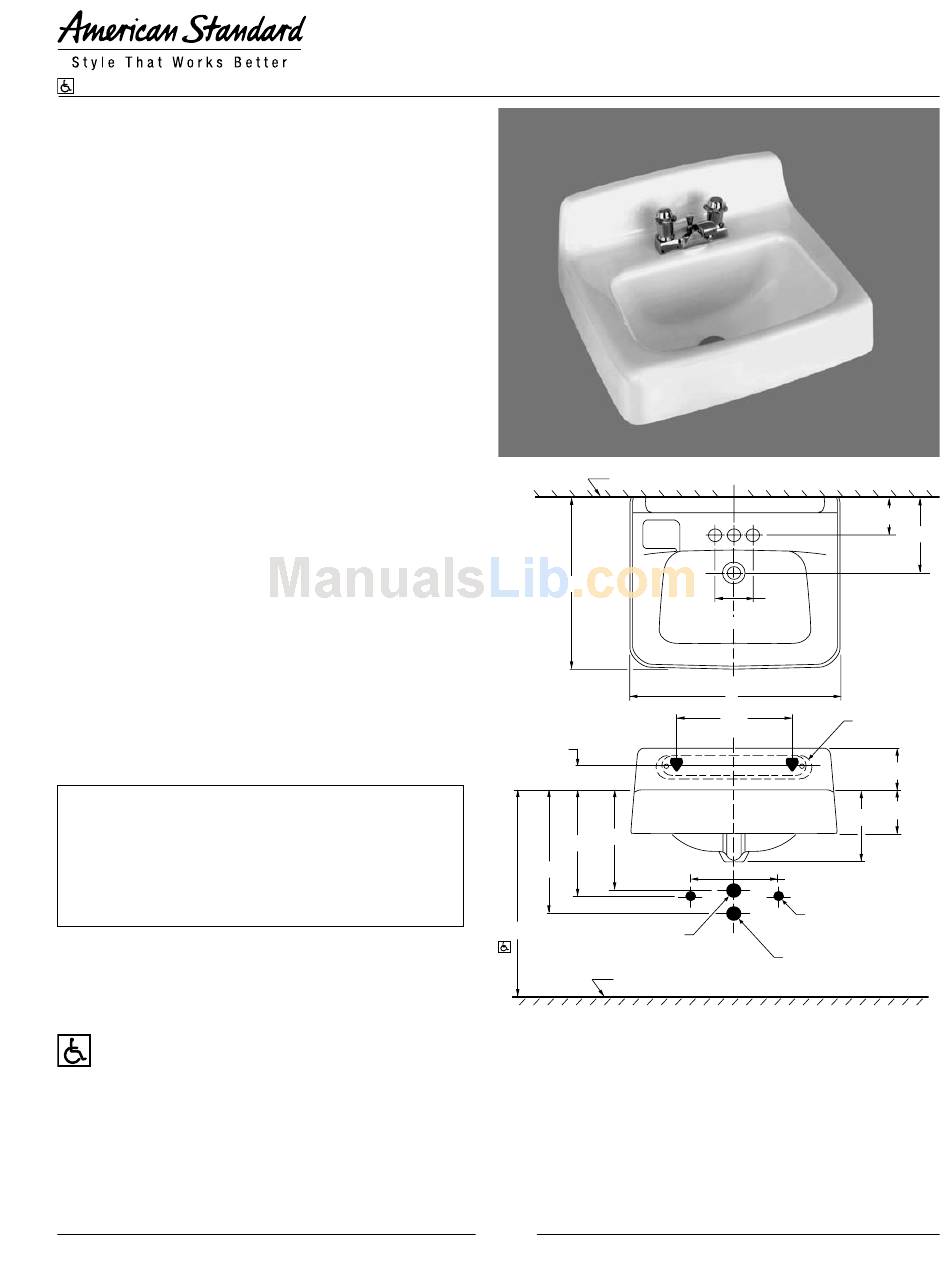

WALL-MOUNT LAVATORY
FINISHED WALL
17
(432mm)
2-3/4
(70mm)
*
10
*
11-1/4
(254mm)
(286mm)
12-1/2
*
(318mm)
31 (787mm)
DRAIN PLUG
34 (864mm)
WASTE OUTLET
1-1/4 O.D. WASTE
FINISHED FLOOR
NOTES:
*
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND "P" TRAP
ARE SUGGESTED.
PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS.
FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
IMPORTANT: Dimensions of fixtures are nominal and may vary within
the range of tolerances established by ANSI Standard A112.19.2. These
measurements are subject to change or cancellation. No responsibility is
assumed for use of superseded or voided pages.
M29
REGALYN™
ENAMELED CAST IRON
3-5/8
(92mm)
4
(102mm)
C/L
19
(483mm)
10-1/2
HANGER
(267mm)
(102mm)
3-1/2
7-5/8 (89mm)
(194mm)
8
(203mm)
SUPPLIES
AS REQ'D.
POP-UP WASTE
OUTLET 1-1/4 O.D.
Revised 8/05
8
(203mm)
4
