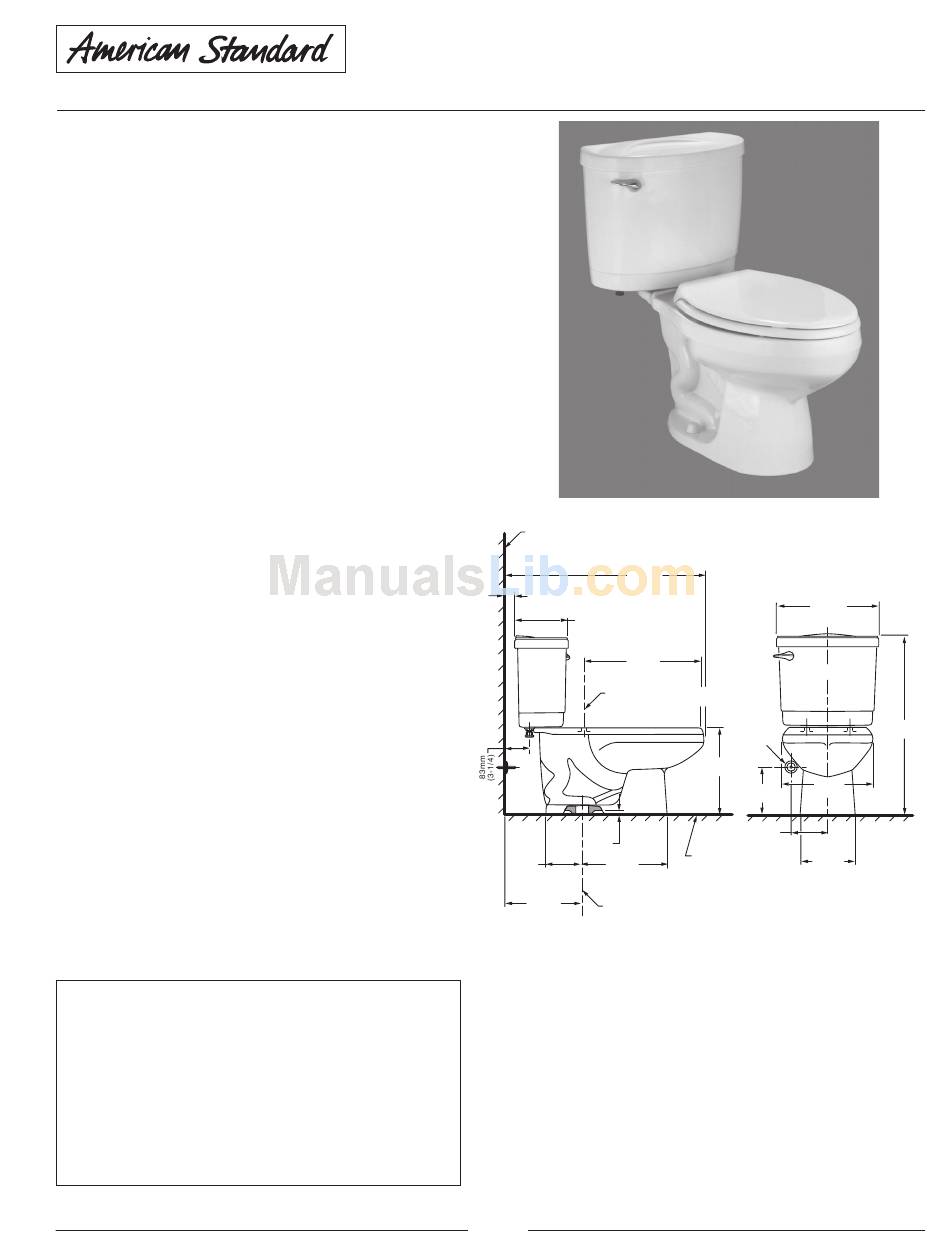

American Standard Ravenna 2642.016 Specification Sheet

RAVENNA™ ELONGATED TOILET
❑
2642.016
• Vitreous china
• Low-consumption (6.0 Lpf/1.6 gpf)
• Elongated siphon action jetted bowl
• Fully glazed 2" trapway
• AquaForce fl ushing technology
• Styled tank w/fi tted tank cover
• Chrome trip lever
• Speed Connect™ tank/bowl coupling system
• Sanitary bar on bowl
• 2 color matched bolt caps
• 100% factory fl ush tested
• Design coordinated to Ravenna
pedestal lavatory
❑
3459.016 Bowl
❑
4096.016 Tank
Alternate Tank:
❑
4096.516 with Aquaguard tank liner
Nominal Dimensions:
749 x 476 x 737mm
(29-1/2" x 18-3/4" x 29")
Fixture only, seat and supply by others
Compliance Certifi cations -
Meets or Exceeds the Following Specifi cations:
• ASME A112.19.2M for Vitreous China Fixtures -
includes Flush Performance, Ball Pass Diameter,
Trap Seal Depth and all Dimensions
To Be Specifi ed:
❏ Color:
❏ Seat: American Standard #5324.019 "Rise and
Shine" solid plastic, closed front, elongated seat
with cover.
❏ Seat: American Standard #5311.012 "Laurel"
molded closed front seat with cover.
❏ Alternate Seat:
❏ Supply with stop:
© 2006 American Standard Inc.
ELONGATED TOILET
FINISHED WALL
749mm
(29-1/2)
19mm ± 6mm
(3/4 ± 1/4)
222mm
(8-3/4)
470mm
(18-1/2)
C/L OF SEAT POST HOLES
140mm (5-1/2 CENTERS)
16mm
(5/8)
178mm
305mm
(7)
(12)
305mm
C/L OF OUTLET
(12)
NOTES:
THIS COMBINATION IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION
OF 305MM (12") FROM FINISHED WALL TO C/L OF OUTLET.
DIMENSION SHOWN FOR LOCATION OF SUPPLY IS SUGGESTED.
*
SUPPLY NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED
SEPARATELY.
IMPORTANT: Dimensions of fi xtures are nominal and may vary within the range
of tolerance established by ANSI Standard A112.19.2
These measurements are subject to change or cancellation. No responsibility is
assumed for use of superseded or voided pages.
K63
RAVENNA™
VITREOUS CHINA
476mm
(18-3/4)
C/L
SUPPLY
AS
REQ'D
381mm
(15)
381mm
*
222mm
(15)
(8-3/4)
152mm
(6)
FINISHED
FLOOR
241mm
(9-1/2)
Revised 5/05
737mm
(29)
