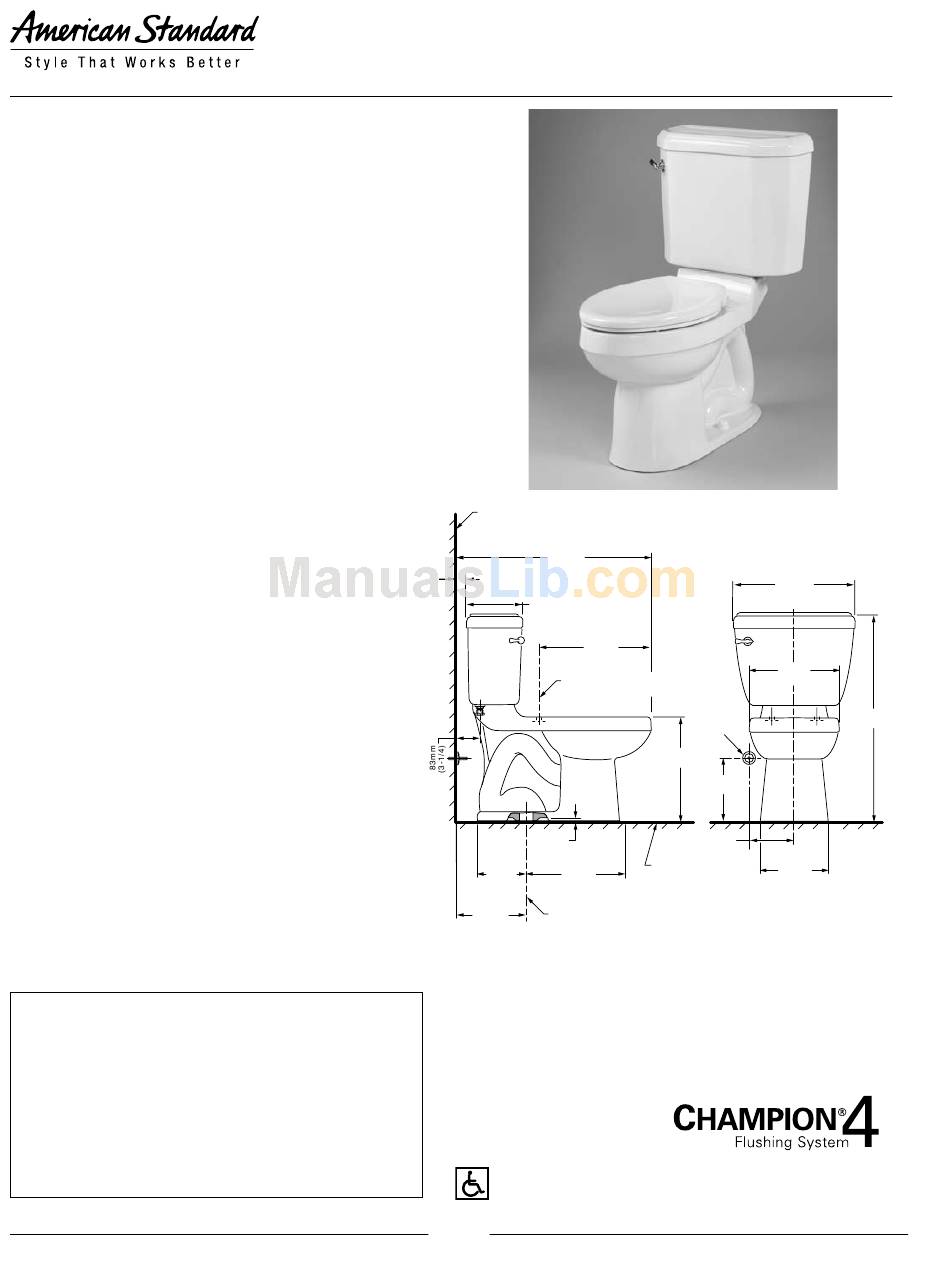

DORAL CLASSIC CHAMPION
RIGHT HEIGHT™ TOILET
❑
2058.014
• Vitreous china
• EverClean
surface inhibits the growth of
®
stain- and odor-causing bacteria, mold,
and mildew on the surface
• Low-consumption (6.0 Lpf/1.6 gpf)
• Features Champion® 4 Flushing System
performance platform
• 4" non-adjustable, piston action Accelerator™
flush valve
• 16-1/2" rim height for accessible applications
• Elongated siphon action jetted bowl
• 2-3/8" fully-glazed trapway
• Speed Connect
tank/bowl coupling system
®
• Chrome-plated trip lever
• Sweeping pier on bowl
• 100% factory flush tested
• 2 bolt caps
• 10 year warranty
❑
3225.016 Elongated Right Height™ Bowl
❑
4281.014 Tank
Nominal Dimensions:
772 x 479 x 873mm
(30-3/8" x 18-7/8" x 34-3/8")
Fixture only, seat and supply by others
Compliance Certifications -
Meets or Exceeds the Following Specifications:
• ASME A112.19.2M for Vitreous China Fixtures -
includes Flush Performance, Ball Pass Diameter,
Trap Seal Depth and all Dimensions
• Los Angeles Department of Water and Power
Supplementary Purchase Specification for
Non-Adjustability - July, 2003 revision
To Be Specified:
❏ Color:
❏ White ❏ Bone ❏ Silver ❏ Linen ❏ Black
❏ Seat: (please specify color)
❏ Champion
®
Slow Close Elongated #5325.010
❏ Rise & Shine Elongated #5324.019
❏ EverClean
Elongated Seat with Slow Close
®
Snap-Off Hinges #5321.110
❏ Supply with stop:
© 2008 AS America Inc.
ELONGATED RIGHT HEIGHT™ TOILET
4 ELONGATED
®
DORAL CLASSIC CHAMPION
FINISHED WALL
772mm
(30-3/8)
51mm ± 6mm
(2 ± 1/4)
216mm
(8-1/2)
470mm
(18-1/2)
C/L OF SEAT POST HOLES
140mm (5-1/2 CENTERS)
16mm
(5/8)
264mm
362mm
(10-3/8)
(14-1/4)
C/L OF OUTLET
305mm
(12)
NOTES:
THIS TOILET IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION OF
305MM (12") FROM FINISHED WALL TO C/L OF OUTLET.
SUPPLY NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED
SEPARATELY.
DIMENSION SHOWN FOR LOCATION OF SUPPLY IS SUGGESTED.
*
IMPORTANT: Dimensions of fixtures are nominal and may vary within the
range of tolerances established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility
is assumed for use of superseded or voided pages.
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES AND
ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND USABLE
BUILDING FACILITIES-CHECK LOCAL CODES.
K26
VITREOUS CHINA
479mm
(18-7/8)
356mm
(14)
SUPPLY
AS
REQ'D
419mm
(16-1/2)
*
254mm
(10)
152mm
(6)
FINISHED
FLOOR
254mm
(10)
Revised 2/08
4
®
873mm
(34-3/8)
