2-2 Repair notice

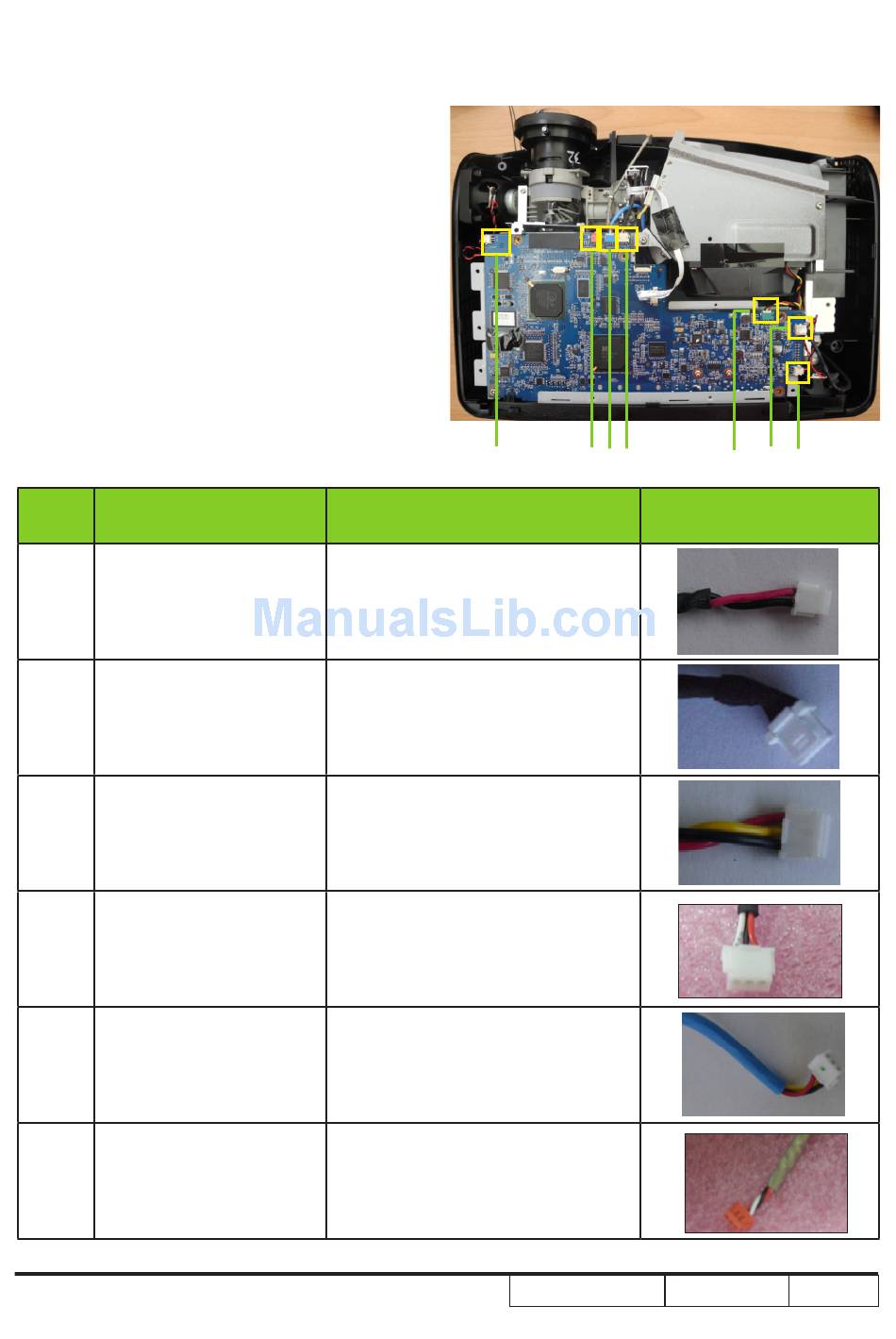

Disassemble Main Board

Please refer to the below table details of
each connector on Main Board.
Male Connector
Item
on Main Board
A & G Speaker
B Lamp Driver
C System Fan
D Photo Sensor
E Blower
F IR
G
The key feature
Compose of Red/Black Wire and
Black wire tube (2 pin)
Black wire tube (5 pin)
Compose of Red/Yellow/Black
Wire (3 pin)
Compose of Red/Black/White
Wire and Black wire tube (3 pin)
Compose of Black/Yellow/Red
Wire and Blue wire tube (3 pin)
Compose of Black/Yellow/Red
Wire and Gray wire tube (3 pin)
F E D
GT750 Confidential
C B A
Figure
2-2
