Appendices

 RS232 shell is
grounded.
64
English

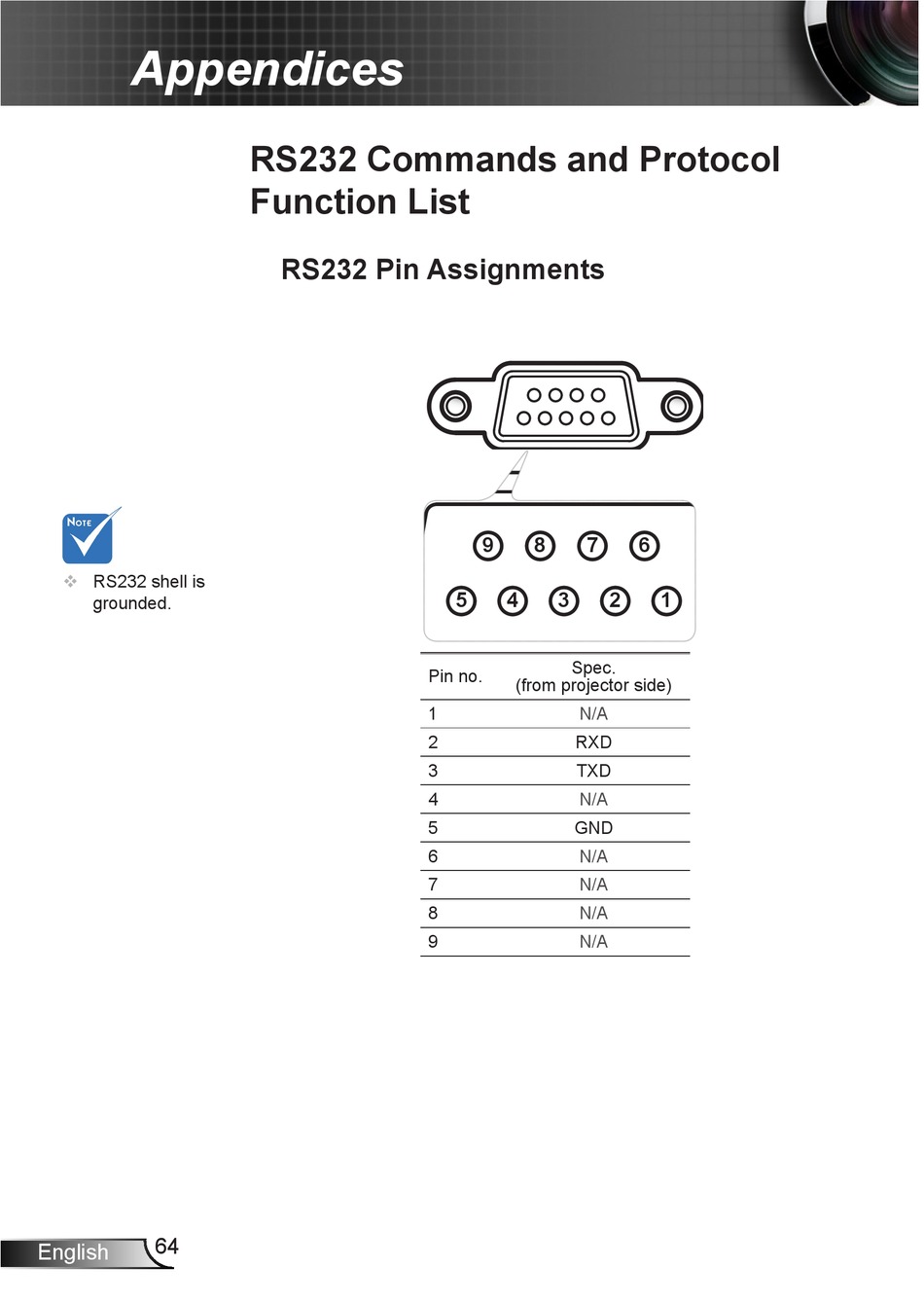

RS232 Commands and Protocol

Function List

RS232 Pin Assignments

9
8
7
5
4
3
Spec.
Pin no.
(from projector side)
1
N/A
2
RXD
3
TXD
4
N/A
5
GND
6
N/A
7
N/A
8
N/A
9
N/A
6
2
1
