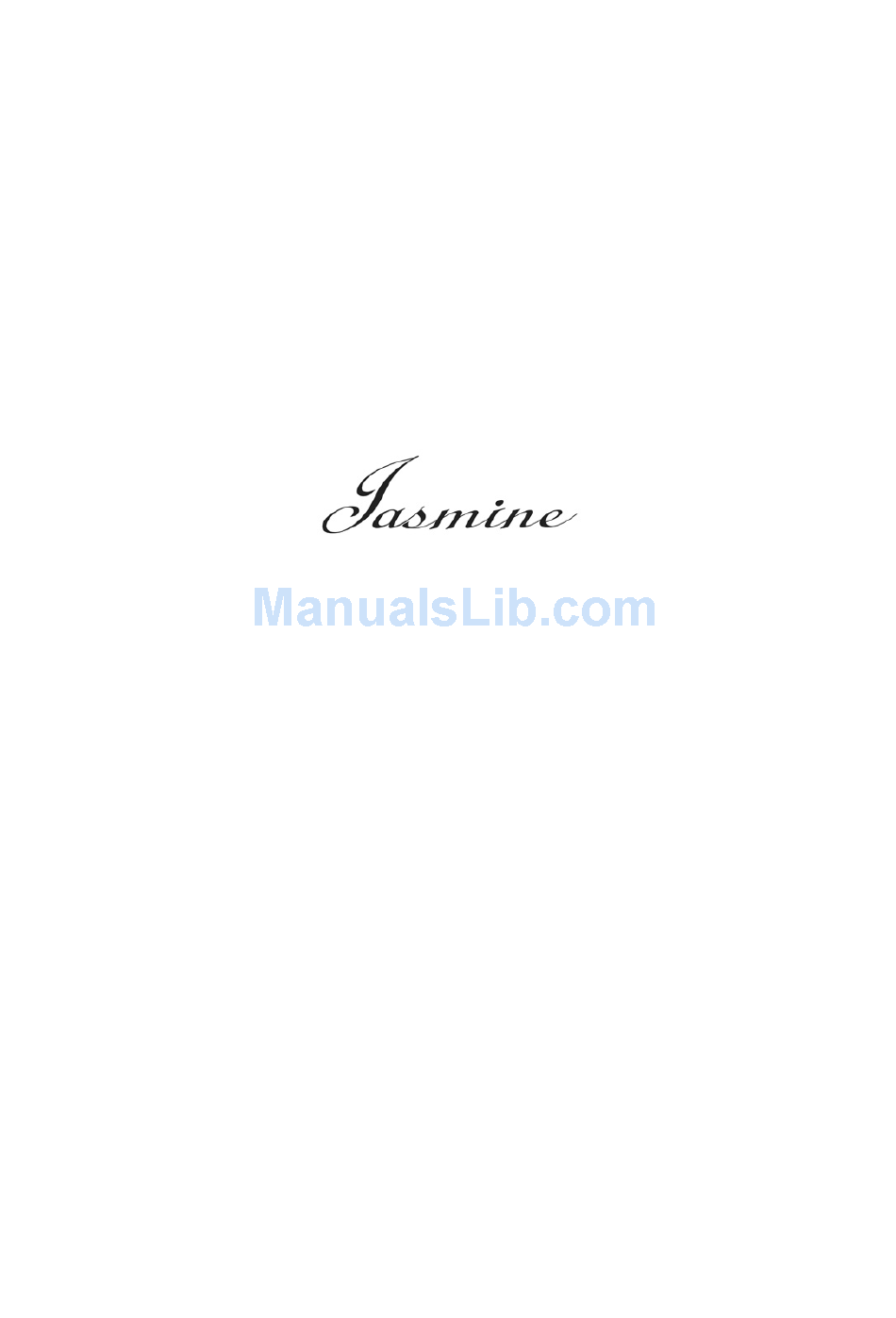

  • Page 1 Jasmine EVO-I Full-HD 1080P Media Player Owner’s Manual...

  • Page 2: Safety Precautions

    Safety Precautions _______________ 1． Only qualified service personnel is allowed to do repair works. 2． To reduce the risk of fire and eletric shock, do not expose this unit to rain or moisture。 3． IMPORTANTS SAFEGUARDS. 1). Instruction should be read carefully before the product is operated. 2).

  • Page 3: Table Of Contents

    CONTENTS 1. Installing a hard disk drive for EVO-I ……….........4 2. Connecting Cables………………….………………………......6 3. Familiar with the remote controller ............8 4. Installing software and basic operations..........10 5. Firmware updating guide................30 6. FAQ…………………………..…………………….…………….………..…32 7. EVO-I Description and Parameters............32...

  • Page 4: Installing A Hard Disk Drive For Evo-I

    1. Installing a hard disk drive for EVO-I 1). Open the case： 2). Put the SATA HDD into SATA interface, Those location holes should be matched with fixed column on the metal plate. 3). Pay attention to the fan, it should be connected with the case too.
  • Page 5 4). Fix hdd with 2 screws like below instruction. 5). Close the case by 4 screws which has attached in factory package.

  • Page 6: Connecting Cables

    2. Connecting cables 1). Connecting Power adapter: 2). Connecting Video/Audio Cables: A. HDMI...
  • Page 7 B. DVI. If your TV only have DVI interface, you have to use a HDMI to DVI converter cable to connect EVO-I. This cable is not a standard accessories. C. Components (YPbPr) D. Composite Video & Stereo audio...

  • Page 8: Familiar With The Remote Controller

    3). Other connections 3． Familiar with the remote control Power Standby/Restart TV MODE + “Num Key “: Changing TV display mode 1：NTSC 480i 60Hz 2：PAL 576i 50Hz 4：HDMI or P/Pb/Pr 720P 50Hz 5：HDMI or P/Pb/Pr 1080i 50Hz 6：HDMI or P/Pb/Pr 1080P 50Hz 7：HDMI or P/Pb/Pr 720P 60Hz 8：HDMI or P/Pb/Pr 1080i 59.94Hz 9：HDMI or P/Pb/Pr 1080P 59.94Hz...
  • Page 9 System Setup 1)during Standby,enter system setup mode.。 2)during playing,user can adjust picture display degree. COLOR BRIGHTNESS [50%] COLOR CONTRAST [50%] COLOR HUE [50%] COLOR SATURATION [50%] “Enter” Key, excute single step operation. When using “Enter” to play media file, will only play the single file, not sequentially.

  • Page 10: Installing Software And Basic Operations

    4. Install software and basic operations (1).format HDD and install NMT software Note:Fresh setup will format the HDD and remove the contents. a). Copy file “SMP8634.nmt” into USB drive; b). Then plug it into USB HOST of the unit. c). Connect unit with TV. d).
  • Page 11 g). select file source h). select USB and confirm,installation will be executed. !! Note: don’t swich off power. After finish,unit will reboot by itself.
  • Page 12 (2). How to found the partition (EXT format) in WINDOWS OS？ 1). Open CD-R,excute the program “egreat.ext3.exe” ，Following the set up steps, select next，finish the software installation. 2). after installation，opening your windows “control panel” ( “start set up control panel”), find out the “IFS Drives” icon and click it , enter below interface To set up partitions of ext format.
  • Page 13 NMT software under play mode. 4). Connect with PC via usb cable,you can see the partitions. (3). Myihome software installation. 1). Select “Myihome” icon from the CD-R which come from with the EVO-I, enter installation interface. selecet your language.
  • Page 14 2). Enter,then next...
  • Page 15 3). Finished. 4). Click finish button,and enter MYIHONE menu.
  • Page 16 (4). how to set up MYIHONE. 1). Select Edit,and set up background according to your own idea. If you want to check effection, please connect with HDTV for checking. 2). Select browse to choose multimedia files directory from your PC, and append these files into myihome, then Click “ok”...
  • Page 17 3). System information default is 8000, no necessary to revise anywhere. 4). Return to main menu, now you will find all the files has been linked into this software already. You can set up playlist or photo play interval and so on.
  • Page 18 5). After finish setting, tick this selection before existing. then the icon will appear on the monitor at the right bottom position. After finish all installation, this PC will be found in the media source.
  • Page 19 (5). Network share 1). Select NMT applications,start Samba server. 2). Find the unit from workgroup. Select ‘Network share”，default User Name is nmt,Password is 1234.
  • Page 20 In the LAN, if other computer want to enter this share units, they should input the same user name:nmt,and Password: 1234. 3). Return to main menu,you can see this icon. (6). MSP service and BT download. MSP interface:...
  • Page 22 Other BT download method: copy BT seeds into USB drive.Insert this USB drive into usb USB host of unti, select seeds from . After confirm, above picture will appear. (7). Audio setup...
  • Page 23 (8). Video set up.
  • Page 25 Picture display interval setting.
  • Page 26 (9). Network set up.
  • Page 27 Set up time zone.
  • Page 28 (10). Server set up.
  • Page 29 (11). CD/DVD driver set up. Being sure the USB DVD device is connected.

  • Page 30: Firmware Updating Guide

    2). Preparing an USB Flash disk, or other USB storage devices 3). Unpacking the firmware software to your U-Disk, then plug the U-Disk to the USB port located at front panel of EVO-I. 4). Using files browsing function to find the firmware files, like these: 50-15-080401-14-EGR-402-000.bin...
  • Page 31 5). executing the “Linda.html” file by “enter” key, the screen will show following information: 6). Executing "8634 ES update 50-15-08xxxxx-14-EGR-402-000.bin" , the system will enter the firmware upgrading program. 7). Keeping the power on when the EVO-I is upgrading, after the upgrading procedure...

  • Page 32: Faq

    HDTV.don’t press too quickly to get the right mode. 3).After get the right mode,pls enter set up menu,adjust video output mode and save.then next time,you won’t meet this problem again. 7. EVO-I Description and Parameters Hardware ★ CPU:SIGMA DESIGNS SMP8635 ★...
  • Page 33 ★ Audio DSPs:300MHz Video Output : ★ HDMI ★ YPbPr ★ Composite Audio Output : ★ Stereo ★ SPDIF Digital audio output Networking : ★ Ethernet interface, 10-baseT/100-baseT USB : ★ USB 2.0 host 2 port ★ USB 2.0 slave ★...
  • Page 34 ★ MPEG2PS [.ps] ★ MPEG2TS [.ts] ★ AVI [.avi, divx] ★ MPG [.mpg, .mpe, .mpeg, .m2v, .vob, .vro] Audio [extension(s)] : ★ WAV [.wav, .pcm] ★ ADIF, ADTS [.aac] ★ M4A [.m4a] ★ O.G.G. [.ogg] ★ ASF/WMA [.asf, .wma] ★ FLAC [.flac] Subtitle [extension(s)] : ★...
  • Page 35 16, 22.05, 24, 32, 44.1, 48, and 96KHz ★ Audio samples at 16, 20, 24, and 32 bits per channel ★ FLAC (software decode) Note: Additional formats available in future firmware releases Photo formats : ★ JPEG (software decode) ★ Animated GIF89a, BMP and PNG in browser mode NAS + Media Server feature : Protocols : ★...
  • Page 36 ★ USB2.0 Cable x 1PCS ★ HDMI Cable x 1PCS ★ Optical Cable x 1PCS ★ AV Cable x 1PCS ★ YPbPr x 1PCS @ 2008 Jasmine audio Co.,Ltd Block B1-5C, Digital Tech. Park, Southern Keji Rd., Shenzhen, GD, China 518057...
