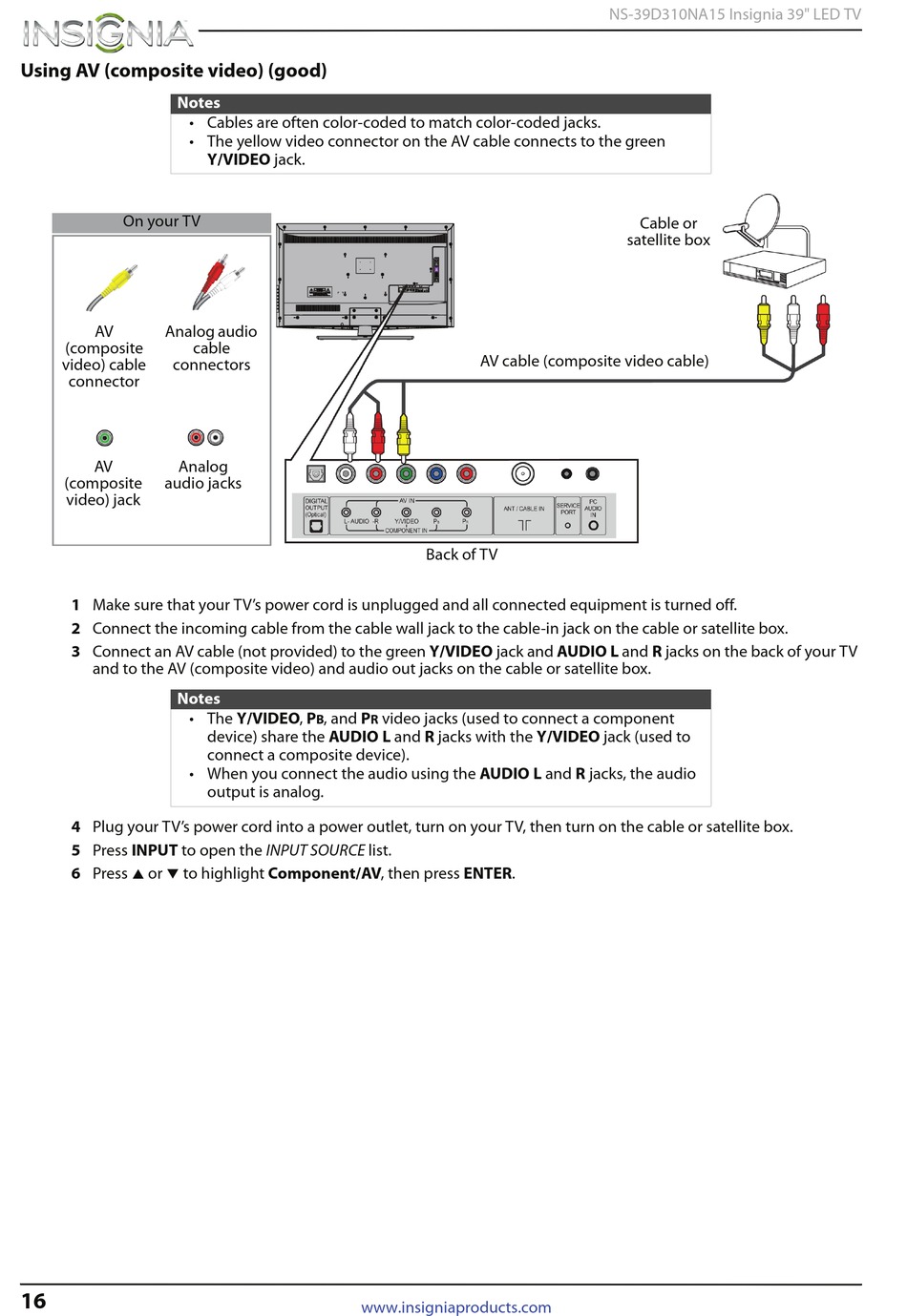

Using AV (composite video) (good)

Notes
• Cables are often color-coded to match color-coded jacks.
• The yellow video connector on the AV cable connects to the green
On your TV
AV Analog audio
(composite
video) cable connectors
connector
AV Analog
(composite audio jacks
video) jack
1 Make sure that your TV's power cord is unplugged and all connected equipment is turned off.
2 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3 Connect an AV cable (not provided) to the green Y/VIDEO jack and AUDIO L and R jacks on the back of your TV
and to the AV (composite video) and audio out jacks on the cable or satellite box.
Notes
• The Y/VIDEO, P
• When you connect the audio using the AUDIO L and R jacks, the audio
4 Plug your TV's power cord into a power outlet, turn on your TV, then turn on the cable or satellite box.
5 Press INPUT to open the INPUT SOURCE list.
6 Press or to highlight Component/AV, then press ENTER.
16
Y/VIDEO jack.
cable
, and P
B
device) share the AUDIO L and R jacks with the Y/VIDEO jack (used to
connect a composite device).
output is analog.
www.insigniaproducts.com
AV cable (composite video cable)
Back of TV
video jacks (used to connect a component
R
NS-39D310NA15 Insignia 39" LED TV
Cable or
satellite box
