CAUTION
1. READ THIS MANUAL CAREFULLY TO
DIAGNOSE TROUBLE CORRECTLY
BEFORE OFFERING SERVICE.
2. THIS MANUAL IS USED BY QUALIFIED
APPLIANCE TECHNICIANS ONLY.
3. HAIER DOES NOT ASSUME ANY
RESPONSIBILITY FOR PROPERTY
DAMAGE OR PERSONAL INJURY FOR
IMPROPER
SERVICE PROCEDURES DONE BY ONE
UNQUALIFIED PERSON.

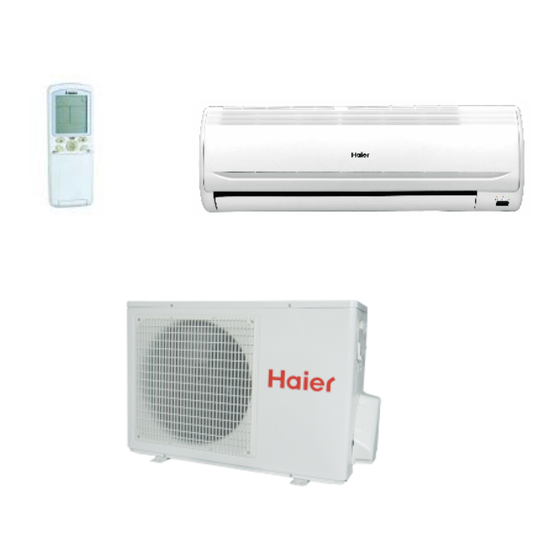

Wall mounted Type Arc -Series
HSU-14HR03/R2
HSU-18HR03/R2
Domestic
Air conditioner
ON/OFF
Advertisement
Table of Contents
Related Manuals for Haier HSU-14HR03/R2
Summary of Contents for Haier HSU-14HR03/R2
-
Page 1: Air Conditioner
HSU-14HR03/R2 DIAGNOSE TROUBLE CORRECTLY HSU-18HR03/R2 BEFORE OFFERING SERVICE. 2. THIS MANUAL IS USED BY QUALIFIED APPLIANCE TECHNICIANS ONLY. 3. HAIER DOES NOT ASSUME ANY RESPONSIBILITY FOR PROPERTY DAMAGE OR PERSONAL INJURY FOR IMPROPER SERVICE PROCEDURES DONE BY ONE UNQUALIFIED PERSON. -
Page 2: Table Of Contents
HSU-14HR03/R2 HSU-18HR03/ R 2 Table of Contents Table of Contents 1. Features.…………………………...…………………………..…………..…….…. 2 2. Specifications……….……………………………….……………..….….……….. 3 3. Remote controller lists…….…………..………….….….……….………………. 6 4. Sensors lists…...….….…………………………………………………………..6 5. Dimensional drawings…………………………………………………………….. 7 6. Operation range……………………………………...……………………………. 9 7. Piping diagrams……………………………………………………………..…….. 10 8. Wiring diagrams………………………………………………….…………………11 9. -
Page 3: Features
HSU-14HR03/R2 HSU-18HR03/R2 Features 1 Features DRY function: Make dehumidifying in the room when the unit is working in the "DRY" mode Sleep mode: The setting temprature and the indoor noise can be adjusted to a more comfortable level when you set the "sleep mode"during night sleep... -
Page 4: Specifications
HSU-14HR03/R2 HSU-18HR03/R2 Specifications 2 Specifications * This inf o rmati o n was not av ailable at the time of publica tion. NOMINAL INPUT For indoor units only: INDOOR UNITS HSU-14HR03/R2 HSU-18HR03/R2 NOMINAL Cooling nominal 0.08 INPUT Heating nominal 0.08... - Page 5 HSU-14HR03/R2 HSU-18HR03/R2 Specifications TECHNICAL SPECIFICATIONS OUTDOOR UNITS HSU-14HR03 HSU-18HR03/R2 NET DIMENSIONS Unit (stop valve, and bottom support is not included) Unit WEIGHT COLOR Unit white dB(A) Sound pressure(cooling/heating)(5) high 55/54 60/58 SOUND LEVEL Sound power(cooling/heating)(6) high 64/65 dB(A) 67/68 high...
- Page 6 HSU-14HR03/R2 HSU-18HR03/R2 Specifications HSU-14HR03/R2 HSU-18HR03/R2 For indoor units only: POWER SUPPLY NOMINAL Phase DISTRIBUTION Frequency SYSTEM Voltage VOLTAGE NOTES Nominal cooling capacities are based on: indoor temperature 27°CDB/19°CWB * outdoor temperature 35°CDB * refrigerant piping length: 5m * level difference: 0m.
-
Page 7: Remote Controller Lists
HSU-14HR03/R2 HSU-18HR03/R2 Remote controller&sensors 3 Remote controller lists Model HSU-14HR03/R2 HSU-18HR03/R2 YR-H10 4 Sensors lists INDOOR UNIT type Description Room sensor It's used for detecting room temperature Pipe sensor It's used for detecting temperature of evaporator Domestic air conditioner... -
Page 8: Dimensional Drawings
HSU-14HR03/R2 HSU-18HR03/R2 Dimensional drawings 5 Dimensional drawings HSU-14HR03/R2 Indoor unit T he airflow direction The mark （ ） show the piping direction Rear Rear Right Left HSU-14HR03/R2 Outdoor unit 2-way valve 6.35mm(1/4") 3-way valve 12.7mm(1/2") Domestic air conditioner... - Page 9 HSU-14HR03/R2 HSU-18HR03/R2 Dimensional drawings Dimensional drawings HSU-18HR03/R2 Indoor unit T he airflow direction The mark （ ） show the piping direction Rear Rear Right Left HSU-18HR03/R2 Outdoor unit Domestic air conditioner...
-
Page 10: Operation Range
HSU-14HR03/R2 HSU-18HR03/R2 Operation range 6 Operation range The name of parts Cooling 40 43 l l u indoor temp（℃WB） indoor temp（℃DB） Notes： The graphs are based on the following condition： Equivalent piping length 7.5m Level difference Air flow rate high... -
Page 11: Piping Diagrams
HSU-14HR03/R2 HSU-18HR03/R2 Piping diagrams 7 7 P P i i p p i i n n g g d d i i a a g g r r a a m m s s HSU-14HR03/R2 Reversing Valve Compressor Gas Stop Valve... -
Page 12: Wiring Diagrams
Wiring diagrams HSU-14HR03 /R2 HSU-18HR03/R2 8 8 W W i i r r i i n n g g d d i i a a g g r r a a m m s s HSU-14HR03/R2 HSU-18HR03/R2 Indoor Unit INDOOR WIRING DIAGRAM... -
Page 13: Outdoor Unit
Wiring diagrams HSU-14HR03 /R2 HSU-18HR03/R2 Outdoor Unit HSU-14HR03/R2 HSU-18HR03/R2 Domestic air conditioner... - Page 14 Wiring diagrams HSU-14HR03 /R2 HSU-18HR03/R2 HSU-14HR03/R2performance curves cooling value-temerature talbe outdoor temp.(humidity 46%) indoor temp. DB/WB 18℃ 20℃ 25℃ 32℃ 35℃ 40℃ 43℃ 46℃ 18/12℃ 2568 2579 2591 2353 2364 2410 2249 2124 18/14℃ 3086 3099 3170 2900 2860 2720 2600 2508 20/15℃...
- Page 15 Wiring diagrams HSU-14HR03 /R2 HSU-18HR03/R2 HSU-14HR03/R2 performance curves heating capacity and indoor/outdoor temp.curves indoor temp.(humidity 46%) outdoor temp. DB/WB 15℃ 20℃ 25℃ -15℃ 2011 1943 1853 -5℃ 2790 2710 2596 5℃ 2912 3078 2962 7/6℃ 3640 3548 3203 15℃ 4400...
- Page 16 HSU-14HR03/R2 HSU-18HR03/R2 Capacity HSU-18HR03/R2 performance curves cooling capacity and indoor/outdoor temp.curves outdoor temp.(humidity 46%) indoor temp. DB/WB 3395 3362 3263 3196 2898 2587 2334 2234 18/12 3676 3572 3466 3395 3003 2769 2478 2372 18/14 3784 3681 3572 3499 3172...
- Page 17 Capacity HSU-14HR03/R2 HSU-18HR03/R2 HSU-18HR03/R2 performance curves heating capacity and indoor/outdoor temp.curves indoor temp.(humidity 46%) outdoor temp. DB/WB 20/15 20/14.5 20/12 27/18 3992 3929 3742 3350 4388 4129 4075 3658 4604 4345 4261 3836 5002 4550 4486 4195 5276 4966 4760...
-
Page 18: Sound Level
HSU-14HR03/R2 HSU-18HR03/R2 Accessories 10 Sound level Sound presure level 230V,50Hz sound power level Measuring location Model Cooling/heating (cooling/heating) Location of microphone 54.7/54.9 HSU-14HR03/R2 44.2/42.0 42.1/40.2 36.9/33.8 HSU-18HR03/R2 44.1/41.7 40.5/37.5 46.2/44.3 57.0/58.3 HSU-14HR03/R2 INDOOR OUTDOOR Domestic air conditioner... - Page 19 HSU-14HR03/R2 HSU-18HR03/R2 Accessories Sound level HSU-18HR03/R2 cooling heating 1700 3400 6800 1700 3400 6800 NC-70 NC-70 NC-60 NC-60 NC-50 NC-50 NC-40 NC-40 NC-30 NC-30 NC-20 NC-20 approximate approximate threshold threshold hearing for hearing for continuous continuous noise noise 4000 4000...
-
Page 20: Accessories
HSU-14HR03/R2 HSU-18HR03/R2 Accessories Accessories HSU-14HR03/R2 Standard name HSU-18HR03/R2 Drain hose Plastic bag screw assembly Air purifier Battery Mounting plate Remote controller Installation manual Operation manual Domestic air conditioner... -
Page 21: Control Systems
Control systems HSU-14HR03/R2 HSU-18HR03/R2 12 Control systems Buttons and display of the remote controller. If the unit which you purchased has not health function, remote controller should like the following figure: 1.Mode display AUTO COOL HEAT 2. SWING display 3. FAN SPEED display AUTO 4. -
Page 22: Center Of Gravity
HSU-14HR03/R2 HSU-18HR03/R2 Center of gravity 13 Center of gravity HSU-14HR03/R2 Indoor unit Outdoor unit Domestic air conditioner... - Page 23 HSU-14HR03/R2 HSU-18HR03/R2 Center of gravity Center of gravity HSU-18HR03/R2 Indoor unit Domestic air conditioner...
- Page 24 Installation HSU-14HR03/R2 HSU-18HR03/R2 14 Installation Indoor Mounting plate claws How to attach the indoor unit. Hook the claws of the bottom frame to the mounting plate. If the claws are difficult to hook ,remove the front panel. How to remove the indoor unit.
-
Page 25: Installations
HSU-14HR03/R2 HSU-18HR03/R2 Installations Outdoor unit Model 35/40 class Cooling only：20m Max.allowable length Heat pump：25m Max.allowable height Arrangement of piping directions Additional refrigerant Rear left required for refrigerant pipe 20g/m exceeding 5m in length Rear Left right Gas pipe O.D. 12.7... - Page 26 HSU-14HR03/R2 HSU-18HR03/R2 The end Sincere Forever Haier Group Haier Industrial Park, No.1, Haier Road Edited by: Ma Sai 266101, Qingdao, China E-mail: hractech@haier.com Signed by: Zhang Lizhi Tel: +86 532 87636957 Http://www.haier.com Zhu Zhenxue Approved by: Domestic air conditioner...
