Samson TXM16 Product Specification Sheet

PRO
PRODUCT
TXM16
SERIES
TXM POWERED TABLETOP MIXERS
TYPE:
POWERED
MIXERS
DESCRIPTION
16 CHANNEL 1000W POWERED MIXER
CATEGORY
POWERED MIXERS
GENERAL DESCRIPTION
The TXM16 is a sixteen channel, powered mixer in an
ergonomically correct, attractively appointed, tabletop
enclosure. The TXM16 features a 1000-watt power amplifier,
which is capable of running in 2 x 500-watt stereo, 500-
watt Main plus 500-watt monitor, or 1000-watt bridge mono
operating modes. The TXM16 features a Nine-band Stereo
Graphic Equalizer for the Main Left and Right outputs, plus
a separate Nine-band Graphic Equalizer for your monitor
mix. Connecting all your microphones and instruments is
simple, with eight mic/line inputs plus four additional stereo
channels. There are also dedicated stereo effects returns for
the onboard digital effects. You can add one of the TXM16's
100 dazzling digital studio quality effects, which include

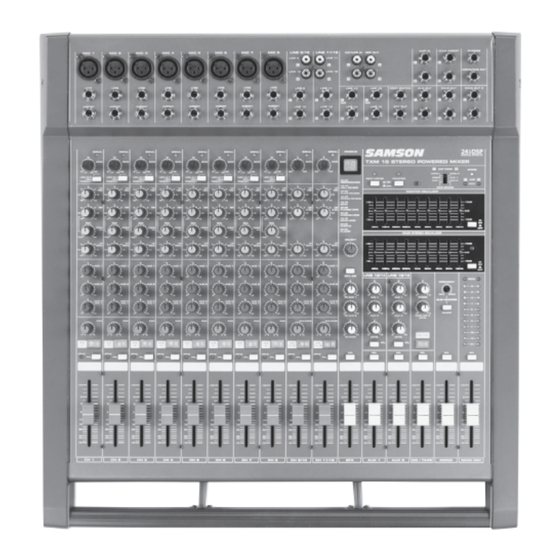

FRONT PANEL
Delays, Chorus, Flanging, and of course, lush Reverbs to
your vocals or instruments using the onboard 24-bit Multi-
Effects Processor. It's easy to dial up your favorite effects
preset with the large seven-segment LED display. The
auxiliary buses are also extremely flexible when it comes
to monitor mixes. The TXM16 will give you clean, clear
sound reproduction thanks to the high quality, low noise
microphone preamps, super clean, low impedance mix bus,
and the high output/low distortion power amplifier. The unit
is easy to transport with its compact size and oversized, sure-
grip handle. In addition, the TXM16 can be rack mounted
using the included eleven-space rack mount kit.
The super-tough steel construction ensures reliable, high
quality sound from venue-to-venue and performance-to-
performance day in, and night out. Optimized for live sound
reinforcement and commercial installations, the TXM16 is an
ideal mixer and power amp solution that offer plenty of inputs,
sweet sounding effects and big sound in a compact package.
FEATURES
The TXM16 is a sixteen channel powered mixer in
>
ergonomically correct, table-top enclosures providing easy
to see and easy to operate front panel controls. In addition,
the TXM16 can be rack mounted using the included
BACK PANEL
eleven-space rack mount kit.
> 1000-watt power amplifier section, featuring three modes
of operation: 2 x 500-watts Stereo Main, or 500-watt Mono
Main/500-watt Monitor, or 1000-watts Bridged Mono. These
power ratings are true RMS, measured at full bandwidth.
> Ample inputs - the TXM16 has eight mic/line inputs plus
four stereo line inputs.
continues»
©2006 Samson v1.0 5/06
