Summary of Contents for Samson SASM4

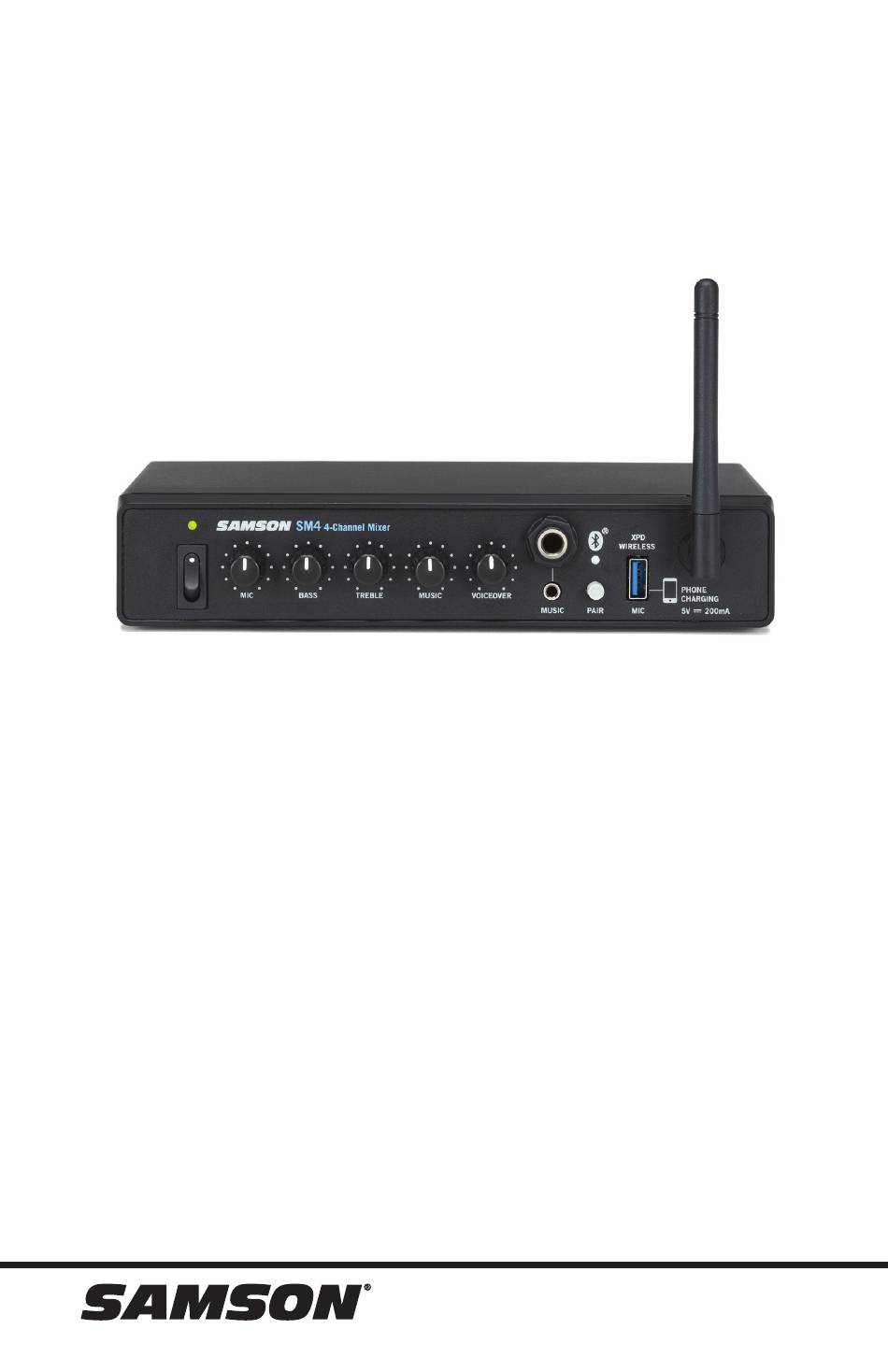

- Page 1 4-Channel Mixer OWNER'S MANUAL...
- Page 2 Phone: 1-800-3-SAMSON (1-800-372-6766) www.samsontech.com The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samson Technologies is under license. Other trademarks and trade names are those of their respective owners.”...
-
Page 3: Important Safety Information
Important Safety Information ATTENTION RISQUE DE CHOC ÉLECTRONIQUE - NE PAS OUVRIR This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. - Page 4 Important Safety Information Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufac- turer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Page 5 This device complies with RSS-310 of Industry Canada. Operation is subject to the condition that this device does not cause harmful interference. Hereby, Samson Technologies Corp, declares that this SM4 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be consulted at: http://www.samsontech.com/site_media/support/manuals/SM4_DOC.pdf...
- Page 6 SM4 ever require servicing, a Return Authorization (RA) number must be obtained before shipping your unit to Samson. Without this number, the unit will not be accepted. Please visit www.samsontech.com/ra for an RA number prior to shipping your unit. Please retain the original packing materials and, if possible, return the unit in its original carton.
- Page 7 11. Pairing Button - Press and hold this button to enable discoverable mode in order to pair with a Bluetooth audio device. 12. Samson XPD WIRELESS USB Input - Connect an optional Samson XPD USB Digital Wireless receiver to this input. The wireless level is controlled by the MIC Volume control.
-
Page 8: Rear Panel Callouts
Rear Panel Callouts DC Input - Connect the supplied power adapter here, using the strain relief* as shown in the illustration below. WARNING: Do not substitute any other kind of power adapter. Doing so can cause severe damage to the SM4 and will void your warranty. -
Page 9: Quick Start
Quick Start Remove all packing materials and decide where the unit is to be physically placed. The SM4 can be mounted in any standard 19” rack (requiring one rack space), or used on a tabletop. Before connecting a microphone or line level audio device, make sure that the power to all your systems components, including the SM4, are turned off. -
Page 10: Pairing With A Bluetooth
Bluetooth indicator will flash slowly. In the settings of your Bluetooth device, set it to “discover” available devices. From the Bluetooth device list, select the "Samson SM4" device. If your device asks for a passkey, enter digits 0000 (four zeros) and press OK. -
Page 11: Specifications
Specifications Frequency Response (Level@Max, unity gain +1/-3dB) Mic to Main 30Hz~30KHz T.H.D (Level@Max, unity gain, 20Hz~30KHz A-Weighted) Mic/Line to Main <0.02% Line to Main <0.02% Equivalent Input Noise Mic (Level@Max) <-75dB 20Hz~30KHz A-weighted Maximum Voltage Gain Mic to Main 32dB Line to Main 8dB (RCA Input) Stereo Line to Main... -
Page 12: Phone: 1-800-3-Samson
Samson Technologies Corp. 278-B Duffy Ave Hicksville, New York 11801 Phone: 1-800-3-SAMSON (1-800-372-6766) www.samsontech.com...
