Summary of Contents for Samson SM4

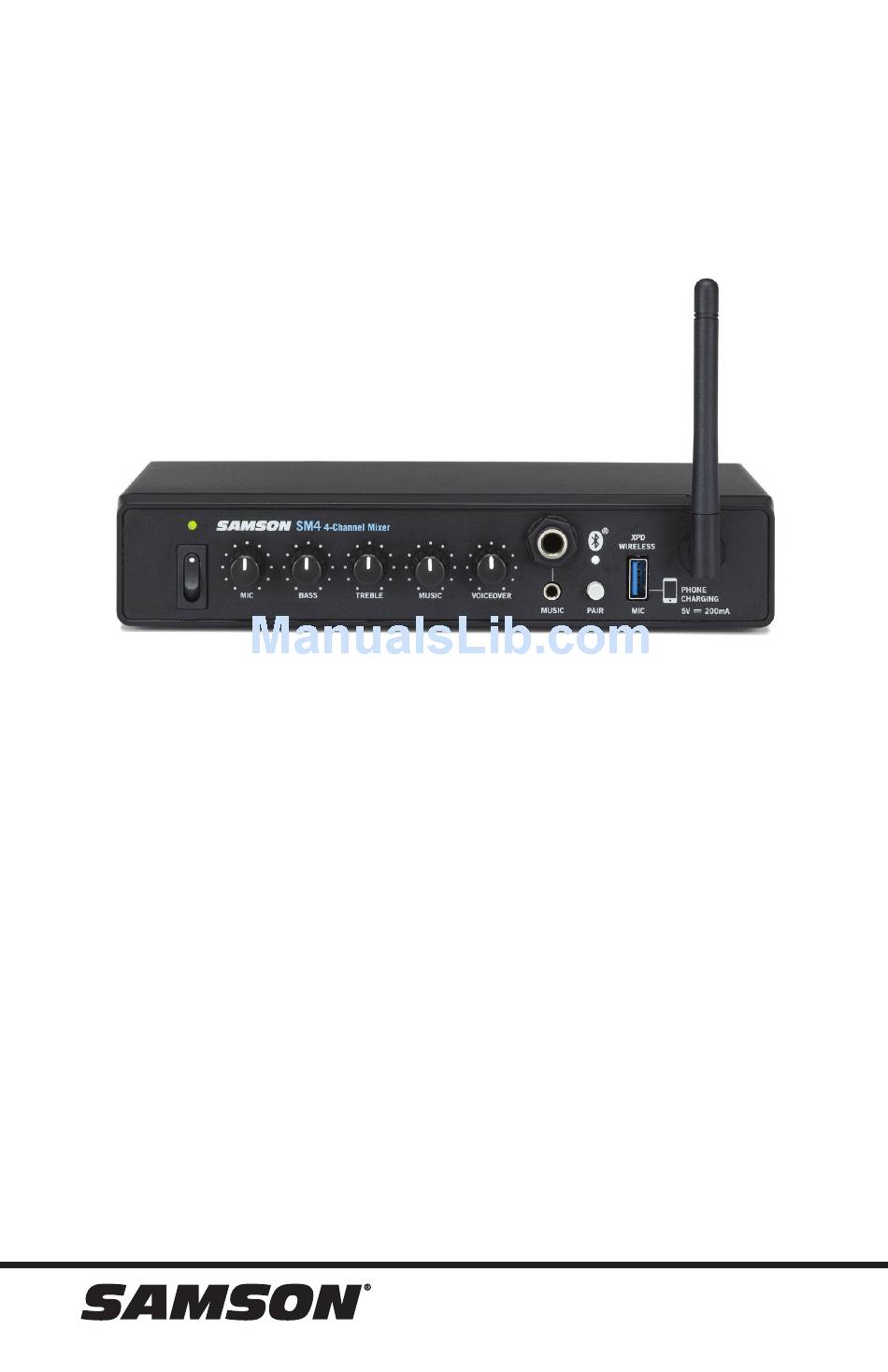

- Page 1 4-Channel Mixer OWNER'S MANUAL...
- Page 2 Phone: 1-800-3-SAMSON (1-800-372-6766) www.samsontech.com The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samson Technologies is under license. Other trademarks and trade names are those of their respective owners.”...
-
Page 3: Important Safety Information
For Countries not mentioned above, please contact your local authorities for a correct method of disposal. By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health. SM4 4-Channel Mixer... - Page 4 Important Safety Information Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufac- turer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Page 5 The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. This device complies with RSS-310 of Industry Canada. Operation is subject to the condition that this device does not cause harmful interference. SM4 4-Channel Mixer...
- Page 6 Serial number: _________________________ Date of purchase: _________________________ If you have any questions or comments regarding the SM4 or any other products from Samson, do no hesitate to contact us at support@samsontech.com. With proper care and maintenance, your SM4 will operate trouble-free for many years. Should your SM4 ever require servicing, a Return Authorization (RA) number must be obtained before shipping your unit to Samson.

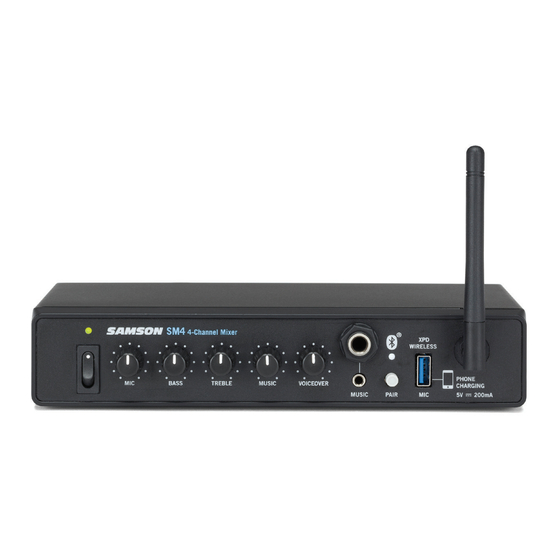

- Page 7 Front Panel Callouts Power Switch - Use this switch to turn the SM4 on and off. To avoid potential damage to your speakers, turn the SM4 on before you turn on any connected power amps, and turn it off after the power amps are turned off.
-
Page 8: Rear Panel Callouts
DC Input - Connect the supplied power adapter here, using the strain relief* as shown in the illustration below. WARNING: Do not substitute any other kind of power adapter. Doing so can cause severe damage to the SM4 and will void your warranty. -
Page 9: Quick Start
Connect a music source, like a CD player, to the RCA jacks on the rear panel of the SM4. The red connector is the right input and the white connector is the left input. Portable audio devices, like an MP3 player, can be connected to the 1/4”... -
Page 10: Pairing With A Bluetooth
Bluetooth enabled device without the need for connecting any cables. In order for your device to work with the SM4 it must first be paired. With the SM4 and your Bluetooth device powered on, press and hold the PAIR button on the front panel of the SM4 mixer to make the mixer discoverable. -
Page 11: Specifications
USB3.0 +5V DC 0.2A max Phantom Power 15 Volts DC Power Requirements DC15V 800mA Bluetooth Bluetooth V4.0, A2DP Dimensions and Weight Dimensions 8.78” x 5.43” x 1.69” 223mm x 138mm x 43mm Weight 1.76 lbs / 0.8 kg SM4 4-Channel Mixer... -
Page 12: Phone: 1-800-3-Samson
Samson Technologies Corp. 278-B Duffy Ave Hicksville, New York 11801 Phone: 1-800-3-SAMSON (1-800-372-6766) www.samsontech.com...
