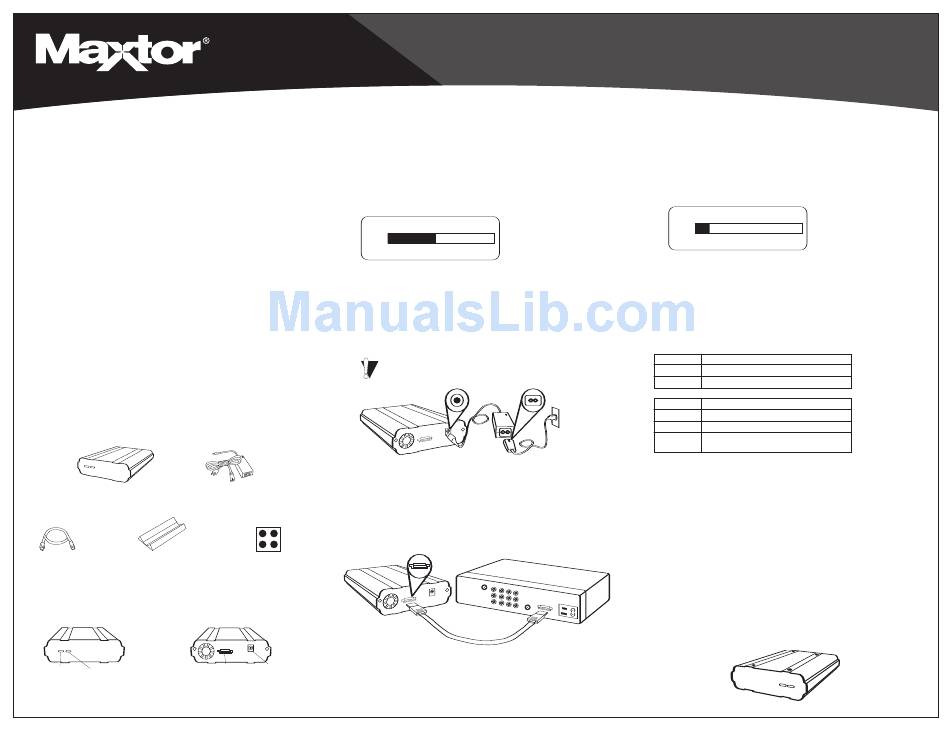

Maxtor QUICKVIEW EXPANDER Quick Start Manual

Handling Precautions

Handle your drive with care! The following precautions
can help prevent loss of data or damage to your drive:
• Do not drop, jar or bump the QuickView Expander drive.
• Do not stack your QuickView Expander drive on top of
other component cooling vent holes or block airflow to
other components.
• Do not set the drive on its side without using the vertical stand.
• Do not remove any cables or power cords without properly
powering down the set top box, as instructed in your set top
box manual.
• Do not set any liquids or drinks on the drive. Liquids will
damage the internal electronics.
• Do not open the drive's case.
• Do not place equipment in front of or behind your drive.
Doing this will restrict airflow that helps keep the drive cool.
Included in this Kit
Maxtor QuickView Expander Drive Power Adapter
ESATA Cable Vertical Stand

Product Features

FRONT
Power Light Status Light
(green) (orange) Connector

Quick Start Guide

Setup
1
Verify the recording space available on your
Digital Video Recorder (DVR).
Recording Space Used:
44%
You currently have 18 recordings.
Write down the percentage of available space then
power down and disconnect the power cable from
your DVR.
2 Connect power to a suitable wall outlet or power
strip. Do not use the auxiliary power connector
on the back of the DVR.
See reverse side for important information about attaching
the QuickView Expander drive to an electrical outlet.
The Green power light should display solid and the
orange status light should start flashing after power-
ing up the Quickview Expander drive.
3
Connect the ESATA cable to the back of the
Quickview Expander drive and the DVR.
Rubber Feet
BACK
After power is reconnected and the DVR is powered
ESATA Power
up, the orange status light should stop flashing.
Connector
QUICKVIEW EXPANDER
4
Display Lights
Your QuickView Expander drive is equipped with two
display lights. Each light communicates the health and
operation of the drive.
Status light only valid when the power light is on.
POWER
ON
OFF
STATUS
1 blink
2 blinks
8 blinks or
continuous
Adding rubber feet to your QuickView
Expander Drive
If you plan to use your drive on a flat surface, your kit
includes four rubber feet to protect your drive and the
surface it is on.
To apply the feet:
1. Make sure your QuickView Expander drive is disconnected
2. The feet go on the bottom of your drive. Apply feet as
3. Return the drive to its upright position, so it rests on the
™ DRIVE
Check available recording space. If the Quickview
Expander was detected properly by the DVR, your
available recording space should have increased.
Recording Space Used:
15%
You currently have 18 recordings.
MESSAGE
The drive is on and running.
The drive is off.
MESSAGE
Light will blink once after product is plugged in.
The SATA cable is not connected to the set top box.
There is an internal error. Contact your service
provider or www.maxtor.com.
properly from your DVR, and the drive is turned off.
illustrated on bottom of your drive.
rubber feet.
