UNPACKING
1. Carefully unpack the speakers. If you suspect damage from
transit, report it immediately to your dealer and/or delivery
service. Keep the shipping carton and packing materials
for future use.
PLACEMENT
Although Outrigger/Outrigger jr. Outdoor Speakers are
weather-resistant, they are not weatherproof. We recom-
mending placing or mounting them in a protected location,
such as under the eaves of a roof or on a porch.
For the best stereo effect, separate your Outrigger/Outrigger jr.
Outdoor speakers by at least seven to ten feet (two to three
meters). Use the built-in pedestal for placement on a table or
other surface (see Figure 1). Experiment with different place-
ment to find the most pleasing effect for your system. Placing
your speakers near a wall or other surface will increase bass
output.
For vertical or horizontal mounting on a wall, use the enclosed
mounting bracket and hardware (see Figures 2 and 3). Locate a
stud for secure mounting. Use heavy-duty screws with long
threads (not included) so there is an adequate number of
threads holding the speaker/bracket to the wall. Test the
mounting thoroughly before final installation. Rotate the logo
(on the grille) to match the mounting position.
NOTE: After determining placement position, you may wish to
paint each speaker (see next section).
OUTRIGGER / OUTRIGGER jr.
(Rear View)
Wood Screws
(fasten to
wall stud)

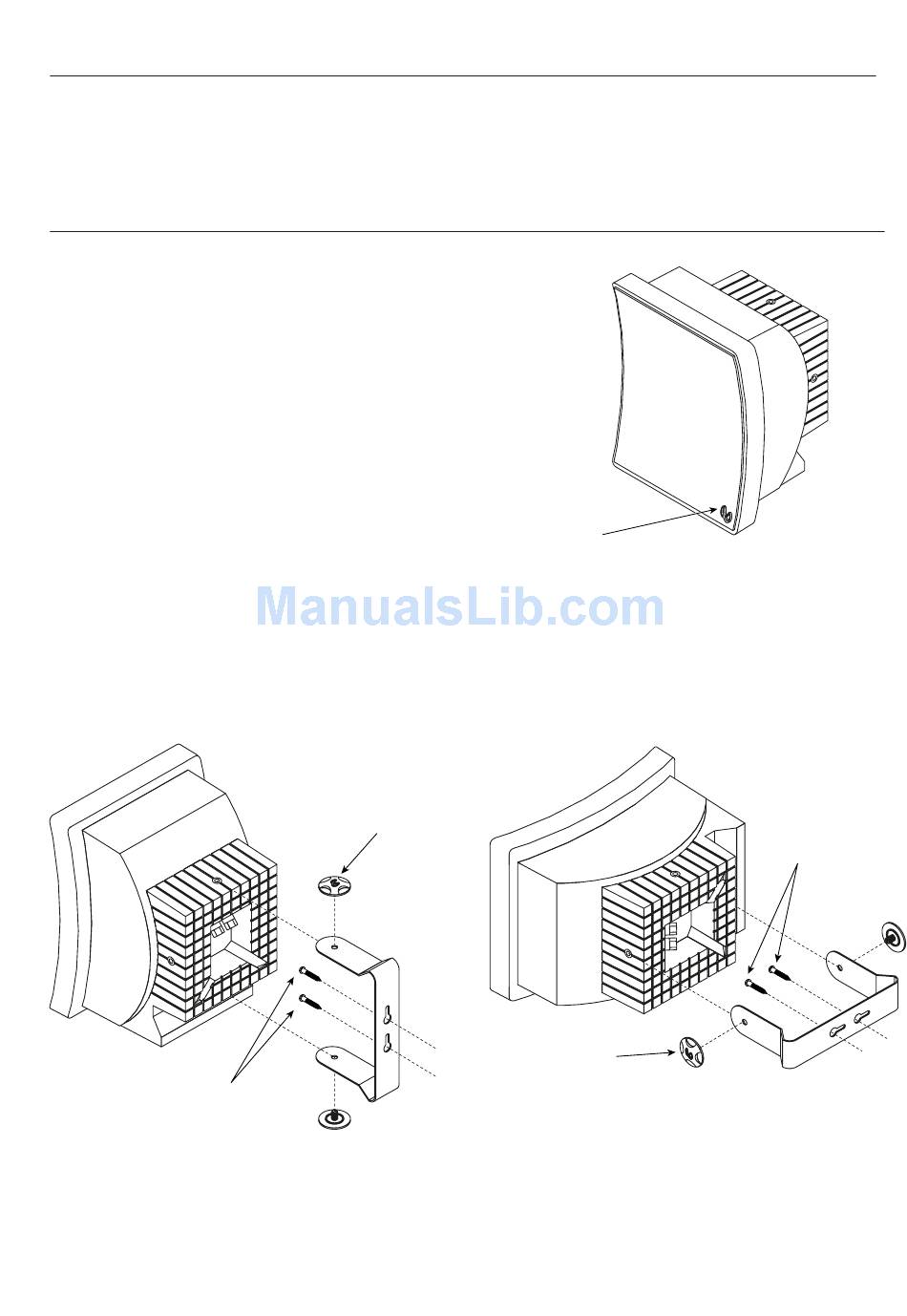

Figure 2. Vertical wall mounting of an Outrigger/Outrigger jr.
speaker. If desired, tilt the speaker left or right before tightening
knobs.
2
2. Verify that the package includes the following items:
– (2) Outrigger/Outrigger jr. Speakers
– (2) Mounting Brackets
– (2) Paint Masks
– (1) Owner's Manual
OUTRIGGER / OUTRIGGER jr.
(Front View)
Figure 1. Use the built-in pedestal for placement of an
Outrigger/Outrigger jr. speaker on a table or other surface.
Note logo orientation.
OUTRIGGER / OUTRIGGER jr.
(Rear View)
KNOB
(1 of 2)
MOUNTING
BRACKET
Figure 3. Horizontal wall mounting of an Outrigger/Outrigger jr.
speaker. If desired, tilt the speaker up or down before tightening
knobs.
rotate
logo
KNOB
(1 of 2)
Wood Screws
(fasten to
wall stud)
MOUNTING
BRACKET
