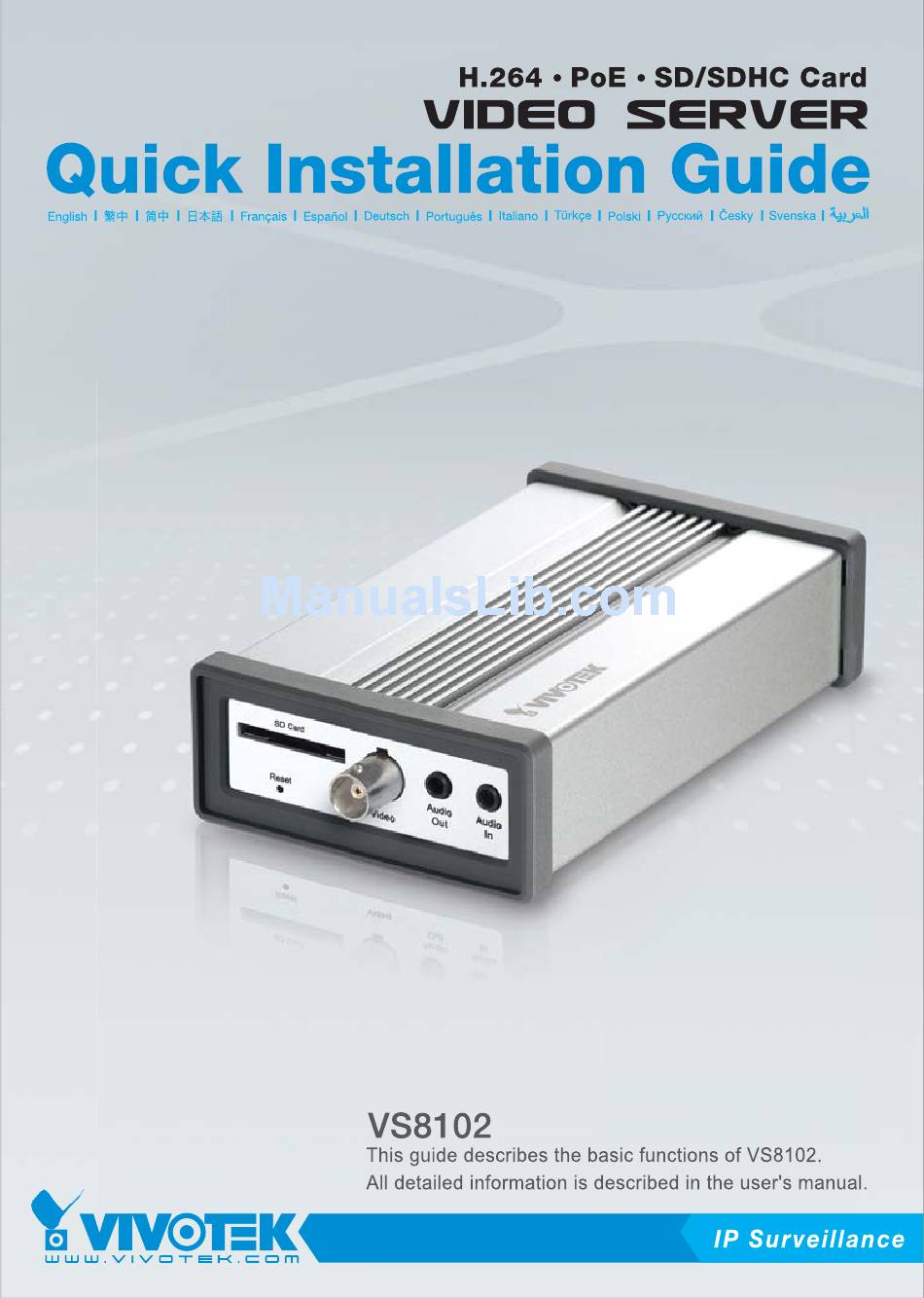

Vivotek VS8102 Quick Installation Manual

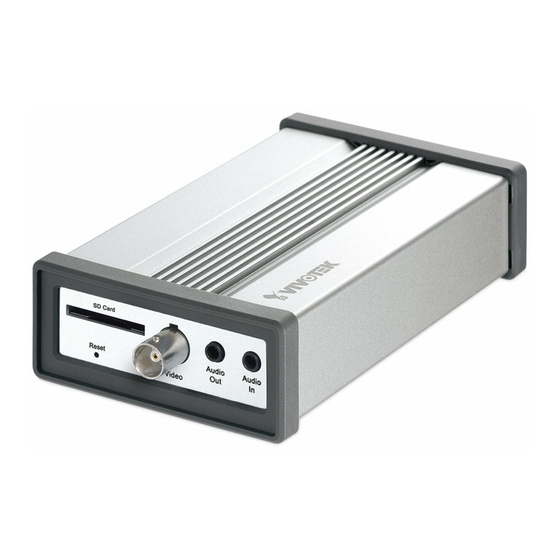

H.264 poe sd/sdhc card video server
Hide thumbs Also See for VS8102:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS8102 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivotek VS8102

Summary of Contents for Vivotek VS8102

  • Page 2 Warning Before Installation Power off the Video Server as soon Keep the Video Server away from as smoke or unusual odors are water. If the Network Camera detected. becomes wet, power off immediately. Contact your distributor in the event of Contact your distributor in the event of occurrence.
  • Page 3 Do not place the Video Server on Do not touch the Video Server unsteady surfaces. during a lightning storm. Do not disassemble the Video Server. Do not drop the Video Server. Do not insert sharp or tiny objects into the Video Server.

  • Page 4: Package Contents

    Package Contents VS8102 Power Adapter Software CD Warranty Card Quick Installation Guide...

  • Page 5: Physical Description

    Physical Description Front Panel SD/SDHC Card Slot BNC Video Input SD Card RCA Audio Input Audio Audio Reset Video RCA Audio Output Recessed Reset Button Back Panel Ethernet 1 2 3 4 5 6 7 8 Ethernet 10/100 Power Cord Socket RJ45 Socket General I/O Terminal Block Status LEDs...

  • Page 6: Network Deployment

    Network Deployment General Connection (without PoE) 1. Make video connection from the camera to the BNC video input. 2. Make audio connection from the Line-Out audio source to the RCA audio input. 3. Make audio connection from RCA audio output to the speaker. CAMERA NO.

  • Page 7: Power Over Ethernet (Poe)

    Power over Ethernet (PoE) When using a PoE-enabled switch The Video Server is PoE-compliant, allowing transmission of power and data via a single Ethernet cable. Follow the below illustration to connect the Video Server to a PoE-enabled switch via Ethernet cable. PoE Switch When using a non-PoE switch Use a PoE power injector (optional) to connect between the Video Server and a non-...

  • Page 8: Assigning An Ip Address

    "Next" button to continue the program. Installation Wizard 2 3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network Cameras on the same LAN. 4. After searching, the main installer window will pop up. Click on the MAC that matches the one labeled on the bottom of your device to connect to the Video Server via Internet Explorer.

  • Page 9: Ready To Use

    Ready to Use 1. Access the Video Server from the LAN. 2. Retrieve live video through a web browser or recording software. For further setup, please refer to the user’s manual on the software CD.
