Freecom Data Tank Gateway
Chapter : Get to know your Data Tank Gateway
GB
This chapter describes the lights and mechanical layout of the Data Tank Gateway.

.1 Data Tank Gateway connectors, LEDs and buttons

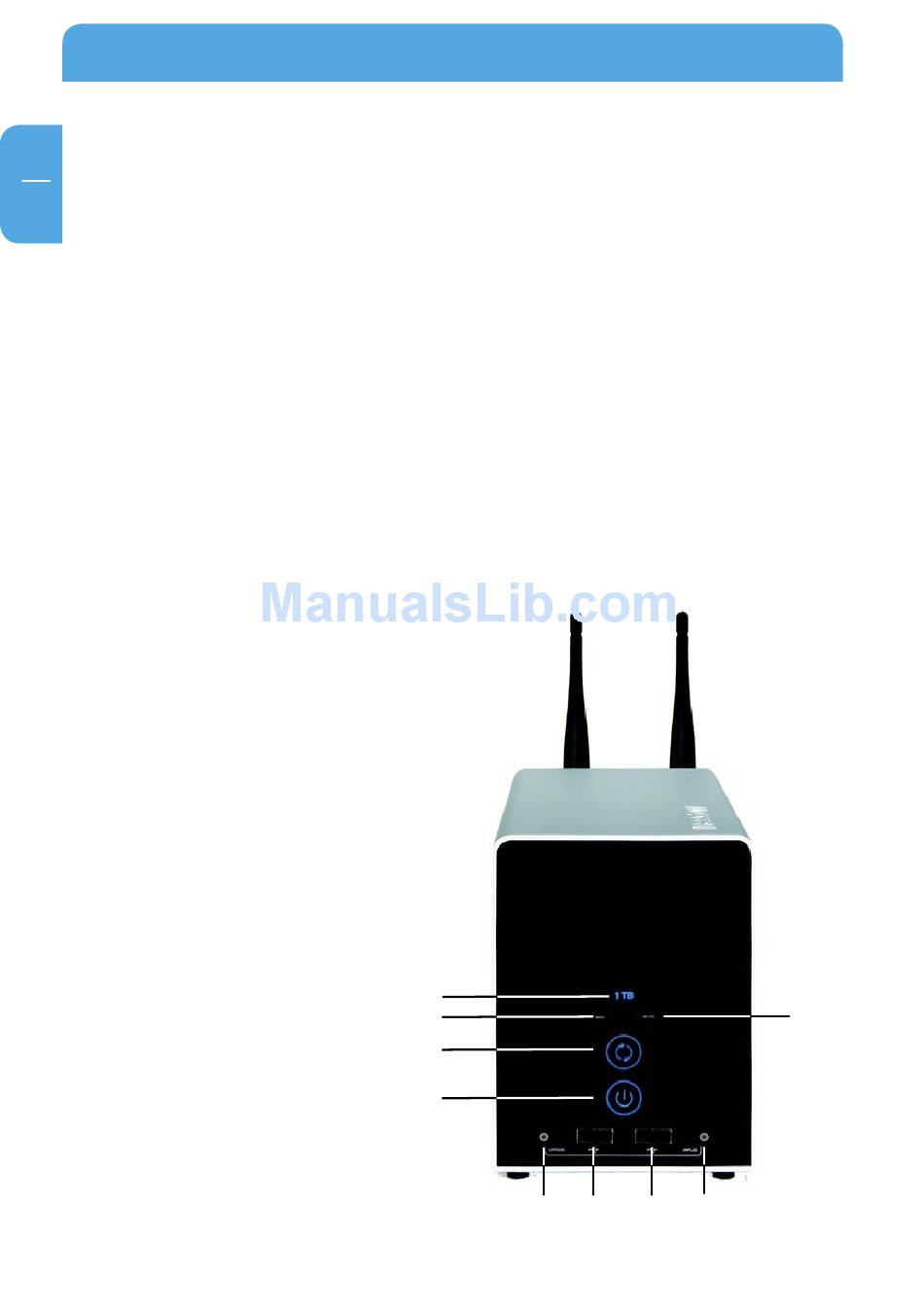

Front of the Data Tank Gateway
The front consists of:
1. LED with drive space capacity indicator
2. WAN LED
3. WLAN LED
4. On/off switch
5. Backup switch: immediate start of selected backup tasks
6. USB Host Port Type A (Front 1)
7. USB Host Port Type A (Front 2)
8. USB Unplug switch
9. USB Unplug switch
* Press up to 5 seconds to switch off device.
14
*
1.
2.
5.
4.
8. 6. 7. 9.
3.
