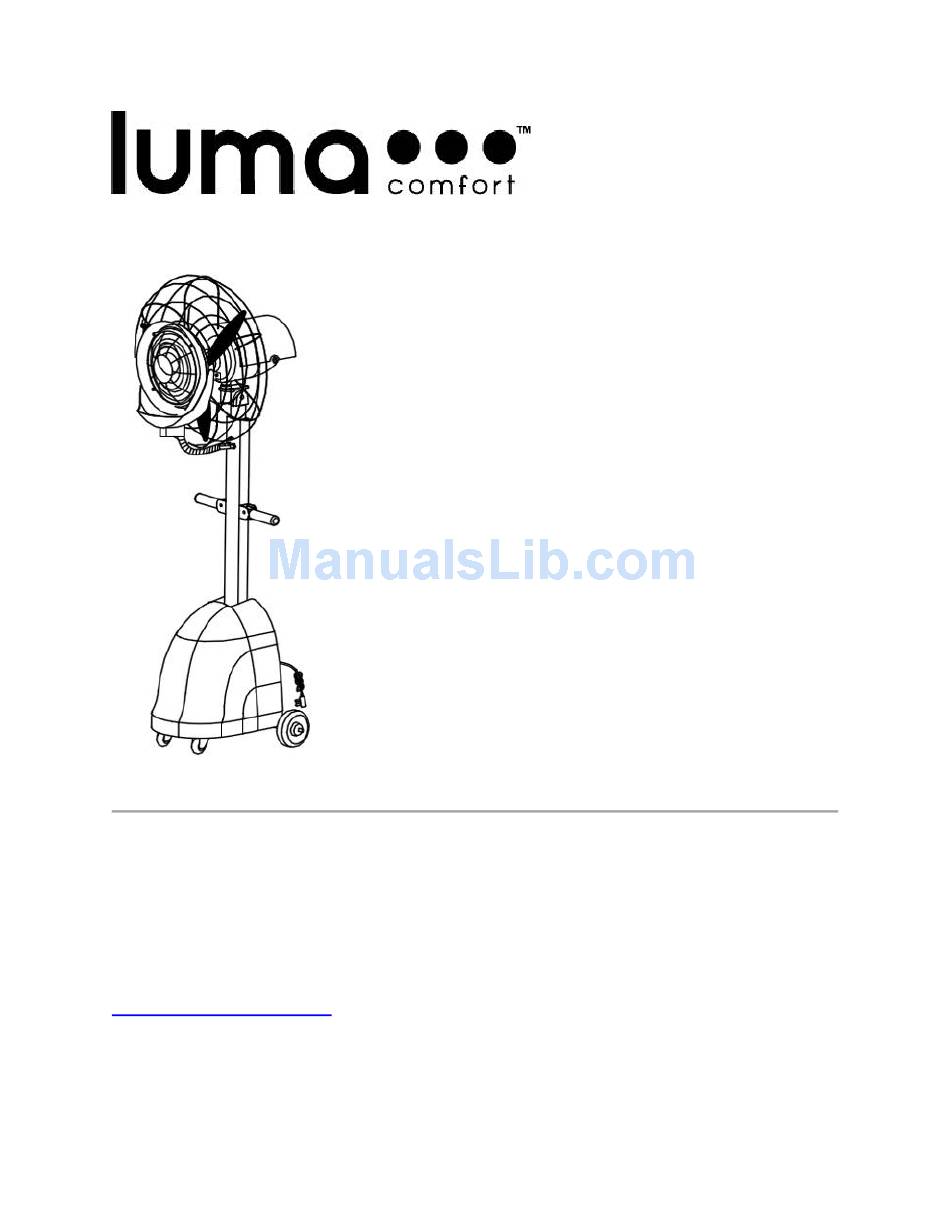

Page 1 For your safety, comply with all safety instructions and warnings contained in this owner’s manual to prevent personal injury or property damage. To view the full line of Luma Comfort products, please visit www.lumacomfort.com.
Page 2: Table Of Contents
Contents Introduction ........................1 Product Benefits ......................1 Important Safety Information ................... 1 Assembly Instructions ..................... 2 Step 1: Removing the Water Tank ................2 Step 2: Installing the Water Pump ................3 Step 3: Assembling the Stand Pole ................4 Step 4: Assembling the Fan Head ................
Page 3: Introduction
Introduction Thank you for purchasing this misting fan from Luma Comfort, the world leader in home appliances and home comfort products. This owner’s manual provides specific operating instructions for your misting fan. Use the misting fan only as instructed in this owner’s manual.
Page 4: Assembly Instructions
Assembly Instructions DO NOT plug in the fan before assembly. This misting fan comes in 3 separate boxes. Carefully remove all packaging materials and retain for future storage/use. Make sure there is no residual foam left in any of the components. A screwdriver and wrench will be required to assemble this misting fan. Step 1: Removing the Water Tank Refer to diagram 1.
Page 5: Step 2: Installing The Water Pump
Step 2: Installing the Water Pump a. Refer to diagram 2. Remove the water pump from the packaging, making sure not to pull it out by the power cord. The water pump will be attached to a metal panel. b. Position the water pump in an upright position and place it on the plastic beam located at the bottom of the water tank.
Page 6: Step 3: Assembling The Stand Pole
Step 3: Assembling the Stand Pole a. Refer to diagram 3. Locate the tank cart and stand pole. Remove the four M8x20 bolts, spring washers, flat washers and nuts from the tank cart. b. Position the stand pole on the tank cart and align the holes on the pole with the four holes on the cart.
Page 7: Step 4: Assembling The Fan Head
Step 4: Assembling the Fan Head a. Refer to diagram 4. Remove the fan head from box #1. b. Align the stand pole opening on the bottom of the fan head with the stand pole and connect the two pieces together. c.
Page 8: Step 5: Connecting The Power Supply & Water Hoses
Product Support Questions: Contact Luma Comfort at (866) 737-6390 Sales Inquiries: Contact Sylvane at (800) 934-9194 Step 5: Connecting the Power Supply & Water Hoses a. Refer to diagrams 5 and 6. Insert the power line that is connected to the fan head into the power line opening and screw in the front panel to the stand pole.
Page 9: Step 6: Connecting The Power Supply (Upper Back Panel)
Step 6: Connecting the Power Supply (Upper Back Panel) a. Refer to diagram 7. Remove the upper back panel from the top of the stand pole by unscrewing the 4 M5 screws holding it in place. b. Insert plug A into socket A and make sure the connection is secure. c.
Page 10: Step 7: Connecting The Power Supply (Lower Back Panel)
Step 7: Connecting the Power Supply (Lower Back Panel) a. Refer to diagram 8. Place the water tank on the tank shelf. e. Take the lower back panel that is attached to the pump and locate plug C and socket C. Insert plug C into socket C and make sure the connection is secure.
Page 11: Step 8: Connecting The Pump & Water Output Hoses
Product Support Questions: Contact Luma Comfort at (866) 737-6390 Sales Inquiries: Contact Sylvane at (800) 934-9194 Step 8: Connecting the Pump & Water Output Hoses a. Refer to diagram 9. Remove the tank cover from the water tank. b. Locate the pump hose (longer hose), the water output hose (shorter hose) and the pump power cord.
Page 12: Step 9: Locking/Unlocking The Handles
Step 9: Locking/Unlocking the Handles This misting fan is equipped with handles for convenient transport. The handles will be in the locked position when first assembled. Follow these steps to unlock and lock the handles. a. Refer to diagram 10. To unlock the handles, push the L type pin on the handle joint. While pushing in the L type pin, simultaneously push the handle up.
Page 13: Operating Instructions
Operating Instructions 1. This misting fan can operate with optimal output in temperatures up to 104°F. 2. Lift up the tank cover and fill the tank with clean water. Make sure the pump hose is fully submersed in water. Replace the tank cover. 3.
Page 14: Maintenance
Technical Support Luma Comfort is committed to providing a premier service experience. If you are experiencing any technical issues with your product related to either setup or operation, please contact our product support team at 1-866-737-6390 or support@lumacomfort.com.
Page 15: Warranty
Luma Comfort products are warranted to be free from defects in workmanship or materials for one (1) year from the date of purchase. If the product is found to be defective within this period, Luma Comfort, at its sole option, will repair or replace any components that fail during normal operation. The repairs or replacement will be made at no charge to the customer for parts and labor, assuming that the customer shall be responsible for all transportation costs to and from Luma Comfort.
