Summary of Contents for Rockford Fosgate Prime R600-5

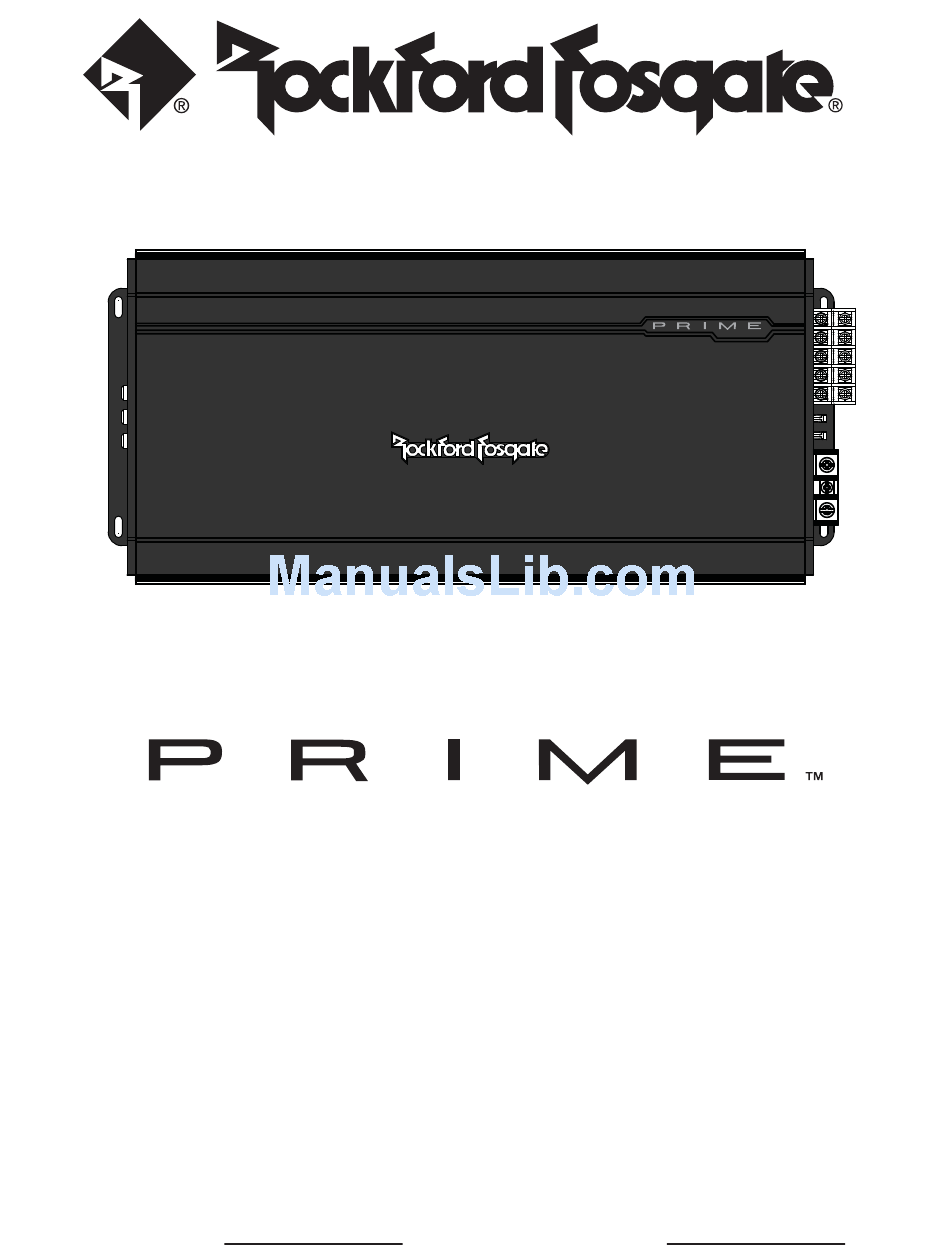

- Page 1 R600-5 5-Channel Amplifier R600-5 Installation & Operation Installation et fonctionnement Instalación y funcionamiento Einbau und Betrieb Installazione e funzionamento Serial Number: Date of Purchase:...
-
Page 2: Table Of Contents
NTRODUCTION Dear Customer, Congratulations on your purchase of the world's finest brand of car audio amplifiers. At Rockford Fosgate we are fanatics about musical reproduction at its best, and we are pleased you chose our product.Through years of engi- neering expertise, hand craftsmanship and critical testing procedures, we have created a wide range of products that reproduce music with all the clarity and richness you deserve. -
Page 3: Safety Instructions
Other information can be located by using the Table of Contents.We, at Rockford Fosgate, have worked very hard to make sure all the information in this manual is current. But, as we are constantly finding new ways to improve our product, this information is subject to change without notice. -
Page 4: Design Features
ESIGN EATURES R600-5 BASS BASS INPUT LP-AP-HP-80Hz HP-80Hz-AP-LP 0dB +6dB +12dB 0dB +6dB +12dB POWER REAR GAIN FRONT LP FREQ. FRONT GAIN REAR LP FREQ. PHASE 0° 180° PROTECT FRONT REAR PUNCH LEVEL SUB GAIN SUB FREQ. BASS CONTROL CH5+ CH2- CH2+ CH1- CH1+... -
Page 5: Installation
NSTALLATION INSTALLATION CONSIDERATIONS The following is a list of tools needed for installation: Fuse-holder and fuse. Battery post wrench (See specifications for fuse rating) Hand held drill w/assorted bits Volt/Ohm Meter Assorted connectors Wire strippers Adequate Length—Red Power Wire Wire crimpers Adequate Length—Remote Turn-on Wire Wire cutters Adequate Length—Black Grounding Wire... -
Page 6: Battery And Charging
WIRING THE SYSTEM CAUTION:If you do not feel comfortable with wiring your new unit, please see your local Authorized Rockford Fosgate Dealer for installation. CAUTION:Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury. - Page 7 NSTALLATION CAUTION:Always ensure power is off or disconnected at the amplifier before connecting RCA cables. Failure to do so may cause damage to the amplifier and/or connected components. Connect the speakers. Strip the speaker wires 3/8", crimp the bared wire into a fork or ring style connectors and attach to the speaker terminals.Tighten the screw to secure into place.
-
Page 8: Operation
PERATION ADJUSTING GAIN To adjust the gain setting, turn the amplifier gains all the way down (counter-clockwise).Turn the source unit volume up until distortion is audible and then turn it down a bit until the distortion is inaudible.This will be about all the way up on most source units. -
Page 9: Troubleshooting
ROUBLESHOOTING NOTE:If you are having problems after installation follow the Troubleshooting procedures below. Procedure 1: Check Amplifier for proper connections. Check in-line fuse on battery positive cable. Replace if necessary. Check fuse(s) on amplifier. Replace if necessary. Verify that Ground connection is connected to clean metal on the vehicle’s chassis. Repair/replace if necessary. -
Page 10: Specifications
PECIFICATIONS MODEL- PRIME R600-5 Load Per Channel 50 Watts x 4 + 200 Watts x 1 Load Per Channel 75 Watts x 4 + 300 Watts x 1 Load Bridged 150 Watts x 2 + n/a Dimensions: Height 2.40" (6.10cm) Width 7.67"... -
Page 11: Limited Warranty Information
No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product. Contact the Authorized Rockford Fosgate Dealer you purchased this product from. - Page 12 Rockford Fosgate Rockford Corporation 600 South Rockford Drive Tempe, Arizona 85281 U.S.A. In U.S.A., (480) 967-3565 - Customer Service 1-800-669-9899 www.rockfordfosgate.com 07/2010 E.R. Printed in China 1230-56288-01...
- Page 13 AMPLIFIER VERIFICATION CERTIFICATE ___nD_l..L-J RMS Power: Serial Number: [) C '2011 Creation Date: 1220-55607-01...
