Summary of Contents for Teac SR-60i

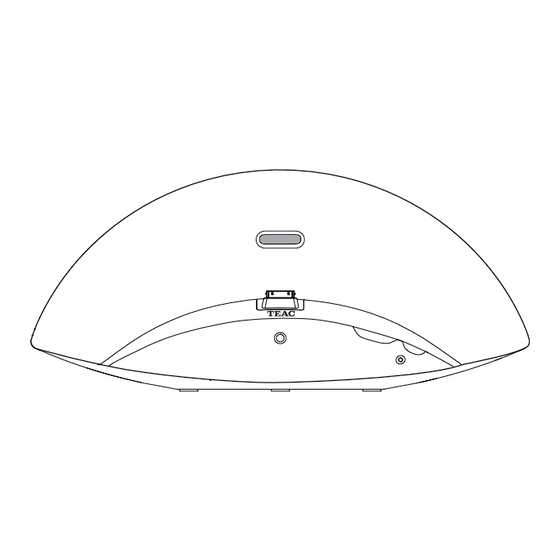

- Page 1 77-20SR60I00000 SR-60i TABLE-TOP AUDIO OWNER’S MANUAL...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1) Read these instructions. 2) Keep these instructions. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO 3) Heed all warnings. QUALIFIED SERVICE PERSONNEL. 4) Follow all instructions. - Page 3 < IF YOU ARE EXPERIENCING PROBLEMS WITH THIS mean that an electronic accessory has been designed to PRODUCT, CONTACT TEAC FOR A SERVICE REFERRAL. DO connect specifically to iPod, iPhone, or iPad, respectively, NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED.
-
Page 4: Table Of Contents
Contents Thank you for choosing TEAC. Read this manual carefully to get the best performance from this unit. Before Using the Unit ........5 Connections . -
Page 5: Before Using The Unit
Before Using the Unit What’s in the box CAUTION Confirm the supplied standard accessories. < The voltage supplied to the unit should match the Remote control unit (RC-1290) x 1 voltage as printed on the AC adapter. If you are in any doubt regarding this matter, consult an electrician. -
Page 6: Connections
Connections After all connections are complete, connect the power cord’s plug to the AC wall socket. < Read the instructions of each device that you intend to use with this unit. < Be sure to connect each plug securely. To avoid hum and noise, do not bundle the connection cords. Back DC IN 9V AUX IN... -
Page 7: Usb Port
< To display video from your iPod iPhone or iPad on a TV or any other device through the VIDEO OUT jack, insert your iPod iPhone or iPad into the iPod/iPhone/ iPad dock of the SR-60i before you start playing the video. AUX IN Jack Analog 2-channel audio signal is input from these jacks. -
Page 8: Remote Control Unit
Remote Control Unit The provided remote control unit allows the unit to be Battery Precautions operated from a distance. Misuse of batteries could cause them to rupture or leak When operating the remote control unit, point it towards leading to fire, injury or the staining of nearby things. Please the remote sensor on the front panel of the unit. -
Page 9: Identifying The Parts (Main Unit)
Identifying the Parts (Main Unit) Standby/On ( POWER indicator ¤ Press this button to turn the unit on and put it into When the unit is turn on, the light is blue. standby. When the unit is standby, the light is red. VOLUME ( –... -
Page 10: Identifying The Parts (Remote Control Unit)
Identifying the Parts (Remote Control Unit) e BASS Use this button to adjust the level of low frequency sound (page 12). f TREBLE Use this button to adjust the level of high frequency sound (page 12) Muting ( Press this button to mute the sound. Press this button again to restore the sound. -
Page 11: Basic Operation
Basic Operation (1) This chapter describes the basic operation which is Muting ( available in every sound source. You can mute the sound temporarily. Muting Press the Muting( ) button. Press the Muting button again to restore the sound. Press the Standby/On (¤ ) button to turn the o If you change the volume level or sound source when unit on. -
Page 12: Ipod/Iphone/Ipad
BASS button. In case your iPod/iPhone/iPad will not work with the To adjust the level of high frequency sound range, SR-60i or with the remote control unit, software update press the TREBLE button. may solve the problem. Press the BASS or TREBLE button repeatedly to change the setting The level can be adjusted from “–5”... -
Page 13: Listening To An Ipod/Iphone/Ipad
The video signal from a connected iPod/iPhone/iPad This button has the same functions as its iPod can be output from the VIDEO OUT jack of the SR-60i counterpart. (pages 6 - 7... -
Page 14: Usb Flash Memory
USB Flash Memory This unit can play MP3 files recorded on a USB flash CAUTION memory. Refer the instruction manual of the software Never turn the unit off or disconnect a USB flash when making an MP3 file using a PC. memory when it is being accessed. -
Page 15: Listening To A Usb Flash Memory
Listening to a USB Flash Memory Stopping playback temporarily Do not use a high-capacity USB hard discs larger than 32GB. USB flash memory can be used. (Pause mode) Press USB button to select. Press the Play/Pause (y/9 ) button during playback. Playback stops at the current position. -
Page 16: Listening To An External Source
SR-60i. < Turning the volume of the connected component up too high might cause the sound from SR-60i to be distorted. In this case, reduce the volume of the component until the distortion stops and then adjust the volume level of SR-60i to a comfortable listening level. -
Page 17: Troubleshooting
If a bright light is near the unit, turn it off. iPod/iPhone/iPad Player Cannot connect the iPod/iPhone/iPad. e Remove dust or obstacles from the dock connector of SR-60i and the iPod/iPhone/iPad, then connect the iPod/iPhone/iPad again. Cannot operate the iPod/iPhone/iPad. e Release the iPod/iPhone/iPad HOLD switch. -
Page 18: Specifications
Specifications General Amplifier Section Power Requirements....100-240 V, 50/60 Hz Output Power ....5 W + 5 W (THD 10 %) Power Consumption (nominal). - Page 19 7733 Telegraph Road, Montebello, California 90640 U.S.A. Phone: (323) 726-0303 TEAC CANADA LTD. 5939 Wallace Street, Mississauga, Ontario L4Z 1Z8, Canada Phone: (905) 890-8008 TEAC MEXICO, S.A. DE C.V. Río Churubusco 364, Colonia Del Carmen, Delegación Coyoacàn, CP 04100, México DF, México Phone: (5255)5010-6000 TEAC UK Ltd.
