Page 1 Table of Contents Introduction Instrument Cluster Warning lights and chimes Gauges Message center Entertainment Systems AM/FM stereo with CD/MP3 Auxiliary input jack (Line in) USB port Satellite radio information Navigation system SYNC Climate Controls Manual heating and air conditioning Navigation system based climate control Rear window defroster Lights Headlamps...
Page 2: Table Of Contents
Table of Contents Seating and Safety Restraints Seating Safety restraints Airbags Child restraints Tires, Wheels and Loading Tire information Tire inflation Tire Pressure Monitoring System (TPMS) Vehicle loading Trailer towing Recreational towing Driving Starting Brakes AdvanceTrac Transmission operation Rear-view camera system Roadside Emergencies Getting roadside assistance Hazard flasher control...
Page 4: Introduction
Introduction CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it.
Page 5 Introduction Warning symbols on your vehicle When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind. Protecting the environment We must all play our part in protecting the environment.
Page 6 Introduction BREAKING-IN YOUR VEHICLE Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in.
Page 7 In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may...
Page 8 Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada. To the extent that any law pertaining to Event Data Recording applies to SYNC or its...
Page 9 Introduction WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle.
Page 10 Introduction These are some of the symbols you may see on your vehicle. Vehicle Symbol Glossary Safety Alert See Owner’s Guide Fasten Safety Belt Airbag - Front Child Seat Lower Airbag - Side Anchor Child Seat Tether Brake System Anchor Anti-Lock Brake System Parking Brake System Brake Fluid -...
Page 11 Introduction Vehicle Symbol Glossary Power Windows Power Window Lockout Front/Rear Child Safety Door Interior Luggage Lock/Unlock Compartment Release Panic Alarm Engine Oil Engine Coolant Engine Coolant Temperature Do Not Open When Hot Battery Avoid Smoking, Flames, Battery Acid or Sparks Explosive Gas Fan Warning Maintain Correct Fluid...
Page 12: Instrument Cluster
Instrument Cluster WARNING LIGHTS AND CHIMES Base instrument cluster (V6 shown; V8 similar) Optional instrument cluster (V6 shown; V8 similar) Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause extensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions.
Page 13 Instrument Cluster Service engine soon: The service engine soon indicator light illuminates when the ignition is first turned to the on position to check the bulb and to indicate whether the vehicle is ready for Inspection/Maintenance (I/M) testing. Normally, the service engine soon light will stay on until the engine is cranked, then turn itself off if no malfunctions are present.
Page 14 Instrument Cluster time, contact your authorized dealer as soon as possible. Illumination after releasing the parking brake indicates low brake fluid level. Contact your authorized dealer as soon as possible. WARNING: Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking performance may occur.
Page 15 Instrument Cluster Engine oil pressure (if equipped): Illuminates when the oil pressure falls below the normal range, refer to Engine oil in the Maintenance and Specifications chapter. Engine coolant temperature: Illuminates when the engine coolant temperature is high. Stop the vehicle as soon as possible, switch off the engine and let cool.
Page 16 Instrument Cluster O/D OFF (automatic transmission): Illuminates when the overdrive function of the transmission has been turned off; refer to the Driving chapter. If the light does not illuminate, contact your authorized dealer as soon as possible. Low fuel (if equipped): Illuminates when the fuel level in the fuel tank is at or near empty.
Page 17: Gauges
Instrument Cluster Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened. GAUGES Base instrument cluster gauges (V6 shown; V8 similar) Optional instrument cluster gauges (V6 shown;...
Page 18 Instrument Cluster Speedometer: Indicates the current vehicle speed. • V6 instrument cluster • V8 instrument cluster Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating.
Page 19 Instrument Cluster Trip odometer: Registers the distance of individual journeys. • Base instrument cluster: Press the reset button to select Trip A and Trip B. Press and hold the reset button to reset the trip odometer to zero. • Optional instrument cluster: Press and release the message center INFO button until TRIP A mode appears in the display.
Page 20: Message Center
Instrument Cluster Engine oil pressure gauge (if equipped): Indicates engine oil pressure. The needle should stay in the normal operating range (between “L” and “H”). If the needle falls below the normal range, stop the vehicle, turn off the engine and check the engine oil level.
Page 21 Instrument Cluster Autolamp delay (if equipped) This feature keeps your headlights on for up to three minutes after the ignition is switched off. 1. To disable/enable the autolamp delay feature, select this function using RESET stem. 2. Press and hold the RESET stem for two seconds to select the new Autolamp delay values of 0, 10, 20, 30, 60, 90, 120 or 180 seconds.
Page 22 Instrument Cluster Selectable features Reset Press this control to select and reset functions shown in the INFO menu and SETUP menu. Setup menu Press this control for the following displays: Note: The vehicle’s headlamps or parklamps must be on to perform/check light functions.
Page 23 Instrument Cluster The sequence of the system check report and how it appears in the message center is as follows: 1. OIL LIFE 2. CHARGING SYSTEM 3. ALL DOORS CLOSED 4. DRIVER DOOR 5. PASSENGER DOOR 6. TRUNK 7. SECURITY SYSTEM (if equipped) 8.
Page 24 Instrument Cluster Halo light Turns the halo lighting around the gauges on or off. 1. To turn the halo lighting on or off, select this function from the SETUP MENU. 2. Press and hold RESET to turn the feature on or off. Ambient light Turns the ambient lighting on or off.
Page 25 Instrument Cluster Note: Headlamps or parklamps must be on to set up colors. To choose colors for the gauges, halo color or ambient lighting do the following: 1. Press SETUP to reach the GAUGE COLOR, AMBIENT COLOR, or HALO COLOR menu. 2.
Page 26 Instrument Cluster Units (English/Metric) 1. Select this function from the SETUP menu for the current units to be displayed. 2. Press RESET to change from English to Metric. Autolamp This feature keeps your headlights on for up to three minutes after the ignition is switched off.
Page 27 Instrument Cluster Language 1. Select this function from the SETUP menu for the current language to be displayed. 2. Waiting four seconds or pressing the RESET control cycles the message center through each of the language choices. Selectable languages are English, Spanish, or French. 3.
Page 28 Instrument Cluster The DTE function will display LOW FUEL LEVEL when you have approximately 50 miles (80 km), to empty. If you reset this warning message, it will return at approximately 25 miles (40 km), 10 miles (16 km) and 0 miles (0 km) miles to empty. DTE is calculated using a running average fuel economy, which is based on your recent driving history of 500 miles (800 km).
Page 29 Instrument Cluster Instantaneous fuel economy (IFE) Select this function from the INFO menu to display your instantaneous fuel economy. This will display your fuel economy as a bar graph ranging from poor economy to excellent economy. Your vehicle must be moving to calculate instantaneous fuel economy. When your vehicle is not moving, this function shows , one or no bars illuminated.
Page 30 Instrument Cluster Warning messages that have been reset are divided into three categories: • They will not disappear until a condition is changed. • They will reappear on the display 10 minutes from the reset. • They will not reappear until an ignition off-on cycle has been completed.
Page 31 Instrument Cluster Warnings that return after the ignition key is turned from off to CHECK BRAKE SYSTEM — Displayed when the braking system is not operating properly. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible. LOW TIRE PRESSURE —...
Page 32: Entertainment Systems
AM/FM CD/MP3 satellite compatible sound system WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle.
Page 33 Entertainment Systems Setting the clock To set the time, press CLOCK. The display will read SET TIME. Use the memory preset numbers (0–9) to enter in the desired time–hours and minutes. The clock will then begin from that time. AM/FM Radio / VOL (Power/Volume): Press to turn the radio on/off.
Page 34 Entertainment Systems Saving presets automatically: Autoset allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. To activate the autoset feature: Press MENU repeatedly until AUTO PRESET ON/OFF appears in the display. Use SEEK to turn AUTO PRESET to ON, and either wait five seconds for the search to...
Page 35 Entertainment Systems CD/MP3 Player CD: Press to enter CD/MP3 mode. If a disc is already loaded into the system, CD/MP3 play will begin where it ended last. If no CD is loaded, NO DISC will appear in the display. LOAD: For a single CD system–...
Page 36 Entertainment Systems SEEK: Press SEEK access the previous/next track. CAT (Category) / FOLD (Folder): In MP3 mode only– Press CAT/FOLD and then press SEEK to access the previous/next folder. SCAN: Press for a brief sampling of all tracks on the current disc or MP3 folder.
Page 37 Entertainment Systems Satellite Radio (if equipped) Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability. SIRIUS: Press repeatedly to access satellite radio mode, if equipped. Press repeatedly to cycle through SAT1, SAT2 and SAT3 modes. TUNE: Turn to go to the next / previous available SIRIUS satellite station.
Page 38 Entertainment Systems TEXT: Press and release to display the artist and song title. While in TEXT MODE, press again to scroll through the Artist (AR), Song (SO), Channel (CH) and Category (CA). In TEXT MODE: Sometimes the display requires additional text to be displayed.
Page 39 Entertainment Systems titles, the display will read REPLACE SONG? Press OK to access the saved titles and press SEEK to cycle through the saved titles. When the song title appears in the display that you would like to replace, press OK. SONG REPLACED will appear in the display. b.
Page 40 Entertainment Systems b. CHANGE PIN: Press OK when CHANGE PIN is displayed. The display will read ENTER OLD PIN. Enter your current (old) PIN number and when the system accepts your entry it will display ENTER NEW PIN. Enter your new four-digit PIN and the system will save the new PIN and PIN SAVED will display.
Page 41: Auxiliary Input Jack (Line In)
Auxiliary input jack (Line in) WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle.
Page 42 Entertainment Systems Your vehicle is equipped with an auxiliary input jack (AIJ) located in the center console. The auxiliary input jack provides a way to connect your portable music player to the in-vehicle audio system. This allows the audio from a portable music player to be played through the vehicle speakers with high fidelity.
Page 43: Usb Port
USB port (if equipped) WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle.
Page 44 Entertainment Systems Your vehicle may be equipped with a USB port inside your center console. This feature allows you to plug in media playing devices, memory sticks, and also to charge devices if LINE IN they support this feature. For further information on this feature, refer to Accessing and using your USB port in the SYNC supplement...
Page 45 CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Do not use any irregular shaped CDs or discs with a scratch protection film attached.
Page 46 Entertainment Systems CDs with homemade paper (adhesive) labels should not be inserted into the CD player as the label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels.
Page 47: Satellite Radio Information
Entertainment Systems Sample MP3 structure If you are burning your own MP3 discs, it is important to understand how the system will read the structures you create. While various .mp3 files may be present, (files with .mp3 extensions other than mp3), only files with the .mp3 extension will be .mp3 played.
Page 48 Note: SIRIUS reserves the unrestricted right to change, rearrange, add or delete programming including canceling, moving or adding particular channels, and its prices, at any time, with or without notice to you. Ford Motor Company shall not be responsible for any such programming changes.
Page 49 Entertainment Systems Satellite Radio Electronic Serial Number (ESN): This 12-digit Satellite Serial Number is needed to activate, modify or track your satellite radio account. You will need this number when communicating with SIRIUS . While in satellite radio mode, you can view this number on the radio display by pressing AUX and the preset 1 control simultaneously.
Page 50: Navigation System
Entertainment Systems Radio Display Condition Action Required NO TEXT Song title information Song title information not not available. available at this time on this channel. The system is working properly. NO TEXT Category information Category information not not available. available at this time on this channel.
Page 51: Climate Controls
Climate Controls MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED) Temperature conversion: To switch between Fahrenheit and Celsius, refer to Message center in the Instrument Cluster chapter. Defrost: Distributes outside air through the windshield defroster vents and de-mister vents. Can be used to clear the windshield of fog and thin ice.
Page 52 Climate Controls Recirculated air: Press to activate/deactivate air recirculation in the vehicle. Recirculated air may reduce the amount of time needed to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculated air engages automatically when MAX A/C is selected or can be engaged manually in any airflow mode except (defrost).
Page 53 Climate Controls • To improve the A/C cool down, drive with the windows slightly open for 2-3 minutes after start up or until the vehicle has been “aired out.” During extreme high ambient temperatures when idling stationary for extended periods of time in gear, it is recommended to run the A/C in the MAX A/C mode, adjust the blower fan speed to the lowest setting and put the vehicle’s transmission into the P (Park) position (automatic transmission only) to continue to receive cool air from your A/C system.
Page 54 Climate Controls DUAL ZONE AUTOMATIC TEMPERATURE CONTROL (NAVIGATION BASED – IF EQUIPPED) Temperature conversion: To switch between Fahrenheit and Celsius, refer to Message center in the Instrument Cluster chapter. 1. CLIMATE: Press to control the climate control system through the touch display screen.
Page 55 Climate Controls Passenger heated seat (if equipped): Press to control the passenger heated seat. Refer to Heated seats in the Seating and Safety Restraints chapter for more information. Recirculated air: Press to activate/deactivate air recirculation in the vehicle. Recirculated air may reduce the amount of time needed to cool down the interior of the vehicle when used with A/C and may also help reduce undesired odors from reaching the interior of the vehicle.
Page 56 Climate Controls TOUCHSCREEN FUNCTIONS Temperature conversion: To switch between Fahrenheit and Celsius, refer to Message center in the Instrument Cluster chapter. Temperature: Press the up and down arrows on the left side of the screen to increase/decrease the airflow temperature for the driver side of the vehicle.
Page 57 Climate Controls Operating tips • To reduce fog build up on the windshield during humid weather, select (defrost). Temperature and/or fan speed can also be increased to improve clearing. • To reduce humidity build up inside the vehicle: do not drive with the system off or with (recirculated air) engaged.
Page 58: Rear Window Defroster
Climate Controls REAR WINDOW DEFROSTER Press the control to clear the rear window of thin ice and fog. The LED will illuminate. The rear window defroster turns off automatically after 15 minutes, or when the ignition is turned off. To manually turn off the defroster before 15 minutes have passed, press the control again.
Page 59: Lights
Lights HEADLAMP CONTROL Turns the lamps off. Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps. Turns the low beam headlamps Automatic instrumentation illumination When the headlamps or parking lamps are switched on, a light sensor in your vehicle monitors the outside lighting conditions and automatically sets the instrument panel illumination to one of the following modes: •...
Page 60 Lights The autolamp system also keeps the lights on for a predetermined amount of time after the ignition switch is turned to off. You can change the amount of time the lamps stay on by using the programming procedure that follows: Note: If the vehicle is equipped with autolamps, it will have the headlamps on with windshield wipers feature.
Page 61 Lights High beams Push the lever toward the instrument panel to activate. Pull the lever toward you to deactivate. Flash to pass Pull toward you, to the first detent, to activate and release to deactivate. Note: Vehicles equipped with HID headlamps will hear an audible click when activating this feature.
Page 62 Lights PANEL DIMMER CONTROL Use to adjust the brightness of the instrument panel and all applicable switches in the vehicle during headlamp and parking lamp operation. Move the control to the full upright position, past detent, to turn on the interior lamps.
Page 63 Lights 3. Turn on the low beam headlamps to illuminate the wall or screen and open the hood. To see a clearer light pattern for adjusting, block the light from one headlamp while adjusting the other. For vehicles with halogen headlamps: On the wall or screen you will observe a flat zone of high intensity light located at the top of the right...
Page 64: Turn Signal Control
Lights 5. Then use a 7mm Allen wrench or a Phillips screwdriver to adjust the headlamp up or down. HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS NON-ADJUSTABLE. 6. Close the hood and turn off the lamps. TURN SIGNAL CONTROL •...
Page 65 Lights lens. The thin mist eventually clears and exits through the vents during normal operation. Clearing time may take as long as 48 hours under dry weather conditions. Examples of acceptable condensation are: • Presence of thin mist (no streaks, drip marks or droplets) •...
Page 66 Lights Replacing interior bulbs Check the operation of all bulbs frequently. Replacing exterior bulbs Check the operation of all bulbs frequently. Replacing headlamp bulbs To remove the headlamp bulb: 1. Make sure headlamp switch is in the off position, then open the hood. 2.
Page 67 Lights Replacing front parking lamp/turn signal bulbs 1. Make sure the headlamp control is in the off position and open the hood. Halogen headlamp HID headlamp 2. Remove the hex head screws attaching the underbody forward aeroshield and remove to gain access to the front parking lamp/ turn signal assembly.
Page 68 Lights Replacing front sidemarker bulb 1. Make sure the headlamp control is in the off position. 2. Remove the hex head screws attaching the underbody forward aeroshield and remove to gain access to the front sidemarker assembly. 3. Rotate the socket counterclockwise and remove from the lamp assembly.
Page 69 Lights 3. Unbolt the three tail lamp attachment nuts and remove the lamp assembly. 4. Rotate the LED assembly counterclockwise and remove it from the lamp assembly. 5. Disconnect the LED assembly from the electrical connector and replace the LED assembly. 6.
Page 70 Lights Replacing rear sidemarker lamp bulbs 1. Make sure the headlamp switch is in the off position and locate the sidemarker on the rear bumper fascia. 2. Insert a flathead screwdriver between the rear of the sidemarker lens and the bumper fascia. 3.
Page 71 Lights Replacing fog lamp bulbs (V6) (if equipped) 1. Make sure the headlamp control is in the off position and open the hood. 2. Remove the hex head screws attaching the underbody forward aeroshield and remove to gain access to the foglamp assembly. 3.
Page 72: Driver Controls
Driver Controls MULTI-FUNCTION LEVER Windshield wiper: Rotate the end of the control away from you to increase the speed of the wipers; rotate towards you to decrease the speed of the wipers. Windshield washer: Press the end of the stalk: •...
Page 73 Driver Controls TILT STEERING WHEEL To adjust the steering wheel: 1. Push the lever down to unlock the steering column. While the lever is in the down position, tilt the steering column to its desired orientation. 2. While holding the steering column, pull the lever up to its original position to lock the steering column.
Page 74 Driver Controls Compass zone adjustment 1. Determine which magnetic zone you are in for your geographic location by referring to the zone map. 2. Turn ignition to the on position. 7 8 9 1011 3. Press and hold the 7 and 9 radio preset buttons together for approximately five seconds until ZONE XX appears in the CID.
Page 75 Driver Controls 2. To calibrate, press and hold the 7 and 9 radio preset buttons together for approximately 10 seconds until CAL appears. Release the buttons. 3. Slowly drive the vehicle in a circle (less than 3 mph [5 km/h]) until the CAL display changes to the direction value (N, S, E, W, etc.).
Page 76: Power Windows
Driver Controls AUXILIARY POWER POINT (12VDC) Power outlets are designed for accessory plugs only. Do not insert any other object in the power outlet as this will damage the outlet and blow the fuse. Do not hang any type of accessory or accessory bracket from the plug.
Page 77 Driver Controls Press and pull the switches to open and close windows. • Press down (to the first detent) and hold the switch to open. • Pull up (to the first detent) and hold the switch to close. Express-down (Front windows only) Allows the driver and passenger’s window to open fully without holding the control down.
Page 78 Driver Controls Bounce-back override (front windows only) To override bounce-back, within two seconds after reaching bounce-back position, if the switch is moved from the neutral to the express-up position the window will travel up with no bounce-back protection. If the switch is released before the window reaches fully closed position, the window will stop.
Page 79: Mirrors
Driver Controls In the event that the rear quarter window switch does not operate when the convertible top is completely up or down, the rear quarter windows can be manually raised up. The following procedure must be performed within two minutes: 1.
Page 80: Speed Control
Driver Controls Note: If equipped with a rearview camera system, a video image will be displayed in the mirror or the navigation system display (if equipped) when the vehicle is put in reverse. Refer to Rearview camera system in the Driving chapter. EXTERIOR MIRRORS Power side view mirrors To adjust your mirrors:...
Page 81 Driver Controls 2. Accelerate to the desired speed. Base controls Optional controls 3. Press the SET (+) control and release it. 4. Take your foot off the accelerator pedal. 5. The indicator light on the instrument cluster will turn on. Note: •...
Page 82 Driver Controls Resuming a set speed Base controls Optional controls Press the RES / RESUME control and release it. This will automatically return the vehicle to the previously set speed. Increasing speed while using speed control Base controls Optional controls There are two ways to set a higher speed: •...
Page 83 Driver Controls Reducing speed while using speed control Base controls Optional controls There are two ways to reduce a set speed: • Press and hold the SET (-) control until you get to the desired speed, then release the control. You can also use the SET (-) control to operate the Tap-Down function.
Page 84 Driver Controls STEERING WHEEL CONTROLS (IF EQUIPPED) With navigation system (if equipped) • Press to use the voice command features. For further information on using voice commands with the navigation system, refer to the Navigation System supplement. • Press to select the entertainment playing media (radio, CD, line in, etc.).
Page 85 Driver Controls • Press to change radio stations/CD tracks. CONVERTIBLE (IF EQUIPPED) Do not store articles behind rear seat. Articles stored in the convertible top stowage compartment may break the rear glass window when the top is lowered. Lowering the convertible top The convertible top can be lowered with the side windows down.
Page 86 Driver Controls 4. Press the convertible top switch on the overhead console and hold until the windows are completely down and the top is completely stored. Installation of the boot (if equipped) Be sure the boot is secure on the vehicle before driving. 1.
Page 87 Driver Controls 4. Tuck the boot corners behind the shoulder belts. 5. Secure the boot straps on the rear seat hooks behind the rear seat. Note: Improper installation can result in loss and/or damage of the boot while driving. WARNING: Always secure the retaining clips and boot straps on the vehicle or the boot may come loose while driving.
Page 88 Driver Controls 3. Fold the right side inward and secure the boot with the strap. Stow the boot in the trunk. Raising the convertible top The convertible top will not operate unless the vehicle is traveling under 3 mph (5 km/h). To raise the convertible top: 1.
Page 89 Driver Controls The latch handles must be pulled downwards fully to allow the latch to fully rotate into the closed position. 5. Secure the driver’s side latch first then secure the Passenger side. Pull down firmly on the latch handles before rotating them into the windshield header until they reach the full forward position.
Page 90 Driver Controls INTERIOR TRUNK CONTROL The remote trunk release button is located on the instrument panel. Press the button to unlatch the trunk. Interior trunk control lockout (convertible vehicles only) This feature helps prevent unauthorized access to the trunk when the convertible top is open, by disabling the interior trunk control.
Page 91: Locks And Security
Locks and Security KEYS Your vehicle may be equipped with two Integrated Keyhead Transmitters (IKTs). The key blade functions as a programmed key which starts the vehicle and unlocks/locks all the doors. The transmitter portion functions as the remote entry transmitter. Your IKTs are programmed to your vehicle;...
Page 92 Locks and Security Press the control to unlock all doors. Press the control to lock all doors. Locking and unlocking with keys Your vehicle’s keys are designed to lock and unlock the driver’s door, as well as open the trunk. •...
Page 93 Locks and Security The autolock feature repeats when: • any door is opened then closed while the ignition is in the on position and the vehicle speed is 9 mph (15 km/h) or lower, and • the vehicle attains a speed greater than 12 mph (20 km/h). Deactivating/activating autolock Your vehicle comes with the autolock feature enabled.
Page 94 Locks and Security 8. Turn the ignition to the off position. The horn will chirp once to confirm the procedure is complete. Autounlock (if equipped) The autounlock feature will unlock all the doors when: • the ignition is in the on position, all the doors are closed, and the vehicle has been in motion at a speed greater than 12 mph (20 km/h);...
Page 95 Locks and Security 6. To enable/disable the autounlock feature, press the lock control, then press the unlock control. The horn will chirp once if autounlock was deactivated or twice (one short and one long chirp) if autounlock was activated. 7. Turn the ignition to the off position. The horn will chirp once to confirm the procedure is complete.
Page 96 Locks and Security WARNING: Do not leave children, unreliable adults, or animals unattended in the vehicle. On hot days, the temperature in the trunk or vehicle interior can rise very quickly. Exposure of people or animals to these high temperatures for even a short time can cause death or serious heat-related injuries, including brain damage.
Page 97 Locks and Security The remote entry lock/unlock feature operates in any ignition position except while the key is held in the start position. The panic feature operates with the key in the off position. If there are problems with the remote entry system, make sure to take ALL Integrated Keyhead Transmitters with you to the authorized dealer in order to aid in troubleshooting the problem.
Page 98 Locks and Security If any of the doors, trunk or hood (if equipped with active anti-theft system) are not properly closed the horn will make two quick chirps and the turn signal lamps will not flash. If the vehicle is not equipped with the active anti-theft system, the horn will make two quick chirps and the turn signal lamps will not flash if either door or the trunk are not closed.
Page 99 Locks and Security In the event of battery failure, you can open the trunk on the convertible by using your master key in the key cylinder between the seat cushion located in the back seat on the driver’s side. Replacing the battery The Integrated Keyhead Transmitter uses one coin type three-volt lithium battery CR2032 or equivalent.
Page 100: Anti-Theft System
Locks and Security Replacing lost Integrated Keyhead Transmitters (IKTs) If you would like to have your Integrated Keyhead Transmitters reprogrammed because you lost one, or would like to buy additional IKTs, you can either reprogram them yourself, or take all IKTs to your authorized dealer for reprogramming.
Page 101 Note: The SecuriLock passive anti-theft system is not compatible with non-Ford aftermarket remote start systems. Use of these systems may result in vehicle starting problems and a loss of security protection.
Page 102 Locks and Security still flashes rapidly or glows steadily, the vehicle will not start, contact your authorized dealer as soon as possible for service. Automatic arming The vehicle is armed immediately after switching the ignition to the off position. The theft indicator will flash every two seconds to act as a theft deterrent when the vehicle is armed.
Page 103 Locks and Security portion of the IKT to your vehicle. Note: A maximum of eight coded keys can be programmed to your vehicle; only four of these eight can be IKTs with remote entry functionality. Tips: • Only use Integrated Keyhead Transmitters (IKTs) or standard SecuriLock keys.
Page 104 Locks and Security 9. Remove the newly programmed coded key from the ignition. If the key has been successfully programmed it will start the vehicle’s engine and will operate the remote entry system (if the new key is an Integrated Keyhead Transmitter). The theft indicator light will illuminate for three seconds and then go out to indicate successful programming.
Page 105 Locks and Security Do not arm the interior motion detection system if movement within the vehicle is likely to occur. Additionally, do not arm the vehicle incline sensing system when the vehicle is in transport. For proper operation of the interior motion detection system, ensure all windows are closed prior to arming the system.
Page 106 Locks and Security Disarming the system You can disarm the system by any of the following actions: • Unlock the doors by using the remote entry transmitter portion of your Integrated Keyhead Transmitter. • Turn ignition to the on position with a valid programmed SecuriLock key or Integrated Keyhead Transmitter (IKT).
Page 107: Seating And Safety Restraints
Seating and Safety Restraints SEATING WARNING: Reclining the seatback can cause an occupant to slide under the seat’s safety belt, resulting in severe personal injuries in the event of a collision. WARNING: Do not pile cargo higher than the seatbacks to reduce the risk of injury in a collision or sudden stop.
Page 108 Seating and Safety Restraints To adjust the head restraint, do the following: 1. Adjust the seatback to an upright driving/riding position. 2. Raise the head restraint by pulling up on the head restraint. 3. Lower the head restraint by pressing and holding the guide sleeve adjust/release button and pushing down on the head restraint.
Page 109 Seating and Safety Restraints To remove the adjustable head restraint, do the following: 1. Pull up the head restraint until it reaches the highest adjustment position. 2. Simultaneously press and hold both the adjust/release button and the unlock/remove button, then pull up on the head restraint.
Page 110 Seating and Safety Restraints WARNING: To minimize the risk of neck injury in the event of a crash, head restraints must be installed properly. Adjusting the front manual seat (if equipped) WARNING: Never adjust the driver’s seat or seatback when the vehicle is moving.
Page 111 Seating and Safety Restraints Four-way seat adjust (driver side only) Pump the handle upwards to raise the cushion and pump downward to lower the cushion to the desired location. Using the power lumbar support (if equipped) The power lumbar control is located on the top of the driver’s seat side shield.
Page 112 Seating and Safety Restraints WARNING: Sitting improperly out of position or with the seat back reclined too far can take off weight from the seat cushion and affect the decision of the passenger sensing system, resulting in serious injury or death in a crash. Always sit upright against your seatback, with your feet on the floor.
Page 113 Seating and Safety Restraints Move the switch in the direction of the arrows to raise or lower the rear portion of the seat cushion. Press the switch in the direction of the arrows to move the seat forward, backward, up or down. Heated seats (if equipped) WARNING: Persons who are unable to feel pain to the skin because of advanced age, chronic illness, diabetes, spinal cord...
Page 114 Seating and Safety Restraints To operate the heated seats: • Press control to activate. • Press again to deactivate. The heated seats will only function when the engine is running. Rear seat entry/exit Use the seatback release to fold the back of the front seat forward for rear seat access.
Page 115: Safety Restraints
Seating and Safety Restraints To lower the seatback(s) from inside the vehicle, pull the strap to release seatback and then fold seatback down. When raising the seatback(s), make sure you hear the seat latch into place. Pull down on the seatback to ensure that it has latched. WARNING: Before returning the seatback to its original position, make sure that cargo or any objects are not trapped behind the seatback.
Page 116 Seating and Safety Restraints • Restraints Control Module (RCM) with impact and safing sensors. • Restraint system warning light and back-up tone. • The electrical wiring for the airbags, crash sensor(s), safety belt pretensioners, front safety belt usage sensors, driver seat position sensor, front passenger sensing system, and indicator lights.
Page 117 Seating and Safety Restraints Front passenger sensing system For airbags to do their job they must inflate with great force, and this force can pose a potentially deadly risk to occupants that are very close to the airbag when it begins to inflate. For some occupants, like infants in rear-facing child seats, this occurs because they are initially sitting very close to the airbag.
Page 118 Seating and Safety Restraints Front safety belt pretensioners The safety belt pretensioners at the front outboard seating positions are designed to tighten the safety belts firmly against the occupant’s body during frontal collisions, and in side collisions. This helps increase the effectiveness of the safety belts.
Page 119 Seating and Safety Restraints WARNING: To reduce the risk of injury, make sure children sit in a rear seating position where they can be properly restrained. WARNING: Never let a passenger hold a child on his or her lap while the vehicle is moving. The passenger cannot protect the child from injury in a collision.
Page 120 Seating and Safety Restraints WARNING: Front and rear seat occupants, including pregnant women, should wear safety belts for optimum protection in an accident. Combination lap and shoulder belts The presenter arm (available on the coupe only) is intended to improve access to the safety belt and to allow access to the rear seat.
Page 121 Seating and Safety Restraints 2. To unfasten, press the release button and remove the tongue from the buckle. WARNING: The center of the rear seat is NOT designed as a seating position and is not equipped with safety belts. The LATCH anchors were not designed to be used with a child seat in the center position and there is no tether anchor available at the center.
Page 122 Seating and Safety Restraints WARNING: Failure to replace the Belt and Retractor assembly could increase the risk of injury in collisions. The front and rear safety restraints in the vehicle are combination lap and shoulder belts. The front passenger and rear seat safety belts have two types of locking modes described below: Vehicle sensitive mode This is the normal retractor mode, which allows free shoulder belt length...
Page 123 This indicates the safety belt is now in the automatic locking mode. How to disengage the automatic locking mode WARNING: Ford Motor Company recommends that all safety belt assemblies and attaching hardware should be inspected by an authorized dealer after any collision. Safety belt assemblies not in use during a collision should also be inspected and replaced if either damage or improper operation is noted.
Page 124 Seating and Safety Restraints Safety belt pretensioner Your vehicle is equipped with safety belt pretensioners at the driver and front outboard passenger seating positions. The safety belt pretensioner tightens the safety belts firmly against the occupant’s body at the start of the crash. WARNING: The driver and front passenger safety belt system (including retractors, buckles and height adjusters) must be replaced if the vehicle is involved in a collision that results in...
Page 125 Seating and Safety Restraints Conditions of operation If... Then... The driver’s safety belt is not The safety belt warning light buckled before the ignition illuminates 1-2 minutes and the switch is turned to the on warning chime sounds 4-8 seconds. position...
Page 126 Seating and Safety Restraints If... Then... The driver’s and front The Belt-Minder feature will not passenger’s safety belts are activate. buckled before the ignition switch is turned to the on position or less than 1-2 minutes have elapsed since the ignition switch has been turned to on...
Page 127 Seating and Safety Restraints The following are reasons most often given for not wearing safety belts (All statistics based on U.S. data): Reasons given... Consider... “Crashes are rare 36700 crashes occur every day. The more events” we drive, the more we are exposed to “rare” events, even for good drivers.
Page 128 Seating and Safety Restraints WARNING: Do not sit on top of a buckled safety belt or insert a latchplate into the buckle to avoid the Belt-Minder chime. To do so may adversely affect the performance of the vehicle’s airbag system. Deactivating/activating the Belt-Minder feature The driver and front passenger Belt-Minder are deactivated/activated independently.
Page 129: Airbags
Seating and Safety Restraints 2. Wait until the safety belt warning light turns off (Approximately one minute). • Step 3 must be completed within 30 seconds after the safety belt warning light turns off. 3. For the seating position being disabled, buckle then unbuckle the safety belt three times at a moderate speed, ending in the unbuckled state.
Page 130 Seating and Safety Restraints Important SRS precautions The SRS is designed to work with the safety belt to help protect the driver and right front passenger from certain upper body injuries. Airbags DO NOT inflate slowly; there is a risk of injury from a deploying airbag.
Page 131 Seating and Safety Restraints WARNING: Do not attempt to service, repair, or modify the airbag supplemental restraint systems or its fuses. Contact your authorized dealer as soon as possible. WARNING: Modifying or adding equipment to the front end of the vehicle (including frame, bumper, front end body structure and tow hooks) may affect the performance of the airbag system, increasing the risk of injury.
Page 132 Seating and Safety Restraints How does the airbag supplemental restraint system work? The airbag SRS is designed to activate when the vehicle sustains a longitudinal deceleration sufficient to cause the airbag sensors to close an electrical circuit that initiates airbag inflation. The fact that the airbags did not inflate in a collision does not mean that something is wrong with the system.
Page 133 Seating and Safety Restraints • one or more impact and safing sensors • a readiness light and tone • a diagnostic module • and the electrical wiring which connects the components • Front safety belt pretensioner • Front passenger sensing system. Refer to Front passenger sensing system later in this chapter.
Page 134 Seating and Safety Restraints • the system determines that a small child is present in a forward-facing child restraint that is installed according to the manufacturer’s instructions, • the system determines that a small child is present in a booster seat, •...
Page 135 Seating and Safety Restraints • Turn the vehicle off and ask the person to place the seatback in the full upright position. • Have the person sit upright in the seat, centered on the seat cushion, with the person’s legs comfortably extended. •...
Page 136 Seating and Safety Restraints passenger seat, the passenger airbag will be disabled. Even though the passenger airbag is disabled, the pass airbag off lamp may or may not be illuminated according to the table below. Pass Airbag Off Objects Passenger Airbag Indicator Lamp Small (i.e.
Page 137 If it is necessary to modify an advanced front airbag system to accommodate a person with disabilities, contact the Ford Customer Relationship Center at the phone number shown in the Customer Assistance section of this owner’s guide.
Page 138 Seating and Safety Restraints WARNING: Do not use accessory seat covers. The use of accessory seat covers may prevent the deployment of the side airbags and increase the risk of injury in an accident. WARNING: Do not lean your head on the door. The side airbag could injure you as it deploys from the side of the seatback.
Page 139 Seating and Safety Restraints Side airbags, in combination with safety belts, can help reduce the risk of severe injuries in the event of a significant side impact collision. The side airbags are fitted on the outboard side of the seatbacks of the front seats.
Page 140 Seating and Safety Restraints Determining if the system is operational The SRS uses a readiness light in the instrument cluster or a tone to indicate the condition of the system. Refer to Airbag readiness section in the Instrument Cluster chapter. Routine maintenance of the airbag is not required.
Page 141: Child Restraints
Recommendations for Safety Restraints are based on probable child height, age and weight thresholds from NHTSA and other safety organizations or are the minimum requirements of law. Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) and consult your pediatrician to make sure your child seat is appropriate for your child, and is compatible with and properly installed in the vehicle.
Page 142 Seating and Safety Restraints Recommendations for Safety Restraints for Children Recommended Child size, height, weight, or age restraint type Infants or Children weighing 40 lb (18 kg) or Use a child safety toddlers less (generally age four or younger) seat (sometimes called an infant carrier, convertible seat, or toddler seat).
Page 143 Seating and Safety Restraints Recommendations for attaching child safety restraints for children Use any attachment method as indicated below by “X” LATCH LATCH Safety Safety Safety (lower (lower belt belt and belt Restraint Child anchors anchors LATCH only Type Weight only) (lower tether...
Page 144 Seating and Safety Restraints WARNING: Always carefully follow the instructions and warnings provided by the manufacturer of any child restraint to determine if the restraint device is appropriate for your child’s size, height, weight, or age. Follow the child restraint manufacturer’s instructions and warnings provided for installation and use in conjunction with the instructions and warnings provided by the vehicle manufacturer.
Page 145 Seating and Safety Restraints training to ensure that all children ages 0 to 16 are properly restrained in the correct restraint system. Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) and your pediatrician to make sure your seat is appropriate for your child and properly installed in the vehicle.
Page 146 Seating and Safety Restraints Airbags can kill or injure a child in a child seat. NEVER place a rear-facing child seat in front of an active airbag. If you must use a forward-facing child seat in the front seat, move the vehicle seat all the way back.
Page 147 Seating and Safety Restraints 1. Position the child safety seat in a seat with a combination lap and shoulder belt. 2. Pull down on the shoulder belt and then grasp the shoulder belt and lap belt together. 3. While holding the shoulder and lap belt portions together, route the tongue through the child seat according to the child seat...
Page 148 Seating and Safety Restraints 4. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) for that seating position until you hear a snap and feel the latch engage. Make sure the tongue is latched securely by pulling on it.
Page 149 Ford Motor Company recommends the use of a child safety seat having a top tether strap. See Attaching child safety seats with tether straps and Recommendations for attaching safety restraints for children in this chapter for more information.
Page 150 Seating and Safety Restraints Your vehicle has LATCH lower anchors for child seat installation at the seating positions marked with the child seat symbol. The LATCH anchors are located at the rear section of the rear seat between the cushion and seat back, below the locator symbols on the seat back.
Page 151 Seating and Safety Restraints Each time you use the safety seat, check that the seat is properly attached to the lower anchors and tether anchor, if applicable. Tug the child seat from side to side and forward and back where it is secured to the vehicle.
Page 152 Seating and Safety Restraints The tether strap anchors in your vehicle are in the following positions (shown from top view): Attach the tether strap only to the appropriate tether anchor as shown. The tether strap may not work properly if attached somewhere other than the correct tether anchor.
Page 153 Seating and Safety Restraints 3. Open the tether anchor cover. 4. Clip the tether strap to the anchor as shown. If the tether strap is clipped incorrectly, the child safety seat may not be retained properly in the event of a collision. 5.
Page 154 Seating and Safety Restraints For Convertible only: 1. Route the child safety seat tether strap over the back of the seat. For vehicles with adjustable head restraints, route the tether strap under the head restraint and between the head restraint posts, otherwise route the tether strap over the top of the seatback.
Page 155 If the safety seat is not anchored properly, the risk of a child being injured in a collision greatly increases. If your child restraint system is equipped with a tether strap, and the child restraint manufacturer recommends its use, Ford also recommends its use. 2010 05+ Mustang (197)
Page 156 To improve the fit of both the lap and shoulder belt on children who have outgrown child safety seats, Ford Motor Company recommends use of a belt-positioning booster. Booster seats position a child so that vehicle lap/shoulder safety belts fit better.
Page 157 Seating and Safety Restraints Booster seats should be used until you can answer YES to ALL of these questions when seated without a booster seat: • Can the child sit all the way back against the vehicle seat back with knees bent comfortably at the edge of the seat cushion? •...
Page 158 Seating and Safety Restraints • High back booster seats If, with a backless booster seat, you cannot find a seating position that adequately supports your child’s head, a high back booster seat would be a better choice. Children and booster seats vary in size and shape. Choose a booster that keeps the lap belt low and snug across the hips, never up across the stomach, and lets you adjust the shoulder belt to cross the chest and rest snugly near the center of the shoulder.
Page 159 Refer to the child restraint manufacturer’s instructions for additional inspection and maintenance information specific to the child restraint. Ford Motor Company recommends that all safety belt assemblies in use in vehicles involved in a collision be replaced.
Page 160 Seating and Safety Restraints For proper care of soiled safety belts, refer to Interior in the Cleaning chapter. WARNING: Failure to inspect and if necessary replace the safety belt assembly or child restraint system under the above conditions could result in severe personal injuries in the event of a collision.
Page 161: Tires, Wheels And Loading
Title 49 Code of Federal Regulations Part 575.104(c)(2). U.S. Department of Transportation-Tire quality grades: The U.S. Department of Transportation requires Ford Motor Company to give you the following information about tire grades exactly as the government has written it.
Page 162 Tires, Wheels and Loading WARNING: The traction grade assigned to this tire is based on straight-ahead braking traction tests, and does not include acceleration, cornering, hydroplaning or peak traction characteristics. Temperature A B C The temperature grades are A (the highest), B and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel.
Page 163 Ford Motor Company. You are strongly urged to buy a reliable tire pressure gauge, as automatic service station gauges may be inaccurate. Ford recommends the use of a digital or dial-type tire pressure gauge rather than a stick-type tire pressure gauge.
Page 164: Tire Inflation
Always inflate your tires to the Ford recommended inflation pressure even if it is less than the maximum inflation pressure information found on the tire. The Ford recommended tire inflation pressure is found on the Safety Compliance Certification Label or Tire Label which is located on the B-Pillar or the edge of the driver’s door.
Page 165 Tires, Wheels and Loading Note: If you have to drive a distance to get air for your tire(s), check and record the tire pressure first and add the appropriate air pressure when you get to the pump. It is normal for tires to heat up and the air pressure inside to go up as you drive.
Page 166 Tires, Wheels and Loading Improper or inadequate vehicle maintenance can cause tires to wear abnormally. Inspect all your tires, including the spare, frequently, and replace them if one or more of the following conditions exist: Tire wear When the tread is worn down to 1/16th of an inch (2 mm), tires must be replaced to help prevent your vehicle from skidding and...
Page 167 (such as P-metric versus LT-metric or all-season versus all-terrain) as those originally provided by Ford. The recommended tire and wheel size may be found on either the Safety Compliance Certification Label or the Tire Label which is located on the B-Pillar or edge of the driver’s door.
Page 168 The tire pressure sensors mounted in the wheels (originally installed on your vehicle) are not designed to be used in aftermarket wheels. The use of wheels or tires not recommended by Ford Motor Company may affect the operation of your Tire Pressure Monitoring System.
Page 169 Tires, Wheels and Loading • Do not run over curbs or hit the tire against a curb when parking WARNING: If your vehicle is stuck in snow, mud, sand, etc., do not rapidly spin the tires; spinning the tires can tear the tire and cause an explosion.
Page 170 Tires, Wheels and Loading • Rear Wheel Drive (RWD) vehicles/Four Wheel Drive (4WD)/All Wheel Drive (AWD) vehicles (front tires at top of diagram) Sometimes irregular tire wear can be corrected by rotating the tires. Note: If your tires show uneven wear ask an authorized dealer to check for and correct any wheel misalignment, tire imbalance or mechanical problem involved before tire rotation.
Page 171 Tires, Wheels and Loading Information on “P” type tires P215/65R15 95H is an example of a tire size, load index and speed rating. The definitions of these items are listed below. (Note that the tire size, load index and speed rating for your vehicle may be different from this example.) 1.
Page 172 Tires, Wheels and Loading Note: You may not find this information on all tires because it is not required by federal law. Letter rating Speed rating - mph (km/h) 81 mph (130 km/h) 87 mph (140 km/h) 99 mph (159 km/h) 106 mph (171 km/h) 112 mph (180 km/h) 118 mph (190 km/h)
Page 173 Tires, Wheels and Loading 11. Maximum Load: Indicates the maximum load in kilograms and pounds that can be carried by the tire. Refer to the Safety Compliance Certification Label, which is located on the B-Pillar or the edge of the driver’s door, for the correct tire pressure for your vehicle.
Page 174 Tires, Wheels and Loading Additional information contained on the tire sidewall for “LT” type tires “LT” type tires have some additional information beyond those of “P” type tires; these differences are described below. Note: Tire Quality Grades do not apply to this type of tire. 1.
Page 175 Tires, Wheels and Loading Information on “T” type tires “T” type tires have some additional information beyond those of “P” type tires; these differences are described below: T145/80D16 is an example of a tire size. Note: The temporary tire size for your vehicle may be different from this example.
Page 176: Tire Pressure Monitoring System (Tpms)
Tires, Wheels and Loading TIRE PRESSURE MONITORING SYSTEM (TPMS) Each tire, including the spare (if provided), should be checked monthly when cold and inflated to the inflation pressure recommended by the vehicle manufacturer on the vehicle placard or tire inflation pressure label. (If your vehicle has tires of a different size than the size indicated on the vehicle placard or tire inflation pressure label, you should determine the proper tire inflation pressure for those tires.)
Page 177 Tires, Wheels and Loading following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: The Tire Pressure Monitoring System is NOT a substitute for manually checking tire pressure.
Page 178 Tires, Wheels and Loading To restore the full functionality of the Tire Pressure Monitoring System, have the damaged road wheel/tire repaired and remounted on your vehicle. For additional information, refer to Changing tires with TPMS in this section. When you believe your system is not operating properly The main function of the Tire Pressure Monitoring System is to warn you when your tires need air.
Page 179 Tires, Wheels and Loading Low Tire Pressure Possible Customer Action Required Warning Light cause Flashing Warning Spare tire in Your temporary spare tire is in Light use. Repair the damaged road wheel and re-mount it on the vehicle to restore system functionality.
Page 180 WARNING: Snow tires must be the same size, load index, speed rating as those originally provided by Ford. Use of any tire or wheel not recommended by Ford can affect the safety and performance of your vehicle, which could result in an increased risk of loss of vehicle control, vehicle rollover, personal injury and death.
Page 181: Vehicle Loading
All-season or Snow tires, Ford does not recommend using summer tires when temperatures are below 40°F (5°C) or in snow / ice conditions. If you must drive in those conditions, Ford recommends using Mud & Snow (M+S or M/S), All-season or Snow tires.
Page 182 Tires, Wheels and Loading Payload – is the combined weight of cargo and passengers that the vehicle is carrying. The maximum payload for your vehicle can be found on the Tire Label on the B-Pillar or the edge of the driver’s door (vehicles exported outside the US and Canada may not have a Tire Label).
Page 183 Tires, Wheels and Loading Example only: Cargo Weight – includes all weight added to the Base Curb Weight, including cargo and optional equipment. When towing, trailer tongue load weight is also part of cargo weight. GAW (Gross Axle Weight) – is the total weight placed on each axle (front and rear) –...
Page 184 Tires, Wheels and Loading GAWR (Gross Axle Weight Rating) – is the maximum allowable weight that can be carried by a single axle (front or rear). These numbers are shown on the Safety Compliance Certification Label located on the B-Pillar or the edge of the driver’s door. The total load on each axle must never exceed its GAWR.
Page 185 Tires, Wheels and Loading • Example only: WARNING: Exceeding the Safety Compliance Certification Label vehicle weight rating limits could result in substandard vehicle handling or performance, engine, transmission and/or structural damage, serious damage to the vehicle, loss of control and personal injury.
Page 186 Tires, Wheels and Loading GCW (Gross Combined Weight) – is the weight of the loaded vehicle (GVW) plus the weight of the fully loaded trailer. GCWR (Gross Combined Weight Rating) – is the maximum allowable weight of the vehicle and the loaded trailer – including all cargo and passengers –...
Page 187 Tires, Wheels and Loading Steps for determining the correct load limit: 1. Locate the statement “The combined weight of occupants and cargo should never exceed XXX kg or XXX lbs.” on your vehicle’s placard. 2. Determine the combined weight of the driver and passengers that will be riding in your vehicle.
Page 188: Trailer Towing
Tires, Wheels and Loading calculation would be: 635 kg - (2 x 99 kg) - (12 x 45 kg) = 635 - 198 - 540 = -103 kg. You will need to reduce the load weight by at least 240 lb. (104 kg). If you remove 3-100 lb. (45 kg) cement bags, then the load calculation would be: 1,400 - (2 x 220) - (9 x 100) = 1,400 - 440 - 900 = 60 lb.
Page 189 Tires, Wheels and Loading Safety chains Always connect the trailer’s safety chains to the frame or hook retainers of the vehicle hitch. To connect the trailer’s safety chains, cross the chains under the trailer tongue and allow slack for turning corners. If you use a rental trailer, follow the instructions that the rental agency gives to you.
Page 190: Recreational Towing
Tires, Wheels and Loading eliminate excessive downshifting and upshifting for optimum fuel economy and transmission cooling. • Anticipate stops and brake gradually. Servicing after towing If you tow a trailer for long distances, your vehicle will require more frequent service intervals. Refer to your scheduled maintenance information for more information.
Page 191: Driving
Driving STARTING Positions of the ignition 1. Off — locks the automatic transmission gearshift lever and allows key removal. Note: The ignition key cannot be removed from the ignition unless the gearshift lever is securely latched in P (Park). 2. Accessory — allows the electrical accessories such as the radio to operate while the engine is not running.
Page 192 Driving WARNING: Do not start your vehicle in a closed garage or in other enclosed areas. Exhaust fumes can be toxic. Always open the garage door before you start the engine. See Guarding against exhaust fumes in this chapter for more instructions. WARNING: If you smell exhaust fumes inside your vehicle, have your dealer inspect your vehicle immediately.
Page 193 Driving • Make sure the parking brake is set. If starting a vehicle with a manual transmission: • Make sure the parking brake is set. • Push the clutch pedal to the floor 3. Turn the key to 3 (on) without turning the key to 4 (start).
Page 194 Driving Starting the engine 1. Turn the key to 3 (on) without turning the key to 4 (start). If there is difficulty in turning the key, rotate the steering wheel until the key turns freely. 2. Turn the key to 4 (start), then release the key as soon as the engine starts.
Page 195 Driving WARNING: Failure to follow engine block heater instructions could result in property damage or physical injury. WARNING: To reduce the risk of electrical shock, do not use your heater with ungrounded electrical systems or two-pronged (cheater) adapters. Prior to using the engine block heater, follow these recommendations for proper and safe operation: •...
Page 196: Brakes
Driving • Finally, have the engine block heater system checked during your fall tune-up to be sure it’s in good working order. How to use the engine block heater Ensure the receptacle terminals are clean and dry prior to use. To clean them, use a dry cloth.
Page 197 Driving ABS warning lamp The ABS lamp in the instrument cluster momentarily illuminates when the ignition is turned on. If the light does not illuminate during start up, remains on or flashes, the ABS may be disabled and may need to be serviced. Even when the ABS is disabled, normal braking is still effective.
Page 198: Advancetrac
Driving WARNING: Always set the parking brake fully and make sure that the gearshift is securely latched in P (Park) (automatic transmission) or in 1 (First) (manual transmission). WARNING: If the parking brake is fully released, but the brake warning lamp remains illuminated, the brakes may not be working properly.
Page 199 Driving WARNING: If a failure has been detected within the AdvanceTrac system, the “sliding car” icon and the “sliding car off” icon will illuminate steadily. If the “sliding car” icon and the “sliding car off” icon illuminate steadily, contact your authorized dealer as soon as possible to have the system serviced immediately.
Page 200 Driving When an event occurs that activates AdvanceTrac you may experience the following: • A slight deceleration of the vehicle • The “sliding car” indicator light will flash. • A vibration in the pedal when your foot is on the brake pedal •...
Page 201 Driving or avoiding objects in the roadway. ESC operates by applying brakes to one or more of the wheels individually and, if necessary, reducing engine power if the system detects that the vehicle is about to skid or slide laterally. During ESC events the “sliding car”...
Page 202 Driving AdvanceTrac Features Message Trac- “Sliding Control Center Dis- tion switch func- Mode car off” play (if Con- tions icon equipped) trol Turns on Default at during start-up bulb abled abled check Control TRACTION switch Traction con- Dis- CONTROL pressed once trol OFF abled abled...
Page 203 Driving Sport mode is not intended for use on public roadways as this mode provides less AdvanceTrac system intervention than when the default ESC and Traction Control systems are on. Sport mode will allow more spirited driving while the AdvanceTrac system is still enabled. STEERING To help prevent damage to the power steering system: •...
Page 204 Driving BRAKE-SHIFT INTERLOCK This vehicle is equipped with a brake-shift interlock feature that prevents the gearshift lever from being moved from P (Park) when the ignition is in the on position unless the brake pedal is pressed. If you cannot move the gearshift lever out of P (Park) with ignition in the on position and the brake pedal pressed: 1.
Page 205: Transmission Operation
Driving WARNING: If the parking brake is fully released, but the brake warning lamp remains illuminated, the brakes may not be working properly. Contact your authorized dealer as soon as possible to have the system serviced immediately. AUTOMATIC TRANSMISSION OPERATION (IF EQUIPPED) Understanding the gearshift positions of the 5–speed automatic transmission This vehicle is equipped with an Adaptive Transmission Control Strategy.
Page 206 Driving R (Reverse) With the gearshift lever in R (Reverse), the vehicle will move backward. Always come to a complete stop before shifting into and out of R (Reverse). N (Neutral) With the gearshift lever in N (Neutral), the vehicle can be started and is free to roll.
Page 207 Driving 3 (Third) This position allows for third gear only. • Provides engine braking. • To return to D (Drive) without Overdrive, move the transmission shift lever into the D (Drive) position. • Selecting 3 (Third) at higher speeds will cause the transmission to downshift to third gear at the appropriate vehicle speed.
Page 208 Driving MANUAL TRANSMISSION OPERATION (IF EQUIPPED) Using the clutch Manual transmission vehicles have a starter interlock that prevents cranking the engine unless the clutch pedal is fully pressed. To start the vehicle: 1. Make sure the parking brake is fully set. 2.
Page 209 Driving Recommended shift speeds Do not downshift into 1 (First) when your vehicle is moving faster than 15 mph (24 km/h). This will damage the clutch. Upshift according to the following chart: Upshifts when accelerating (recommended for best fuel economy) Shift from: 1 - 2 11 mph (18 km/h)
Page 210: Rear-View Camera System
Driving REARVIEW CAMERA SYSTEM (IF EQUIPPED) The rearview camera system, located on the trunk, provides a video image which appears in the rearview mirror or on the navigation screen (if equipped), of the area behind the vehicle. It adds assistance to the driver while reversing or reverse parking the vehicle.
Page 211 Driving The camera lens for the camera is located on the trunk. Keep the lens clean so that the video image remains clear and undistorted. Clean the lens with a soft, lint-free cloth and non-abrasive cleaner. Note: If the camera system image is not clear or seems distorted, it may be covered with water droplets, snow, mud or any other substance.
Page 212 Driving DRIVING THROUGH WATER If driving through deep or standing water is unavoidable, proceed very slowly especially when the depth is not known. Never drive through water that is higher than the bottom of the wheel rims (for cars) or the bottom of the hubs (for trucks).
Page 213: Roadside Emergencies
Roadside Emergencies ROADSIDE ASSISTANCE Getting roadside assistance To fully assist you should you have a vehicle concern, Ford Motor Company offers a complimentary roadside assistance program. This program is separate from the New Vehicle Limited Warranty. The service is available: •...
Page 214: Hazard Flasher Control
Assistance, call 1-800-241-3673. Canadian customers who require roadside assistance, call 1-800-665-2006. If you need to arrange roadside assistance for yourself, Ford Motor Company will reimburse a reasonable amount for towing to the nearest dealership within 35 miles (56 km). To obtain reimbursement information, U.S.
Page 215: Fuel Pump Shut-Off Switch
Roadside Emergencies FUEL FUEL PUMP SHUT-OFF SWITCH RESET This device stops the electric fuel pump from sending fuel to the engine when your vehicle has had a substantial jolt. After an accident, if the engine cranks but does not start, this switch may have been activated.
Page 216 Roadside Emergencies Standard fuse amperage rating and color COLOR Cartridge Fuse Mini Standard Maxi Fuse link maxi rating fuses fuses fuses cartridge fuses Grey Grey — — — Violet Violet — — — Pink Pink — — — — — —...
Page 217 Roadside Emergencies The fuses are coded as follows: Fuse/Relay Fuse Amp Protected Circuits Location Rating Driver rear window (convertible only) Brake On/Off (BOO) power SYNC Passenger rear window (convertible only) Brake transmission shift interlock (BTSI) Turn signals, Hazard flashers Left low beam headlamp Right low beam headlamp Courtesy lamps Switch illumination...
Page 218 Roadside Emergencies Fuse/Relay Fuse Amp Protected Circuits Location Rating Security module 7.5A Power mirrors Not used (Spare) Center information display, Electronic finish panel, GPS Climate control Not used (Spare) Power door locks Not used (Spare) Navigation amp Diagnostic connector Fog lamps Park lamps, License lamps High beam headlamps Horn...
Page 219 Roadside Emergencies Fuse/Relay Fuse Amp Protected Circuits Location Rating Not used (Spare) Radio/Navigation Not used (Spare) Accessory delay (windows, automatic dimming rear view mirror [including microphone and compass] and door switch III) Not used (Spare) Heated seat relay coils Not used (Spare) Wiper relay and module, Blower relay 7.5A...
Page 220 Roadside Emergencies If the battery has been disconnected and reconnected, refer to the Battery section of the Maintenance and Specifications chapter. The high-current fuses are coded as follows. Fuse/Relay Fuse Amp Protected Circuits Location Rating 80A* Passenger compartment fuse panel —...
Page 221 Roadside Emergencies Fuse/Relay Fuse Amp Protected Circuits Location Rating 15A** Fuel pump relay #2 (Shelby only) 10A** Intercooler pump relay (Shelby only) 20A** Heated seats 10A** Alternator sense 20A* Auxiliary body module (ABM) 30A* Starter relay 30A* Rear amplifier (Shaker 1000 radio) 30A* Powertrain relay 20A*...
Page 222 Roadside Emergencies Fuse/Relay Fuse Amp Protected Circuits Location Rating 15A** PCM Vehicle Power 4 – ignition coil G8VA relay Fuel pump relay G8VA relay Intercooler pump relay (Shelby only) G8VA relay A/C compressor relay G8VA relay Fuel pump relay #2 (Shelby only) 5A** PCM Run/Start 5A**...
Page 223 Ford. If the dissimilar spare tire or wheel is damaged, it should be replaced rather than repaired.
Page 224 Roadside Emergencies A dissimilar spare tire/wheel is defined as a spare tire and/or wheel that is different in brand, size or appearance from the road tires and wheels and can be one of three types: 1. T-type mini-spare: This spare tire begins with the letter “T” for tire size and may have “Temporary Use Only”...
Page 225 Roadside Emergencies The usage of a full-size dissimilar spare tire/wheel can lead to impairment of the following: • Handling, stability and braking performance • Comfort and noise • Ground clearance and parking at curbs • Winter weather driving capability • Wet weather driving capability •...
Page 226 Roadside Emergencies WARNING: If the vehicle slips off the jack, you or someone else could be seriously injured. WARNING: Do not attempt to change a tire on the side of the vehicle close to moving traffic. Pull far enough off the road to avoid the danger of being hit when operating the jack or changing the wheel.
Page 227 Roadside Emergencies 3. Remove the center ornament (if equipped) from the wheel. Loosen each wheel lug nut one-half turn counterclockwise but do not remove them until the wheel is raised off the ground. 4. Put the jack in the jack notch next to the tire you are changing.
Page 228: Temporary Mobility Kit
120 miles (200 km) at a maximum speed of 50 mph (80 km/h). Note: The temporary mobility kit sealant compound in the canister is to be used for one tire only. See your Ford authorized dealer for additional replacement sealant canisters. 2010 05+ Mustang (197)
Page 229 • Do not drive the vehicle above 50 mph (80 km/h). • Do not drive further than 120 miles (200 km). Drive only to the closest Ford Motor Company authorized dealer or tire repair shop to have your tire inspected.
Page 230 Always store the kit in its original location. • After sealant use, the TPMS sensor and valve stem on the wheel must be replaced by an authorized Ford dealer. • When inflating a tire or other objects, use the black air hose only. Do not use the transparent hose which is designed for sealant application only.
Page 231 Roadside Emergencies • Operating the temporary mobility kit could cause an electrical disturbance in radio and DVD player operation. What to do when a tire is punctured A tire puncture within the tire’s tread area can be repaired in two stages with the temporary mobility kit: •...
Page 232 Roadside Emergencies 4. Plug the power cable into the 12V power point in the vehicle. 5. Remove the warning sticker found on the canister and place it on the top of the instrument panel or the center of the dash. 6.
Page 233 Roadside Emergencies tire pressure has to be checked with the compressor in the OFF position to get the correct tire pressure reading. WARNING: Do not stand directly over the temporary mobility kit while inflating the tire. If you notice any unusual bulges or deformations in the tire’s sidewall during inflation, stop and call roadside assistance.
Page 234 After using the temporary mobility kit to seal your tire, you will need to replace the sealant canister and clear tube (hose). Sealing compound and spare parts can be obtained and replaced at an authorized Ford Motor Company dealership or tire dealer. Empty sealant bottles may be disposed of at home;...
Page 235 Roadside Emergencies Removal of the Sealant Canister from the Temporary Mobility Kit 1. Unwrap the clear tube from the compressor housing. 2. Locate the yellow cap at the end of the clear tube. 3. Using the yellow cap tool, press the tab located on the temporary mobility kit compressor housing while pulling up on the sealant...
Page 236 Roadside Emergencies Installation of the Sealant Canister to the Temporary Mobility 1. Align the sealant canister with the temporary mobility kit housing. 2. Once aligned, seat the sealant canister by lightly pushing down until you hear an audible click. 3. Wrap the clear tube around the compressor housing.
Page 237: Wheel Lug Nut Torque
Roadside Emergencies Note: If you experience any difficulties with the removal or installation of the sealant canister, consult your Ford Motor Company authorized dealer for assistance. Be sure to check the sealant compound’s “use by” date regularly. The “use by” date is on the lower...
Page 238: Jump Starting
Roadside Emergencies Note: Inspect the wheel pilot hole prior to installation. If there is visible corrosion in wheel pilot hole, remove loose particles by wiping with clean rag and apply grease. Apply grease only to the wheel pilot hole surface by smearing a “dime” (1 square cm) sized glob of grease around the wheel pilot surface (1) with end of finger.
Page 239 Roadside Emergencies Preparing your vehicle When the battery is disconnected or a new battery is installed, the automatic transmission must relearn its shift strategy. As a result, the transmission may have firm and/or soft shifts. This operation is considered normal and will not affect function or durability of the transmission.
Page 240 Roadside Emergencies 2. Connect the other end of the positive (+) cable to the positive (+) terminal of the assisting battery. 3. Connect the negative (-) cable to the negative (-) terminal of the assisting battery. 2010 05+ Mustang (197) Owners Guide, 2nd Printing USA (fus)
Page 241 Roadside Emergencies 4. Make the final connection of the negative (-) cable to an exposed metal part of the stalled vehicle’s engine, away from the battery and the carburetor/fuel injection system. Note: Do not attach the negative (-) cable to fuel lines, engine rocker covers, the intake manifold or electrical components as grounding points.
Page 242 Roadside Emergencies Removing the jumper cables Remove the jumper cables in the reverse order that they were connected. 1. Remove the jumper cable from the ground metal surface. Note: In the illustrations, lightning bolts are used to designate the assisting (boosting) battery. 2.
Page 243 Roadside Emergencies 3. Remove the jumper cable from the positive (+) terminal of the booster vehicle’s battery. 4. Remove the jumper cable from the positive (+) terminal of the disabled vehicle’s battery. After the disabled vehicle has been started and the jumper cables removed, allow it to idle for several minutes so the engine computer can relearn its idle conditions.
Page 244: Wrecker Towing
It is recommended that your vehicle be towed with a wheel lift and dollies or flatbed equipment. Do not tow with a slingbelt. Ford Motor Company has not approved a slingbelt towing procedure. If your vehicle is to be towed from the front using wheel lift equipment, it is recommended that the rear wheels (drive wheels) be placed on a dolly to prevent damage to the transmission.
Page 245 If the vehicle is towed by other means or incorrectly, vehicle damage may occur. Ford Motor Company produces a towing manual for all authorized tow truck operators. Have your tow truck operator refer to this manual for proper hook-up and towing procedures for your vehicle.
Page 246: Customer Assistance
A reasonable time must be allowed to perform a repair after taking your vehicle to the authorized dealer. Repairs will be made using Ford or Motorcraft parts, or remanufactured or other parts that are authorized by Ford.
Page 247 • The name of the authorized dealer and city where located • The vehicle’s current odometer reading In some states, you must directly notify Ford in writing before pursuing remedies under your state’s warranty laws. Ford is also allowed a final repair attempt in some states.
Page 248 In the case of 1 or 2 above, the consumer must also notify the manufacturer of the need for the repair of the nonconformity at the following address: Ford Motor Company 16800 Executive Plaza Drive Mail Drop 3NE-B Dearborn, MI 48126...
Page 249 THE BETTER BUSINESS BUREAU (BBB) AUTO LINE PROGRAM (U.S. ONLY) Your satisfaction is important to Ford Motor Company and to your dealer. If a warranty concern has not been resolved using the three-step procedure outlined on the first page of the Customer Assistance section, you may be eligible to participate in the BBB AUTO LINE program.
Page 250 (CANADA ONLY) For vehicles delivered to authorized Canadian dealers. In those cases where you continue to feel that the efforts by Ford of Canada and the authorized dealer to resolve a factory-related vehicle service concern have been unsatisfactory, Ford of Canada participates in an impartial third party mediation/arbitration program administered by the Canadian Motor Vehicle Arbitration Plan (CAMVAP).
Page 251 If you are in another foreign country, contact the nearest authorized dealer. If the authorized dealer employees cannot help you, they can direct you to the nearest Ford affiliate office. If you buy your vehicle in North America and then relocate outside of the U.S.
Page 252: Reporting Safety Defects (U.s. Only)
However, NHTSA cannot become involved in individual problems between you, your dealer, or Ford Motor Company. To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1–888–327–4236 (TTY: 1–800–424–9153);...
Page 253: Cleaning
Cleaning WASHING THE EXTERIOR Wash your vehicle regularly with cool or lukewarm water and a neutral pH shampoo, such as Motorcraft Detail Wash (ZC-3-A), which is available from your authorized dealer. • Never use strong household detergents or soap, such as dish washing or laundry liquid.
Page 254 Cleaning • After polishing chrome bumpers, apply a coating of Motorcraft Premium Liquid Wax (ZC-53-A), available from your authorized dealer, or an equivalent quality product to help protect from environmental effects. WAXING • Wash the vehicle first. • Do not use waxes that contain abrasives; use Motorcraft Premium Liquid Wax (ZC-53-A), which is available from your authorized dealer, or an equivalent quality product.
Page 255 Cleaning ENGINE Engines are more efficient when they are clean because grease and dirt buildup keep the engine warmer than normal. When washing: • Take care when using a power washer to clean the engine. The high-pressure fluid could penetrate the sealed parts and cause damage.
Page 256 Cleaning 4.6L 3V V8 ENGINE PLASTIC (NON-PAINTED) EXTERIOR PARTS Use only approved products to clean plastic parts. These products are available from your authorized dealer. • For routine cleaning, use Motorcraft Detail Wash (ZC-3-A). • If tar or grease spots are present, use Motorcraft Bug and Tar Remover (ZC-42).
Page 257 Cleaning • The wiper blades can be cleaned with isopropyl (rubbing) alcohol or Motorcraft Premium Windshield Washer Concentrate (ZC-32-A), available from your authorized dealer. This washer fluid contains special solution in addition to alcohol which helps to remove the hot wax deposited on the wiper blade and windshield from automated car wash facilities.
Page 258 Cleaning • Do not use household or glass cleaners as these may damage the finish of the instrument panel, interior trim and cluster lens. WARNING: Do not use chemical solvents or strong detergents when cleaning the steering wheel or instrument panel to avoid contamination of the airbag system.
Page 259 Cleaning • Do not use household cleaning products or glass cleaners, which can stain and discolor the fabric and affect the flame retardant abilities of the seat materials. WARNING: Do not use cleaning solvents, bleach or dye on the vehicle’s safety belts, as these actions may weaken the belt webbing.
Page 260 Cleaning FORD AND LINCOLN MERCURY CAR CARE PRODUCTS Your Ford or Lincoln Mercury authorized dealer has many quality products available to clean your vehicle and protect its finishes. These quality products have been specifically engineered to fulfill your automotive needs; they are custom designed to complement the style and appearance of your vehicle.
Page 261: Maintenance And Specifications
Maintenance and Specifications SERVICE RECOMMENDATIONS To help you service your vehicle, we provide scheduled maintenance information which makes tracking routine service easy. If your vehicle requires professional service, your authorized dealer can provide the necessary parts and service. Check your Warranty Guide/Customer Information Guide to find out which parts and services are covered.
Page 262 Maintenance and Specifications Working with the engine on • Automatic transmission: 1. Set the parking brake and shift to P (Park). 2. Block the wheels. • Manual transmission: 1. Set the parking brake, press and hold the clutch pedal, place the gearshift in N (Neutral), and release the clutch pedal.
Page 263: Engine Compartment
Maintenance and Specifications IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT 4.0L V6 engine 1. Battery 2. Engine oil filler cap 3. Engine oil dipstick 4. Brake fluid reservoir 5. Air filter assembly 6. Power steering fluid reservoir 7. Engine coolant reservoir 8.
Page 264 Maintenance and Specifications 4.6L 3V V8 engine 1. Battery 2. Engine oil filler cap 3. Engine oil dipstick 4. Brake fluid reservoir 5. Air filter assembly 6. Power steering fluid reservoir 7. Engine coolant reservoir 8. Windshield washer fluid reservoir 9.
Page 265 In very cold weather, do not fill the reservoir completely. Only use a washer fluid that meets Ford specification WSB-M8B16-A2. Do not use any special washer fluid such as windshield water repellent type fluid or bug wash. They may cause squeaking, chatter noise, streaking and smearing.
Page 266: Engine Oil
Maintenance and Specifications CHANGING THE WIPER BLADES 1. Pull the wiper blade and arm away from the glass. 2. Squeeze the locking tabs to release the blade from the arm and pull the blade away from the arm to remove it. 3.
Page 267 Maintenance and Specifications 5. Locate and carefully remove the engine oil level dipstick. • 4.0L V6 engine • 4.6L V8 engine 6. Wipe the dipstick clean. Insert the dipstick fully, then remove it again. • If the oil level is between the lower and upper holes, the oil level is acceptable.
Page 268 Maintenance and Specifications • If the oil level is below the lower hole, add enough oil to raise the level within the lower and upper holes. • 4.0L V6 engine • 4.6L V8 engine • Oil levels above the upper hole may cause engine damage. Some oil must be removed from the engine by an authorized dealer.
Page 269 Approval Committee (ILSAC), comprised of U.S. and Japanese automobile manufacturers. To protect your engine and engine’s warranty, use Motorcraft SAE 5W-30 or an equivalent SAE 5W-30 oil meeting Ford specification WSS-M2C929-A. Refer to Maintenance product specifications and capacities later in this section for more information.
Page 270 Change your engine oil according to the appropriate schedule listed in the scheduled maintenance information. Ford production and Motorcraft replacement oil filters are designed for added engine protection and long life. If a replacement oil filter is used that does not meet Ford material and design specifications, start-up engine noises or knock may be experienced.
Page 271: Battery
Change your engine oil according to the appropriate schedule listed in the scheduled maintenance information. Ford production and Motorcraft replacement oil filters are designed for added engine protection and long life. If a replacement oil filter is used that does not meet Ford material and design specifications, start-up engine noises or knock may be experienced.
Page 272 Maintenance and Specifications WARNING: When lifting a plastic-cased battery, excessive pressure on the end walls could cause acid to flow through the vent caps, resulting in personal injury and/or damage to the vehicle or battery. Lift the battery with a battery carrier or with your hands on opposite corners.
Page 273: Engine Coolant
Maintenance and Specifications transmission may shift firmly. This operation is considered normal and will not affect function or durability of the transmission. Over time the adaptive learning process will fully update transmission operation to its optimum shift feel. If the battery has been disconnected or a new battery has been installed, the clock and the preset radio stations must be reset once the battery is reconnected.
Page 274 Maintenance and Specifications When the engine is cold, check the level of the engine coolant in the reservoir. • The engine coolant should be at the FULL COLD level or within the COLD FILL RANGE as listed on the engine coolant reservoir (depending upon application).
Page 275 Maintenance and Specifications WARNING: Do not put engine coolant in the windshield washer fluid container. If sprayed on the windshield, engine coolant could make it difficult to see through the windshield. • Do not mix coolants. Add the coolant type originally equipped in your vehicle.
Page 276 Recycled engine coolant Ford Motor Company does NOT recommend the use of recycled engine coolant since a Ford-approved recycling process is not yet available. Used engine coolant should be disposed of in an appropriate manner.
Page 277 Maintenance and Specifications Severe climates If you drive in extremely cold climates (less than –34°F [–36°C]): • It may be necessary to increase the coolant concentration above 50%. • NEVER increase the coolant concentration above 60%. • Increased engine coolant concentrations above 60% will decrease the overheat protection characteristics of the engine coolant and may cause engine damage.
Page 278 Maintenance and Specifications How fail-safe cooling works If the engine begins to overheat: • The engine coolant temperature gauge will move to the red (hot) area. • The engine coolant temperature indicator will illuminate. • The service engine soon indicator light will illuminate. If the engine reaches a preset over-temperature condition, the engine will automatically switch to alternating cylinder operation.
Page 279 Maintenance and Specifications FUEL FILTER For fuel filter replacement, see your authorized dealer. Refer to scheduled maintenance information for the appropriate intervals for changing the fuel filter. Replace the fuel filter with an authorized Motorcraft part. The customer warranty may be void for any damage to the fuel system if an authorized Motorcraft fuel filter is not used.
Page 280 Maintenance and Specifications • Automotive fuels can be harmful or fatal if swallowed. Fuel such as gasoline is highly toxic and if swallowed can cause death or permanent injury. If fuel is swallowed, call a physician immediately, even if no symptoms are immediately apparent.
Page 281 Maintenance and Specifications Refueling WARNING: Fuel vapor burns violently and a fuel fire can cause severe injuries. To help avoid injuries to you and others: • Read and follow all the instructions on the pump island; • Turn off your engine when you are refueling; •...
Page 282 Maintenance and Specifications Note: A fuel spillage concern may occur if overfilling the fuel tank. Do not overfill the tank to the point that the fuel is able to bypass the fuel filler nozzle. The overfilled fuel may run down the drain located within the fuel filler housing and to the ground.
Page 283 Maintenance and Specifications Your vehicle was not designed to use fuel or fuel additives with metallic compounds, including manganese-based additives. Note: Use of any fuel other than those recommended may cause powertrain damage, a loss of vehicle performance, and repairs may not be covered under warranty.
Page 284 Ask your fuel supplier about gasolines that meet the World-Wide Fuel Charter. Cleaner air Ford endorses the use of reformulated “cleaner-burning” gasolines to improve air quality, per the recommendations in the Choosing the right fuel section. Running out of fuel Avoid running out of fuel because this situation may have an adverse effect on powertrain components.
Page 285 Maintenance and Specifications 1. Locate the white plastic funnel. It is included with the tire changing tools. (For vehicles equipped with the temporary mobility kit, the funnel is located in the spare tire well in the trunk). 2. Slowly insert the funnel into the Easy Fuel™ system. 3.
Page 286 Maintenance and Specifications vehicle after the fuel gauge indicates empty, you might not be able to refuel the full amount of the advertised capacity of the fuel tank due to the empty reserve still present in the tank. For consistent results when filling the fuel tank: •...
Page 287 Maintenance and Specifications Habits • Smooth, moderate operation can yield up to 10% savings in fuel. • Steady speeds without stopping will usually give the best fuel economy. • Idling for long periods of time (greater than one minute) may waste fuel.
Page 288 If other than Ford, Motorcraft or Ford-authorized parts are used for maintenance replacements or for service of components affecting emission control, such non-Ford parts should be equivalent to genuine Ford Motor Company parts in performance and durability.
Page 289 Maintenance and Specifications WARNING: Do not park, idle, or drive your vehicle in dry grass or other dry ground cover. The emission system heats up the engine compartment and exhaust system, which can start a fire. Illumination of the service engine soon indicator, charging system warning light or the temperature warning light, fluid leaks, strange odors, smoke or loss of engine power could indicate that the emission control...
Page 290 Maintenance and Specifications 3. The fuel fill inlet may not have been properly closed. See Easy Fuel™ “no cap” fuel system in this chapter. 4. Driving through deep water—the electrical system may be wet. These temporary malfunctions can be corrected by filling the fuel tank with good quality fuel, properly closing the fuel fill inlet or letting the electrical system dry out.
Page 291 Maintenance and Specifications The OBD-II system is designed to check the emission control system during normal driving. A complete check may take several days. If the vehicle is not ready for I/M testing, the following driving cycle consisting of mixed city and highway driving may be performed: 15 minutes of steady driving on an expressway/highway followed by 20 minutes of stop-and-go driving with at least four 30-second idle periods.
Page 292 Maintenance and Specifications BRAKE/CLUTCH FLUID Brake and clutch systems are supplied from the same reservoir. The fluid level will drop slowly as the brakes wear, and will rise when the brake components are replaced. Fluid levels between the MIN and MAX lines are within the normal operating range;...
Page 293 Maintenance and Specifications Checking and adding manual transmission fluid (if equipped) 1. Clean the filler plug. 2. Remove the filler plug and inspect the fluid level. 3. Note: There are two different manual transmissions used in this vehicle and they have different fluid levels. For vehicles equipped with a V6 engine, the correct manual transmission fill level is at the lower edge of the filler hole.
Page 294: Air Filter(S)
4. Add enough fluid through the filler opening to bring the fluid up to the recommended levels. 5. Install and tighten the fill plug securely. Use only fluid that meets Ford specifications. Refer to Maintenance product specifications and capacities in this chapter. AIR FILTER Refer to scheduled maintenance information for the appropriate intervals for changing the air filter element.
Page 295 Maintenance and Specifications Changing the air filter element 1. Release the clamps that secure the air filter housing cover. 2. Remove the air filter element from the air filter housing. 3. Wipe the air filter housing and cover clean to remove any dirt or debris and to ensure good sealing.
Page 296: Part Numbers
Replace the spark plugs with ones that meet Ford material and design specifications for your vehicle, such as Motorcraft or equivalent replacement parts. The customer warranty may be void for any damage to the engine if such spark plugs are not used.
Page 297 Maintenance and Specifications 2010 05+ Mustang (197) Owners Guide, 2nd Printing USA (fus)
Page 298 Maintenance and Specifications 2010 05+ Mustang (197) Owners Guide, 2nd Printing USA (fus)
Page 299 Maintenance and Specifications 2010 05+ Mustang (197) Owners Guide, 2nd Printing USA (fus)
Page 300 Maintenance and Specifications 2010 05+ Mustang (197) Owners Guide, 2nd Printing USA (fus)
Page 301: Engine Data
Maintenance and Specifications ENGINE DATA Engine 4.0L V6 engine 4.6L V8 engine Cubic inches Required fuel 87 octane 87 octane Firing order 1-4-2-5-3-6 1-3-7-2-6-5-4-8 Ignition system EDIS Coil on plug Spark plug gap 0.052–0.056 inch 0.039–0.043 inch (1.32–1.42 mm) (1.0–1.1 mm) Compression ratio 9.7:1 9.8:1...
Page 302 Maintenance and Specifications IDENTIFYING YOUR VEHICLE Safety Compliance Certification Label The National Highway Traffic Safety Administration Regulations require that a Safety Compliance Certification Label be affixed to a vehicle and prescribe where the Safety Compliance Certification Label may be located. The Safety Compliance Certification Label is located on the structure (B-Pillar) by the trailing edge of the driver’s...
Page 303 Maintenance and Specifications The Vehicle Identification Number (VIN) contains the following information: 1. World manufacturer identifier 2. Brake system / Gross Vehicle Weight Rating (GVWR) / Restraint Devices and their location 3. Make, vehicle line, series, body type 4. Engine type 5.
Page 304: Accessories
GENUINE FORD ACCESSORIES FOR YOUR VEHICLE A wide selection of Genuine Ford Accessories are available for your vehicle through your local Ford or Ford of Canada dealer. These quality accessories have been specifically engineered to fulfill your automotive needs; they are custom designed to complement the style and aerodynamic appearance of your vehicle.
Page 305 Accessories Lifestyle Ash cup / smoker’s package Cargo organization and management Peace of mind Full vehicle covers Remote start Vehicle security systems Wheel locks For maximum vehicle performance, keep the following information in mind when adding accessories or equipment to your vehicle: •...
Page 306: Ford Extended Service Plan
FORD ESP EXTENDED SERVICE PLANS More than 30 million Ford, Lincoln, and Mercury owners have discovered the powerful protection of Ford ESP. It is the only extended service plan backed by Ford Motor Company, and provides “peace of mind” protection beyond the New Vehicle Limited Warranty coverage.
Page 307 Ford ESP Can Quickly Pay for Itself One service bill – the cost of parts and labor – can easily exceed the price of your Ford ESP Service Contract. With Ford ESP, you minimize your risk for unexpected repair bills and rising repair costs.
Page 308 Ford Extended Service Plan 2010 05+ Mustang (197) Owners Guide, 2nd Printing USA (fus)
Page 309: Index
Index Axle lubricant specifications ..297 refill capacities ......297 Accessory delay ......79 traction lok ......203 AdvanceTrac ......198 AdvanceTrac Sport Mode ..203 Air cleaner filter ....294–296 Battery ........271 Air conditioning ....51, 54 acid, treating emergencies ..271 manual heating and air battery saver ......59 conditioning system ....51 jumping a disabled battery ..238 Airbag supplemental restraint...
Page 310 Index LATCH ........149 Cruise control (see Speed control) ........80 recommendations ....143 Customer Assistance ....213 Child safety seats - booster Ford Extended Service seats ...........156 Plan ..........306 Getting assistance outside the Cleaning your vehicle U.S. and Canada .....250 engine compartment ....255 Getting roadside assistance ...213...
Page 311 Index cleaning ........255 running out of fuel ..238, 284 coolant ........273 safety information relating to fail-safe cooling .......277 automotive fuels .....279 idle speed control ....271 Fuel pump shut-off switch ..215 lubrication specifications ..297 Fuses ........215–216 refill capacities ......297 service points ....263–264 Engine block heater ....194 Engine oil ........266 Gas cap (see Fuel cap) ....281...
Page 312 Index cluster ........12 Lubricant specifications ...297 lighting up panel and Lug nuts ........237 interior ........62 Lumbar support, seats .....111 Jack ..........223 positioning .......223 Manual transmission ....208 storage ........223 fluid capacities ......297 lubricant specifications ..297 Jump-starting your vehicle ..238 reverse ........209 Message center .....20–22 display color ......24 Keyless entry system...
Page 313 Index Power distribution box (see extension assembly ....124 Fuses) ........219 for adults ......120–123 for children ......141 Power mirrors ......80 Occupant Classification Power point .........76 Sensor ........117 warning light and Power steering ......203 chime .......124–125 fluid, checking and adding ..291 fluid, refill capacity ....297 Safety restraints - LATCH fluid, specifications ....297 anchors ........149...
Page 314 Index CD-MP3 ........32 brake-shift interlock (BSI) ..204 fluid, checking and adding SYNC ..........50 (automatic) ......292 fluid, checking and adding (manual) .........293 fluid, refill capacities ....297 Temporary mobility kit .....228 lubricant specifications ..297 manual operation ....208 Tilt steering wheel ......73 Trunk ...........95 Tire Pressure Monitoring remote release ....90, 98 System (TPMS)

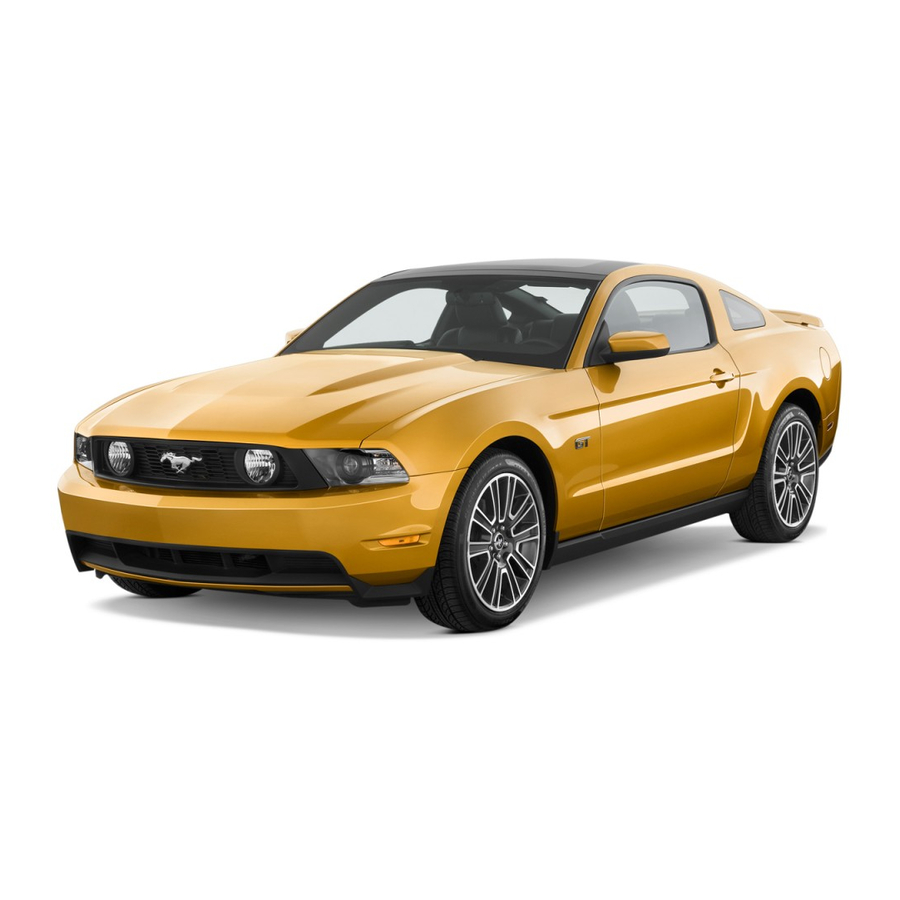

Ford Mustang 2010 Owner's Manual

Introduction

Instrument Cluster

Entertainment Systems

Climate Controls

Lights

Driver Controls

Locks and Security

Seating and Safety Restraints

Tires, Wheels and Loading

Quick Links

Table of Contents

Related Manuals for Ford Mustang 2010

Summary of Contents for Ford Mustang 2010

Table of Contents
