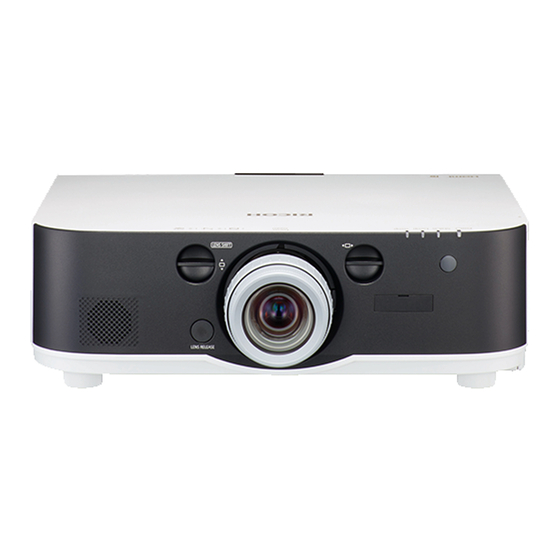

User's Manual
Read this manual carefully before you use this machine and keep it handy for future reference. For safe and correct use, be sure to read the
Important Information in this manual before using the machine.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PJ X6180N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ricoh PJ X6180N

Summary of Contents for Ricoh PJ X6180N

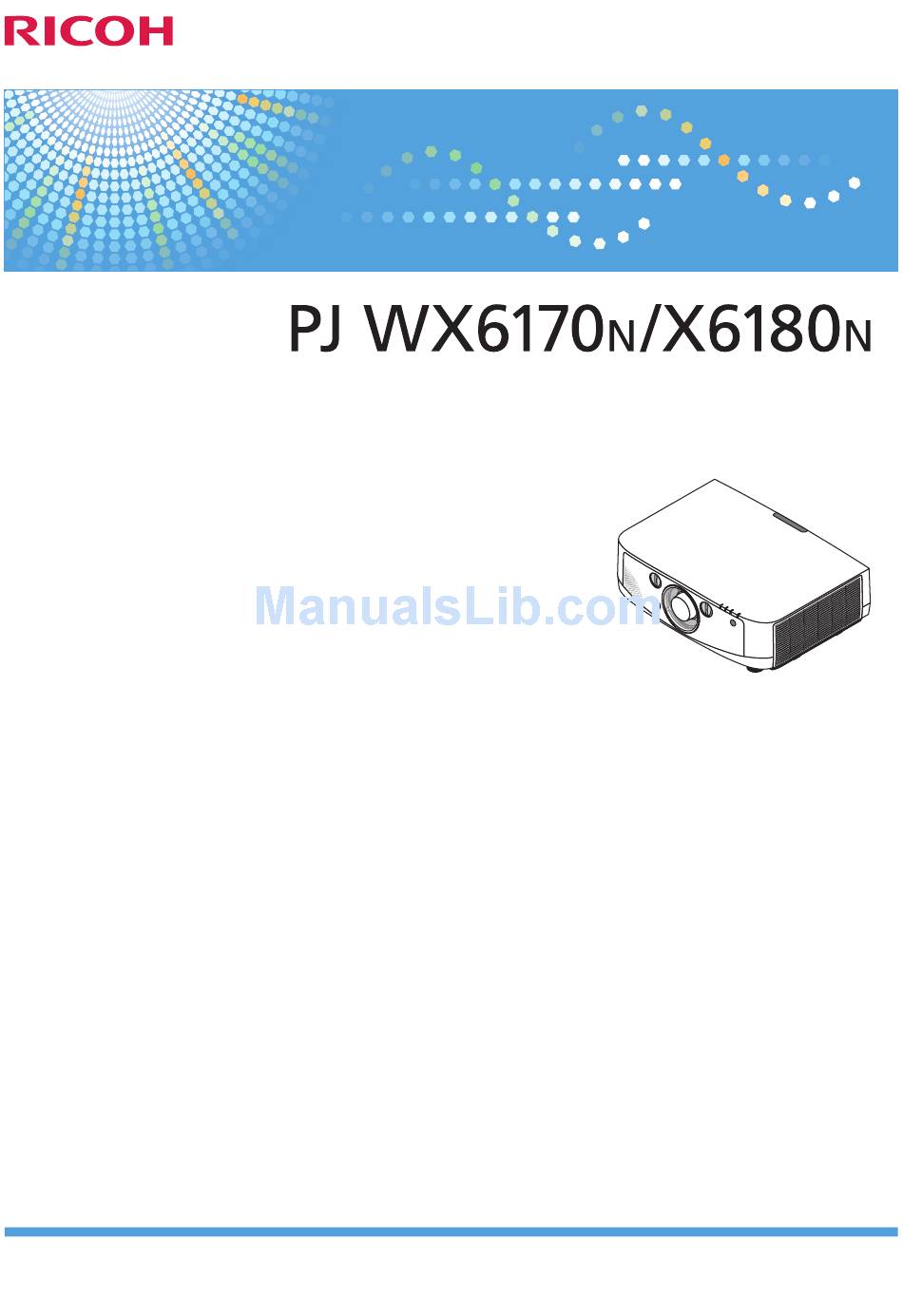

  • Page 1 User’s Manual Read this manual carefully before you use this machine and keep it handy for future reference. For safe and correct use, be sure to read the Important Information in this manual before using the machine.
  • Page 2 • Microsoft, Windows, Windows Vista, Internet Explorer, .NET Framework and PowerPoint are either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. • MicroSaver is a registered trademark of Kensington Computer Products Group, a division of ACCO Brands. • Adobe, Adobe PDF, Adobe Reader, and Acrobat are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. • HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. • DisplayPort, DisplayPort Certified Logo, VESA, and VESA logo are trademarks of the Video Electronics Standards Association, registered in the U.S. and other countries. • Trademark PJLink is a trademark applied for trademark rights in Japan, the United States of America and other countries and areas. • Wi-Fi , Wi-Fi Alliance , and Wi-Fi Protected Access (WPA, WPA2) are registered trademarks of the Wi-Fi Alliance. ® ® ® • Blu-ray is a trademark of Blu-ray Disc Association • Crestron, Crestron Control, and Crestron RoomView are trademarks or registered trademarks of Crestron Electron- ics, Inc. • Other product and company names mentioned in this user’s manual may be the trademarks or registered trademarks of their respective holders. NOTES (1) The contents of this user’s manual may not be reprinted in part or whole without permission. (2) The contents of this user’s manual are subject to change without notice. (3) Great care has been taken in the preparation of this user’s manual; however, should you notice any questionable points, errors or omissions, please contact us. (4) Notwithstanding article (3), Ricoh will not be responsible for any claims on loss of profit or other matters deemed to result from using the Projector.

  • Page 3: Important Information

    Important Information Safety Cautions Precautions Please read this manual carefully before using your Ricoh projector and keep the manual handy for future reference. CAUTION To turn off main power, be sure to remove the plug from power outlet. The power outlet socket should be installed as near to the equipment as possible, and should be easily accessible. CAUTION TO PREVENT SHOCK, DO NOT OPEN THE CABINET. THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol warns the user that uninsulated voltage within the unit may be sufficient to cause electrical shock. Therefore, it is dangerous to make any kind of contact with any part inside of the unit. This symbol alerts the user that important information concerning the operation and maintenance of this unit has been provided. The information should be read carefully to avoid problems. WARNING: TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. DO NOT USE THIS UNIT’S PLUG WITH AN EXTENSION CORD OR IN AN OUTLET UNLESS ALL THE PRONGS CAN BE FULLY INSERTED. DOC Compliance Notice (for Canada only) This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Machine Noise Information Regulation - 3. GPSGV, The highest sound pressure level is less than 70 dB (A) in accordance with EN ISO 7779. CAUTION Avoid displaying stationary images for a prolonged period of time.
  • Page 4 Note for the Battery and/or Accumulator Symbol (For EU countries only) In accordance with the Battery Directive 2006/66/EC Article 20 Information for end-users Annex II, the above symbol is printed on batteries and accumulators. This symbol means that in the European Union, used batteries and accumulators should be disposed of separately from your household waste. In the EU, there are separate collection systems for not only used electrical and electronic products but also batteries and accumulators. Please dispose of them correctly at your local community waste collection/recycling centre. WARNING TO CALIFORNIA RESIDENTS: Handling the cables supplied with this product will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. WASH HANDS AFTER HANDLING. RF Interference (for USA only) WARNING The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those specified by Ricoh Americas Corporation in this manual. Failure to comply with this government regulation could void your right to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio / TV technician for help. For UK only: In UK, a BS approved power cord with moulded plug has a Black (five Amps) fuse installed for use with...

  • Page 5: Important Safeguards

    Important Information Important Safeguards These safety instructions are to ensure the long life of your projector and to prevent fire and shock. Please read them carefully and heed all warnings. Installation • Do not place the projector in the following conditions: - on an unstable cart, stand, or table. - near water, baths, or damp rooms. - in direct sunlight, near heaters, or heat radiating appliances. - in a dusty, smoky or steamy environment. - on a sheet of paper or cloth, rugs or carpets. • If you wish to have the projector installed on the ceiling: - Do not attempt to install the projector yourself. - The projector must be installed by qualified technicians in order to ensure proper operation and reduce the risk of bodily injury. - In addition, the ceiling must be strong enough to support the projector and the installation must be in accordance with any local building codes. - Please consult your dealer for more information. WARNING • Do not cover the lens with the lens cap or equivalent while the projector is on. Doing so can lead to melting of the cap due to the heat emitted from the light output. • Do not place any objects, which are easily affected by heat, in front of the projector lens. Doing so could lead to the object melting from the heat that is emitted from the light output. Do not tilt the projector to the left or right. Doing so may result in malfunction. There is no limit on the tilt angle upward or downward. Select an appropriate option for [FAN MODE] according to the installation angle.
  • Page 6 Important Information Fire and Shock Precautions • Ensure that there is sufficient ventilation and that vents are unobstructed to prevent the build-up of heat inside your projector. Allow at least 4 inches (10cm) of space between your projector and a wall. • Do not try to touch the ventilation outlet on the left front (when seen from the front) as it can become heated while the projector is turned on and immediately after the projector is turned off. Parts of the projector may become tem- porarily heated if the projector is turned off with the Power button or if the AC power supply is disconnected during normal projector operation. Use caution when picking up the projector. • Prevent foreign objects such as paper clips and bits of paper from falling into your projector. Do not attempt to retrieve any objects that might fall into your projector. Do not insert any metal objects such as a wire or screwdriver into your projector. If something should fall into your projector, disconnect it immediately and have the object removed by a qualified service personnel. • Do not place any objects on top of the projector. • Do not touch the power plug during a thunderstorm. Doing so can cause electrical shock or fire. • The projector is designed to operate on a power supply of 100-240V AC 50/60 Hz. Ensure that your power supply fits this requirement before attempting to use your projector. • Do not look into the lens while the projector is on. Serious damage to your eyes could result. • Keep any items (magnifying glass etc.) out of the light path of the projector. The light path being projected from the lens is extensive, therefore any kind of abnormal objects that can redirect light coming out of the lens, can cause an unpredictable outcome such as a fire or injury to the eyes. • Do not place any objects, which are easily affected by heat, in front of a projector exhaust vent. Doing so could lead to the object melting or getting your hands burned from the heat that is emitted from the exhaust. • Handle the power cord carefully. A damaged or frayed power cord can cause electric shock or fire. - Do not use any power cord other than the one supplied with the projector. - Do not bend or tug the power cord excessively.

  • Page 7: Lamp Replacement

    Important Information CAUTION • Do not use the tilt-foot for purposes other than originally intended. Misuses such as gripping the tilt-foot or hanging on the wall can cause damage to the projector. • Do not send the projector in the soft case by parcel delivery service or cargo shipment. The projector inside the soft case could be damaged. • Select [HIGH] in Fan mode if you continue to use the projector for consecutive days. (From the menu, select [SETUP] → [OPTIONS(1)] → [FAN MODE] → [MODE] → [HIGH].) • Before using Direct Power Off, be sure to allow at least 20 minutes immediately after turning on the projector and starting to display an image. • Do not unplug the power cable from the wall outlet or projector when the projector is powered on. Doing so can cause damage to the AC IN connector of the projector and (or) the prong plug of the power cable. To turn off the AC power supply when the projector is powered on, use a power strip equipped with a switch and a breaker. • Do not turn off the AC power for 60 seconds after the lamp is turned on and while the Power indicator is blinking blue. Doing so could cause premature lamp failure. Caution on Handling the Optional Lens When shipping the projector with the lens, remove the lens before shipping the projector. Always attach the dust cap to the lens whenever it is not mounted on the projector. The lens and the lens shift mechanism may encounter damage caused by improper handling during transportation. Do not hold the lens part when carrying the projector. Doing so could cause the Focus ring to rotate, resulting in accidental dropping of the projector. Remote Control Precautions • Handle the remote control carefully. • If the remote control gets wet, wipe it dry immediately. • Avoid excessive heat and humidity.
  • Page 8 Important Information A Lamp Characteristic The projector has a high-pressure mercury lamp as a light source. A lamp has a characteristic that its brightness gradually decreases with age. Also repeatedly turning the lamp on and off will increase the possibility of its lower brightness. CAUTION: • DO NOT TOUCH THE LAMP immediately after it has been used. It will be extremely hot. Turn the projector off and then disconnect the power cord. Allow at least one hour for the lamp to cool before handling. • When removing the lamp from a ceiling-mounted projector, make sure that no one is under the projector. Glass fragments could fall if the lamp has been burned out. About High Altitude mode • Set [FAN MODE] to [HIGH ALTITUDE] when using the projector at altitudes approximately 5500 feet/1600 meters or higher. Using the projector at altitudes approximately 5500 feet/1600 meters or higher without setting to [HIGH ALTITUDE] can cause the projector to overheat and the protector could shut down. If this happens, wait a couple minutes and turn on the projector. • Using the projector at altitudes less than approximately 5500 feet/1600 meters and setting to [HIGH ALTITUDE] can cause the lamp to overcool, causing the image to flicker. Switch [FAN MODE] to [AUTO]. • Using the projector at altitudes approximately 5500 feet/1600 meters or higher can shorten the life of optical com- ponents such as the lamp. About Copyright of original projected pictures: Please note that using this projector for the purpose of commercial gain or the attraction of public attention in a venue such as a coffee shop or hotel and employing compression or expansion of the screen image with the following func- tions may raise concern about the infringement of copyrights which are protected by copyright law. [ASPECT], [KEYSTONE], Magnifying feature and other similar features.

  • Page 9: Safety Labels Of This Machine

    Important Information Safety Labels of This Machine 1 Do not look into the lens while the projector is on. Serious damage to your eyes could result. Do not cover the lens with the lens cap or equivalent while the projector is on. Doing so can lead to melting of the cap due to the heat emitted from the light output. Do not place any objects, which are easily affected by heat, in front of the projector lens. Doing so could lead to the object melting from the heat that is emitted from the light output. 2 Do not try to touch the ventilation outlet on the left front (when seen from the front) as it can become heated while the projector is turned on and immediately after the projector is turned off. Parts of the projector may become tem- porarily heated if the projector is turned off with the Power button or if the AC power supply is disconnected during normal projector operation. Use caution when picking up the projector. 3 Do not remove any screws except the lamp cover screws. Do not block or cover the vents. 4 To replace the lamp, first unplug the power cord then wait for more than 1 hour. The lamp might be broken. Be careful of pieces of broken glass. *The label changes depending on the destination.

  • Page 10: Table Of Contents

    Table of Contents Important Information ....................i 1. Introduction ......................1 1 What’s in the Box? ......................1 2 Introduction to the Projector ................... 2 Congratulations on Your Purchase of the Projector ..........2 Features you’ll enjoy: ....................2 About this user’s manual ..................3 3 Part Names of the Projector ..................4 Front/Top ........................4 Rear ......................... 5 Control Panel/Indicator Section ................6 Terminal Panel Features ..................7 4 Part Names of the Remote Control ................8 Battery Installation ....................
  • Page 11 Table of Contents 5 Using the Remote Mouse Receiver ................30 6 Correcting Horizontal and Vertical Keystone Distortion [CORNERSTONE] ....32 Cornerstone ......................32 7 Displaying Two Pictures at the Same Time ..............35 Selecting the PIP or PICTURE BY PICTURE Mode [MODE] ........ 35 [POSITION] ......................36 8 Preventing the Unauthorized Use of the Projector [SECURITY] ........37 9 Controlling the Projector by Using an HTTP Browser ..........40  Projecting Your Computer’s Screen Image from the Projector via a Network [NETWORK PROJECTOR] ............. 47  Using the Projector to Operate Your Computer via a Network [REMOTE DESKTOP] .................... 51 4. Using the Viewer ..................... 56 1 What you can do with the Viewer .
  • Page 12 Table of Contents 6 Menu Descriptions & Functions [SETUP] ..............97 [BASIC] ........................97 [MENU] ........................99 [INSTALLATION(1)] ....................100 [INSTALLATION(2)] ....................103 [OPTIONS(1)] .......................105 [OPTIONS(2)] .......................107 7 Menu Descriptions & Functions [INFO.] ..............109 [USAGE TIME] ......................109 [SOURCE(1)] ......................110 [SOURCE(2)] ......................110 [WIRED LAN] ......................110 [WIRELESS LAN(1)] ..................... 111 [WIRELESS LAN(2)] ..................... 111 [VERSION(1)] ....................... 111 [VERSION(2)] ....................... 112 [OTHERS] ......................112 8 Menu Descriptions & Functions [RESET] ..............113 Returning to Factory Default [RESET] ..............113 9 Application Menu ......................115 ADVANCED NETWORK UTILITY .
  • Page 13 Table of Contents 8. User Supportware ..................161 1 Installing Software Program ..................161 Installation for Windows software ................161 Installation for Macintosh software ................163 2 Projecting Images or Videos from the Projector over a LAN (Advanced Network Utility) ...................164 What you can do with Advanced Network Utility ...........164 Connecting the projector to a LAN ................165 Basic Operation of Advanced Network Utility ............166 3 Projecting Your Mac’s Screen Image from the Projector over a LAN (Advanced Network Utility for Mac) ...............171 What you can do with Advanced Network Utility ...........171 Operating environment..................171 Connecting the projector to a LAN ................171 Using Advanced Network Utility ................172 4 JPEG Conversion Tool ....................174 Installing JPEG Conversion Tool ................174 5 Managing the Projector Using Projector Management Utility .

  • Page 14: Introduction

    1. Introduction 1 What’s in the Box? Make sure your box contains everything listed. If any pieces are missing, contact your dealer. Please save the original box and packing materials if you ever need to ship your projector. NOTE: The bundled items may vary depending on the product destination. Projector Remote control AA alkaline batteries (x2) Dust cap for lens * The projector is shipped without a lens. For the types of lens and throw distances, see page 176.

  • Page 15: Introduction To The Projector

    1. Introduction 2 Introduction to the Projector This section introduces you to your new projector and describes the features and controls. Congratulations on Your Purchase of the Projector This projector is one of the very best projectors available today. The projector enables you to project precise images up to 500 inches across (measured diagonally) from your PC or Macintosh computer (desktop or notebook), VCR, DVD player, or document camera. You can use the projector on a tabletop or cart, you can use the projector to project images from behind the screen, and the projector can be permanently mounted on a ceiling* . The remote control can be used wirelessly. Do not attempt to mount the projector on a ceiling yourself. The projector must be installed by qualified technicians in order to ensure proper operation and reduce the risk of bodily injury. In addition, the ceiling must be strong enough to support the projector and the installation must be in accordance with any local building codes. Please consult your dealer for more information. Features you’ll enjoy: • Liquid crystal type high brightness/high resolution projector Model LCD panel Resolution Aspect Ratio PJ X6180N 0.79" (with MLA)

  • Page 16: About This User's Manual

    1. Introduction • “Eco mode” for low power consumption and “Carbon Meter” display The projector is equipped with an “eco mode” for reducing power consumption during use. Furthermore, the power-saving effect when the eco mode is set is converted into the amount of reductions of CO emissions and this is indicated on the confirmation message displayed when the power is turned off and at “Information” on the on-screen menu (CARBON METER). • Maximum lamp replacement time of 4000 hours (3000 hours in Normal mode) and no need to clean the filters When used in the eco mode, the lamp replacement time* is extended to a maximum of 4000 hours.

  • Page 17: Part Names Of The Projector

    1. Introduction 3 Part Names of the Projector Front/Top The lens is sold separately. The description below is for when the PJ Standard Lens Type1 is mounted. Lens Shift Dial (vertical/horizontal) (→ page 18) Indicator Section Zoom Lever/Zoom Ring (→ page 21) (→ page 6) Remote Sensor (→ page 9) Remote Sensor (located on the front and the rear) Ventilation (outlet) (→...

  • Page 18: Rear

    1. Introduction Rear Remote Sensor (located on the Terminal Panel front and the rear) (→ page 7) (→ page 9) Ventilation (outlet) Ventilation (inlet) / Filter Cover Heated air is exhausted from here. The wireless LAN unit’s USB (LAN) port is located inside here. (→...

  • Page 19: Control Panel/Indicator Section

    1. Introduction Control Panel/Indicator Section (Power) Button (→ page 14, 25) 2. Power Indicator (→ page 13, 14, 25, 188) 3. Status Indicator (→ page 188) 4. Lamp Indicator (→ page 156, 189) 5. Temp. Indicator (→ page 189) 6. Input Button (→ page 16) 7. Auto Set Button (→ page 24) 8. Keystone Button (→ page 32) 9. Menu Button (→ page 79) 10.

  • Page 20: Terminal Panel Features

    1. Introduction Terminal Panel Features 1. Computer 1 In/ Component Input Connector (Mini D-Sub 15 Pin) (→ page 13, 140, 145) 2. Computer 1 Audio In Mini Jack (Stereo Mini) (→ page 140, 145) 3. Computer 2 In/ Component Input Connector (Mini D-Sub 15 Pin) (→ page 140, 145) 4. Computer 2 Audio In Mini Jack (Stereo Mini) (→ page 142) 5.

  • Page 21: Part Names Of The Remote Control

    1. Introduction 4 Part Names of the Remote Control 12. Viewer Button (→ page 16, 59) 13. Network Button (→ page 16) 14. Input Button (→ page 16) 15. PIP Button (→ page 16, 35) 16. ID Set Button (→ page 104) 17. Numeric Keypad Button/Clear Button (→ page 104) 18. Menu Button (→ page 79) 19. Back Button (→ page 79) 1. Infrared Transmitter 20.  Button (→ page 79) (→ page 9) 21.

  • Page 22: Battery Installation

    1. Introduction Battery Installation Press the catch and remove Slip the cover back over the batteries until it Install new ones (AA). Ensure the battery cover. snaps into place. that you have the batteries’ polar- ity (+/−) aligned correctly. NOTE: Do not mix different types of batteries or new and old batteries. Remote Control Precautions • Handle the remote control carefully. • If the remote control gets wet, wipe it dry immediately. • Avoid excessive heat and humidity. • Do not short, heat, or take apart batteries. • Do not throw batteries into fire. • If you will not be using the remote control for a long time, remove the batteries.

  • Page 23: Operating Environment For Software Included On Cd-Rom

    1. Introduction 5 Operating Environment for Software Included on CD-ROM Names and Features of Bundled Software Programs Name of software program Features Advanced Network Utility • This is a software program used to send the screens of your personal comput- ers to the projector via wired/wireless LAN (Meeting mode). Projected images can be transferred and saved to personal computers. When “Meeting Mode” is used, projected images can be sent and saved to the personal computers. Images can be sent from a personal computer to not only one projector but also to two or more projectors at the same time. (→ page 164) Advanced Network Utility for Mac • This is a software program used to send the Mac’s screen image to the projec- tor over a network (wired or wireless LAN). (→ page 171) For Mac’s operating environment, see page 171. JPEG Conversion Tool • The JPEG Conversion Tool converts JPEG files not supported by the projec- tor, image files in other formats, PowerPoint files, and other similar files into JPEG files. (→ page 174) Projector Management Utility • Projector Management Utility conforms to the PJLink class 1 standards, and is compatible with all class 1 commands. A maximum of 100 projectors connected to the network can be managed using one computer. (→ page 175) Projector Management Utility’s operating environment, see page 175.

  • Page 24: Operating Environment

    1. Introduction Operating Environment The following is the operating environment for Advanced Network Utility. For the operating environment of other soft- ware program, refer to the help function of each software program. Supported OS Windows 7 Home Basic Windows 7 Home Premium Windows 7 Professional Windows 7 Ultimate Windows 7 Enterprise Windows Vista Home Basic Windows Vista Home Premium Windows Vista Business Windows Vista Ultimate Windows Vista Enterprise Windows XP Home Edition Service Pack 2 or later Windows XP Professional Service Pack 2 or later • Only 32-bit version • Windows power-saving function is not supported. Processor • Windows 7/Windows Vista Pentium 4 / Pentium M 800 MHz equivalent or higher required Dual core 1 GHz or higher recommended • Windows XP Pentium III 800 MHz equivalent or higher required Pentium 4 1.6 GHz or higher recommended Memory • Windows 7/Windows Vista 512 MB or more required 1 GB or more recommended • Windows XP 128 MB or more required 192 MB or more recommended * More memory may be required to run additional applications simultaneously.

  • Page 25: Projecting An Image (Basic Operation)

    2. Projecting an Image (Basic Operation) This section describes how to turn on the projector and to project a picture onto the screen. 1 Flow of Projecting an Image Step 1 • Connecting your computer / Connecting the power cord (→ page 13) Step 2 • Turning on the projector (→ page 14) Step 3 • Selecting a source (→ page 16) Step 4 • Adjusting the picture size and position (→ page 17) • Correcting keystone distortion [KEYSTONE] (→ page 22) Step 5 • Adjusting a picture and sound - Optimizing a computer signal automatically (→ page 24) - Turning up or down volume (→ page 24) Step 6 • Making a presentation Step 7...

  • Page 26: Connecting Your Computer/Connecting The Power Cord

    2. Projecting an Image (Basic Operation) 2 Connecting Your Computer/Connecting the Power Cord 1. Connect your computer to the projector. This section will show you a basic connection to a computer. For information about other connections, see "2 Making Connections" on page 140. Connect the computer cable (VGA) between the projector’s Computer 1 In connector and the computer’s port (mini D-Sub 15 Pin).

  • Page 27: Turning On The Projector

    2. Projecting an Image (Basic Operation) 3 Turning on the Projector 1. Remove the lens cap. 2. Press the (Power) button on the projector cabinet or the Power On button on the remote control. The Power indicator will turn to blue and the projector will become ready to use. TIP: • When the message “PROJECTOR IS LOCKED! ENTER YOUR PASSWORD.”...

  • Page 28: Note On Startup Screen (Menu Language Select Screen)

    2. Projecting an Image (Basic Operation) Note on Startup screen (Menu Language Select screen) When you first turn on the projector, you will get the Startup menu. This menu gives you the opportunity to select one of the 17 menu languages. To select a menu language, follow these steps: 1. Use the , ,  or  button to select one of the 17 languages from the menu. 2. Press the Enter button to execute the selection.

  • Page 29: Selecting A Source

    2. Projecting an Image (Basic Operation) 4 Selecting a Source Selecting the computer or video source NOTE: Turn on the computer or video source equipment connected to the projector. Detecting the Signal Automatically Press the Input button once. The projector will search for the available input source and display it. The input source will change as follows: COMPUTER1 → COMPUTER2 → COMPUTER3 → HDMI → DisplayPort → VIDEO → S-VIDEO → VIEWER → COMPUTER1 → ... • With the INPUT screen displayed, you can press the Input button a few times to select the input source. TIP: If no input signal is present, the input will be skipped.

  • Page 30: Adjusting The Picture Size And Position

    2. Projecting an Image (Basic Operation) 5 Adjusting the Picture Size and Position Use the Lens Shift dial, the adjustable tilt foot lever, the Zoom lever/Zoom ring and the Focus ring to adjust the picture size and position. In this chapter drawings and cables are omitted for clarity. Adjusting the projected image’s vertical and horizontal Adjusting the focus position [Focus ring] [Lens shift] (→ page 18) (→ page 19) Finely adjusting the size of an image Adjusting the projected image’s height and horizontal tilt [Zoom lever/Zoom ring] [Tilt foot] *¹ (→ page 21) (→ page 21) Adjusting the keystone correction [Keystone] (→ page 22) NOTE*1: Adjust the projected image’s height using the tilt feet when you want to project the image at a position higher than the lens shift adjustment range.

  • Page 31: Adjusting The Vertical Position Of A Projected Image (Lens Shift)

    2. Projecting an Image (Basic Operation) Adjusting the vertical position of a projected image (Lens shift) Perform the adjustment from behind or from the side of the projector. Adjusting from the CAUTION front could expose your eyes to strong light which could injure them. Lens Shift dial (Horizontal) Rightward Leftward Downward Upward Lens Shift dial (Vertical) Turn the Lens Shift dials clockwise or counterclockwise. Vertical dial Turn this clockwise or counterclockwise to adjust the projection position in the vertical direction. Approximate turning range: About 6 turns counterclockwise, about 2 turns clockwise when the lens is at the center position. Horizontal dial Turn this clockwise or counterclockwise to adjust the projection position in the horizontal direction. Approximate turning range: About 1 turn counterclockwise, about 1 turn clockwise when the lens is at the center position. NOTE: •...

  • Page 32: Focus

    2. Projecting an Image (Basic Operation) TIP: • The diagram below shows the lens shift adjustment range for the PJ X6180N (projection mode: desktop front). To raise the projection position higher than this, use the tilt feet. (→ page 21) •...

  • Page 33: Applicable Lens: Pj Replacement Lens Type1

    2. Projecting an Image (Basic Operation) Applicable lens: PJ Replacement Lens Type1 With the PJ Replacement Lens Type1, adjust the focus and picture distortion. Preparations: Turn the Lens Shift dials (vertical and horizontal) on the projector to return the lens shift to the center. Approximate lens center position (explained here for the desktop front projection mode) Horizontal dial: First turn the dial to the left edge, then turn it further so that the knob is horizontal. From this position, turn the dial 1 full turn clockwise. Vertical dial: First turn the dial to the bottom edge, then turn it further so that the knob is horizontal. From this position, turn the dial 2 full turns counterclockwise. 1. Turn the distortion ring to the left edge. Lens Shift dials Distortion ring 2. Turn the Focus lever clockwise and counterclockwise to adjust the focus at the center of the screen. Focus lever 3. Use the distortion ring to correct the screen’s distortion.

  • Page 34: Zoom

    2. Projecting an Image (Basic Operation) Zoom Turn the Zoom lever or Zoom ring clockwise and counterclockwise. - The separately sold PJ Replacement Lens Type1 does not have a Zoom ring. Zoom ring Adjusting the Tilt Feet 1. Turn the left and right tilt feet to adjust. The tilt feet lengthen and shorten when turned. The height of the projected image is adjusted by turning the left and right tilt feet. If the projected image is tilted, turn one of the tilt feet to adjust the image so that it is level. - If the projected image is distorted, see "6 Correcting Keystone Distortion" (→ page 22). - The tilt feet can be lengthened by a maximum of 20 mm. - The tilt feet can be used to tilt the projector by a maximum of 4º.

  • Page 35: Correcting Keystone Distortion

    2. Projecting an Image (Basic Operation) 6 Correcting Keystone Distortion When the projector is not exactly perpendicular to the screen, keystone distortion occurs. To overcome it, you can use the “Keystone” function, a digital technology that can adjust for keystone-type distortion, resulting in a crisp, square image. The following procedure explains how to use the [KEYSTONE] screen from the menu to correct trapezoidal distortions. When the projector is placed diagonally to the screen, When the projector is set up at an angle in relation to the screen, adjust the Horizontal option of the Keystone menu so that the top and bottom of sides of the projected image are parallel. 1. Press the Keystone button on the remote control or the projector cabinet. The Keystone screen will be displayed on the screen. Projected area Screen frame 2. Press the  button to select [V-POSITION] and then use the  or ...
  • Page 36 2. Projecting an Image (Basic Operation) 5. Repeat steps 2 and 4 to correct keystone distortion. 6. After completing Keystone correction, press the Back button. The Keystone screen will disappear. • To perform Keystone correction again, press the Keystone button to display the Keystone screen and repeat above steps 1 to 6. NOTE: • If the projection angle is the same as in the last use, the previous correction setting values are retained in the memory. •...

  • Page 37: Optimizing Computer Signal Automatically

    2. Projecting an Image (Basic Operation) 7 Optimizing Computer Signal Automatically Adjusting the Image Using Auto Adjust Optimizing a computer image automatically. (COMPUTER1/COMPUTER2/COMPUTER3) Press the Auto Set button to optimize a computer image automatically. This adjustment may be necessary when you connect your computer for the first time. [Poor picture] [Normal picture] NOTE: Some signals may take time to display or may not be displayed correctly. • If the Auto Adjust operation cannot optimize the computer signal, try to adjust [H-POSITION], [V-POSITION], [FREQUENCY], and [PHASE] manually.

  • Page 38: Turning Off The Projector

    2. Projecting an Image (Basic Operation) 9 Turning off the Projector To turn off the projector: 1. First, press the (Power) button on the projector cabi- net or the Power Standby button on the remote control. The [POWER OFF / ARE YOU SURE ? / CARBON SAV- INGS- SESSION 0.000[g-CO2]] message will appear. 2. Secondly, press the Enter button or press the (Power) or the Power Standby button again.

  • Page 39: After Use

    2. Projecting an Image (Basic Operation)  After Use Preparation: Make sure that the projector is turned off. 1. Unplug the power cord. 2. Disconnect any other cables. • Remove the USB memory if it is inserted into the projector. 3. Mount the lens cap on the lens. 4. Before moving the projector, screw in the tilt feet if they have been lengthened.

  • Page 40: Convenient Features

    3. Convenient Features 1 Turning off the Image and Sound Press the AV Mute button to turn off the image, sound, beep sound for a short period of time. Press again to restore the image and sound. The projector’s power-saving function will work 10 seconds after the image is turned off. As a result, the lamp power will be reduced. NOTE: • To restore the image, even if you press the AV Mute button immediately after the start of the power-saving function, the lamp brightness may not be restored to its original level.

  • Page 41: Changing Eco Mode/Checking Energy-Saving Effect Using Eco Mode

    3. Convenient Features 2. Press the  button. The area of the magnified image will be moved 3. Press the Magnify (−) button. Each time the Magnify (−) button is pressed, the image is reduced. NOTE: • The image will be enlarged or reduced at the center of the screen. •...

  • Page 42: Checking Energy-Saving Effect [Carbon Meter]

    3. Convenient Features Checking Energy-Saving Effect [CARBON METER] This feature will show energy-saving effect in terms of CO emission reduction (kg) when the projector’s [LAMP POWER] is set to [STND.], or [ECO]. This feature is called as [CARBON METER]. There are two messages: [TOTAL CARBON SAVINGS] and [CARBON SAVINGS-SESSION]. The [TOTAL CARBON SAVINGS] message shows the total amount of CO emission reduction from the time of shipment up to now. You can check the information on [USAGE TIME] from [INFO.] of the menu. (→ page 109) The [CARBON SAVINGS-SESSION] message shows the amount of CO emission reduction between the time of changing to ECO MODE immediately after the time of power-on and the time of power-off. The [CARBON SAVINGS- SESSION] message will be displayed in the [POWER OFF/ ARE YOU SURE ?] message at the time of power-off. TIP: • The formula as shown below is used to calculate the amount of CO emission reduction. Amount of CO emission reduction = (Power consumption in OFF for ECO MODE − Power consumption in ON for ECO MODE) × conversion factor.* When the image is turned off with the AV Mute button the amount of CO emmission reduction will also increase.

  • Page 43: Using The Remote Mouse Receiver

    3. Convenient Features 5 Using the Remote Mouse Receiver The remote mouse receiver enables you to operate your computer’s mouse functions from the remote control. It is a great convenience for clicking through your computer-generated presentations. Connecting the remote mouse receiver to your computer If you wish to use the remote mouse function, connect the mouse receiver and computer. The mouse receiver can be connected directly to the computer’s USB port (type A). NOTE: Depending on the type of connection or OS installed on your computer, you may have to restart your computer or change your computer settings.

  • Page 44: About Drag Mode

    3. Convenient Features Operating your computer’s mouse from the remote control You can operate your computer’s mouse from the remote control. Page / Button: s crolls the viewing area of the window or to move to the previous or next slide in PowerPoint on your computer.  Buttons: moves the mouse cursor on your computer. L Click Button: works as the mouse left button. R Click Button: works as the mouse right button. NOTE: • When you operate the computer using the  or  button with the menu displayed, both the menu and the mouse pointer will be affected.

  • Page 45: Correcting Horizontal And Vertical Keystone Distortion [Cornerstone]

    The drawing shows the up- per right corner. TIP: PJ X6180N: When [WIDE SCREEN] is selected from [SCREEN TYPE], lines that show “16:9” or “16:10” will be displayed. Click the outer corners. PJ WX6170N: When [4:3 SCREEN] is selected from [SCREEN TYPE], lines that show “4:3”...
  • Page 46 3. Convenient Features 7. Use the  button to move the projected image frame as shown on the example. 8. Press the Enter button. 9. Use the  button to select another icon which points in the direction. On the Cornerstone adjustment screen, select [EXIT] or press the Back button on the remote control. The confirmation screen is displayed. 10. Press the  or  button to highlight the [OK] and press the Enter button. This completes the Cornerstone correction. Selecting [CANCEL] will return to the adjustment screen without saving changes (Step 3). Selecting [RESET] will return to the factory default. Selecting [UNDO] will exit without saving changes. NOTE: To reset the 3D Reform correction setting values, press and hold the Keystone button for a minimum of 2 seconds.
  • Page 47 3. Convenient Features The adjustable ranges for 3D Reform are as follows: PJ X6180N/PJ WX6170N H-POSITION V-POSITION CORNERSTONE Max. +/− 40° approx. Max. +/− 30° approx. KEYSTONE * The following are conditions under which the maximum angle is achieved: • When the PJ Standard Lens Type1 is used • When the lens shift is set to the center When the lens shift is used and yet the image is not displayed in the center of the screen, the adjustable range will be increased or decreased. • Image is projected in maximum wide with the Zoom ring NOTE: • Even when the projector is turned on, the last used correction values are applied. • If the Cornerstone screen is unavailable (grayed), press and hold the Keystone button for a minimum of 2 seconds to reset the current correction data.

  • Page 48: Displaying Two Pictures At The Same Time

    3. Convenient Features 7 Displaying Two Pictures at the Same Time The projector has a feature that allows you to view two different signals simultaneously. You have two modes: PIP mode and PICTURE BY PICTURE mode. From the menu you can select [SETUP] → [BASIC] → [PIP/PICTURE BY PICTURE]. The [PIP/PICTURE BY PICTURE] menu item has the following three options: MODE, POSITION, and PIP/PBP SOURCE. Use the  or  button to select [MODE], [POSITION] or [PIP/PBP SOURCE] and press the Enter button. Selecting the PIP or PICTURE BY PICTURE Mode [MODE] This option allows you to select two modes: PIP and PICTURE BY PICTURE.

  • Page 49: [Position]

    3. Convenient Features Viewing Two Pictures 1. Press the PIP button on the remote control. The PIP/PICTURE BY PICTURE SOURCE screen will be displayed. 2. Use the  or  button to select the source and press the Enter button. The PIP screen or PICTURE BY PICTURE screen will be displayed, depending on which was selected in the [MODE] setting screen. 3. Press the PIP button again to return to the normal screen (single picture).

  • Page 50: Preventing The Unauthorized Use Of The Projector [Security]

    3. Convenient Features 8 Preventing the Unauthorized Use of the Projector [SECURITY] A keyword can be set for your projector using the Menu to avoid operation by an unauthorized user. When a keyword is set, turning on the projector will display the Keyword input screen. Unless the correct keyword is entered, the projector cannot project an image. • The [SECURITY] setting cannot be cancelled by using the [RESET] of the menu. To enable the Security function: 1. Press the Menu button. The menu will be displayed. 2. Press the  button twice to select [SETUP] and press the  button or the Enter button to select [BASIC]. 3. Press the  button to select [INSTALLATION(2)]. 4. Press the  button three times to select [SECURITY] and press the Enter button. The OFF/ON menu will be displayed. 5. Press the  button to select [ON] and press the Enter button.
  • Page 51 3. Convenient Features 7. Type in the same combination of  buttons and press the Enter button. The confirmation screen will be displayed. 8. Select [YES] and press the Enter button. The SECURITY function has been enabled. To turn on the projector when [SECURITY] is enabled: 1. Press the Power button. The projector will be turned on and display a message to the effect that the projector is locked. 2. Press the Menu button.
  • Page 52 3. Convenient Features To disable the SECURITY function: 1. Press the Menu button. The menu will be displayed. 2. Select [SETUP] → [INSTALLATION(2)] → [SECURITY] and press the Enter button. The OFF/ON menu will be displayed. 3. Select [OFF] and press the Enter button. The SECURITY KEYWORD screen will be displayed. 4. Type in your keyword and press the Enter button. When the correct keyword is entered, the SECURITY function will be disabled. NOTE: If you forget your keyword, contact your dealer.

  • Page 53: Controlling The Projector By Using An Http Browser

    3. Convenient Features 9 Controlling the Projector by Using an HTTP Browser Overview The HTTP Server function provides settings and operations for: 1. Setting for wired/wireless network (NETWORK SETTINGS) To use wireless LAN connection, the optional USB Wireless LAN Unit is required. (→ page 148) To use wired/wireless LAN connection, connect the projector to the computer with a commercially available LAN cable.

  • Page 54: Handling Of The Address For Operation Via A Browser

    3. Convenient Features Handling of the Address for Operation via a Browser Regarding the actual address that is entered for the address or entered to the URL column when operation of the pro- jector is via a browser, the host name can be used as it is when the host name corresponding to the IP address of the projector has been registered to the domain name server by a network administrator, or the host name corresponding to the IP address of the projector has been set in the “HOSTS” file of the computer being used. Example 1: W hen the host name of the projector has been set to “pj.ricoh.co.jp” , access is gained to the network setting by specifying http://pj.ricoh.co.jp/index.html for the address or the entry column of the URL. Example 2: W hen the IP address of the projector is “192.168.73.1” , access is gained to the network setting by specifying http://192.168.73.1/index.html for the address or the entry column of the URL. PROJECTOR ADJUSTMENT POWER: This controls the power of the projector. ON ������������������������� Power is switched on�...
  • Page 55 3. Convenient Features PICTURE: Controls the video adjustment of the projector. BRIGHTNESS  �����������������Increases the brightness adjustment value� BRIGHTNESS  �����������������Decreases the brightness adjustment value� CONTRAST  ���������������������Increases the contrast adjustment value� CONTRAST  ���������������������Decreases the contrast adjustment value� COLOR SATURATION  �����Increases the color saturation level� COLOR SATURATION ...
  • Page 56 3. Convenient Features NETWORK SETTINGS • SETTINGS WIRED LAN or WIRELESS LAN SETTING Set for wired LAN or for wireless LAN. APPLY Apply your settings to wired LAN or wireless LAN. DHCP ON Automatically assign IP address, subnet mask, and gateway to the projector from your DHCP server. DHCP OFF Set IP address, subnet mask, and gateway to the projector assigned by your network administrator. IP ADDRESS Set your IP address of the network connected to the projector. SUBNET MASK Set your subnet mask number of the network connected to the projector. GATEWAY Set the default gateway of the network connected to the projector. WINS Set the IP address of your WINS server of the network connected to the projector when [DHCP] is turned on, this option is not available. AUTO DNS ON DHCP server will automatically assign IP address of DNS server connected to the projector.
  • Page 57 3. Convenient Features SITE SURVEY Displays a list of available SSIDs for wireless LAN on site. Select an SSID which you can access. COMMUNICATION Select communication method when using wireless LAN. MODE INFRASTRUCTURE: Select this option when communicating with one or more equip- ment connected to the wireless LAN network via a wireless access point. ADHOC: Select this option when using the wireless LAN to directly communicate with a computer in peer-to-peer mode. SECURITY TYPE Turn on or off the encryption mode for secure transmission. When turn on the encryp- tion mode, set WEP key or encrypted key. DISABLE Will not turn on the encryption feature. Your communications may be monitored by someone. WEP 64 bit Uses 64-bit datalength for secure transmission. WEP 128 bit Uses 128-bit datalength for secure transmission. This option will increase privacy and security when compared to use of 64-bit datalength encryption. WPA-PSK TKIP / WPA-PSK AES/ These options parovide stronger security WPA2-PSK TKIP / WPA2-PSK AES/ than WEP. WPA-EAP TKIP EAP-TLS/ WPA-EAP AES EAP-TLS/ WPA-EAP TKIP PEAP-MSCHAP v2/ WPA-EAP AES PEAP-MSCHAP v2/ WPA2-EAP TKIP EAP-TLS/...
  • Page 58 DOMAIN NAME Enter the domain name of the network connected to the projector. A domain name must be 60 characters or less. • ALERT MAIL ALERT MAIL This option will notify your computer of lamp replace time or error messages via e-mail when using wireless or wired LAN. Placing a checkmark will turn on the Alert Mail feature. Clearing a checkmark will turn off the Alert Mail feature. Sample of a message to be sent from the projector: The lamp and filters are at the end of its usable life. Please replace the lamp and filters. Projector Name: Ricoh projector Lamp Hours Used: 100 [H] SENDER’S ADDRESS Enter sender’s address. SMTP SERVER NAME Enter the SMTP server name to be connected to the projector. RECIPIENT’S ADDRESS Enter your recipient’s address. Up to three addresses can be entered. 1, 2, 3 TEST MAIL Send a test mail to check whether your settings are correct or not NOTE: • If you execute a test, you may not receive an Alert mail. Should this happen, check if network settings are correct.
  • Page 59 3. Convenient Features • NETWORK SERVICE PJLink PASSWORD Set a password for PJLink*. A password must be 32 characters or less. Do not forget your password. However, if you forget your password, consult with your dealer. HTTP PASSWORD Set a password for HTTP server. A password must be 10 characters or less. NOTE: If you forget your password, contact your dealer. *What is PJLink? PJLink is a standardization of protocol used for controlling projectors of different manufacturers. This standard pro- tocol is established by Japan Business Machine and Information System Industries Association (JBMIA) in 2005. The projector supports all the commands of PJLink Class 1. Setting of PJLink will not be affected even when [RESET] is done from the menu. • CRESTRON DISABLE Disables Crestron Control™. ENABLE Enables Crestron Control. IP ADDRESS Set your IP address of Crestron server. IP ID Set your IP ID of Crestron server. • INFORMATION WIRED LAN Display a list of settings of wired LAN connection. WIRELESS LAN Display a list of settings of wireless LAN connection.

  • Page 60: Projecting Your Computer's Screen Image From The Projector

    3. Convenient Features  Projecting Your Computer’s Screen Image from the Projector via a Network [NETWORK PROJECTOR] By selecting the projector connected to the same network as that of your PC, the PC screen image can be projected to the screen via network. There is no need of connection using the computer cable (VGA). Operation Environment Applicable OS Windows 7 Professional Windows 7 Ultimate Windows 7 Enterprise Windows Vista Home Premium Windows Vista Business Windows Vista Ultimate Windows Vista Enterprise Hardware specifications The specifications recommended by Microsoft as the operation environment for Windows 7/Windows Vista should be satisfied. Network Environment Wired LAN or wireless LAN environment that supports TCP/IP is required. Screen color High Color (16 bits) True Color (24 bits and 32 bits) * Setting with 256 colors or less is not available. Setting the Projector to Network Projector Input Mode 1. With the projector turned on, press the Input button.
  • Page 61 3. Convenient Features 2. Press the  or  button to select [NETWORK] and press the Enter button. In the screen, the [APPLICATION MENU] menu is displayed. 3. From the [APPLICATION MENU] menu, select [NETWORK PROJECTOR]. The [PROJECTOR NAME/DISPLAY RESOLUTION/PASSWORD/URL] will be displayed.
  • Page 62 3. Convenient Features Projecting the Image with Network Projector Windows 7 / Vista 1. Click [Start] from the desktop of Windows 7. 2. Click [All Programs]. 3. Click [Accessories]. 4. Click [Connect to a Network Projector]. When the [Windows Firewall is blocking the network projector from communicating with your computer] window appears, click [Allow the network projector to communicate with my computer]. The “Connect to a Network Projector”...
  • Page 63 3. Convenient Features 7. Input the password to the password input box displayed by the operation at step 3 on page 48. 8. Click [Connect]. The network projector function works and the screen of Windows 7 is projected from the projector. • If the resolution of your computer’s screen is different from the projector’s screen resolution, the NETWORK PROJECTOR function may not work.

  • Page 64: Using The Projector To Operate Your Computer Via A Network

    3. Convenient Features  Using the Projector to Operate Your Computer via a Network [REMOTE DESKTOP] • By selecting the PC connected to the same network as that of the projector, the PC screen image can be projected to the screen via network. Then, by operating the keyboard, you can operate Windows 7, Windows Vista or Windows XP on the PC connected with the network. • With the Remote Desktop function, you can remotely operate the PC placed at a distance from the projector. Meeting room Office NOTE: • The [REMOTE DESKTOP] function will work on the following Windows editions. Windows 7 Professional Windows 7 Ultimate Windows 7 Enterprise Windows Vista Business...
  • Page 65 3. Convenient Features Setting the password to the user account of Windows 7 TIP: If a password has been set for an account, the steps 1 to 9 can be skipped. 1. Click [Start] from the desktop of Windows 7. 2. Click [Control Panel]. 3. Click [Add or remove user accounts] displayed under [User Accounts and Family Safety]. 4. When the [User Account Control] confirmation window appears, click [Yes]. 5. Click [Administrator]. 6. Click [Create a password].
  • Page 66 3. Convenient Features 4. Click [Local Area Connection] displayed in blue on the right of [Connections] in the window. The [Local Area Connection Status] window appears. 5. Click [Details...]. Write down the value for “IPv4 Address” (xxx.xxx.xxx.xxx) displayed. 6. Click [Close]. 7. Click [X] at the upper right of the window. The system goes back to the desktop. Starting the Remote Desktop 1. With the projector turned on, press the Input button. The input selection window appears.
  • Page 67 3. Convenient Features 2. Press the  or  button to select [NETWORK] and press the Enter button. The [NETWORK] menu will be displayed. 3. From the [NETWORK] menu, use the wireless keyboard to select [REMOTE DESKTOP CONNECTION]. The [REMOTE DESKTOP CONNECTION] window appears. 4. Operate the wireless keyboard to input the IP address of Windows 7 and click “CONNECTION” . The log-on screen of Windows 7 is displayed in the screen projected by the projector. 5. Operate the wireless keyboard to input the user’s password and press “Enter” . The remote desktop function is started.
  • Page 68 3. Convenient Features Exiting the Remote Desktop 1. Operate the wireless keyboard to click [Start] from the desktop screen projected by the projector. 2. Click [X] on the right of the start menu. The remote desktop function is stopped. 3. Press the Input button of the projector to select an input terminal other than [NETWORK]. When using the remote control, press a button other than the Network button. TIP: Setting [ADVANCED] in REMOTE DESKTOP Clicking [ADVANCED] displays the [ADVANCED] screen. Making settings to [ADVANCED] will allow you to display the desktop background, or to enable the window animation function during the Remote Desktop operation.

  • Page 69: Using The Viewer

    4. Using the Viewer 1 What you can do with the Viewer The Viewer feature allows you to view slides or movie files stored on a USB memory on the projector, or a shared folder in a computer connected to the network. The Viewer has the following features. • When a commercially available USB memory that stores image files is inserted into the USB port (Type A) of the projector, the Viewer allows you to view the image files on the USB memory. Even if no computer is available, presentations can be conducted simply with the projector. • Movie file with audio can be played back. • Image and movie files stored in a shared folder in a computer connected to a network can be projected. The computer with “Media Sharing” of Windows Media Player 11 turned on can be used as a media server. Supported graphic formats Format File name extension JPEG .jpg, .jpe, .jpeg (CMYK is not supported.) .bmp (bit field not supported) .png (Interlaced PNG and α channel PNG are not supported.) .gif (Interlaced GIF, transparation GIF, and animation GIF are not supported.) * If an unsupported image is selected, the icon will be displayed. NOTE: Maximum number of pixels of image which can be displayed are: •...

  • Page 70: Supported Usb Memory Devices

    4. Using the Viewer NOTE: • Movie files converted by using the video/audio format which is not supported by this projector cannot be played back. In this case, there will be no icon to show that playback is not possible. •...

  • Page 71: Preparing Presentation Materials

    4. Using the Viewer 2 Preparing presentation materials 1. Create your presentation materials and save them in a supported file format to your computer. 2. Save a file to your drive. To save a file to your USB memory: Use the Windows Explore to copy the file to your USB memory. To place a file in a shared folder you create in your computer, see page 70. To use “Media Sharing”...

  • Page 72: Projecting Images Stored In A Usb Memory Device

    4. Using the Viewer 3 Projecting images stored in a USB memory device This section explains the basic operation of the Viewer. The explanation provides the operational procedure when the Viewer toolbar is set to the factory default. Preparation: Before starting the Viewer, store images to the USB memory using your computer. Starting the Viewer 1. Turn on the projector. (→ page 14) 2. Insert the USB memory into the USB port of the projec- tor. NOTE: • Do not remove the USB memory from the projector while it’s LED flashes. Doing so may corrupt the data. TIP: You can a USB memory insert the projector when the drive list screen is displayed.
  • Page 73 4. Using the Viewer 4. Press the  button to select “ USB1” and press the Enter button. The “USB1” thumbnail screen will be displayed. TIP: • For more information about thumbnail screen, see page 64. 5. Use the  or  button to select an icon. • The → (arrow) symbol on the right indicates there are more pages.

  • Page 74: Exiting The Viewer

    4. Using the Viewer • Movie file The movie file will start playing. After finishing the playback, the screen will turn to black. Press the Back button to return to the thumbnail screen. • Pressing the Enter button will display the movie’s control bar with which you can pause or fastforward and some other operations.

  • Page 75: Names And Functions Of Viewer Screen

    4. Using the Viewer Names and functions of Viewer screen The Viewer has three screens: Drive list screen, Thumbnail screen, and Slide screen. Cursor (yellow) Scroll bar Menu Menu Cursor (yellow) Folder icon [Drive list screen] [Thumbnail screen] Path information Drive information/File information Operation button guide Menu guide Control bar * The operation for still image differs from that for movie. [Slide screen] •...
  • Page 76 4. Using the Viewer Functions Name Description REFRESH Displays additional media servers in the drive list screen. OPTIONS Opens the OPTIONS menu. SLIDE SETTING Sets up slides. (→ page 67) MOVIE SETTING Sets up movie files. (→ page 68) AUTO PLAY SETTING Sets up auto play. (→ page 68) SHARED FOLDER Sets up a shared folder. (→ page 70) MEDIA SERVER Sets up a media server. (→ page 74) RETURN Closes the OPTIONS menu. SYSTEM SETTING Switches to the system setting menu. See wired LAN, wireless LAN, WPS, network information, mouse, and keyboard in "9 Application Menu". (→ page 115) Displays the icon for a USB memory inserted into the USB port of the projector.
  • Page 77 4. Using the Viewer • Thumbnail screen Displays a list of folders, thumbnails, and icons in the drive selected on the drive list screen. Menu operation • Use the  or  button to move the cursor up or down. Select the menu item and press the Enter button to display the menu or setting screen. Operation for Thumbnail screen 1. Press the  button to move the cursor to the thumbnail screen when the OPTIONS menu is not displayed. 2. Press the , , , or  button to select a file or folder. 3. Press the Enter button to start slideshow or playback of the selected file. Selecting a folder will display its thumbnail screen. Functions Name Description Goes to one upper level menu. THUMBNAIL Switches two displays between thumbnail and icon. SORT SETTING Rearranges folders or files. DRIVE LIST Returns to the drive list screen. OPTIONS Changes to the OPTIONS menu. SYSTEM SET- Opens the system setting menu. TING Scroll bar Thumbnail screen will display 12 files with 4 by 3. If the thumbnail screen has twelve or more files or folders, the scroll bar will be displayed at the right side. Using the Page  or Page  button will scroll the whole screen down or up. Path information Displays the location of a folder or file.
  • Page 78 4. Using the Viewer • Slide screen (still image/movie) Plays a file selected from a list of thumbnails or icons. Control bar operation • The control bar will be displayed only when a still image and a movie file is selected. • The control bar for still images differs from that for movie files. 1. Pressing the Enter button in Slide screen will display the control bar at the bottom of the screen. 2. Use the  or  button to select a file and press the Enter button. • The selected function will be executed. Functions of still image control bar Name Description PREV Goes back to the previous image PLAY Plays the image. This button also is used to stop or start playing an image. NEXT Goes to the next image. RIGHT Rotates the image 90° clockwise. • To cancel, select another folder. LEFT Rotates the image 90° counter clockwise.
  • Page 79 4. Using the Viewer Functions of movie control bar Name Description PREV Goes back to the beginning of a movie file. • Goes back to the beginning of the previous movie file if executed immediately after being started playing. Fast-rewinds a movie file for about 7 seconds. PLAY/PAUSE PLAY Plays a movie file. PAUSE Stops playing a movie file. Fast-forwards a movie file for about 7 seconds. NEXT Goes to the beginning of a next movie file. TIME Displays an elapsed time for playback or pause. SIZE BEST FIT Displays the image with its aspect ratio in the projector’s displayable maximum resolution. ACTUAL Displays the image in its actual size. SIZE CLOSE Closes the control bar.

  • Page 80: Viewer Option Settings

    4. Using the Viewer Viewer option settings • SLIDE SETTING Sets still images or slides. Name Options Description SCREEN SIZE BEST FIT Displays the image with its aspect ratio in the projector’s display- able maximum resolution. ACTUAL SIZE Displays the image in its actual size. PLAY MODE MANUAL Selects manual play. AUTO Selects auto play. DISPLAY INTERVAL 5 - 300 seconds Specifies interval time when [AUTO] is selected for PLAY MODE. REPEAT Check mark Turns on or off the repeat function. • To play one or more slides, place those files into a folder.
  • Page 81 4. Using the Viewer • MOVIE SETTING Sets the functions for a movie file. Name Options Description SCREEN SIZE BEST FIT Displays the image with its aspect ratio in the projector’s display- able maximum resolution. ACTUAL SIZE Displays the image in its actual size. REPEAT Turns on or off the repeat function. ONE REPEAT Repeats one file only. ALL REPEAT Repeats all files in the current folder. • Turning on [REPEAT] will display black screen during intermission between movies. • AUTO PLAY SETTING Sets auto play for slideshow when a USB memory device is inserted into the USB port of the projector, or when [VIEWER] is selected for [SOURCE].
  • Page 82 4. Using the Viewer • SORT SETTING Sets the order of displaying thumbnails or slides. Name Options Description SORT NAME (ABC..) Displays the files alphabetically by name in ascending order. NAME (ZYX..) Displays the files alphabetically by name in descending order. EXT. (ABC..) Displays the files alphabetically by extension in ascending order. EXT. (ZYX..) Displays the files alphabetically by extension in descending order. DATE (NEW) Displays the files in reverse chronological order. DATE (OLD) Displays the files in chronological order. SIZE (BIG) Displays the files in descending order of its file size. SIZE (SMALL) Displays the files in ascending order of its file size.

  • Page 83: Projecting Data From Shared Folder

    4. Using the Viewer 4 Projecting data from shared folder Shared folder Wireless LAN Projector Shared folder Preparation For projector: Connect the projector to the network. For computer: Place files to be projected in a shared folder and note the folder’s path. Memorize or write down the path for later use. • For sharing a folder, refer to your user guide or help file accompanied with your Windows computer. • Use a keyboard to give a name to the shared folder in alphanumeric characters. • To connect the shared folder beyond the subnet, set [WINS CONFIGURATION] in [NETWORK SETTINGS] from the menu. • Digital signature (SMB signature) is not supported. Connecting the projector to the shared folder 1. Press the Viewer button on the remote control. The drive list window will be displayed. •...
  • Page 84 4. Using the Viewer 2. Displays the [OPTIONS] menu. Press the  button to select the (OPTIONS) icon and press the Enter button. • When the OPTIONS menu is displayed, the drive list will not be displayed. 3. Display the [SHARED FOLDER] screen. Press the  button to select the (SHARED FOLDER) icon and press the Enter button. 4. Select a folder number and place to enable it.
  • Page 85 4. Using the Viewer 6. Exit the setting. Press the  button to select [OK] and press the Enter button. This will close the [SHARED FOLDER] screen. • If an error message appear, your settings are not correct. Try again.

  • Page 86: Disconnecting The Shared Folder From The Projector

    4. Using the Viewer Disconnecting the shared folder from the projector • Disable the number of a shared folder you wish to disconnect Press the  button to select [ENABLE] and press the Enter button to clear it. TIP: • Connecting settings for Shared folder Settings of up to four folders can be saved. Restarting the projector will display setting-saved shared folders in grey folder icon on the drive list screen.

  • Page 87: Projecting Data From Media Server

    4. Using the Viewer 5 Projecting data from media server Media server Wireless LAN Media server Projector Media server Preparation For projector: Connect the projector to the network. For computer: Prepare image files or movie files to be projected, and set up “Media Sharing” in Windows Media Player 11 or Windows Media Player 12. NOTE: • Both the projector and the media server must be on the same subnet. Connecting to the media server beyond the subnet is not possible.
  • Page 88 4. Using the Viewer 3. Select “Share my media” check box, and then select OK. A list of accessible devices will be displayed. 4. Select “X6180N/WX6170N” and then “Allow” . A check mark will be added to the “X6180N/WX6170N” icon. • The “X6180N/WX6170N” is a projector name specified in [NETWORK SETTINGS]. 5. Select “OK” . This will make pictures and video in “Library”...

  • Page 89: Setting Up "Media Sharing" In Windows Media Player 12

    4. Using the Viewer Setting up “Media Sharing” in Windows Media Player 12 1. Start Windows Media Player 12. 2. Select “Stream” , and then select “Automatically allow devices to play my media” . The “Allow All Media Devices” windows will be displayed. 3. Select “Automatically allow all computers and media devices” . Graphics and movie files in “Library” can be used from the projector.

  • Page 90: Connecting The Projector To The Media Server

    4. Using the Viewer Connecting the projector to the media server Press the Viewer button on the remote control. The VIEWER will start. • Another way to start the VIEWER is to press the Input button a few times on the projector cabinet. (→ page 16) • This will start searching for a computer with “media sharing” enabled in the network and add it to the “Media server” of the thumbnail screen. Another way to do this is to point the cursor to “Media server” and select [REFRESH] from the thumbnail menu and press the Enter button. NOTE: • Up to four accessible media servers can be automatically searched and displayed. The fifth device or later cannot be displayed. (→ page 59)

  • Page 91: Disconnecting The Projector From The Media Server

    4. Using the Viewer Disconnecting the projector from the media server 1. Display the OPTIONS menu. Press the  button to select the [OPTIONS] icon and select the Enter button. 2. Display the MEDIA SERVER setting screen. Press the  button to select the MEDIA SERVER icon and press the Enter button. 3. Disable the connection.

  • Page 92: Using On-Screen Menu

    5. Using On-Screen Menu 1 Using the Menus NOTE: The on-screen menu may not be displayed correctly while interlaced motion video image is projected. 1. Press the Menu button on the remote control or the projector cabinet to display the menu. NOTE: The commands such as Enter, Back, ,  in the bottom show available buttons for your operation. 2. Press the  buttons on the remote control or the projector cabinet to display the submenu.

  • Page 93: Menu Elements

    5. Using On-Screen Menu 2 Menu Elements Slide bar Solid triangle Available buttons Source Menu mode Highlight Radio button Wireless symbol ECO mode symbol Off Timer remaining High Altitude symbol time Thermometer symbol CONTROL PANEL LOCK symbol Menu windows or dialog boxes typically have the following elements: Highlight �����������������������������Indicates the selected menu or item�...

  • Page 94: List Of Menu Items

    5. Using On-Screen Menu 3 List of Menu Items • Basic menu items are indicated by shaded area. Some menu items are not available depending on the input source. Menu Item Default Options COMPUTER1 COMPUTER2 COMPUTER3(BNC) HDMI DisplayPort INPUT VIDEO S-VIDEO VIEWER NETWORK ENTRY LIST TEST PATTERN MODE STANDARD STANDARD, PROFESSIONAL BRIGHT, PRESENTATION, VIDEO, MOVIE, GRAPHIC, PRESET sRGB, DICOM SIM. MODE GENERAL BRIGHT, PRESENTATION, VIDEO, MOVIE, GRAPHIC, REFERENCE sRGB, DICOM SIM. MODE GAMMA DYNAMIC, NATURAL, BLACK DETAIL CORRECTION* SCREEN SIZE* LARGE, MEDIUM, SMALL COLOR 5000, 6500, 7800, 8500, 9300, 10500...
  • Page 95 5. Using On-Screen Menu HORIZONTAL KEYSTONE VERTICAL CORNERSTONE MODE PIP, PICTURE BY PICTURE PIP/PICTURE BY POSITION BOTTOM-RIGHT TOP-LEFT, TOP-RIGHT, BOTTOM-LEFT, BOTTOM-RIGHT PICTURE PIP/PBP SOURCE OFF, VIDEO, S-VIDEO OFF, WHITEBOARD, BLACKBOARD, GRAY, LIGHT YELLOW, WALL COLOR CORRECTION LIGHT GREEN, LIGHT BLUE, SKY BLUE, LIGHT ROSE, PINK BASIC LAMP POWER STND. STND., ECO CLOSED CAPTION OFF, CC-1, CC-2, CC-3, CC-4, T-1, T-2, T-3, T-4 OFF TIMER OFF, 0:30, 1:00, 2:00, 4:00, 8:00, 12:00, 16:00 ADMINISTRATOR MODE, PROGRAM TIMER, TIME, TOOLS MOUSE , ESPANOL, РУССКИЙ, FRANÇAIS, ENGLISH PORTUGUÊS, DEUTSCH, ITALIANO, NEDERLANDS, LANGUAGE ENGLISH POLSKI, ČEŠTINA, SVENSKA, SUOMI, MAGYAR,...
  • Page 96 5. Using On-Screen Menu LAMP LIFE REMAINING LAMP TIME USAGE TIME FILTER HOURS USED TOTAL CARBON SAVINGS INPUT TERMINAL RESOLUTION HORIZONTAL FREQUENCY VERTICAL FREQUENCY SOURCE(1) SYNC TYPE SYNC POLARITY SCAN TYPE SOURCE NAME ENTRY NO. SIGNAL TYPE VIDEO MODE BIT DEPTH SOURCE(2) RGB INPUT RANGE LINK RATE LINK LANE IP ADDRESS SUBNET MASK WIRED LAN INFO. DEFAULT GATEWAY MAC ADDRESS IP ADDRESS WIRELESS SUBNET MASK LAN(1) DEFAULT GATEWAY MAC ADDRESS SSID COMMUNICATION MODE WIRELESS WEP/WPA LAN(2)

  • Page 97: Menu Descriptions & Functions [Input]

    5. Using On-Screen Menu 4 Menu Descriptions & Functions [INPUT] COMPUTER1, 2, and 3 Selects the computer connected to your COMPUTER1, 2, or COMPUTER3 input connector signal. NOTE: When the component input signal is connected to the Computer 1 In, Computer 2 In, or Computer 3 In connector, select [COMPUTER1], [COMPUTER2] or [COMPUTER3] respectively. The projector automatically determines whether the COMPUTER1, 2, or 3 input signal is an RGB or component signal.
  • Page 98 5. Using On-Screen Menu Using the Entry List When any source adjustments are made, the adjustments are automatically registered in the Entry List. The (adjustment values of) registered signals can be loaded from the Entry List whenever necessary. However, only up to 100 patterns can be registered in the Entry List. When 100 patterns have been registered in the Entry List, an error message is then displayed and no additional patterns can be registered. You should thus delete (adjustment values of) signals that are no longer needed. Displaying the Entry list 1. Press the Menu button. The menu will be displayed. 2. Press the  or  button to select [INPUT]. The INPUT list will be displayed. 3. Use the , , , or  to select [ENTRY LIST] and press the Enter button. The ENTRY LIST windows will be displayed. If the ENTRY LIST window is not displayed, switch the menu to [ADVANCED].
  • Page 99 5. Using On-Screen Menu Entering the currently projected signal into the Entry List [STORE] 1. Press the  or  button to select any number. 2. Press the  or  button to select [STORE] and press the Enter button. Calling up a signal from the Entry List [LOAD] Press the  or  button to select a signal and press the Enter button. Editing a signal from the Entry List [EDIT] 1. Press the  or  button to select a signal you wish to edit. 2. Press the , , , or  button to select [EDIT] and press the Enter button. The Edit window will be displayed.
  • Page 100 5. Using On-Screen Menu Cutting a signal from the Entry List [CUT] 1. Press the  or  button to select a signal you wish to delete. 2. Press the , , , or  button to select [CUT] and press the Enter button. The signal will be deleted from the Entry List and the deleted signal will be displayed on the clipboard at the bottom of the Entry List. NOTE: •...

  • Page 101: Menu Descriptions & Functions [Adjust]

    5. Using On-Screen Menu 5 Menu Descriptions & Functions [ADJUST] [PICTURE] [MODE] This function allows you to determine how to save settings for [DETAIL SETTINGS] of [PRESET] for each input. STANDARD �������������������������Saves settings for each item of [PRESET] (Preset 1 through 7) PROFESSIONAL ������������������Saves all the settings of [PICTURE] for each input� [PRESET] This function allows you to select optimized settings for your projected image. You can adjust neutral tint for yellow, cyan or magenta. There are seven factory presets optimized for various types of images. You can also use [DETAIL SETTINGS] to set user adjustable settings to customize each gamma or color. Your settings can be stored in [PRESET 1] to [PRESET 7].
  • Page 102 5. Using On-Screen Menu [GENERAL] Storing Your Customized Settings [REFERENCE] This function allows you to store your customized settings in [PRESET 1] to [PRESET 7]. First, select a base preset mode from [REFERENCE], then set [GAMMA CORRECTION] and [COLOR TEMPERATURE]. BRIGHT �������������������������������Recommended for use in a brightly lit room� PRESENTATION ������������������Recommended for making a presentation using a PowerPoint file� VIDEO ���������������������������������Recommended for typical TV program viewing� MOVIE ��������������������������������Recommended for movies� GRAPHIC ����������������������������Recommended for graphics�...

  • Page 103: Color Correction

    5. Using On-Screen Menu [COLOR CORRECTION] Corrects the color for all signals. Adjusts the tone for the colors red, green, blue, yellow, magenta and cyan. RED ����������������������� Adjusts the color in red areas, centered around the red� This can be used to adjust to a yellow- or magenta-tinged red� GREEN ������������������� Adjusts the color in green areas, centered around the green� This can be used to adjust to a yellow- or cyan-tinged green�...

  • Page 104: [Image Options]

    5. Using On-Screen Menu [IMAGE OPTIONS] Adjusting Clock and Phase [FREQUENCY/PHASE] This allows you to manually adjust FREQUENCY and PHASE. FREQUENCY ���������� Use this item to fine tune the computer image or to remove any vertical banding that might appear� This function adjusts the clock frequencies that eliminate the horizontal banding in the image� This adjustment may be necessary when you connect your computer for the first time�...
  • Page 105 5. Using On-Screen Menu Adjusting Horizontal/Vertical Position [H-POSITION/V-POSITION] Adjusts the image location horizontally and vertically. - An image can be distorted during the adjustment of [FREQUENCY] and [PHASE]. This is not malfunction. - The adjustments for [FREQUENCY], [PHASE], [H-POSITION], and [V-POSITION] will be stored in memory for the current signal. The next time you project the signal with the same resolution, horizontal and vertical frequency, its adjustments will be called up and applied. To delete adjustments stored in memory, from the menu, you select [RESET] → [CURRENT SIGNAL] and reset the adjustments. [BLANKING] Adjusts the display range (blanking) at the top, bottom, left and right edges of the input signal. Selecting Overscan Percentage [OVERSCAN] Select overscan percentage (Auto, 0%, 5% and 10%) for signal. Projected image Overscaned by 10% NOTE: • The [OVERSCAN] item is not available: - when [NATIVE] is selected for [ASPECT]. - when [VIEWER] or [NETWORK] is selected for [INPUT]...
  • Page 106 5. Using On-Screen Menu Selecting the Aspect Ratio [ASPECT] Use this function to select the screen’s vertical:horizontal aspect ratio. Select the screen type (4:3 screen, 16:9 screen or 16:10 screen) at the screen setting before setting the aspect ratio. (→ page 101) The projector automatically identifies the signal being input and sets the optimum aspect ratio. For Computer signal For Component/Video/S-Video signals When the screen type is set to 4:3 When the screen type is set to 16:9 or 16:10 Resolution Aspect Ratio 640 × 480 SVGA 800 × 600 1024 × 768 WXGA 1280 × 768 15:9 WXGA 1280 × 800 16:10 HD(FWXGA) 1366 × 768 approx. 16:9 WXGA+ 1440 × 900 16:10 SXGA 1280 × 1024 SXGA+ 1400 × 1050 WXGA+ 1600 × 900 16:9 UXGA...
  • Page 107 5. Using On-Screen Menu LETTERBOX The image of a letterbox signal (16:9) is stretched equally in the horizontal and vertical directions to fit the screen. LETTERBOX WIDE SCREEN The image of a squeeze signal(16:9) is stretched left and right in 16:9. Squeeze ZOOM The image of a squeeze signal (16:9) is stretched left and right in 4:3. Parts of the displayed image are cropped at the left and right edges and therefore not visible. Squeeze 4:3 FILL The image of a signal(4:3) is stretched left and right in 16:9. 4 : 3 TIP: • Image position can be adjusted vertically using [POSITION] when the [16:9], [15:9], or [16:10] aspect ratios are selected. • The term “letterbox” refers to a more landscape-oriented image when compared to a 4:3 image, which is the standard aspect ratio for a vide source.

  • Page 108: [Video]

    5. Using On-Screen Menu [VIDEO] Using Noise Reduction [NOISE REDUCTION] This function is used to reduce video noise. RANDOM NR ��������� Reduces flickering random noise in an image� MOSQUITO NR ������ Reduces mosquito noise that appears around the edges of an image during DVD playback� BLOCK NR ������������� Reduces block noise or mosaic-like patterns by selecting ON� Selecting Interlaced Progressive Conversion Process Mode [DEINTERLACE] This function allows you to select an interlaced-to-progressive conversion process for video signals.
  • Page 109 5. Using On-Screen Menu [RGB INPUT RANGE] This function selects video signal level when the projector’s HDMI and DisplayPort input connectors and an external device are connected. AUTO ��������������������� The video level is switched automatically based on the information from the device outputting the signal� Depending on the connected device, this setting may not be made properly� In this case, switch to “0-255” or “16-235”...

  • Page 110: Menu Descriptions & Functions [Setup]

    5. Using On-Screen Menu 6 Menu Descriptions & Functions [SETUP] [BASIC] Correcting Vertical Keystone Distortion Manually [KEYSTONE] You can correct vertical distortion manually. (→ page 22) TIP: When this option is highlighted, pressing the Enter button will display its slide bar for adjustment. Selecting Cornerstone Mode [CORNERSTONE] This option allows you to correct trapezoidal distortion. Selecting this item will display the Cornerstone adjustment screen. (→ page 32) NOTE: The [CORNERSTONE] item is not available when [KEYSTONE] or [GEOMETRIC CORRECTION] is selected.
  • Page 111 5. Using On-Screen Menu PIP/PBP SOURCE: This option allows you to select a sub picture signal. The options are: OFF, VIDEO and S-VIDEO. Selecting [OFF] will cancel the PIP/PICTURE BY PICTURE mode and return to the normal screen. Using the Wall Color Correction [WALL COLOR CORRECTION] This function allows for quick adaptive color correction in applications where the screen material is not white. NOTE: Selecting [WHITEBOARD] reduces lamp brightness. Setting Eco Mode [LAMP POWER] The ECO MODE increases lamp life, while lowering power consumption and cutting down on CO emissions. Two brightness modes of the lamp can be selected: [STND.] and [ECO] modes. (→ page 28) Setting Closed Caption [CLOSED CAPTION] This option sets several closed caption modes that allow text to be superimposed on the projected image of Video or S-Video. OFF ������������������������ This exits the closed caption mode� CC-1 - 4 �����������������...

  • Page 112: [Menu]

    5. Using On-Screen Menu [MENU] Selecting Menu Color [COLOR SELECT] You can choose between two options for menu color: COLOR and MONOCHROME. Turning On / Off Source Display [SOURCE DISPLAY] This option turns on or off input name display such as COMPUTER1, COMPUTER2, COMPUTER3, HDMI, Display- Port, VIDEO, S-VIDEO, VIEWER, NETWORK to be displayed on the top right of the screen. Turning messages on and off [MESSAGE DISPLAY] This option selects whether or not to display projector messages at the bottom of the projected image. Even when “OFF” is selected, the security lock warning is displayed. The security lock warning turns off when the security lock is canceled. Turning ON/OFF Control ID [ID DISPLAY] ID DISPLAY ����������� This option turns on or off the ID number which is displayed when the ID Set button on the remote control is pressed�...

  • Page 113: [Installation(1)]

    5. Using On-Screen Menu When [STND.] is selected for [LAMP POWER] Pressing the Enter button will display the [LAMP POWER] screen. (→ page 28) To close the message, press the Back button. Selecting Menu Display Time [DISPLAY TIME] This option allows you to select how long the projector waits after the last touch of a button to turn off the menu. The preset choices are [MANUAL], [AUTO 5 SEC], [AUTO 15 SEC], and [AUTO 45 SEC]. The [AUTO 45 SEC] is the fac- tory preset. Selecting a Color or Logo for Background [BACKGROUND ON NOSIGNAL] Use this feature to display a blue/black screen or logo when no signal is available. The default background is [BLUE]. NOTE: • Even when the background logo is selected, if two pictures are displayed in [PIP/PICTURE BY PICTURE] mode, the blue background is displayed without the logo when there is no signal.
  • Page 114 5. Using On-Screen Menu STND. REAR CEILING REAR CEILING Selecting Aspect Ratio and Position for Screen [SCREEN] SCREEN TYPE Sets the aspect ratio of the projection screen. 4:3 SCREEN For a screen with a 4:3 aspect ratio 16:9 SCREEN For a screen with a 16:9 aspect ratio 16:10 SCREEN For a screen with a 16:10 aspect ratio POSITION When the screen type is set to 16:9 or 16:10, adjusts the vertical (for the position of the display range. PJ X6180N) Downward Upward NOTE: • After changing the screen type, check the setting of [ASPECT] in the menu. (→...
  • Page 115 5. Using On-Screen Menu Using Multi-Screen Compensation [MULTI-SCREEN COMP.] This feature allows you to match hue of images projected from multiple projectors that are placed in parallel. MODE �������������������� OFF: Turns off this function to return to the normal brightness� ON: Turns on this function to make the screen darker� The [BRIGHTNESS] and the [CONTRAST] can be adjusted�...

  • Page 116: [Installation(2)]

    5. Using On-Screen Menu [INSTALLATION(2)] Disabling the Cabinet Buttons [CONTROL PANEL LOCK] This option turns on or off the CONTROL PANEL LOCK function. NOTE: • This CONTROL PANEL LOCK does not affect the remote control functions. • When the control panel is locked, pressing and holding the Back button on the projector cabinet for about 10 seconds will change the setting to [OFF].
  • Page 117 5. Using On-Screen Menu NOTE: • When [ON] is selected for [CONTROL ID], the projector cannot be operated by using the remote control that does not support the CONTROL ID function. (In this case the buttons on the projector cabinet can be used.) •...

  • Page 118: [Options(1)]

    5. Using On-Screen Menu [OPTIONS(1)] Setting Auto Adjust [AUTO SET] This feature sets the Auto Adjust mode so that the computer signal can be automatically or manually adjusted for noise and stability. You can automatically make adjustment in two ways: [NORMAL] and [FINE]. OFF ������������������������ The computer signal will not be automatically adjusted� You can manually optimize the computer signal� NORMAL ���������������� Default setting� The computer signal will be automatically adjusted� Normally select this option� FINE �����������������������...

  • Page 119: Video Mode

    5. Using On-Screen Menu NOTE: • When [HIGH ALTITUDE] is selected for [FAN MODE], a symbol icon will be displayed at the bottom of the menu. • It is recommended that you select High speed mode if you use the projector non-stop for consecutive days. •...

  • Page 120: [Options(2)]

    5. Using On-Screen Menu [OPTIONS(2)] Selecting Power-saving in [STANDBY MODE] The projector has three standby modes: [NORMAL], [POWER-SAVING] and [NETWORK STANDBY]. The POWER-SAVING mode is the mode that allows you to put the projector in the power-saving condition which consumes less power than the NORMAL mode. The projector is preset for NORMAL mode at the factory. NORMAL �����������������������������Power indicator: Orange light/Status indicator: Green light POWER-SAVING �����������������Power indicator: Red light/Status indicator: Off The following connectors, buttons or functions will not work during this mode� - Monitor Out (Comp�1) connector, and Audio Out connector - LAN and Mail Alert functions - Buttons other than Power button on the cabinet...
  • Page 121 5. Using On-Screen Menu Turning On the Projector By Applying Computer Signal [AUTO POWER ON(COMP1/3)] When the projector is in Standby mode, applying a computer signal from a computer connected to the Computer 1 In or Computer 3 In input will power on the projector and simultaneously project the computer’s image. This functionality eliminates the need to always use the Power button on the remote control or the projector cabinet to power on the projector. To use this function, first connect a computer to the projector and the projector to an active AC input. NOTE: • Disconnecting a computer signal from the computer will not power off the projector. We recommend using this function in com- bination of the POWER OFF ON NO SIGNAL function.

  • Page 122: Menu Descriptions & Functions [Info.]

    5. Using On-Screen Menu 7 Menu Descriptions & Functions [INFO.] Displays the status of the current signal and lamp usage. This item has nine pages. The information included is as follows: TIP: Pressing the Help button on the remote control will show the [INFO.] menu items. [USAGE TIME] [LAMP LIFE REMAINING] (%)* [LAMP TIME] (H) [FILTER HOURS USED] (H) [TOTAL CARBON SAVINGS] (kg-CO2) * The progress indicator shows the percentage of remaining bulb life. The value informs you of the amount of lamp usage. When the remaining lamp time reaches 0, the LAMP LIFE REMAINING bar indicator changes from 0% to 100 Hours and starts counting down. If the remaining lamp time reaches 0 hours, the projector will not turn on. • The message to the effect that the lamp or the filters should be replaced will be displayed for one minute when the projector is turned on and when the Power button on the projector or the remote control is pressed. To dismiss this message, press any button on the projector or the remote control.

  • Page 123: [Source(1)]

    5. Using On-Screen Menu [SOURCE(1)] INPUT TERMINAL RESOLUTION HORIZONTAL FREQUENCY VERTICAL FREQUENCY SYNC TYPE SYNC POLARITY SCAN TYPE SOURCE NAME ENTRY NO. [SOURCE(2)] SIGNAL TYPE VIDEO MODE BIT DEPTH RGB INPUT RANGE LINK RATE LINK LANE [WIRED LAN] IP ADDRESS SUBNET MASK DEFAULT GATEWAY MAC ADDRESS...

  • Page 124: [Wireless Lan(1)]

    5. Using On-Screen Menu [WIRELESS LAN(1)] IP ADDRESS SUBNET MASK DEFAULT GATEWAY MAC ADDRESS [WIRELESS LAN(2)] SSID COMMUNICATION MODE WEP/WPA CHANNEL SIGNAL LEVEL [VERSION(1)] FIRMWARE DATA FIRMWARE2 SUB-CPU...

  • Page 125: [Version(2)]

    5. Using On-Screen Menu [VERSION(2)] FIRMWARE3 [OTHERS] PROJECTOR NAME MODEL NO. SERIAL NUMBER LAN UNIT TYPE CONTROL ID (when [CONTROL ID] is set)

  • Page 126: Menu Descriptions & Functions [Reset]

    5. Using On-Screen Menu 8 Menu Descriptions & Functions [RESET] Returning to Factory Default [RESET] The RESET feature allows you to change adjustments and settings to the factory preset for a (all) source (s) except the following: [CURRENT SIGNAL] Resets the adjustments for the current signal to the factory preset levels. The items that can be reset are: [PRESET], [CONTRAST], [BRIGHTNESS], [COLOR SATURATION], [TINT], [SHARPNESS], [ASPECT], [H-POSITION], [V-POSITION], [FREQUENCY], [PHASE], and [OVERSCAN]. [ALL DATA] Reset all the adjustments and settings for all the signals to the factory preset. All items can be reset EXCEPT [LANGUAGE], [BACKGROUND ON NOSIGNAL], [FILTER MESSAGE], [SCREEN], [GEOMETRIC CORRECTION], [MULTI-SCREEN COMP.], [REF. WHITE BALANCE], [CONTROL PANEL LOCK], [SECURITY], [COMMUNICATION SPEED], [CONTROL ID], [STANDBY MODE], [FAN MODE], [LAMP LIFE RE- MAINING], [LAMP TIME], [FILTER HOURS USED], [TOTAL CARBON SAVINGS], [WIRED LAN], and [WIRELESS LAN]. To reset the lamp usage time, see "Clearing Lamp Hour Meter [CLEAR LAMP HOURS]" below.
  • Page 127 5. Using On-Screen Menu Clearing the Filter Usage Hours [CLEAR FILTER HOURS] Resets the filter usage back to zero. Selecting this option displays submenu for a confirmation. Select [YES] and press the Enter button. The [OFF] item is selected for [FILTER MESSAGE] at the time of shipment. When [OFF] is selected, you do not need to clear the filter usage hour. NOTE: Elapsed time of the filter use will not be affected even when [RESET] is done from the menu.

  • Page 128: Application Menu

    5. Using On-Screen Menu 9 Application Menu When [NETWORK] is selected from the [INPUT] menu, the application menu [APPLICATION MENU] will be displayed. The application menu allows you to set up the User Supportware, Network Settings (NETWORK SETTINGS) and Tools (TOOLS). The User Supportware is contained on the supplied CD-ROM. In [ADMINISTRATOR MODE], either [ADVANCED] menu or [BASIC] menu can be selected. (→ page 133) The [BASIC] menu contains minimum essentials of menus and commands. ADVANCED NETWORK UTILITY This shows information for projector name, resolution, and network (wired/wireless) which are required to use Advanced Network Utility. Use this information to set up for your computer.

  • Page 129: Network Projector

    5. Using On-Screen Menu NETWORK PROJECTOR This shows information for projector name, resolution, and network (wired/wireless) which are required to use Network Projector. Use this information to set up for your computer. REMOTE DESKTOP CONNECTION This allows you to set up for computer name entry and effects for Remote Desktop. NOTE: • A USB keyboard is required to set up the Remote Desktop Connection.

  • Page 130: Network Settings

    5. Using On-Screen Menu NETWORK SETTINGS Important: • Consult with your network administrator about these settings. • When using a wired LAN connection, connect a LAN cable (Ethernet cable) to the LAN port (RJ-45) of the projector. (→ page 147) TIP: The network settings you make will not be affected even when [RESET] is done from the menu.
  • Page 131 5. Using On-Screen Menu WIRED LAN or WIRELESS LAN (ADVANCED menu only) * To use the wireless LAN functions, connect a separately sold wireless LAN unit to the projector. (→ page 148) PROFILES • Up to two settings for the LAN port or USB wireless LAN unit — can be stored in memory of the projector. Total of four settings can be stored. Five settings can be stored: two for the built-in LAN port, two for wireless LAN and one for WPS. • Select [PROFILE 1] or [PROFILE 2] and then do settings for [DHCP] and the other options. After doing this, select [OK] and press the Enter button. This will store your settings in memory. • To recall the settings from memory: After selecting [PROFILE 1] or [PROFILE 2] from the [PRO- FILES] list. Select [OK] and press the Enter button. • To execute [EASY CONNECTION] using Advanced Network Utility or Advanced Network Utility for Mac, select [WIRELESS LAN] → [PROFILES] → [EASY CONNECTION]. • To stop emitting radio waves from the USB Wireless LAN Unit, select [DISABLE] from the [PROFILES] list.
  • Page 132 5. Using On-Screen Menu PROFILES • When selecting [WPS], the network will be connected by using — settings stored automatically with the WPS function. Selecting [WPS] will allow the projector to access the network by using the settings the WPS function automatically stored. DHCP Place a check mark to automatically assign an IP address to the — projector from your DHCP server. Clear this check box to register the IP address or subnet mask number obtained from your network administrator. IP ADDRESS Set your IP address of the network connected to the projector Up to 12 numeric when [DHCP] is turned off. characters SUBNET MASK Set your subnet mask number of the network connected to the Up to 12 numeric projector when [DHCP] is turned off. characters DEFAULT GATEWAY Set the default gateway of the network connected to the projector Up to 12 numeric when [DHCP] is turned off. characters WINS CONFIGURA- Set the IP address of your WINS server of the network connected Up to 12 numeric TION to the projector when [DHCP] is turned off. characters AUTO DNS Place a check mark to automatically assign the IP address of your Up to 12 numeric DNS server connected to the projector from your DHCP server.
  • Page 133 5. Using On-Screen Menu SITE SURVEY Displays a list of available SSIDs for wireless LAN on site. Select — an SSID which you can access. To select an SSID, highlight [SSID] and use the  to select [OK] and press the Enter button. ����������������������� Wireless access point ����������������������� Ad Hoc PC ����������������������� WEP or WPA enabled SECURITY This will turn on or off the encryption mode for secure transmission. — To use encryption, specify a WEP key or encryption key. Select your security type appropriate for your computer and the wire- less LAN unit. DISABLE ���������������� Will not turn on the encryption feature� Your communications may be monitored by someone� WEP(64bit) ������������...
  • Page 134 5. Using On-Screen Menu When [WEP(64bit)] or [WEP(128bit)] is selected for [SECURITY TYPE] KEY SELECT Selects one WEP key from the four keys below. KEY1, KEY2, KEY3, Enter a WEP key. KEY4 • Maximum number of characters Option Alphanumeric (ASCII) Hexadecimal (HEX) WEP 64bit WEP 128bit When [WPA-PSK], [WPA-EAP], [WPA2-PSK], or [WPA2-EAP] is selected for [SECURITY TYPE] ENCRYPTION TYPE Select [TKIP] or [AES]. Enter encryption key. Key length must be 8 or greater and 63 or less.
  • Page 135 5. Using On-Screen Menu [AUTHENTICATION] (required for wireless only) Setting is required for using WPA-EAP or WPA2-EAP. Preparation before setting Select a wireless LAN compliant WPA-EAP or WPA2-EAP authentication and install a digital certificate on the projector. 1. Set [DATE AND TIME] on the projector. (→ page 137) 2. Use a computer to save digital certificates (files) for WPA-EAP or WPA2-EAP setting to your USB memory device. After completing saving the file, remove the USB memory device from the computer. Important: • The file formats of digital certificate that are supported by the projector are DER and PKCS#12 only. •...
  • Page 136 5. Using On-Screen Menu 4. Select [SITE SURVEY] and press the Enter button. The “SSID” list will be displayed. 5. Select a connecting SSID, and then select [OK]. Finally press the Enter button. • Select the SSID for which WPA-PSK or WPA2-PSK is set. • Select [INFRASTRUCTURE ( )] for [COMMUNICATION MODE]. WPA-PSK, WPA2-PSK, WPA-EAP, or WPA2- EAP is not available when [ADHOC ( )] is selected.
  • Page 137 5. Using On-Screen Menu 11. Select the [AUTHENTICATION] tab. The [AUTHENTICATION] page will be displayed. Select either [EAP-TLS] or [PEAP-MSCHAPv2] for [EAP TYPE]. The setting items vary depending on the EAP type. See the table below. EAP Type Setting Item Note EAP-TLS USER NAME 1 character or more and 32 characters or less CLIENT CERTIFICATE PKCS#12 format file CA CERTIFICATE DER format file...
  • Page 138 5. Using On-Screen Menu 13. S elect [CLIENT CERTIFICATE] and press the Enter button. A list of files (thumbnail screen) will be displayed. • For operating the thumbnail screen, see "4. Using the Viewer" in the “User’s Manual” (PDF). • To return to the [AUTHENTICATION] page, press the Back button. NOTE: Installing a digital certificate You can install each digital certificate (client certificate and CA certificate) for [PROFILE 1 (or 2)] on a file-by-file basis.
  • Page 139 5. Using On-Screen Menu 17. On the thumbnail screen, select a digital certificate (DER format file) saved in your USB memory device and press the Enter button. • Select your root CA certificate here. The selected digital certificate will be installed on the projector. 18. A fter completing required settings, select [OK] and press the Enter button. The [WIRELESS LAN] page will be returned. 19. S elect [RECONNECT] and press the Enter button. 20. S elect [OK] and press the Enter button. This will complete setting [EAP-TLS] for [EAP TYPE] in [WPA-EAP] or [WPA2-EAP]. TIP: Clearing the digital certificate that is installed on the projector To clear the digital certificate installed on the projector, follow the steps below.
  • Page 140 5. Using On-Screen Menu 15. A fter completing setting a user name, select the [PASSWORD] field and press the Enter button. The character entry screen (software keyboard) will be displayed. Set a password. • A password must be 32 characters or less. 16. A fter completing setting the password, select [CA CERTIFICATE] field and press the Enter button. The drive list screen will be displayed. • For operating the thumbnail screen, see "4. Using the Viewer" in the “User’s Manual” (PDF). •...
  • Page 141 5. Using On-Screen Menu 18. A fter completing required settings, select [OK] and press the Enter button. The [WIRELESS LAN] page will be returned. 19. S elect [RECONNECT] and press the Enter button. 20. S elect [OK] and press the Enter button. This will complete setting [PEAP-MSCHAPv2] for [EAP TYPE] in [WPA-EAP] or [WPA2-EAP]. TIP: Clearing the digital certificate that is installed on the projector To clear the digital certificate installed on the projector, follow the steps below. By doing the following procedure, all the digital certificates for the currently displayed profile will be cleared. 1. Select [CLEAR CERTIFICATES] in the bottom left of the [AUTHEN- TICATION] setting screen and press the Enter button. A message for confirmation will be displayed. 2. Select [YES] and press the Enter button. The digital certificates will be cleared. TIP: Entering WEP keys (Switching between Alphanumeric characters and hexadecimal) To enter from [KEY1] to [KEY4], do the following:...
  • Page 142 5. Using On-Screen Menu When the wireless LAN access point connected to the projector supports WPS (Wi-Fi Protected Setup TM), you can use PIN method or push button method to set up the wireless LAN for the projector. PIN TYPE Set a 4-digit or 8 digit-PIN code of WPS for your access point to complete setting for the SSID security. PUSH BUTTON TYPE Press the dedicated button of the access point and the projector’s wireless LAN unit to complete setting for the SSID security. NETWORK INFORMATION The following information will be displayed when the projector is connected to a network (wired LAN or wireless LAN). PROJECTOR NAME HOST NAME DOMAIN NETWORK INFOR- CONNECTION STATUS, IP ADDRESS, SUBNET MASK, DEFAULT GATEWAY, WINS, MATION (WIRED DNS, MAC ADDRESS, SSID, COMMUNICATION MODE, WEP/WPA, CHANNEL, SIG- LAN/WIRELESS LAN) NAL LEVEL, AUTHENTICATION, AUTHENTICATION PERIOD DISPLAY THE INFOR- Turn on or off the display of the network information. MATION IN APPLICA- TION MENU The meanings of these status statements are described below. Statement Authentication status AUTHENTICATED Authentication is done correctly. FAILURE Authentication failed. AUTHENTICATING Authentication is in process. EXPIRED The digital certificate is expired. Or [DATE AND TIME SETTINGS] is not set correctly. TIME ERROR The [DATE AND TIME SETTINGS] has been cleared. Set the correct date and time.
  • Page 143 5. Using On-Screen Menu PROJECTOR NAME (ADVANCED menu only) PROJECTOR NAME Set a unique projector name. Up to 16 alphanu- meric characters and symbols DOMAIN (ADVANCED menu only) Set a host name and domain name of the projector. HOST NAME Set a host name of the projector. Up to 15 alphanumeric characters DOMAIN NAME Set a domain name of the projector. Up to 60 alphanumeric characters...
  • Page 144 This option will notify your computer of lamp replace time or error — messages via e-mail when using wireless or wired LAN. Placing a checkmark will turn on the Alert Mail feature� Clearing a checkmark will turn off the Alert Mail feature� Sample of a message to be sent from the projector: The lamp and filters are at the end of its usable life. Please replace the lamp and filters. Projector Name: Ricoh projector Lamp Hours Used: 100 [H] HOST NAME Type in a host name. Up to 15 alphanumeric characters DOMAIN NAME Type in a domain name of the network connected to the projector. Up to 60 alphanumeric characters SENDER'S ADDRESS Specify the sender’s address.
  • Page 145 5. Using On-Screen Menu NETWORK SERVICE (ADVANCED menu only) HTTP SERVER Set a password for your HTTP server. Up to 10 alphanumeric characters PJLink The Projector Management Utility on the CD-ROM uses PJLink. Up to 32 alphanumeric Set a password for PJLink to use this utility, if necessary. characters NOTE: • Do not forget your password. However, if you forget your password, consult with your dealer. • What is PJLink? PJLink is a standardization of protocol used for controlling projectors of different manufacturers.

  • Page 146: Tools

    5. Using On-Screen Menu TOOLS ADMINISTRATOR MODE This allows you to select MENU MODE, save settings, and set a password for the administrator mode. MENU MODE Select either [BASIC] or [ADVANCED] menu. — (→ page 81) Placing a check mark will not save your projector settings� NOT SAVE SETTING — VALUES Clear this check box to save your projector settings� NEW PASSWORD/ Assign a password for the administrator mode. Up to 10 alphanumeric CONFIRM PASS- characters WORD NOTE: When [LAST] is selected for [DEFAULT SOURCE SELECT], placing a check mark for [NOT SAVE SETTING VALUES] will forcibly select NETWORK for source at every power-on time.
  • Page 147 5. Using On-Screen Menu PROGRAM TIMER This option turns on/off the projector and changes video signals, and selects ECO mode automatically at a specified time. NOTE: • Before using [PROGRAM TIMER], make sure that the [DATE AND TIME] feature is set. (→ page 137) • Make sure that the projector is in the stand by condition with the Power cord connected. •...
  • Page 148 5. Using On-Screen Menu ACTIVE ������������������ Place a check mark to enable the program� DAY ������������������������ Select days of the week for the program timer� To execute the program from Monday to Friday, select [MON- FRI]�To execute the program in everyday basis, select [EVERY DAY]� TIME ����������������������...
  • Page 149 5. Using On-Screen Menu Activating the program timer 1. Select [ENABLE] on the [PROGRAM TIMER] screen and press the Enter button. The [ENABLE] will be activated. 2. Select [OK] and press the Enter button. The [PROGRAM TIMER] screen will be changed to the [TOOLS] screen. NOTE: • Clearing [ENABLE] will disable the Program Timer even when a program is marked with a check mark on [PROGRAM LIST] screen. •...

  • Page 150: Date And Time

    5. Using On-Screen Menu DATE AND TIME You can set the current time, month, date, and year. NOTE: The projector has a built-in clock. The clock will keep working for about 2 weeks after the main power is turned off. If the main power is off for 2 weeks or more, the built-in clock will cease. If the built-in clock ceases, set the date and time again. The built-in clock will not cease while in the standby mode.

  • Page 151: Connecting To Other Equipment

    6. Connecting to Other Equipment 1 Mounting a lens (sold separately) Five separate bayonet style lenses can be used with this projector. The descriptions here are for the PJ Standard Lens Type1 (2x zoom) lens. Mount other lenses in the same manner. NOTE: • The projector and lenses are made of precision parts. Do not subject them to shock or excessive forces. • Remove the separately sold lens when moving the projector. If not, the lens could be subject to shock while the projector is being moved, damaging the lens and the lens shift mechanism.

  • Page 152: Removing The Lens

    6. Connecting to Other Equipment 4. Turn the lens clockwise. Turn until a click is heard. The lens is now fastened onto the projector. TIP: Mounting the lens theft prevention screw Fasten the lens theft prevention screw included with the projector to the bottom of the projector so that the lens cannot be removed easily. Removing the lens 1. While pressing the Lens Release button on the projector’s front panel fully in, turn the lens...

  • Page 153: Making Connections

    6. Connecting to Other Equipment 2 Making Connections The projector can be connected to a computer using the computer cable (included), a BNC cable (5-core type) (commercially available), HDMI cable (commercially available) or DisplayPort cable (commercially available). Analog RGB signal connection • Connect the included computer cable between the computer’s display output connector (mini D-Sub 15-pin) and the projector’s Computer 1 or Computer 2 video input connector. • When connecting the computer’s display output connector (mini D-Sub 15-pin) and the projector’s Computer 3 video input connector, use a BNC cable (5-core) → mini D-Sub 15-pin converter cable. Stereo mini-plug RGB - to - BNC cable audio cable (not (not supplied) supplied)

  • Page 154: Digital Rgb Signal Connection

    6. Connecting to Other Equipment Digital RGB signal connection • Connect a commercially available HDMI cable between the computer’s HDMI output connector and the projector’s HDMI input connector. • Connect a commercially available DisplayPort cable between the computer’s DisplayPort output connector and the projector’s DisplayPort input connector. HDMI cable (not supplied) DisplayPort cable (not supplied) • Select the source name for its appropriate input connector after turning on the projector. Input button on the projector Input connector Button on the remote control cabinet HDMI In HDMI HDMI DisplayPort DisplayPort DisplayPort NOTE: • Turn off the power of the computer and projector before connecting. •...
  • Page 155 6. Connecting to Other Equipment Cautions when connecting an HDMI cable • Use a certified High Speed HDMI Cable or High Speed HDMI Cable with Ethernet. ® ® Cautions when connecting a DisplayPort cable • Use a certified DisplayPort cable. • Depending on the computer, some time may be required until the image is displayed. • Some DisplayPort cables (commercially available) have locks. • To disconnect the cable, press the button on the top of the cable’s connector, then pull the cable out. • No power is supplied from the DisplayPort input connector to the connected device. • When signals from a device that uses a signal converter adapter are connected to the DisplayPort input connector, in some cases the image may not be displayed. • When the HDMI output of a computer is connected to the DisplayPort input connector, use a converter (commercially available). Cautions when using a DVI signal • When the computer has a DVI output connector, use a commercially available converter cable to connect the computer to the projector’s HDMI input connector (only digital video signals can be input). Also, connect the computer’s audio output to the projector’s Computer 2 audio input connector. In this case, switch the HDMI setting...

  • Page 156: Connecting An External Monitor

    6. Connecting to Other Equipment Connecting an External Monitor Computer cable (VGA) Stereo mini-plug audio cable (not supplied) (not supplied) Computer cable (VGA) (supplied) You can connect a separate, external monitor to your projector to simultaneously view on a monitor the computer analog image you’re projecting. NOTE: • Daisy chain connection is not possible. • When audio equipment is connected, the projector speaker is disabled.

  • Page 157: Connecting Your Dvd Player Or Other Av Equipment

    6. Connecting to Other Equipment Connecting Your DVD Player or Other AV Equipment Connecting Video/S-Video Input S-Video cable (not supplied) Video cable (not supplied) Audio cable (not supplied) Audio equipment Audio cable (not supplied) • Select the source name for its appropriate input connector after turning on the projector. Input button on the projector Input connector Button on the remote control cabinet Video In VIDEO Video S-Video In S-Video...

  • Page 158: Connecting Component Input

    6. Connecting to Other Equipment Connecting Component Input RCA (female) - to - BNC (male) Monitor cable Mini D-sub 15P- connector (not supplied) BNC (not supplied) Conversion adapter BNC-pin (not Stereo mini plug - to - RCA audio supplied) cable (not supplied) To Y/Cb/Cr output Green(Y)/ Blue(Cb)/Red (Cr) Audio Equipment...

  • Page 159: Connecting Hdmi Input

    6. Connecting to Other Equipment Connecting HDMI Input You can connect the HDMI output of your DVD player, hard disk player, Blu-ray player, or notebook type PC to the HDMI In connector of your projector. NOTE: The HDMI In connector supports Plug & Play (DDC2B). HDMI cable (not supplied) Use High Speed HDMI ® Cable. Audio cable (not supplied) Input button on the projector Input connector Button on the remote control cabinet HDMI In HDMI HDMI TIP: For users of audio video equipment with an HDMI connector: Select “Enhanced”...

  • Page 160: Connecting To A Wired Lan

    6. Connecting to Other Equipment Connecting to a Wired LAN The projector comes standard with a LAN port (RJ-45) which provides a LAN connection using a LAN cable. To use a LAN connection, you are required to set the LAN on the projector menu. Select [APPLICATION MENU] → [NETWORK SETTINGS] → [WIRED LAN]. (→ page 118). Example of LAN connection Example of wired LAN connection Server LAN cable (not supplied) NOTE: Use a Category 5 or higher LAN cable.

  • Page 161: Connecting To A Wireless Lan (Sold Separately)

    6. Connecting to Other Equipment Connecting to a Wireless LAN (sold separately) The separately sold wireless LAN unit allows you to use a wireless LAN environment. When using the projector in a wireless LAN environment, the IP address and other settings must be made on the projector. Important: • If you use the projector with the USB Wireless LAN Unit in the area where the use of wireless LAN equipment is prohibited, remove the USB Wireless LAN Unit from the projector. • Buy the appropriate USB Wireless LAN Unit for your country or area. NOTE: • The green LED on the USB Wireless LAN Unit flashes to show that the USB Wireless LAN Unit is working. •...
  • Page 162 6. Connecting to Other Equipment 1. Press the button to set the projector to the standby mode, then disconnect the power cord. Filter cover Wait for the projector to fully cool off. 2. Remove the filter cover. Pressing the buttons on the left and right sides of the filter cover upwards, pull the filter cover towards you to remove it.

  • Page 163: To Remove The Wireless Lan Unit

    6. Connecting to Other Equipment To remove the wireless LAN unit 1. Remove the filter unit following steps 1 to 3 above. 2. Remove the wireless LAN unit. If the wireless LAN unit is hard to remove, place a cloth, etc., over needle- nose pliers to grasp the wireless LAN unit and pull it out. NOTE: Do not grasp the wireless LAN unit with excessive force.
  • Page 164 6. Connecting to Other Equipment Example of wireless LAN connection (Network Type → Infrastructure) PC with wireless (→ page 120) PC with built-in wireless LAN card inserted LAN function USB Wireless LAN Unit Wireless access point Wired LAN Example of wireless LAN connection (Network Type → Ad Hoc) USB Wireless LAN Unit PC with wireless PC with built-in wireless LAN card inserted LAN function To enable direct communication (i.e., peer-to-peer) between computers and projectors, you need to select the Ad...

  • Page 165: Maintenance

    7. Maintenance This section describes the simple maintenance procedures you should follow to clean the filters, the lens, the cabinet, and to replace the lamp and the filters. 1 Cleaning the Filters The air-filter sponge keeps dust and dirt from getting inside the projector and should be frequently cleaned. If the filter is dirty or clogged, your projector may overheat. NOTE: The message for filter cleaning will be displayed for one minute after the projector is turned on or off. When the message is displayed, clean the filters. The time to clean the filters is set to [OFF] at time of shipment. (→ page 100) To cancel the message, press any button on the projector cabinet or the remote control.
  • Page 166 7. Maintenance (2) Push the left edges of the filters and remove the two hard honeycomb filters. - The filters cannot be removed by pressing the left and right edges. 4. Use a vacuum cleaner to vacuum all the dust inside. Get rid of dust in the accordion filter. NOTE: •...
  • Page 167 7. Maintenance 8. Put the filter cover back to the projector cabinet. Catch Insert the 4 catches on the top of the filter cover into the grooves in the projector, then press the left and right buttons to close. • Push the filter cover until it clicks into place. 9. Clear the filter usage hours.

  • Page 168: Cleaning The Lens

    7. Maintenance 2 Cleaning the Lens • Turn off the projector before cleaning. • The projector has a plastic lens. Use a commercially available plastic lens cleaner. • Do not scratch or mar the lens surface as a plastic lens is easily scratched. • Never use alcohol or glass lens cleaner as doing so will cause damage to the plastic lens surface. 3 Cleaning the Cabinet Turn off the projector, and unplug the projector before cleaning. • Use a dry soft cloth to wipe dust off the cabinet. If heavily soiled, use a mild detergent. • Never use strong detergents or solvents such as alcohol or thinner. • When cleaning the ventilation slits or the speaker using a vacuum cleaner, do not force the brush of the vacuum cleaner into the slits of the cabinet. Vacuum the dust off the ventilation slits. • Clogged ventilation slits may cause a rise in the internal temperature of the projector, resulting in malfunction. • Do not scratch or hit the cabinet with your fingers or any hard objects • Contact your dealer for cleaning the inside of the projector. NOTE: Do not apply volatile agent such as insecticide on the cabinet, the lens, or the screen.

  • Page 169: Replacing The Lamp And The Filters

    Keep finger prints off the glass surface on the lamp housing. Leaving finger prints on the glass surface might cause an unwanted shadow and poor picture quality. • The projector will turn off and go into standby mode when you continue to use the projector for another 100 hours after the lamp has reached the end of its life. If this happens, be sure to replace the lamp. If you continue to use the lamp after the lamp reaches the end of its life, the lamp bulb may shatter, and pieces of glass may be scattered in the lamp case. Do not touch them as the pieces of glass may cause injury. If this happens, contact your Ricoh dealer for lamp replacement. *NOTE: This message will be displayed under the following conditions: • for one minute after the projector has been powered on • when the (Power) button on the projector cabinet or the Power Standby button on the remote control is pressed To turn off the message, press any button on the projector cabinet or the remote control.
  • Page 170 7. Maintenance To replace the lamp: 1. Remove the lamp cover. (1) L oosen the lamp cover screw • The lamp cover screw is not removable. (2) P ull the bottom of the lamp cover towards you and remove it. 2. Remove the lamp housing. (1) L oosen the two screws securing the lamp housing until the phillips screwdriver goes into a freewheeling condi- tion. • The two screws are not removable. • T here is an interlock on this case to prevent the risk of electrical shock. Do not attempt to circumvent this inter- lock. (2) R emove the lamp housing by holding it. CAUTION: Make sure that the lamp housing is cool enough to before removing it. Interlock Guide hole...
  • Page 171 7. Maintenance 3. Install a new lamp housing. (1) I nsert a new lamp housing until the lamp housing is plugged into the socket. (2) P osition so that the guide hole in the bottom right of the lamp house is over the protrusion on the projector then press all the way in. (3) S ecure it in place with the two screws. • Be sure to tighten the screws. 4. Reattach the lamp cover. (1) I nsert the top edge of the lamp cover into the groove in the projector and close the lamp cover. (2) T ighten the screw to secure the lamp cover. • Be sure to tighten the screw. This completes the lamp replacement. Go on to the filter replacement. NOTE: When you continue to use the projector for another 100 hours after the lamp has reached the end of its life, the projector cannot turn on and the menu is not displayed.
  • Page 172 7. Maintenance To replace the filters: Four filters are packaged with the replacement lamp. Honeycomb filter (coarse mesh): Large and small sizes (attached to the outside of the filter unit) Accordion filter (fine mesh): Large and small sizes (attached to the inside of the filter unit) NOTE: • Replace all four filters at the same time. • Before replacing the filters, wipe off dust and dirt from the projector cabinet. • The projector is precision equipment. Keep out dust and dirt during filter replacement. •...
  • Page 173 7. Maintenance (2) Push the left edges of the filters and remove the two hard honeycomb filters (large and small). • The filters cannot be removed by pressing the left and right edges. 4. Remove dust from the filter unit and the filter cover. Clean both outside and inside. 5. Attach four new filters to the filter unit.

  • Page 174: User Supportware

    8. User Supportware 1 Installing Software Program Installation for Windows software The software programs except Advanced Network Utility for Mac support Windows 7, Windows Vista, and Windows XP. NOTE: • To install or uninstall each software program, the Windows user account must have “Administrator” privilege (Windows 7, Win- dows Vista) or “Computer Administrator” privilege (Windows XP). •...
  • Page 175 8. User Supportware 2 Click a software program you wish to install on the menu window. The installation will start. • Follow the instructions on the installer screens to complete the installation. TIP: Uninstalling a Software Program Preparation: Exit the software program before uninstalling. To uninstall the software program, the Windows user account must have “Administrator” privilege (Windows 7 and Windows Vista) or “Computer Administrator” privilege (Windows XP). • For Windows 7/Windows Vista 1 Click “Start” and then “Control Panel” . The Control Panel window will be displayed. 2 Click “Uninstall a program” under “Programs”...

  • Page 176: Installation For Macintosh Software

    4 Double-click “Advanced Network Utility 2 (Intel).dmg” . The “Advanced Network Utility 2” folder will be displayed. 5 Move the “Advanced Network Utility 2” folder to “Applications” folder using a drag-and-drop operation. TIP: • Uninstalling a software program 1. Put the “Advanced Network Utility 2” folder to the Trash icon. 2. Put the configuration file of Advanced Network Utility to the Trash icon. • The configuration file of Advanced Network Utility is located in “/Users/your user name/Library/Preferences/ jp.co.Ricoh.Advanced Network Utility.plist” .

  • Page 177: Projecting Images Or Videos From The Projector Over A Lan

    8. User Supportware 2 Projecting Images or Videos from the Projector over a LAN (Advanced Network Utility) What you can do with Advanced Network Utility • Using Advanced Network Utility allows you to send the screens of your computers to the projector via wired/wire- less LAN. When “Meeting Mode” is used, projected images can be sent and received between two or more computers. • High-speed, high-quality image transmissions based on compression technology adoption Compression technology adoption allows high-quality images to be sent over the network at high speed, from your computer to the projector.

  • Page 178: Connecting The Projector To A Lan

    8. User Supportware • Projected images can be transferred and saved to computers. When “Meeting Mode” is used, projected images can be sent to the computers of all the participants (attendants) of a “Meeting”. The received images can be saved to your computer with a memo (text data) attached. Attendant Attendant Presenter Attendant • 1-click switching of presenter When switching to another presenter during the conference, the participants (attendants) can simply click a button to switch over to the new presenter. • Central management of the projecting computer Using the Training Mode allows you to use a single computer (Manager) to manage which computer (Attendant) projects. Possible operation includes switching projecting computers to project from, as well as temporarily termi- nating communication with the projector. Mr. D, please start your presentation. Manager Attendant A Attendant D (presenter) Attendant B...

  • Page 179: Basic Operation Of Advanced Network Utility

    (2) Holding a conference (3) Participating in a conference Sending Images to Projector • Connecting projector 1 Turn on the power to the projector for which LAN has been set. 2 Click Windows [Start] → [All Programs] → [Ricoh Projector User Supportware] → [Advanced Network Util- ity] → [Advanced Network Utility], in that order. The “Selection Of Network Connections” window will be displayed. A list of the network equipment connected to your computer will be displayed. 3 Select the network equipment that is to be used and click [OK]. Select the network device displaying “Easy Connection” if the product LAN setting is for “Easy Connection. ” This will call up the “Projector List”...
  • Page 180 8. User Supportware • Stopping or resuming the transmission of images The transmission of the screen of the computer to the projector can be temporarily stopped and then resumed. 1 Click the projector icon ( ) on the Windows taskbar. A pop-up menu will be displayed. 2 Click [Stop Sending]. → The projector icon on the taskbar will change ( NOTE: Even if the screen of the computer is changed in this status, the image projected from the projector does not change. To manipulate the screen that should not be disclosed (projected from the projector), stop transmission.

  • Page 181: Holding Conferences

    8. User Supportware Holding Conferences • Holding conferences 1 Follow steps 1 through 4 in "Connecting projector" of "Sending Images to Projector" (→ page 166). The screen of your computer will be projected from the projector. • Disclose a file to the participants of the conference. NOTE: To disclose a file to the participants, selection can be made only in folder units. Therefore, a folder only having files that can be disclosed to the participants must be created in advance. 1 Click the projector icon ( ) on the Windows taskbar.

  • Page 182: Participating In Conference

    8. User Supportware Participating in Conference • Participating in conferences 1 Click Windows [Start] → [All Programs] → [Ricoh Projector User Supportware] → [Advanced Network Util- ity] → [Advanced Network Utility], in that order. The “Selection Of Network Connections” window will be displayed. A list of the network equipment connected to your computer will be displayed. 2 Select the network equipment that is to be used and click [OK]. Select the network device displaying “Easy Connection” if the product LAN setting is for “Easy Connection. ” This will call up the “...
  • Page 183 8. User Supportware • Changing presenter Three types of settings may be made to change the presenter: “Not Approved” , “Approved” , and “Changing Prohibited” (these can be selected only by the presenter). In the following example, “Not Approved” is selected. • Click [Become A Presenter] in the attendant window. You will change from a participant to a presenter. • Leaving conference Leave the conference and exit Advanced Network Utility. • Click [File] in the attendant window, and click [Exit]. You can also leave the conference by clicking [×] at the upper right of the attendant window.

  • Page 184: Projecting Your Mac's Screen Image From The Projector Over A Lan

    8. User Supportware 3 Projecting Your Mac’s Screen Image from the Projector over a LAN (Advanced Network Utility for Mac) Using Advanced Network Utility for Mac contained allows you to send the Mac’s screen image to the projector over a network (wired or wireless LAN). Advanced Network Utility for Mac runs on Mac OS X 10.4.4 or later. It runs on Mac OS X (Intel). Hereafter, “Advanced Network Utility for Mac” is abbreviated as “Advanced Network Utility” . What you can do with Advanced Network Utility • Via the network images on the screen of your Mac can be sent to the projector and projected on the screen. • One computer can send images to more than one projector. Operating environment Supported OS Mac OS X 10.4.4 (Intel) or later * Advanced Network Utility does not start with Mac OS X for PowerPC.

  • Page 185: Using Advanced Network Utility

    8. User Supportware Using Advanced Network Utility Connecting to a projector 1 Confirm that the projector has been turned on. 2 Click the AirPort status ( ) on the Macintosh menu bar, and click “Turn AirPort On” . (Wireless LAN) The AirPort status is changed to “ ” or “ ” . • AirPort status types and meanings ...AirPort : Off ...AirPort : On ( in infrastructure connection ) ...AirPort : On ( in adhoc connection ) REFERENCE: When the AirPort status (...
  • Page 186 8. User Supportware Stopping/Restarting Image Transmission • Stopping image transmission 1 Click [Tools] on the menu bar, and click [Stop Sending]. Image transmission is temporarily stopped. • Restarting image transmission 1 Click [Tools] on the menu bar, and click [Start Sending]. Image transmission is started again. Exiting Advanced Network Utility 1 Click [Advanced Network Utility 2] on the menu bar, and click [Quit Advanced Network Utility 2]. Advanced Network Utility is exited.

  • Page 187: Jpeg Conversion Tool

    8. User Supportware 4 JPEG Conversion Tool The JPEG Conversion Tool converts JPEG files not supported by the projector, image files in other formats, PowerPoint files, and other similar files into JPEG files. Installing JPEG Conversion Tool NOTE: • To install or uninstall each software program, the Windows user account must have “Administrator” privilege (Windows 7, Win- dows Vista) or “Computer Administrator” privilege (Windows XP). •...

  • Page 188: Managing The Projector Using Projector Management Utility

    8. User Supportware 5 Managing the Projector Using Projector Management Utility Projector Management Utility conforms to the PJLink class 1 standards, and is compatible with all class 1 commands. A maximum of 100 projectors connected to the network can be managed using one computer. Operating environment Supported OS Windows 7 Home Premium Windows 7 Professional Windows 7 Ultimate Windows 7 Enterprise Windows Vista Home Basic Windows Vista Home Premium Windows Vista Business Windows Vista Ultimate Windows Vista Enterprise Windows XP Professional Service Pack 3 or later* * Only 32-bit version Memory Recommended memory size for the operating system of the computer you are using Resolution 800 × 600 pixels or more Installing Projector Management Utility Projector Management Utility is included on the supplied CD-ROM. NOTE: • This software is to control and monitor projectors manufactured by our company. The software may not work properly when used to control other projectors.

  • Page 189: Appendix

    * Figures differ by several % with the table above because the calculation is approximate. Ex.: Throw distance when projecting on a 150" screen with the PJ X6180N using the PJ Standard Lens Type1: According to the “Screen Size (for reference)” table (→ page 179), H (screen width) = 304.8 cm.
  • Page 190 9. Appendix PJ WX6170N Screen size Lens model name PJ Standard Lens PJ Replacement PJ Replacement PJ Replacement PJ Replacement Type1 Lens Type1 Lens Type2 Lens Type3 Lens Type4 30" 0.7 - 1.0 40" 1.3 - 2.5 1.0 - 1.3 60" 1.9 - 3.8 1.5 - 2.0 3.8 - 6.1 5.9 - 9.1 80" 2.6 - 5.1 2.0 - 2.6 5.1 - 8.2 8.0 - 12.2 100" 3.2 - 6.4 2.5 - 3.3 6.3 - 10.2 10.0 - 15.4 120" 3.9 - 7.7 3.1 - 4.0 7.6 - 12.3 12.1 - 18.5 150"...
  • Page 191 9. Appendix Projection range for the different lenses PJ Replacement Lens Type1 PJ X6180N : 0.6 - 2.5m PJ WX6170N : 0.7 - 2.6m 30-500" 40-150" 60-500" 60-500" 40-500" PJ Replacement Lens Type2 PJ X6180N 0.7 - 16.0m PJ WX6170N 0.7 - 16.8m PJ Standard Lens Type1 PJ X6180N : 1.2 - 30.8m PJ WX6170N : 1.3 - 32.4m PJ Replacement Lens Type3 PJ X6180N : 3.6 - 49.2m PJ WX6170N : 3.8 - 51.7m PJ X6180N : 5.7 - 73.8m PJ Replacement Lens Type4 PJ WX6170N : 5.9 - 77.6m...

  • Page 192: Tables Of Screen Sizes And Dimensions

    9. Appendix Tables of screen sizes and dimensions PJ X6180N Size Screen width Screen height (inches) (inches) (cm) (inches) (cm) 4:3 screen size Screen 61.0 45.7 (diagonal) height 81.3 61.0 121.9 91.4 162.6 121.9 203.2 152.4 243.8 182.9 304.8 228.6 Screen width 406.4 304.8 487.7 365.8...

  • Page 193: Lens Shifting Range

    9. Appendix Lens shifting range This projector is equipped with a lens shift function for adjusting the position of the projected image by turning the Lens Shift dials. The lens can be shifted within the range shown below. Description of symbols: V indicates vertical (height of the projected image), H indicates horizontal (width of the projected image). NOTE: The lens shift function cannot be used when using the PJ Replacement Lens Type1. PJ X6180N Width of projected image Desk/front projection 0.5V Height of projected image 0.1V 0.1H 0.1H 0.3H 0.3H...
  • Page 194 9. Appendix Ceiling/front projector 0.3H 0.3H 0.1H 0.1H 0.1V Height of projected image 0.6V Width of projected image Ex.: When projecting on a 150" screen This section is illustrated in the example for PJ X6180N • The following description can apply to the PJ WX6170N (16:10). To calculate, use screen sizes and the maximum value for the lens shift for PJ WX6170N. According to the tables of screen sizes and dimensions (→ page 179), H = 323.1 cm, V = 201.9 cm. Adjustment range in the vertical direction: The projected image can be moved upwards 0.6 × 201.9 cm = 121 cm, downwards 0.1 × 201.9 cm = 20 cm (when the lens is at the center position). For a ceiling/front installation, the above figures are inverted. Adjustment range in the horizontal direction: The projected image can be moved to the left 0.3 × 323.1 cm = 97 cm, to the right 0.3 × 323.1 cm = 97 cm. * Figures differ by several % because the calculation is approximate.

  • Page 195: Compatible Input Signal List

    9. Appendix 2 Compatible Input Signal List Analog RGB Signal Resolution ( dots ) Aspect Ratio Refresh Rate ( Hz ) 640 × 480 4 : 3 60/72/75/85/iMac SVGA 800 × 600 4 : 3 56/60/72/75/85/iMac 1024 × 768 4 : 3 60/70/75/85/iMac XGA+ 1152 ×...
  • Page 196 9. Appendix DisplayPort Signal Resolution ( dots ) Aspect Ratio Refresh Rate ( Hz ) 640 × 480 4 : 3 SVGA 800 × 600 4 : 3 1024 × 768 4 : 3 1280 × 720 16 : 9 WXGA 1280 ×...

  • Page 197: Specifications

    9. Appendix 3 Specifications Model name PJ X6180N/PJ WX6170N Method Three primary color liquid crystal shutter projection method Specifications of main parts Liquid crystal Size PJ X6180N: 0.79" (with MLA) × 3 (aspect ratio: 4:3) panel PJ WX6170N: 0.75" (with MLA) × 3 (aspect ratio: 16:10) Pixels (*1) PJ X6180N: 786,432 (1024 dots × 768 lines) PJ WX6170N: 1,024,000 (1280 dots × 800 lines) Projection lenses Zoom Manual (zoom range depends on lens) Focus Manual Lens shifting Manual Light source 330W AC lamp (264W when Eco mode is on) Optical device Optical isolation by dichroic mirror, combining by dichroic prism Light output (*2) ECO OFF PJ X6180N: 6000 lm, PJ WX6170N: 5500 lm (*3) ECO ON(80 %) PJ X6180N: 4800 lm, PJ WX6170N: 4400 lm Contrast ratio (*2) (all white/all black) 2000:1 Screen size (throw distance) 30" to 500" (throw distance depends on lens) Color reproducibility 10-bit color processing (approx. 1.07 billion colors) (*4) Audio output Built-in 10W monaural speaker Scanning frequency...
  • Page 198 9. Appendix Model name PJ X6180N/PJ WX6170N Input/output connectors Computer/ Video input Mini D-Sub 15-pin × 2, BNC connector × 5 Video output Mini D-Sub 15-pin × 1 Component Audio input Stereo mini jack × 3 Audio output Stereo mini jack × 1 (common for all signals) HDMI Video input HDMI Connector type A × 1 ® Deep Color (color depth): 8-/10-/12-bit compatible Colorimetry: RGB, YcbCr444 and YcbCr422 compatible LipSync compatible, HDCP compatible (*5) Audio input HDMI: Sampling frequency – 32/44.1/48 kHz Sampling bits – 16/20/24 bits DisplayPort Video input DisplayPort × 1 Data rate: 2.7Gbps/1.62Gbps No. lanes: 1 lane/2 lanes/4 lanes Color depth: 6-bit, 8-bit, 10-bit Colorimetry: RGB, YcbCr444 and YcbCr422 compatible HDCP compatible (*5) Audio input DisplayPort: Sampling frequency – 32/44.1/48 kHz Sampling bits – 16/20/24 bits Video Video input RCA × 1 Audio input...

  • Page 199: Cabinet Dimensions

    9. Appendix 4 Cabinet Dimensions Unit: mm (inch) 499 (19.6") Lens center Lens center 250 (9.8") Holes for ceiling mount Unit: mm (inch)

  • Page 200: Pin Assignments Of D-Sub Computer Input Connector

    9. Appendix 5 Pin Assignments of D-Sub Computer Input Connector Mini D-Sub 15 Pin Connector Pin No. RGB Signal (Analog) YCbCr Signal 11 12 13 14 15 Green or Sync on Green Blue Ground Ground Signal Level Red Ground Cr Ground Video signal : 0.7Vp-p (Analog) Green Ground Y Ground Sync signal : TTL level Blue Ground Cb Ground No Connection Sync Signal Ground No Connection Bi-directional DATA (SDA) Horizontal Sync or Composite Sync Vertical Sync...

  • Page 201: Troubleshooting

    9. Appendix 6 Troubleshooting This section helps you resolve problems you may encounter while setting up or using the projector. Indicator Messages Power Indicator Indicator display Projector status Procedure Off Power is off. – Flashing Blue (short flashes) Preparing to turn power on Wait a while. Blue (long flashes) Off timer (enabled) – Program timer (off time enabled) Orange (short Projector cooling Wait a while. flashes) Orange (long flashes) Program timer (on time enabled) Blue Power on – Orange Standby mode (NORMAL or NETWORK – STANDBY) Red Standby mode (POWER-SAVING) –...

  • Page 202: Lamp Indicator

    9. Appendix Lamp Indicator Indicator display Projector status Procedure The lamp is turned off. – Flashing Green Preparing to relight lamp after Wait a while. lighting has failed Lamp replacement grace The lamp has reached the end of its service life and period is now in the replacement grace period (100 hours). Replace the lamp as soon as possible. (→ page 156) Red (cycles Lamp does not light The lamp has not turned on. Wait at least 1 minute, then of 6) turn the power back on. If the lamp still does not light, contact your dealer.

  • Page 203: Common Problems & Solutions

    9. Appendix Common Problems & Solutions (→ "Power Indicator"/"Status Indicator"/"Lamp Indicator" on page 188.) Problem Check These Items Does not turn on • Check that the power cord is plugged in and that the Power button on the projector cabinet or the remote or shut down control is on� (→ pages 13, 14) •...
  • Page 204 9. Appendix Flicker appears on • Set [FAN MODE] to other than [HIGH ALTITUDE] mode when using the projector at altitudes approximately 5500 screen feet/1600 meters or lower� Using the projector at altitudes less than approximately 5500 feet/1600 meters and setting to [HIGH ALTITUDE] can cause the lamp to overcool, causing the image to flicker�...

  • Page 205: If There Is No Picture, Or The Picture Is Not Displayed Correctly

    9. Appendix If there is no picture, or the picture is not displayed correctly. • Power on process for the projector and the PC. Be sure to connect the projector and notebook PC while the projector is in standby mode and before turning on the power to the notebook PC. In most cases the output signal from the notebook PC is not turned on unless connected to the projector before being powered up. NOTE: You can check the horizontal frequency of the current signal in the projector’s menu under Information. If it reads “0kHz”, this means there is no signal being output from the computer.

  • Page 206: Pc Control Codes And Cable Connection

    9. Appendix 7 PC Control Codes and Cable Connection PC Control Codes Function Command Return Power On #PON[CR] =PON[CR] Power Off #PDN[CR] =PDN[CR] Input Select Computer 1 #INP:1[CR] =INP:1[CR] Input Select Computer 2 #INP:3[CR] =INP:3[CR] Input Select Computer 3 #INP:4[CR] =INP:4[CR] Input Select HDMI #INP:5[CR]...
  • Page 207 9. Appendix PC Control Connector (D-SUB 9P) To TxD of PC To RxD of PC To GND of PC To RTS of PC To CTS of PC NOTE 1: Pins 1, 4, 6 and 9 are no used. NOTE 2: Jumper “Request to Send” and “Clear to Send” together on both ends of the cable to simplify cable connection. NOTE 3: For long cable runs it is recommended to set communication speed within projector menus to 9600 bps.
  • Page 208 © 2011 Ricoh Co., Ltd.
  • Page 209 Y013-6220A...

Table of Contents
