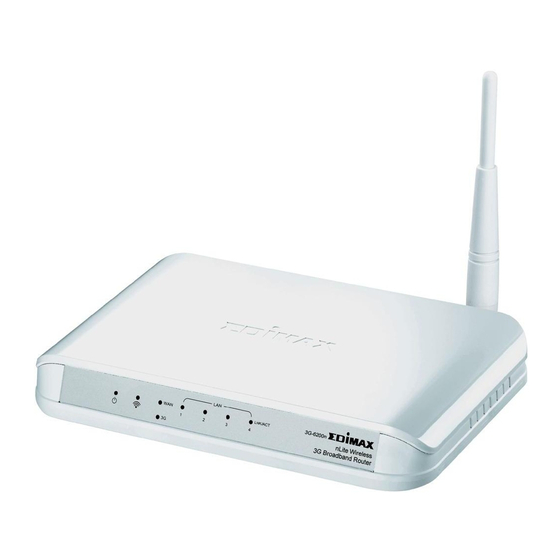

Edimax nLite 3G-6200N User Manual

Wireless 3g broadband router
Hide thumbs Also See for nLite 3G-6200N:
Table of Contents

Advertisement

Quick Links

See also: Manual
Инструкция
Edimax 3G-6200N
Перейти в карточку товара
8 800 775 98 98

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the nLite 3G-6200N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Edimax nLite 3G-6200N

Summary of Contents for Edimax nLite 3G-6200N

  • Page 1 Инструкция Edimax 3G-6200N Перейти в карточку товара 8 800 775 98 98...
  • Page 3 Copyright by Edimax Technology Co, LTD. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical , chemical, manual or otherwise, without the prior written permission of this company.

  • Page 4: Table Of Contents

    Introduction ......................... 4 Chapter 1 ........................18 1.1 Cable Modem ...................... 30 1.2 Fixed-IP xDSL ..................... 31 1.3 PPPoE ........................ 32 1.4 PPTP ........................34 1.5 L2TP ........................36 1.6 Telstra Big Pond ....................38 Chapter 2 ........................40 2.1 System ........................ 42 2.1.1 Time Zone ......................
  • Page 5 2.5.3.5 WPA Radius ....................65 2.5.4 Access Control ....................65 2.6 QoS ........................69 2.7 NAT ........................72 2.7.1 Port Forwarding ....................74 2.7.2 Virtual Server ....................76 2.7.3 Special Applications ..................78 2.7.4 UPnP Settings ....................81 2.7.5 ALG Settings ....................82 2.7.6 Static Routing ....................

  • Page 6: Introduction

    Introduction Thank you for purchasing Edimax 3G-6200n nLite wireless 3G broadband router! This high cost-efficiency router is the best choice for Mobile / Small office / Home office users, all computers and network devices can share a single wireless 3G modem or xDSL / cable** modem internet connection at high speed.
  • Page 7 Features - Provides IEEE 802.11g/b wireless LAN access point - Compatible with IEEE 802.11n standard with 150Mbps data rate - High Internet access throughput - Allow multiple users to share a single Internet connection - Supports up to 253 network client users - Provides one USB port for 3G wireless connection - Internet Access via 3G modem or Cable or xDSL modem - Access Servers on your LAN from the Public Network...
  • Page 8 sends network packets to the Internet in the background, even when you are not using the Internet. So please turn off your computer when you are not using it. This function also may not work with some ISP. So please make sure this function can work properly when you use this function in the first time, especially your ISP charge you by access time.
  • Page 9 Front Panel On the router’s front panel there are LEDs, which shows the status of this router. Below is the list of each LED and its description. Figure 1.1 Light Description Status Router is powered on WAN is connected WAN is unconnected LNK/ACT Flashing WAN port is sending / receiving data LAN port is connected...
  • Page 10 Setup Diagram If you have 3G/3.5G modem card and SIM card, please follow the following instructions to establish connection 1. Connect power adapter to 3G-6200n 2. Connect another Ethernet cable from the any LAN ports (1~4) on router to Ethernet socket on the PC 3.
  • Page 11 If you can also access Internet by xDSL/Cable modem, please follow the following instructions: 1. Connect the Ethernet cable from the router’s WAN port to the LAN port of modem. 2. Connect another Ethernet cable from the any LAN ports (1~4) on router to Ethernet socket on the PC.
  • Page 12 Getting started This is a step-by-step instruction on how to start using the router and get connected to the Internet. 1) Setup your network as shown in the setup diagram above (fig 1.2). 2) You will need to set your LAN PC clients so that it can obtain an IP address automatically.
  • Page 13 Gateway: All fields are blank. DNS Configuration: Select Disable DNS. WINS Configuration: Select Disable WINS Resolution. IP Address: Select Obtain IP address automatically. 8. Reboot the PC. Your PC will now obtain an IP address automatically from your Broadband Router’s DHCP server. Note: Please make sure that the Broadband router is the only DHCP server on your LAN.
  • Page 14 5. Click OK to confirm the setting. Your PC will now obtain an IP address automatically from your Broadband Router’s DHCP server. Note: Please make sure that the Broadband router is the only DHCP server on your LAN. Once you’ve configured your PC to obtain an IP address automatically, please proceed to Step 3 2c) Windows 2000 1.
  • Page 15 6. Click OK to confirm the setting. Your PC will now obtain an IP address automatically from your Broadband Router’s DHCP server. Note: Please make sure that the Broadband router is the only DHCP server on your LAN. Once you’ve configured your PC to obtain an IP address automatically, please proceed to Step 3 2d) Windows NT 1.
  • Page 16 5. After you install TCP/IP, go back to the Network window. Select TCP/IP from the list of Network Protocols and then click the Properties button. 6. Check each of the tabs and verify the following settings: IP Address: Select Obtain an IP address from a DHCP server. DNS: Make all fields blank.
  • Page 17 automatically. To see if you have obtained an IP address, see Appendix Note: Please make sure that the Broadband router’s DHCP server is the only DHCP server on your LAN. If there is another DHCP on your network, then you’ll need to switch one of the DHCP servers off. (To disable the Broadband router’s DHCP server see chapter 2 LAN Port) 4) Once your PC has obtained an IP address from your router, enter the default IP address 192.168.2.1 (broadband router’s IP address) into...
  • Page 18 Quick Setup Wizard (Chapter 1) Select your Internet connection type and setup the configurations needed to connect to your Internet Service Provider (ISP). General Setup (Chapter 2) This section contains configurations for the Broadband router’s advanced functions such as: address mapping, virtual server, access control, hacker attack prevention, DMZ, special applications and other functions to meet your needs.
  • Page 19 Tools) do not need to be configured unless you wish to implement / monitor more advanced features/information. Select the section (Quick Setup Wizard, General Setup, Status Information and Tools) you wish to configure and proceed to the corresponding chapter.

  • Page 20: Chapter 1

    Chapter 1 Quick Setup The Quick Setup section is designed to get you using the broadband router as quickly as possible. In the Quick Setup you are required to fill in only the information necessary to access the Internet. Once you click on the Quick Setup Wizard in the HOME page, you should see the screen below.
  • Page 21 3G-6200n requires to perform this procedure once). If you still not able to connect to Internet, please use wired Internet connection to access our website :http://www.edimax.com/ ,download latest version of firmware and upgrade 3G-6200n’s firmware. If you still not be able to get connected by your 3G/3.5G modem card, please contact your dealer of purchase and provide the...
  • Page 22 If telecomm provider provides you with username / password, please check /User Name / Password box and input the user name / password provided by telecomm service provider, then click ‘OK’ button. Wait for 1 minute (for 3G-6200n to reboot), then you can access Internet. Please input User name &...
  • Page 23 ( C ) Driver / Utility required on PC side Some 3G/3.5G modem card does not work with instructions (A) or (B) listed above (ex. BandLuxe C100S). You need to install 3G/3.5G modem card driver / utility on every PC which needs to access Internet first. After driver / utility installation is complete, every PC will be able to access Internet via 3G/6200n.
  • Page 24 4. Please go to “My computer”, you will see the BandLuxe C100S. Double click the device. 5. The program inside the adapter will prepare to install the driver and utility of the adapter.
  • Page 25 6. Click “Next”. 7. Select “I accept the terms in the license agreement” and click “Next”.
  • Page 26 8. If you want to change the destination folder, please click “Change”. Click “Next” to continue. 9. Click “install”.
  • Page 27 10. The system is installing the driver and utility of the adapter. 11. Install successfully, click “Finish” to close the install wizard.
  • Page 28 12. The utility of C100S will start up automaticity. Please select the “MENU” 13. Click “Setting”. 14. Select the “Auto connect on startup”.
  • Page 29 15. Plug in the C100S into the USB port of the 3G router. 16. The USB adapter will get the IP address from ISP automatically. You can check the Status of the 3G 6200n on the Web site (ex: 192.168.2.1). 17.
  • Page 30 Note : If your SIM card requires entering the PIN code, please enter into the web management of the 3G router. In WAN setting web page, select 3G/3.5G. Enter the PIN code of the adapter. Please input User name & Password in “PPP Settings” and do not input them in “Network Settings”...
  • Page 31 Step 3) Broadband Type ( Connect to Internet via Ethernet ) 3G-6200n provides two types of Internet connection method: wireless (3G/3.5G) or wired connection. You can access internet via USB 3G/3.5G modem card, or via wired xDSL / cable modem connection. However, only one connection method (wireless or wired) can be used at the same time.

  • Page 32: Cable Modem

    Click on one of the WAN type and then proceed to the manual’s relevant sub-section (1.1, 1.2, 1.3, 1.4, 1.5 or 1.6). Click on Back to return to the previous screen. 1.1 Cable Modem Choose Cable Modem if your ISP will assign you with an IP address automatically (i.e.

  • Page 33: Fixed-Ip Xdsl

    1.2 Fixed-IP xDSL Select Fixed-IP xDSL if your ISP has given you a specific IP address for you to use. Your ISP should provide all the information required in this section. Parameters Description IP address This is the IP address that your ISP has given you. Subnet Mask Enter the Subnet Mask provided by your ISP (e.g.

  • Page 34: Pppoe

    1.3 PPPoE Select PPPoE if your ISP requires the PPPoE protocol to connect you to the Internet. Your ISP should provide all the information required in this section. Parameter Description Enter the User Name provided by your ISP for the User Name PPPoE connection Enter the Password provided by your ISP for the...
  • Page 35 Internet exceeds the “Idle Time”. If you select “Manual”, the router will connect to ISP only when you click “Connect” manually from the Web management interface. The WAN connection will not disconnect because of idle timeout. If the WAN line drops and connected at a latter time again, the router will not connect to the ISP by itself.

  • Page 36: Pptp

    1.4 PPTP Select PPTP if your ISP requires the PPTP protocol to connect you to the Internet. Your ISP should provide all the information required in this section. Parameter Description The ISP requires you to obtain an IP address by Obtain an IP DHCP automatically before connecting to the address...
  • Page 37 establish a PPTP connection Enter the Subnet Mask provided by your ISP (e.g. Subnet Mask 255.255.255.0) Gateway Enter the IP address of the ISP’s Gateway Enter the User Name provided by your ISP for the User ID PPTP connection. Sometimes called as Connection Enter the Password provided by your ISP for the Password PPTP connection...

  • Page 38: L2Tp

    software, computer virus or hacker attacks from the Internet. For example, some software sends network packets to the Internet in the background, even when you are not using the Internet. So please turn off your computer when you are not using it.
  • Page 39 address DHCP automatically before connecting to the L2TP server. Your ISP may require a particular MAC address to connect to the Internet. This MAC address is the PC's MAC address that you originally made your Internet connection. Type in this MAC address in this section or use the "Clone MAC Address"...

  • Page 40: Telstra Big Pond

    router will connect to ISP only when you click “Connect” manually from the Web user interface. The WAN connection will not be disconnected due to the idle timeout. If the WAN line breaks down and latter links again, the router will not connect to the ISP by itself.
  • Page 41 Parameter Description User Name Enter the User Name provided by your ISP for the Telstra Big Pond connection Password Enter the Password provided by your ISP for the Telstra Big Pond connection User decide Select if you want to assign the IP of Telstra Big login server Pond’s login server manually.

  • Page 42: Chapter 2

    Chapter 2 General Settings Once you click on the General Setup button at the Home Page, you should see the screen below. If you have already configured the Quick Setup Wizard, you DO NOT need to configure anything thing in the General Setup screen for you to start using the Internet.
  • Page 43 range for your LAN Wireless Setup the wireless LAN’s SSID, WEP key, MAC filtering. You can setup the QoS bandwidth control policy. You can configure the Address Mapping, Virtual Server and Special Applications functions in this section. This allows you to specify what user/packet can pass your router’s NAT.

  • Page 44: System

    2.1 System The system screen allows you to specify a time zone, to change the system password and to specify a remote management user for the broadband router. Parameters Description Select the time zone of the country you are living. Time Zone The router will set its time based on your selection Password...

  • Page 45: Time Zone

    2.1.1 Time Zone The Time Zone allows your router to reference or base its time on the settings configured here, which will affect functions such as Log entries and Firewall settings. Parameter Description Select the time zone of the country you are living. Set Time Zone The router will set its time based on your selection.
  • Page 46 Parameters Description Enter your current password for the remote Current management administrator to login to your Password Broadband router. Note: By default there is NO password New Password Enter your new password Enter your new password again for verification purposes Confirmed Note: If you forget your password, you’ll have to Password...

  • Page 47: Remote Management

    2.1.3 Remote Management The remote management function allows you to designate a host in the Internet the ability to configure the Broadband router from a remote site. Enter the designated host IP Address in the Host IP Address field. Parameters Description This is the IP address of the host in the Internet that will have management/configuration access to the...
  • Page 48 Port The port number of remote management web interface. Enabled Select “Enabled” to enable the remote management function. Click <Apply> at the bottom of the screen to save the configurations. You can now configure other advanced functions or start using the router (with the advanced settings in place)

  • Page 49: 3.5G

    3G-6200n requires to perform this procedure once). If you still not able to connect to Internet, please use wired Internet connection to access our website :http://www.edimax.com/ ,download latest version of firmware and upgrade 3G-6200n’s firmware. If you still not be able to get connected by your 3G/3.5G modem card, please contact your dealer of purchase and provide the...

  • Page 50: B ) Pin Code Or User Name / Password Required

    ( B ) PIN code or user name / password required: Please check the authentication method you want to use. Most of telecomm service providers require you to input PIN Code, please check ‘SIM’ and input the PIN code provided by telecomm service provider. Most of options listed here are optional and you don’t have to provide those information if telecomm service provider doesn’t provide you with those information.

  • Page 51: Dynamic Ip

    Parameters Description Your ISP will assign you an IP address Dynamic IP automatically Static IP Your ISP gave you an IP address already PPPoE Your ISP requires PPPoE connection. Your ISP requires you to use Point-to-Point PPTP Tunneling Protocol (PPTP) connection. L2TP Your ISP requires L2TP connection.

  • Page 52: Static Ip Address

    2.3.2 Static IP Address Select Static IP address if your ISP assigned you with a specific IP address for you to use. Your ISP should provide all the information required in this section. (See chapter 1 “Fixed IP” for more detail) 2.3.3 PPPoE (PPP over Ethernet) Select PPPoE if your ISP requires the PPPoE protocol to connect you to the Internet.

  • Page 53: Dns

    2.3.7 DNS A Domain Name System (DNS) server is like an index of IP addresses and Web addresses. If you type a Web address into your browser, such as www.router.com, a DNS server will find that name in its index and the matching IP address.
  • Page 54 name from the DDNS service providers. This router supports DynDNS, TZO and other common DDNS service providers. Parameters Default Description Enable/Disable Disable Enable/Disable the DDNS function of this router Provider Select a DDNS service provider Domain name Your static domain name that use DDNS The account that your DDNS Account/E-mail...

  • Page 55: Lan

    2.4 LAN The LAN Port screen below allows you to specify a private IP address for your router’s LAN ports as well as a subnet mask for your LAN segment. Parameters Default Description This is the router’s LAN port IP IP address 192.168.2.1 address (Your LAN clients default...
  • Page 56 segment If 802.1d Spanning Tree function is enabled, this router will use the 802.1d Disabled spanning tree protocol to prevent Spanning Tree from network loop happened in the LAN ports. You can enable or disable the DHCP server. By enabling the DHCP server the router will automatically give your LAN clients an IP address.

  • Page 57: Wireless

    2.5 Wireless Wireless Access Point builds a wireless LAN and can let all PCs equipped with IEEE 802.11b or 801.11g wireless network adaptor connect to your Intranet. It supports WEP and WPA2 encryption to enhance the security of your wireless network. Parameters Default Description...

  • Page 58: Basic Settings

    2.5.1 Basic Settings You can set parameters that are used for the wireless stations to connect to this router. The parameters include Mode, ESSID, Channel Number and Associated Client. Parameters Default Description It allows you to set the AP to AP, Bridge or Mode WDS mode.
  • Page 59 “WDS Security Settings” will pop up. You can set the security parameters used to bridge access points together here, when you set your AP in AP Bridge mode. You can refer to section 4.3 “Security Settings” for detailed instructions. Click <Apply> at the bottom of the screen to save the configurations. You can now configure other advanced sections or start using the router (with the advanced settings in place)

  • Page 60: Advanced Settings

    2.5.2 Advanced Settings You can set advanced wireless LAN parameters of this router. The parameters include Authentication Type, Fragment Threshold, RTS Threshold, Beacon Interval, preamble Type, etc. You should not change these parameters unless you know their function and effects. Parameters Description "Fragment Threshold"...
  • Page 61 and waiting for pickup. The “Data Rate” is the rate this access point used to transmit data packets. The access point will use the Data Rate highest possible selected transmission rate to transmit the data packets. We provide”MCS0~MCS7 and Auto” for N Data Rate configuration, and default setting is “Auto”...

  • Page 62: Security

    2.5.3 Security This Router provides complete wireless LAN security functions, include WEP, IEEE 802.11x, IEEE 802.11x with WEP, WPA with pre-shared key and WPA with RADIUS. With these security functions, you can prevent your wireless LAN from illegal access. Please make sure your wireless stations use the same security function.
  • Page 63 Select one of the four keys to encrypt your Default Key data. Only the key you select it in the "Default key" will be used. The WEP keys are used to encrypt data transmitted over the wireless network. Fill the text box by following the rules: 64-bit WEP: input 10-digit Hex values (in the Key 1 –...

  • Page 64: Only

    2.5.3.2 802.1x only IEEE 802.1x is an authentication protocol. Every user must use a valid account to login to this Access Point before accessing the wireless LAN. The authentication is processed by a RADIUS server. This mode only authenticates user by IEEE 802.1x, but it does not encryption the data during communication.

  • Page 65: Wep Static Key

    2.5.3.3 802.1x WEP Static key IEEE 802.1x is an authentication protocol. Every user must use a valid account to login to this Access Point before accessing the wireless LAN. The authentication is processed by a RADIUS server. This mode also uses WEP to encrypt the data during communication.

  • Page 66: Wpa Pre-Shared Key

    2.5.3.4 WPA Pre-shared key Wi-Fi Protected Access (WPA) is an advanced security standard. You can use a pre-shared key to authenticate wireless stations and encrypt data during communication. It uses TKIP or CCMP (AES) to change the encryption key frequently. So the encryption key will not be known by hackers easily, and this will improve security.

  • Page 67: Wpa Radius

    2.5.3.5 WPA Radius Wi-Fi Protected Access (WPA) is an advanced security standard. You can use an external RADIUS server to authenticate wireless stations and provide the session key to encrypt data during communication. It uses TKIP or CCMP (AES) to change the encryption key frequently, and this will improve security.
  • Page 68 Parameters Description Enable wireless Enable wireless access control access control Fill in the "MAC Address" and "Comment" of the wireless station to be added and then click "Add". Add MAC Then this wireless station will be added into the address into the "Current Access Control List"...
  • Page 69 2.5.5 WPS WPS (Wi-Fi Protected Setup) provides a convenient way to establish the connection between this broadband router and wireless clients. Any WPS-compatible wireless clients can establish secure connection with this broadband router with simple push-button type configuration or PinCode type configuration.
  • Page 70 devices. SSID The SSID of this wireless router will be displayed here. Authentication The wireless security authentication mode of this Mode wireless router will be displayed here. Passphrase Key The WPA passphrase will be displayed as asterisk here. Config Mode Select the WPS configuration role of this broadband router.

  • Page 71: Qos

    2.6 QoS The QoS function can classify Internet application traffic by source/destination IP address and port number. You can assign priority for each type of application and reserve bandwidth for it. The packets of applications with higher priority will always go first. Lower priority applications will get bandwidth after higher priority applications get enough bandwidth.
  • Page 72 Bandwidth Total Upload Here you can set the maximum upload bandwidth for Bandwidth all the users of the router. Add a QoS Click “Add”, and the QoS rule form will appear. Click rule into the “Apply” after filling the form and the rule will be added table into the table.
  • Page 73 Parameters Description Rule Name The name of this rule. You can assign the download or upload bandwidth in Kbps (1024 bit per second). You can limit the Bandwidth maximum bandwidth consumed by this rule by selecting “Maximum”. You also can reserve enough bandwidth for this rule by selecting “Guarantee”.

  • Page 74: Nat

    2.7 NAT Network Address Translation (NAT) allows multiple users at your local site to access the Internet through a single Public IP Address or multiple Public IP Addresses. NAT provides Firewall protection from hacker attacks and has the flexibility to allow you to map private IP addresses to public IP addresses for key services such as Websites and FTP.
  • Page 75 support UPnP, like Windows XP, can discover this router automatically and access the Internet through this router without any configuration. The NAT Traversal function provided by UPnP can let applications that support UPnP smoothly connect to Internet sites without any incompatibility problem due to the NAPT port translation.

  • Page 76: Port Forwarding

    2.7.1 Port Forwarding The Port Forwarding allows you to redirect a particular range of service port numbers (from the Internet/WAN Ports) to a particular LAN IP address. It helps you to host some servers behind the router NAT firewall. Parameters Description Enable Port Enable Port Forwarding...
  • Page 77 "Add". Then this Port Forwarding setting will be added into the "Current Port Forwarding Table" below. If you found any typo before adding it and want to correct it, just click "Clear" and the fields will be cleared. If you want to remove some Port Forwarding settings from the “Current Port Forwarding Table", select the Port Forwarding settings you want to remove in the Remove Port...

  • Page 78: Virtual Server

    2.7.2 Virtual Server Use the Virtual Server function when you want different servers/clients in your LAN to handle different service/Internet application type (e.g. Email, FTP, Web server etc.) from the Internet. Computers use numbers called port numbers to recognize a particular service/Internet application type.
  • Page 79 Please note that this list may not be able to list all computers on your local network. Private Port Input the port number of the IP address which provides Internet service. Type Select the type of connection, TCP or UDP. If you’re not sure, please select ‘Both’...

  • Page 80: Special Applications

    2.7.3 Special Applications Some applications require multiple connections, such as Internet games, video conferencing, Internet telephony and others. In this section you can configure the router to support multiple connections for these types of applications. Here are descriptions of every setup items: Item Name Description Enable...
  • Page 81 application, the port number can be a single value, or a range (like 20-50). If you need to input more than one port number and they’re not contiguous, list all port numbers here and separate them by comma ( , ). If the application does not use TCP port, leave it blank.
  • Page 82 When you finished with the settings in this page, you can click ‘Apply’ button to save changes you made in this page, or you can click ‘Cancel’ to discard changes. After you click ‘Apply’ button, you’ll see the following messages: Please click ‘Apply’...

  • Page 83: Upnp Settings

    2.7.4 UPnP Settings With UPnP, all PCs in you Intranet will discover this router automatically. So you do not have to do any configuration for your PC, and they can access the Internet through this router automatically. Parameters Default Description You can Enable or Disable UPnP feature here.

  • Page 84: Alg Settings

    2.7.5 ALG Settings You can select applications that require “Application Layer Gateway” support. Parameters Default Description You can enable “Application Layer Gateway” function, and the router will Enable let selected application correctly pass though the NAT gateway. Click <Apply> at the bottom of the screen to save the configurations. You can now configure other advance sections or start using the router.

  • Page 85: Static Routing

    2.7.6 Static Routing This router provides static routing function when NAT is disabled. With static routing, the router can forward packets according to your routing rules. The IP sharing function will not work any more in static routing mode. Note: The DMZ function of firewall will not work if static routing is enabled.
  • Page 86 Gateway destination LAN. This is the IP of the neighbor router that this router should communicate with on the path to the destination LAN. The number of hops (routers) to pass through to reach Hop Count the destination LAN. Interface The interface that go to the next hop (router).

  • Page 87: Firewall

    2.8 Firewall This broadband router provides extensive firewall protection by restricting connection parameters, thus limiting the risk of hacker attack, and defending against a wide array of common Internet attacks. However, for applications that require unrestricted access to the Internet, you can configure a specific client/server to be located in Demilitarized Zone (DMZ).

  • Page 88: Access Control

    Control can or cannot access to certain Internet applications URL Blocking URL Blocking allows you to specify which URLs can not be accessed by users. The Broadband router's firewall can block common hacker attacks and can log the attack activities. The DMZ function allows you to redirect all packets going to your WAN port IP address to a particular IP address in your LAN.
  • Page 89 decide the behavior of MAC filtering table. If you select deny, all MAC addresses listed in filtering table will be denied from connecting to the network; if you select allow, only MAC addresses listed in filtering table will be able to connect to the network, and rejecting all other network devices.
  • Page 90 To delete one or more entries listed here, please check the box of the mapping entry (under ‘Select’), and click ‘Delete Selected’ button. If you wish to delete all mapping entries, click ‘Delete All’ button. To deselect all checked boxes, click ‘Reset’ button. If you wish to use IP address-based filtering, please use ‘IP Filtering Table’...
  • Page 91 Item Name Description Client PC Description Please input any text to describe this IP address, up to 16 alphanumerical characters. Client PC IP address Please input the starting IP address in the left field, and input the end IP address in the right field to define a range of IP addresses, or just input the IP address in the left field to define a single IP address.
  • Page 92 Service’ table to add a new service of your own: Here are descriptions of every setup items: Item Name Description Protocol Please select the protocol type of this service: TCP or UDP, or ‘Both’. Port Range Please input the port range if this service. For a single port number, just input the number of service port (like ‘110’).
  • Page 93 Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later.
  • Page 94 Fill in “URL/Keyword” and then click “Add”. You can enter the full URL address or the keyword of the web Add URL site you want to block. If you found any typo before Keyword adding it and want to correct it, just click "Reset" and the field will be cleared.

  • Page 95: Dos (Denial Of Service)

    2.8.3 DoS (Denial of Service) The Broadband router's firewall can block common hacker attacks, including Denial of Service, Ping of Death, Port Scan and Sync Flood. If Internet attacks occur the router can log the events. Parameters Description Ping of Death Protect from Ping of Death attack Discard Ping The router’s WAN port will not respond to any Ping From WAN...

  • Page 96: Dmz

    2.8.4 DMZ If you have a local client PC that cannot run some specific Internet application (e.g. Games) properly from behind the NAT firewall, then you can open the client up to unrestricted two-way Internet access by defining a DMZ Host. The DMZ function allows you to redirect all packets going to your WAN port IP address to a particular IP address in your LAN.

  • Page 97: Chapter 3

    Chapter 3 Status The Status section allows you to monitor the current status of your router. You can use the Status page to monitor: the connection status of the Broadband router's WAN/LAN interfaces, the current firmware and hardware version numbers, any illegal attempts to access your network, and information on all DHCP client PCs currently connected to your network.

  • Page 98: Status And Information

    Select one of the above Status selections and proceed to the manual’s relevant sub-section Status and Information The Status and Information section allows you to view the router’s system information Parameters Description You can see the router’s system information, such as the router’s LAN MAC address, WAN MAC address, Information hardware version, serial number, boot code version,...
  • Page 99 3.1 Internet Connection View the Broadband router’s current Internet connection status and other related information Parameters Description This page displays the router’s WAN port and 3G/3.5G Internet (WWAN) connection information, Internet including: WAN IP address, subnet mask, and ISP Connection gateway as well as the primary DNS and secondary DNS being used.

  • Page 100: Device Status

    3.2 Device Status View the broadband router’s current configuration settings. The device status displays the configuration settings you’ve configured in the Quick Setup Wizard/General Setup section. Parameters Description This page shows the broadband router’s current device settings, including: broadband router LAN port’s Device Status current LAN IP address and subnet mask.

  • Page 101: System Log

    3.3 System Log View the operation log of the system. Parameters Description This page shows the system log of the broadband router. It displays any event occurred after system start up. At the bottom of the page, the system log can be saved <Save>...

  • Page 102: Security Log

    3.4 Security Log View any attempts that have been made to gain access to your network. Parameters Description This page shows the current security log of the Broadband router. It displays all attempts tried to access your network. At the bottom of the page, the security log can be Security Log saved <Save>...

  • Page 103: Active Dhcp Client

    3.5 Active DHCP Client This page lists all DHCP clients. Parameters Description This page shows all DHCP clients currently connected to your network. The “Active DHCP Client Table” Active DHCP displays the IP address and the MAC address and Client expiry time of each LAN Client.

  • Page 104: Statistics

    3.6 Statistics View the statistics of packets sent and received on WAN, LAN and Wireless LAN interface. Parameters Description Statistics Shows the statistics of packets sent and received on WAN, LAN and Wireless LAN interface.

  • Page 105: Chapter 4

    Chapter 4 Tool This page includes basic configuration tools of this broadband router, such as Configuration Tools (save or restore configuration settings), Firmware Upgrade (upgrade system firmware) and Reset. Parameters Description You can save the router’s current configuration, Configuration restore the configuration from previously saved Tools configuration files, and restore the router’s factory default settings...

  • Page 106: Firmware Upgrade

    selection, this will set all configurations to its original default settings (e.g. when you purchased the router). Parameters Description Use the "Backup" tool to save the broadband router’s current configuration to a file named "config.bin" on your PC. You can then use the Configuration "Restore"...

  • Page 107: Reset

    Parameters Description This tool allows you to upgrade the broadband router’s system firmware. To upgrade the firmware of your broadband router, you need to download the firmware Firmware file to your local hard disk, and enter that file name and Upgrade path in the appropriate field on this page.
  • Page 108 Parameters Description In the event that the system stops responding or stops functioning, you can perform a reset. Your settings will not be changed. To perform the reset, Reset click on the <APPLY> button. You will be asked to confirm your decision. The reset will be complete when the power LED stops blinking.

  • Page 109: Appendix A

    Appendix A How to find your PC’s IP and MAC address manually 1) In Window’s open the Command Prompt program 2) Type Ipconfig /all and <enter>...
  • Page 110 Your PC’s IP address is the one titled as IP address (192.168.1.77 in this example) The router’s IP address is the one titled as Default Gateway (192.168.1.254 in this example) Your PC’s MAC Address is the one titled as Physical Address (00-50-FC-FE-02-DB in this example)

  • Page 111: Glossary

    Glossary Default Gateway (Router): Every non-router IP device needs a default gateway. When the device sends out an IP packet, if the destination is not in the same network, the device will send the packet to default gateway, which will then forward it to the destination. DHCP: Dynamic Host...
  • Page 112 network mask can also be described simply as “x” number of leading 1’s. When both are represented side by side in their binary forms, all bits in the IP address that correspond to 1’s in the network mask become part of the IP network address, and the remaining bits correspond to the host For example, if the IP address for a device is, in its binary form, 11011001.10110000.10010000.00000111, and if its network mask is,...
  • Page 113 SMTP POP3 H.323 1720 SNMP SNMP Trap HTTP PPTP 1723 PC Anywhere 5631 PC Anywhere 5632 PPPoE: Point-to-Point Protocol over Ethernet. Point-to-Point Protocol is a secure data transmission method originally created for dial-up connections; PPPoE is for Ethernet connections. PPPoE relies on two widely accepted standards, Ethernet and the Point-to-Point Protocol.
  • Page 114 buildings, cities, countries). The Internet is a wide area network, too. Web-based management Graphical User Interface (GUI): Many devices support graphical user interface that is based on the web browser. This means the user can use their familiar web browser (ex. Netscape or Microsoft Internet Explorer) to control/configure or monitor the device being managed.
  • Page 115 Federal Communication Commission Interference Statement FCC Part 68 This equipment complies with Part 68 of the FCC Rules. On the bottom of this equipment is a label that contains the FCC Registration Number and Ringer Equivalence Number (REN) for this equipment. You must provide this information to the telephone company upon request.
  • Page 116 frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:...
  • Page 117 CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interface, in which case the user may be required to make adequate measures. A CE declaration of conformity is available on www.edimax.com N20379...
