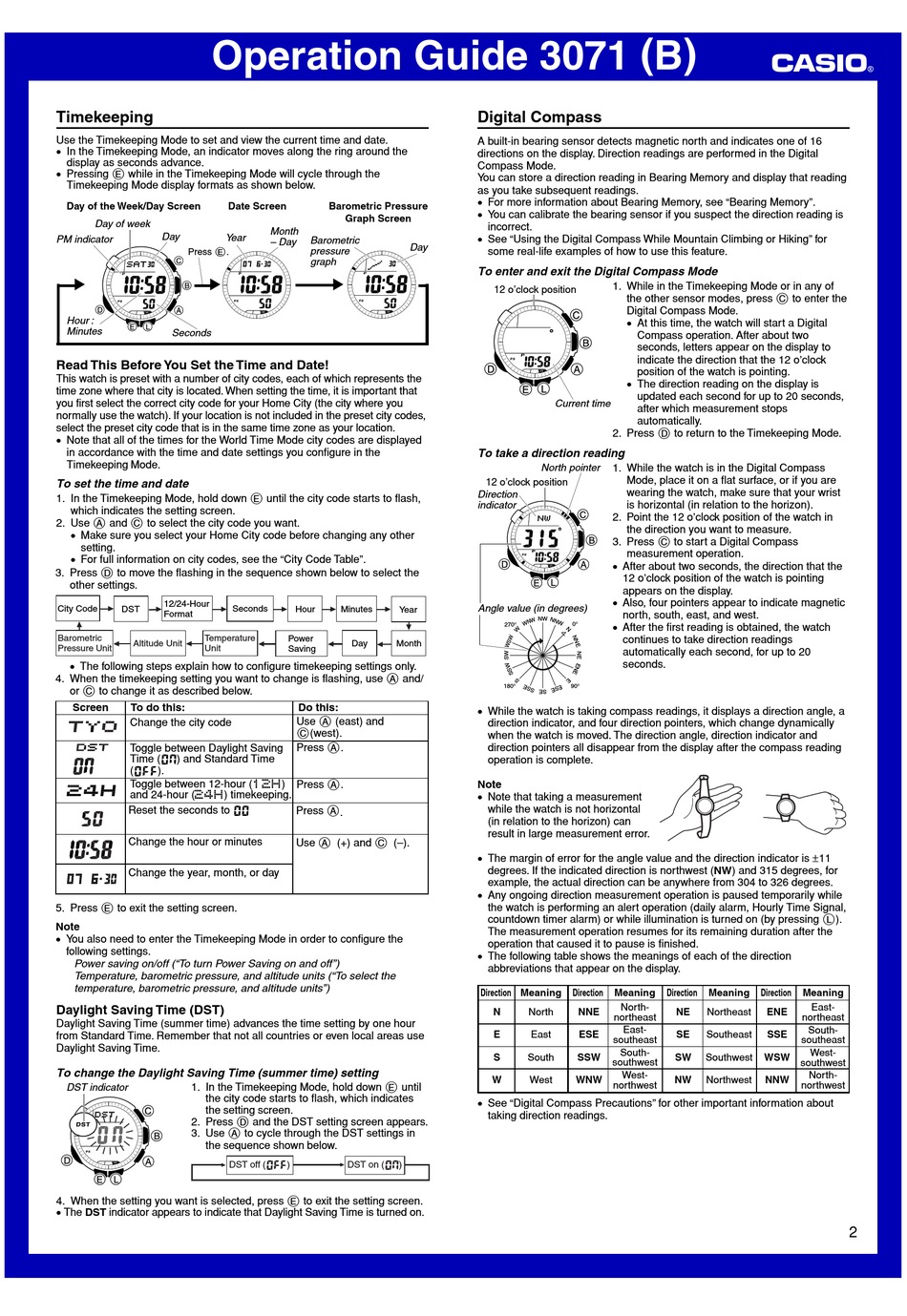

Operation Guide 3071 ( B )
Timekeeping
Use the Timekeeping Mode to set and view the current time and date.
• In the Timekeeping Mode, an indicator moves along the ring around the
display as seconds advance.
• Pressing E while in the Timekeeping Mode will cycle through the
Timekeeping Mode display formats as shown below.
Day of the Week/Day Screen
Day of week
Day
Year
PM indicator
Press E.
Hour :
Minutes
Seconds
Read This Before You Set the Time and Date!
This watch is preset with a number of city codes, each of which represents the
time zone where that city is located. When setting the time, it is important that
you first select the correct city code for your Home City (the city where you
normally use the watch). If your location is not included in the preset city codes,
select the preset city code that is in the same time zone as your location.
• Note that all of the times for the World Time Mode city codes are displayed
in accordance with the time and date settings you configure in the
Timekeeping Mode.
To set the time and date
1. In the Timekeeping Mode, hold down E until the city code starts to flash,
which indicates the setting screen.
2. Use A and C to select the city code you want.
• Make sure you select your Home City code before changing any other
setting.
• For full information on city codes, see the "City Code Table".
3. Press D to move the flashing in the sequence shown below to select the
other settings.
12/24-Hour
City Code
DST
Format
Barometric
Temperature
Altitude Unit
Pressure Unit
Unit
• The following steps explain how to configure timekeeping settings only.
4. When the timekeeping setting you want to change is flashing, use A and/
or C to change it as described below.
Screen
To do this:
Change the city code
Toggle between Daylight Saving
Time (
ON
) and Standard Time
(
OFF
).
Toggle between 12-hour (
and 24-hour (
24H
) timekeeping.
Reset the seconds to
Change the hour or minutes
Change the year, month, or day
5. Press E to exit the setting screen.
Note
• You also need to enter the Timekeeping Mode in order to configure the
following settings.
Power saving on/off ("To turn Power Saving on and off")
Temperature, barometric pressure, and altitude units ("To select the
temperature, barometric pressure, and altitude units")

Daylight Saving Time (DST)

Daylight Saving Time (summer time) advances the time setting by one hour
from Standard Time. Remember that not all countries or even local areas use
Daylight Saving Time.
To change the Daylight Saving Time (summer time) setting
1. In the Timekeeping Mode, hold down E until
DST indicator
the city code starts to flash, which indicates
the setting screen.
2. Press D and the DST setting screen appears.
3. Use A to cycle through the DST settings in
the sequence shown below.
l
4. When the setting you want is selected, press E to exit the setting screen.
• The DST indicator appears to indicate that Daylight Saving Time is turned on.
Date Screen
Barometric Pressure
Graph Screen
Month
Barometric
– Day
pressure
graph
Seconds
Minutes
Hour
Year
Power
Day
Month
Saving
Do this:
Use A (east) and
C(west).
Press A.
Press A.
12H
)
00
Press A .
Use A (+) and C (–).
DST off (OFF)
DST on (ON)

Digital Compass

A built-in bearing sensor detects magnetic north and indicates one of 16
directions on the display. Direction readings are performed in the Digital
Compass Mode.
You can store a direction reading in Bearing Memory and display that reading
as you take subsequent readings.
• For more information about Bearing Memory, see "Bearing Memory".
• You can calibrate the bearing sensor if you suspect the direction reading is
incorrect.
• See "Using the Digital Compass While Mountain Climbing or Hiking" for
Day
some real-life examples of how to use this feature.
To enter and exit the Digital Compass Mode
12 o'clock position
Current time
To take a direction reading
North pointer
12 o'clock position
Direction
indicator
Angle value (in degrees)
NW
270°
180°
90°
• While the watch is taking compass readings, it displays a direction angle, a
direction indicator, and four direction pointers, which change dynamically
when the watch is moved. The direction angle, direction indicator and
direction pointers all disappear from the display after the compass reading
operation is complete.
Note
• Note that taking a measurement
while the watch is not horizontal
(in relation to the horizon) can
result in large measurement error.
• The margin of error for the angle value and the direction indicator is ±11
degrees. If the indicated direction is northwest (NW) and 315 degrees, for
example, the actual direction can be anywhere from 304 to 326 degrees.
• Any ongoing direction measurement operation is paused temporarily while
the watch is performing an alert operation (daily alarm, Hourly Time Signal,
countdown timer alarm) or while illumination is turned on (by pressing L).
The measurement operation resumes for its remaining duration after the
operation that caused it to pause is finished.
• The following table shows the meanings of each of the direction
abbreviations that appear on the display.
Direction Meaning
Direction
N
North
NNE
E
East
ESE
S
South
SSW
W
West
WNW
• See "Digital Compass Precautions" for other important information about
taking direction readings.
1. While in the Timekeeping Mode or in any of
the other sensor modes, press C to enter the
Digital Compass Mode.
• At this time, the watch will start a Digital
Compass operation. After about two
seconds, letters appear on the display to
indicate the direction that the 12 o'clock
position of the watch is pointing.
• The direction reading on the display is
updated each second for up to 20 seconds,
after which measurement stops
automatically.
2. Press D to return to the Timekeeping Mode.
1. While the watch is in the Digital Compass
Mode, place it on a flat surface, or if you are
wearing the watch, make sure that your wrist
is horizontal (in relation to the horizon).
2. Point the 12 o'clock position of the watch in
the direction you want to measure.
3. Press C to start a Digital Compass
measurement operation.
• After about two seconds, the direction that the
12 o'clock position of the watch is pointing
appears on the display.
• Also, four pointers appear to indicate magnetic
north, south, east, and west.
• After the first reading is obtained, the watch
continues to take direction readings
automatically each second, for up to 20
seconds.
Meaning
Direction
Meaning
Direction
North-
NE
Northeast
ENE
northeast
East-
SE
Southeast
SSE
southeast
South-
SW
Southwest
WSW
southwest
West-
NW
Northwest
NNW
northwest
Meaning
East-
northeast
South-
southeast
West-
southwest
North-
northwest
2
