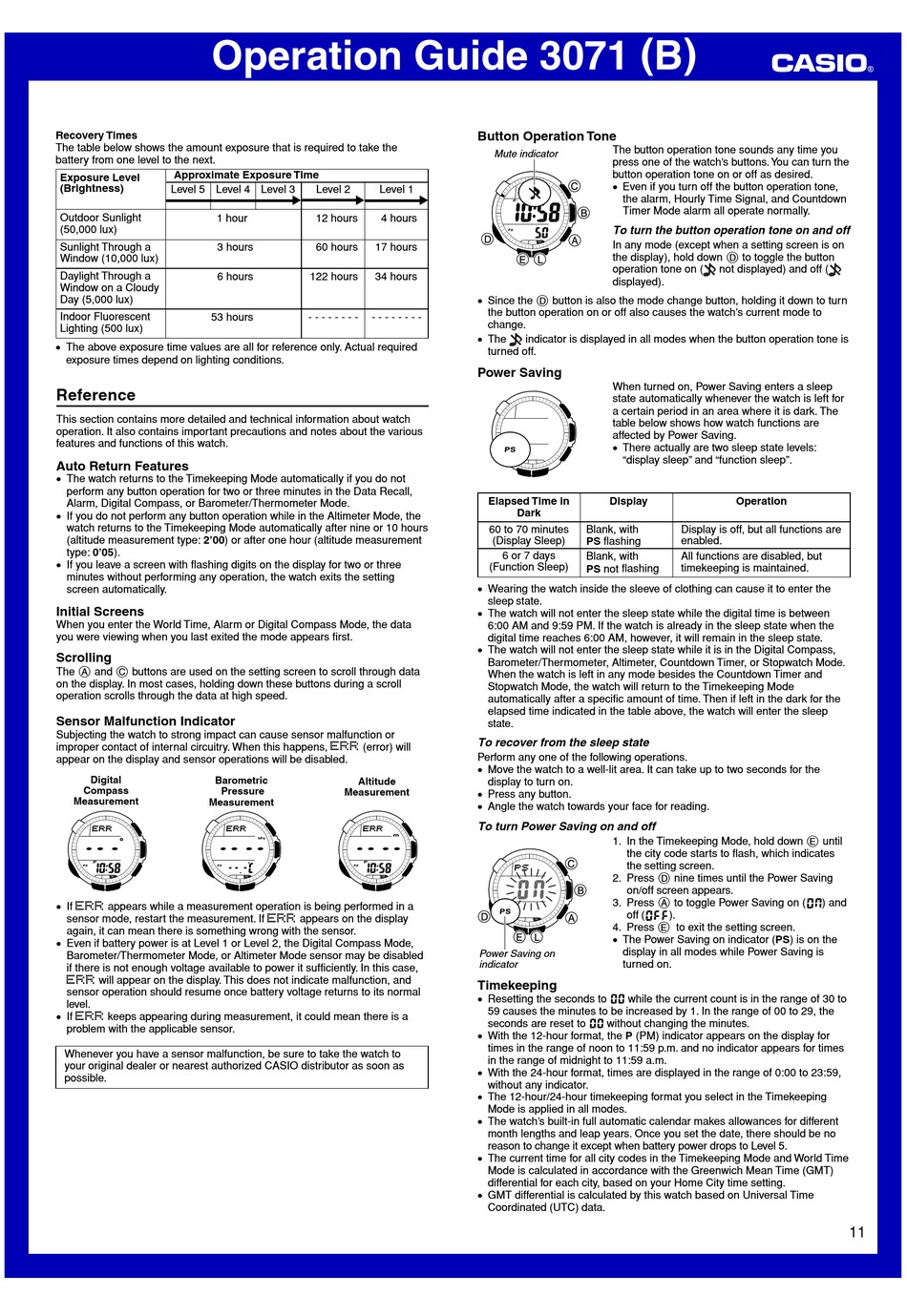

Operation Guide 3071 ( B )
Recovery Times
The table below shows the amount exposure that is required to take the
battery from one level to the next.
Approximate Exposure Time
Exposure Level
Level 5 Level 4 Level 3
Outdoor Sunlight
1 hour
(50,000 lux)
Sunlight Through a
3 hours
Window (10,000 lux)
Daylight Through a
6 hours
Window on a Cloudy
Day (5,000 lux)
Indoor Fluorescent
53 hours
Lighting (500 lux)
• The above exposure time values are all for reference only. Actual required
exposure times depend on lighting conditions.
This section contains more detailed and technical information about watch
operation. It also contains important precautions and notes about the various
features and functions of this watch.
Auto Return Features
• The watch returns to the Timekeeping Mode automatically if you do not
perform any button operation for two or three minutes in the Data Recall,
Alarm, Digital Compass, or Barometer/Thermometer Mode.
• If you do not perform any button operation while in the Altimeter Mode, the
watch returns to the Timekeeping Mode automatically after nine or 10 hours
(altitude measurement type: 2'00) or after one hour (altitude measurement
type: 0'05).
• If you leave a screen with flashing digits on the display for two or three
minutes without performing any operation, the watch exits the setting
screen automatically.
Initial Screens
When you enter the World Time, Alarm or Digital Compass Mode, the data
you were viewing when you last exited the mode appears first.
The A and C buttons are used on the setting screen to scroll through data
on the display. In most cases, holding down these buttons during a scroll
operation scrolls through the data at high speed.
Sensor Malfunction Indicator
Subjecting the watch to strong impact can cause sensor malfunction or
improper contact of internal circuitry. When this happens,
appear on the display and sensor operations will be disabled.
• If
appears while a measurement operation is being performed in a
sensor mode, restart the measurement. If
again, it can mean there is something wrong with the sensor.
• Even if battery power is at Level 1 or Level 2, the Digital Compass Mode,
Barometer/Thermometer Mode, or Altimeter Mode sensor may be disabled
if there is not enough voltage available to power it sufficiently. In this case,
will appear on the display. This does not indicate malfunction, and
sensor operation should resume once battery voltage returns to its normal
• If
keeps appearing during measurement, it could mean there is a
problem with the applicable sensor.
Whenever you have a sensor malfunction, be sure to take the watch to
your original dealer or nearest authorized CASIO distributor as soon as
Level 2
Level 1
12 hours
4 hours
60 hours
17 hours
122 hours
34 hours
- - - - - - - -
- - - - - - - -
(error) will
appears on the display
Button Operation Tone
The button operation tone sounds any time you
Mute indicator
press one of the watch's buttons. You can turn the
button operation tone on or off as desired.
• Even if you turn off the button operation tone,
the alarm, Hourly Time Signal, and Countdown
Timer Mode alarm all operate normally.
To turn the button operation tone on and off
In any mode (except when a setting screen is on
the display), hold down D to toggle the button
operation tone on (
• Since the D button is also the mode change button, holding it down to turn
the button operation on or off also causes the watch's current mode to
• The
indicator is displayed in all modes when the button operation tone is
turned off.
Power Saving
When turned on, Power Saving enters a sleep
state automatically whenever the watch is left for
a certain period in an area where it is dark. The
table below shows how watch functions are
affected by Power Saving.
• There actually are two sleep state levels:
"display sleep" and "function sleep".
Elapsed Time in
60 to 70 minutes
Blank, with
(Display Sleep)
PS flashing
6 or 7 days
Blank, with
(Function Sleep)
PS not flashing
• Wearing the watch inside the sleeve of clothing can cause it to enter the
sleep state.
• The watch will not enter the sleep state while the digital time is between
6:00 AM and 9:59 PM. If the watch is already in the sleep state when the
digital time reaches 6:00 AM, however, it will remain in the sleep state.
• The watch will not enter the sleep state while it is in the Digital Compass,
Barometer/Thermometer, Altimeter, Countdown Timer, or Stopwatch Mode.
When the watch is left in any mode besides the Countdown Timer and
Stopwatch Mode, the watch will return to the Timekeeping Mode
automatically after a specific amount of time. Then if left in the dark for the
elapsed time indicated in the table above, the watch will enter the sleep
To recover from the sleep state
Perform any one of the following operations.
• Move the watch to a well-lit area. It can take up to two seconds for the
display to turn on.
• Press any button.
• Angle the watch towards your face for reading.
To turn Power Saving on and off
1. In the Timekeeping Mode, hold down E until
the city code starts to flash, which indicates
the setting screen.
2. Press D nine times until the Power Saving
on/off screen appears.
3. Press A to toggle Power Saving on (
off (
4. Press E to exit the setting screen.
• The Power Saving on indicator (PS) is on the
display in all modes while Power Saving is
Power Saving on
turned on.
• Resetting the seconds to
while the current count is in the range of 30 to
59 causes the minutes to be increased by 1. In the range of 00 to 29, the
seconds are reset to
without changing the minutes.
• With the 12-hour format, the P (PM) indicator appears on the display for
times in the range of noon to 11:59 p.m. and no indicator appears for times
in the range of midnight to 11:59 a.m.
• With the 24-hour format, times are displayed in the range of 0:00 to 23:59,
without any indicator.
• The 12-hour/24-hour timekeeping format you select in the Timekeeping
Mode is applied in all modes.
• The watch's built-in full automatic calendar makes allowances for different
month lengths and leap years. Once you set the date, there should be no
reason to change it except when battery power drops to Level 5.
• The current time for all city codes in the Timekeeping Mode and World Time
Mode is calculated in accordance with the Greenwich Mean Time (GMT)
differential for each city, based on your Home City time setting.
• GMT differential is calculated by this watch based on Universal Time
Coordinated (UTC) data.
not displayed) and off (
Display is off, but all functions are
All functions are disabled, but
timekeeping is maintained.
) and
