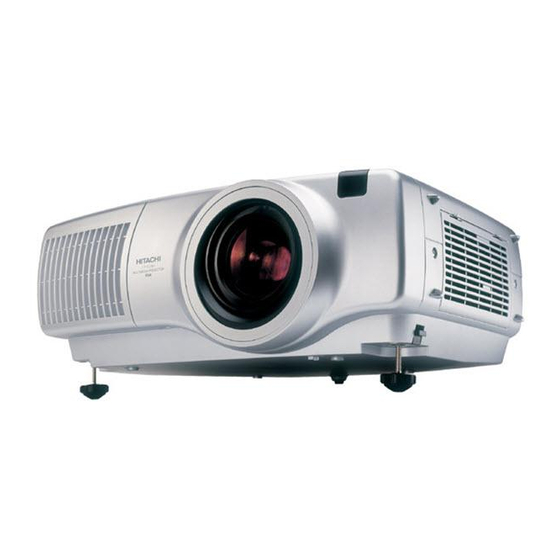

Portable lcd projector
Hide thumbs Also See for CP-X1200:
Table of Contents

Advertisement

Portable LCD Projector
CP-X1200 / CP-X1250
User's Manual - Safety Guide
Please read this user's manual thoroughly to ensure correct usage understanding.
User's Manual - Quick Guide
Please read this user's manual thoroughly to ensure correct usage understanding.
User's Manual - Operating Guide
Please read this user's manual thoroughly to ensure correct usage understanding.
User's Manual - Operating Guide, TECHNICAL
Please read this user's manual thoroughly to ensure correct usage understanding.

Advertisement

Table of Contents
loading

Summary of Contents for Hitachi CP-X1200

  • Page 1 Portable LCD Projector CP-X1200 / CP-X1250 User's Manual - Safety Guide Please read this user's manual thoroughly to ensure correct usage understanding. User's Manual - Quick Guide Please read this user's manual thoroughly to ensure correct usage understanding. User's Manual - Operating Guide Please read this user's manual thoroughly to ensure correct usage understanding.
  • Page 2 Projector WARNING • WARNING CAUTION...
  • Page 3 WARNING Disconnect the plug from the power outlet. Do not disassemble.
  • Page 4 WARNING Surely connect the ground wire.
  • Page 5 WARNING...
  • Page 6 CAUTION Disconnect the plug from the power outlet.
  • Page 7 CAUTION NOTE...
  • Page 8 NOTE Any strong ray (such as direct rays of the sun or room lighting) onto the remote control sensors could invalidate the remote control.
  • Page 9 WARNING HIGH VOLTAGE HIGH TEMPERATURE HIGH PRESSURE...
  • Page 11: Contents Of Package

    Projector CP-X1200/CP-X1250 CP-X1200/CP-X1250 User ’ s Manual – Quick Guide User ’ s Manual – Quick Guide Thank you for purchasing this projector. WARNING Before using, read the "User's Manual - Safety Guide" and these manuals to ensure correct usage through understanding. After reading, store them in a safe place for future reference.
  • Page 12: Connecting To A Computer

    WARNING • Install the projector in a suitable environment according to instructions of the “User’s Manual – Safety Guide”. Please refer to the following for connecting your devices. See the rear of the projector. You can see the ports. Connecting to a computer...
  • Page 13: Connecting To A Monitor

    Audio out (R) Audio out (L) ■ If using a component signal Y out Audio out (R) Audio out (L) AUDIO IN1 AUDIO IN2 Projector RGB OUT AUDIO IN1 Projector AUDIO IN2 AUDIO OUT Projector AUDIO IN1 R-AUDIO IN-L VIDEO...
  • Page 14: Connecting The Power Supply

    • Only plug the power cord into outlets rated for use with the power cord’s specified voltage range. • Only use the power cord that came with the projector. If it is damaged, contact your dealer to newly get correct one.
  • Page 15 Preparing Remote Control Preparing Remote Control WARNING • The laser pointer of the remote control is used in place of a finger or rod. Never look directly into the laser beam outlet or point the laser beam at other people. The laser beam can cause vision problems. CAUTION •...
  • Page 16 Projector CP-X1200/CP-X1250 CP-X1200/CP-X1250 User's Manual - Operating Guide User's Manual - Operating Guide Thank you for purchasing this projector. WARNING Before using, read the "User's Manual - Safety Guide" and these manuals to ensure correct usage through understanding. After reading, store them in a safe place for future reference.
  • Page 17: Projector Features

    Keystone Distortion Correction Quick correction of distorted images electrically. ● Optical Lens Shift The lens of this projector can be shifted vertically. When you want to finely adjust the picture position, use the LENS SHIFT buttons. Preparation Preparation Please see the “Contents Of Package” of the “User’s Manual – Quick Guide”.
  • Page 18: Table Of Contents

    Contents Projector Features … … … … … … … … … … … … … … 2 Preparation … … … … … … … … … … … … … … … … … … … … 2 Part Names …...
  • Page 19: Part Names

    Part Names Part Names Projector Projector (Front/Right) Projector (Rear/Left) Elevator button Elevator foot Remote sensor Lens cap Lens The picture is projected from here. Filter cover An air filter is inside. RGB port M1-D port BNC port AUDIO IN 1 port...
  • Page 20: Control Buttons

    Control Buttons KEYSTONE M1-D INPUT LENS SHIFT COMPONENT ENTER S-VIDEO VIDEO STANDBY/ON Control Panel on the Projector Remote Control STANDBY/ON button LENS SHIFT buttons SEARCH button ZOOM buttons FOCUS buttons KEYSTONE button MENU button RESET button ENTER button Mouse left button)
  • Page 21: Setting Up

    Setting Up Setting Up Arrangement WARNING • Before installation, make sure that the projector is turned off and the power code is disconnected. • Do not set up and move the projector, while it is hot. • Install the projector in a suitable environment according to instructions of the “User’s Manual –...
  • Page 22: Adjusting The Projector's Elevator

    You can use the elevator feet to make adjustments if the surface on which you need to set the projector is uneven or if you otherwise need to adjust the angle of projection. The adjustment range of the elevator feet is 0 to 9 degrees.
  • Page 23: Connecting Your Devices

    • Please take advantage of this function by connecting the accessory RGB cable to the RGB port (DDC 1/2B compatible). Plug-and-Play may not work properly if any other type of connection is attempted. • Please use the standard drivers in your computer as this projector is a Plug-and-Play monitor.
  • Page 24: Examples Of Connection With A Computer

    Setting Up (continued) Setting Up (continued) Please refer to the following (for example) for connecting your devices. See the rear of the projector. You can see the ports. Examples of connection with a computer Computer RGB out RGB cable Audio out...
  • Page 25 ■ If using a component signal Y out Audio out (R) Audio out (L) ■ If using a SCART RGB input SCART RGB out SCART adapter Projector AUDIO IN1 R-AUDIO IN-L VIDEO R-AUDIO IN AUDIO IN2 AUDIO IN-L VIDEO IN S -VIDEO AUDIO IN1...
  • Page 26: Connecting The Power Supply

    • Only plug the power cord into outlets rated for use with the power cord’s specified voltage range. • Only use the power cord that came with the projector. If it is damaged, contact your dealer to newly get correct one.
  • Page 27: Remote Control

    Remote Control Remote Control About The Laser Pointer WARNING • The laser pointer of the remote control is used in place of a finger or rod. Never look directly into the laser beam outlet or point the laser beam at other people.
  • Page 28: Operating The Remote Control

    If it is difficult to send a remote signal to the sensor directly, please try. • Since the remote control uses infrared light to send signals to the projector (Class1 LED), be sure to use the remote control in an area free from obstacles that could block the remote control’s output signal to the projector.
  • Page 29: Using The Mouse/Keyboard Control Function

    Using the USB control feature, you can use the remote control as a simplified mouse or keyboard of the computer. Connect the M1-D port of the projector to the computer via the M1-D cable. Then functions illustrated below will be enabled.
  • Page 30: Power On/Off

    WARNING • When the power is ON, a strong light is emitted. Do not look into the lens or vents of the projector. NOTE • Turn the power on/off in right order. Please power on the projector before the connected devices. Power off the projector after the connected devices. Turning On The Power Remove the lens cap.
  • Page 31: Operating

    Pressing the button automatically cycles through input ports and displays the picture of retrieved signal. If no signal is found or the projector is unstable to memo find an input signal at any of its ports, it will turn to the state it was in prior to the search.
  • Page 32: Selecting The Aspect Ratio

    Operating (continued) Operating (continued) Selecting The Aspect Ratio Press the Aspect button to toggle between the modes for aspect ratio. ■ At a M1-D signal NORMAL NORMAL keeps the original aspect ratio of the memo input signal. ■ At a RGB signal (not M1-D) 16:9 ■...
  • Page 33: Adjusting The Picture Position

    Operating (continued) Operating (continued) Adjusting The Picture Position This function is available only for RGB signals. memo Press the POSITION button. As illustrated on the right, a dialog will appear on the screen to aid you in adjusting the position. Use the cursor buttons position.
  • Page 34: Adjusting The Volume

    Operating (continued) Operating (continued) Adjusting The Volume Press the VOLUME button. As illustrated on the right, a dialog will appear on the screen to aid you in adjusting the volume. Use the cursor buttons adjust the volume. Press the VOLUME button again to close the dialog and complete this operation.
  • Page 35: Freezing The Screen

    NOTE • If the projector continues projecting the same image for a long time (i.e. you forget to exit FREEZE mode), the image might possibly remain as an afterimage. Do not leave the projector in FREEZE mode for too long.
  • Page 36: Displaying The Child Window

    Operating (continued) Operating (continued) Displaying The Child Window This feature called "PinP (Picture in Picture)" is available only when a RGB signal is memo selected to main screen. Press the PinP button. The child window with a picture of a video signal will appear.
  • Page 37: Multifunctional Settings

    Multifunctional Settings Using The Menu Functions This projector has the following menus: MAIN, PICTURE-1, PICTURE-2, INPUT, AUTO, SCREEN, OPTION and NETWORK. Each of these menus is operated using the same methods. The basic operations of these menus are as follows.
  • Page 38: Main Menu

    Multifunctional Settings (continued) Multifunctional Settings (continued) MAIN Menu With the MAIN menu, the items shown in the table below can be performed. Perform each operation in accordance with the instructions in the table below. Item BRIGHT Adjust the brightness using the CONTRAST Adjust the contrast using the Select an aspect ratio using the...
  • Page 39: Picture-1 Menu

    Multifunctional Settings (continued) Multifunctional Settings (continued) PICTURE-1 Menu With the PICTURE-1 menu, the items shown in the table below can be performed. Perform each operation in accordance with the instructions in the table below. Item Select a gamma mode using the NORMAL Selecting the CUSTOM and then pressing the the CUSTOM menu.
  • Page 40 LOAD1 SAVE1 MY MEMORY This projector has 4 numbered memories for adjustment data. Performing the SAVE1, SAVE2, SAVE3 or SAVE4 puts the current adjustment data on the memory whose number corresponds with the command’s number. Performing the LOAD1, LOAD2, LOAD3 or LOAD4 loads the data on the memory whose number corresponds with the command’s number, and adjusts...
  • Page 41: Picture-2 Menu

    Multifunctional Settings (continued) Multifunctional Settings (continued) PICTURE-2 Menu With the PICTURE-2 menu, the items shown in the table below can be performed. Perform each operation in accordance with the instructions in the table below. memo This menu cannot be selected at a M1-D signal. Item Adjust the vertical position using the V POSITION...
  • Page 42: Input Menu

    Multifunctional Settings (continued) Multifunctional Settings (continued) INPUT Menu With the INPUT menu, the items shown in the table below can be performed. Perform each operation in accordance with the instructions in the table below. Item Select a color space mode using the AUTO Selecting the AUTO automatically selects the optimum mode.
  • Page 43 Select the display position of the child window using the P.IN P. POSIT. memo Window”. Select a signal input port to display just when the projector is turned on, using POWERUP INPUT LAST INPUT Selecting the LAST INPUT selects the port that was used at the last time.
  • Page 44: Auto Menu

    Long (max. 99 minutes) POWER OFF When the time is set to 1 to 99, the projector lamp will go off and the STANDBY/ON indicator begins blinking when the passed time with a proper signal (without no-signal and an unsuitable signal) reaches at the set time.
  • Page 45 S-VIDEO COMPONENT When the TURN ON is selected, pressing the RGB button selects the If no signal is found or the projector is unstable to find an input signal at button to reset the AUTO menu items. : CANCEL buttons. :...
  • Page 46: Screen Menu

    Multifunctional Settings (continued) Multifunctional Settings (continued) SCREEN Menu With the SCREEN menu, the items shown in the table below can be performed. Perform each operation in accordance with the instructions in the table below. Item Select a type of the BLANK screen using the MyScreen The BLANK screen is the screen, which is displayed by pressing the BLANK button.
  • Page 47 Multifunctional Settings (continued) Multifunctional Settings (continued) SCREEN Menu (continued) Item Select the TURN ON or the TURN OFF using the TURN ON When the TURN ON is selected, the following message function works. The message of the “AUTO IN PROGRESS” for the auto adjustment. The message of the ”NO INPUT IS DETECTED”...
  • Page 48: Option Menu

    Always at least one sensor is on. Select a number as an ID number for remote control using the The projector is controlled by the remote control whose ID CHANGE switch is IR REMOTE ID set into the position of the same number as this number. When the ALL is selected, the projector is controlled by a remote control irrespective of the position of the ID CHANGE switch.
  • Page 49 The HIGH ups rotation speeds of fans, though. Please use this function in using a projector at highlands etc. memo Note that the projector is noisier when the HIGH is selected. Select the ENABLE or the DISABLE using the buttons. :...
  • Page 50: Network Menu

    This item performs only when the TURN OFF is set to the item “DHCP” of this NETWORK menu. The IP Address is identification number of the projector on the Network. 1. Set the IP Address using the memo The same number as the IP Address of other units cannot be used.
  • Page 51: Network Setting Up

    Web Browser of the computer connected to the Network. Although it needs a Web Browser of Internet Explorer 4.0 or higher. Input the same IP address as set to the projector, to the Web Browser of the computer connected to LAN.
  • Page 52: Lamp

    Lamp WARNING The projector uses a high-pressure mercury glass lamp. The lamp can break with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them.
  • Page 53: Replacing The Lamp

    If the indicators or a message prompts you to replace the lamp, replace the lamp as soon as possible. Turn off the projector, and unplug the power cord. Allow the lamp bulb to cool for at least 45 minutes. Contact your dealer to prepare a new lamp. Tell the dealer your lamp type number.
  • Page 54: Air Filter

    45 minutes for the lamp to cool sufficiently. • Use only the air filter of the specified type NJ08081. • Do not use the projector with the air filter and filter cover removed. The use without the air filter could result in damage.
  • Page 55: Other Care

    • Do not polish or wipe with hard objects. Caring For The Inside Of The Projector In order to ensure the safe use of your projector, please have it cleaned and inspected by your local dealer about once every 2 years.
  • Page 56: Troubleshooting

    This projector is equipped with an automatic shut-down function, such that the power will automatically be turned off when lamp usage time has reached 2000 hours.
  • Page 57 The internal portion temperature is rising. Please turn the power OFF, and allow the unit to cool down at least 20 minutes. After the projector has sufficiently cooled down, please make confirmation of the following items, and then turn the power on again.
  • Page 58: Regarding The Indicator Lamps

    In such a case, press the “○” (OFF) side of the main power switch, and wait at least 45 minutes. After the projector has sufficiently cooled down, please make confirmation of the attachment state of the lamp and lamp cover, and then turn the power on again.
  • Page 59 Please turn the power off, and allow the unit to cool down at Turned least 45 minutes. After the projector has sufficiently cooled down, please make confirmation of the attachment state of the lamp and lamp cover, and then turn the power on again.
  • Page 60: Phenomena That May Easily Be Mistaken For Machine Defects

    (continued) Phenomena That May Easily Be Mistaken For Machine Defects WARNING • Never use the projector if abnormal operations such as smoke, strange odor, excessive sound, damaged casing or elements or cables, penetration of liquids or foreign matter, etc. should occur. In such cases, immediately...
  • Page 61 roubleshooting (continued) roubleshooting (continued) Phenomena That May Easily Be Mistaken For Machine Defects (continued) Phenomenon The signal cables are not correctly connected. Correctly connect the connection cables. The volume is adjusted to an extremely low level. Pictures are Adjust the VOLUME to a higher level. displayed, The sound is muted.
  • Page 62: Warranty And After-Service

    Ports Lamp Optional Air filter Parts Others Specification Liquid crystal projector 2.5 cm (0.99 type) TFT active matrix 786,432 pixels (1024 horizontal x 768 vertical) Zoom lens F=1.7 ~ 2.4 f=30.5 ~ 45.8 mm 310W UHB 1.0W + 1.0W (Stereo) AC100 ~ 120V, 5.2A / AC220 ~ 240V, 2.2A...
  • Page 63 Projector CP-X1200/CP-X1250 CP-X1200/CP-X1250 User's Manual - Operating Guide User's Manual - Operating Guide TECHNICAL Dimensions Dimensions 85.5 (Lens shift 1:1) to 92.99 (Lens shift 10:0) 10:0 [unit: mm]...
  • Page 64 Refer to the number of display pixels above. • Although the projector can display signals with resolution up to UXGA (1600 x 1200), the signal will be converted to the projector’s panel resolution before being displayed. The best display performance will be achieved if the resolutions of the input signal and projector panel are identical.
  • Page 65 Initial Set Signals Initial Set Signals The following signals are used for the initial settings. The signal timing of some computer models may be different. In such case, adjust the items V POSITION and H POSITION in the PICTURE-2 menu. Back porch b Display interval c DATA...
  • Page 66: Audio Out

    Connection T Connection T 5 4 3 2 1 e w q = - D-Sub 15 pin shrink jack Signal Video input Red Video input Green Video input Blue Ground M1-D iuytrewq=- 654321 M1-D jack Signal T.M.D.S. Data2 + T.M.D.S. Data2 - T.M.D.S.
  • Page 67 Video input Red Video input Green Video input Blue Ground REMOTE CONTROL • 3.5 dia. Stereo mini jack • To be connected with the remote control that came with the projector. DC OUT CONTROL REMOTE CONTROL AUDIO IN1 AUDIO OUT...
  • Page 68 Connection T Connection T RGB OUT CONTROL port 1 2 3 4 5 5 4 3 2 1 6 7 8 9 9 8 7 6 D-Sub 9 pin D-Sub 9 pin plug jack About the details of RS-232C communication, please refer to the memo following page.
  • Page 69: Communications Setting

    Connecting The Cable Turn off the projector and the computer power supplies. Connect the CONTROL port of the projector with a RS-232C port of the computer by a RS-232C cable. Use the cable that fulfills the specification shown in the previous page.
  • Page 70 • Provide an interval of at least 40ms between the response code and any other code. • The projector outputs test data when the power supply is switched ON, and when the lamp is lit. Ignore this data. • Commands are not accepted during warm-up.
  • Page 71 RS-232CCommunication (continued) RS-232CCommunication (continued) Command Data Chart Names Operation type Keystone V Increment Decrement Keystone V Reset Execute Keystone H Increment Decrement Keystone H Reset Execute Brightness Increment Decrement Brightness Reset Execute Contrast Increment Decrement Contrast Reset Execute 16:9 Aspect SMALL NORMAL NORMAL...
  • Page 72: Header

    RS-232CCommunication (continued) RS-232CCommunication (continued) Command Data Chart (continued) Names Operation type ENGLISH FRANÇAIS DEUTSCH ESPAÑOL ITALIANO NORSK NEDERLANDS PORTUGUÊS Language 日本語 SVENSKA SUOMI POLSKI NORMAL CINEMA Gamma DYNAMIC CUSTOM Custom Gamma Increment Decrement Custom MIDDLE Color Temp Custom User R Custom User G Header BE EF...
  • Page 73 RS-232CCommunication (continued) RS-232CCommunication (continued) Command Data Chart (continued) Names Operation type Custom User B Color Balance R Increment Decrement Color Balance R Execute Reset Color Balance G Increment Decrement Color Balance G Execute Reset Color Balance B Increment Decrement Color Balance B Execute Reset Sharpness...
  • Page 74: Command Data

    RS-232CCommunication (continued) RS-232CCommunication (continued) Command Data Chart (continued) Names Operation type V Position Increment Decrement V Position Reset Execute H Position Increment Decrement H Position Reset Execute H Phase Increment Decrement H Size Increment Decrement H Size Reset Execute Over Scan Increment Decrement Over Scan Reset...
  • Page 75 RS-232CCommunication (continued) RS-232CCommunication (continued) Command Data Chart (continued) Names Operation type MIDDLE Video NR HIGH TURN OFF S2-Aspect TURN ON Auto Adjust Execute Auto off Increment Decrement TURN OFF Auto Search TURN ON My Screen Original Blue Blank Color White Black TURN OFF TURN ON...
  • Page 76: Get

    RS-232CCommunication (continued) RS-232CCommunication (continued) Command Data Chart (continued) Names Operation type Volume Increment Decrement TURN ON Mute TURN OFF Lamp Time Lamp Time Reset Execute Filter Time Filter Time Reset Execute Magnify Increment Decrement Normal Freeze TURN OFF TURN ON Power Input Source S-Video...
  • Page 77 RS-232CCommunication (continued) RS-232CCommunication (continued) Command Data Chart (continued) Names Operation type Large PinP Size Small Upper Left Upper Right PinP Position Bottom Left Bottom Right PinP Audio Ch Video Video PinP Input S-Video Full Myscreen size Myscreen Lock IR Remote Front IR Remote Rear IR Remote Top Header...
  • Page 78 RS-232CCommunication (continued) RS-232CCommunication (continued) Command Data Chart (continued) Names Operation type Power Up Source Auto Adjust Enable Internal Speaker Lens Lock Remote ID Auto Power On Lens Header Last Ch BE EF 06 00 M1-D BE EF 06 00 BE EF 06 00 BE EF 06 00...
