Toa BG-2035 Description

BG-2035/2060/2120
Mixer Amplifier
DESCRIPTION
TOA's BG-2000 Series reflects user demands for affordable, performance-focused
mixer-amplifiers optimized for BGM applications. These units provide 5 mixer inputs
(incl. a slot for an optional input module), making them ideal for use in retail stores,
schools and restaurants, delivering satisfactory power output and the reliable, high-
performance audio that TOA has earned its reputation for.
Designed for easy installation and maintenance, these tough, rack-mountable units
are fitted with removable terminal blocks and rear panel-mounted DIP switches. This
allows quick system installation and configuration changes. An input assignable
MOH/ZONE 2 OUT provides system expansion capability for a 2-zone broadcast if
required. The BG-2000 Series features the total reliability that TOA builds into its
products, these compact and attractively priced amplifiers make it easy to offer BGM
wherever desired.
FEATURES
• Compact five channel Mixer-Amplifier for paging, background/foreground music
distribution and music/messaging-on-hold.
• All inputs/outputs with removable terminal blocks allow quick and easy installation.
• Any of five inputs assignable to MOH/ZONE 2 output.
• RCA pin jacks for LINES 2 & 3.
• Phantom Power (+ 24V DC) incorporated for MIC input.
• Module slot accepts 900 Series input plug-in modules for custom system configurations.
• Rear panel-mounted DIP switches allow easy configuring of settings.
• Provides auto/manual mute function with adjustable muting sensitivity.
• Incorporates Remote volume control connection.
• 2-channel broadcast capability together with zone 2 expansion capability in
conjunction with BA-200 Series.
• Tamper-proof, front-panel bass and treble controls are recessed to protect their
settings.
• Thermal protection circuitry prevents potential damage from excessive heat build-up.
• AC Mains Circuit Breaker.
• Accessory security knobs for volume control prevent unauthorized volume setting
changes.
• Optional rack-mount kit.
• UL/cUL Listed.
• Five Year Warranty.

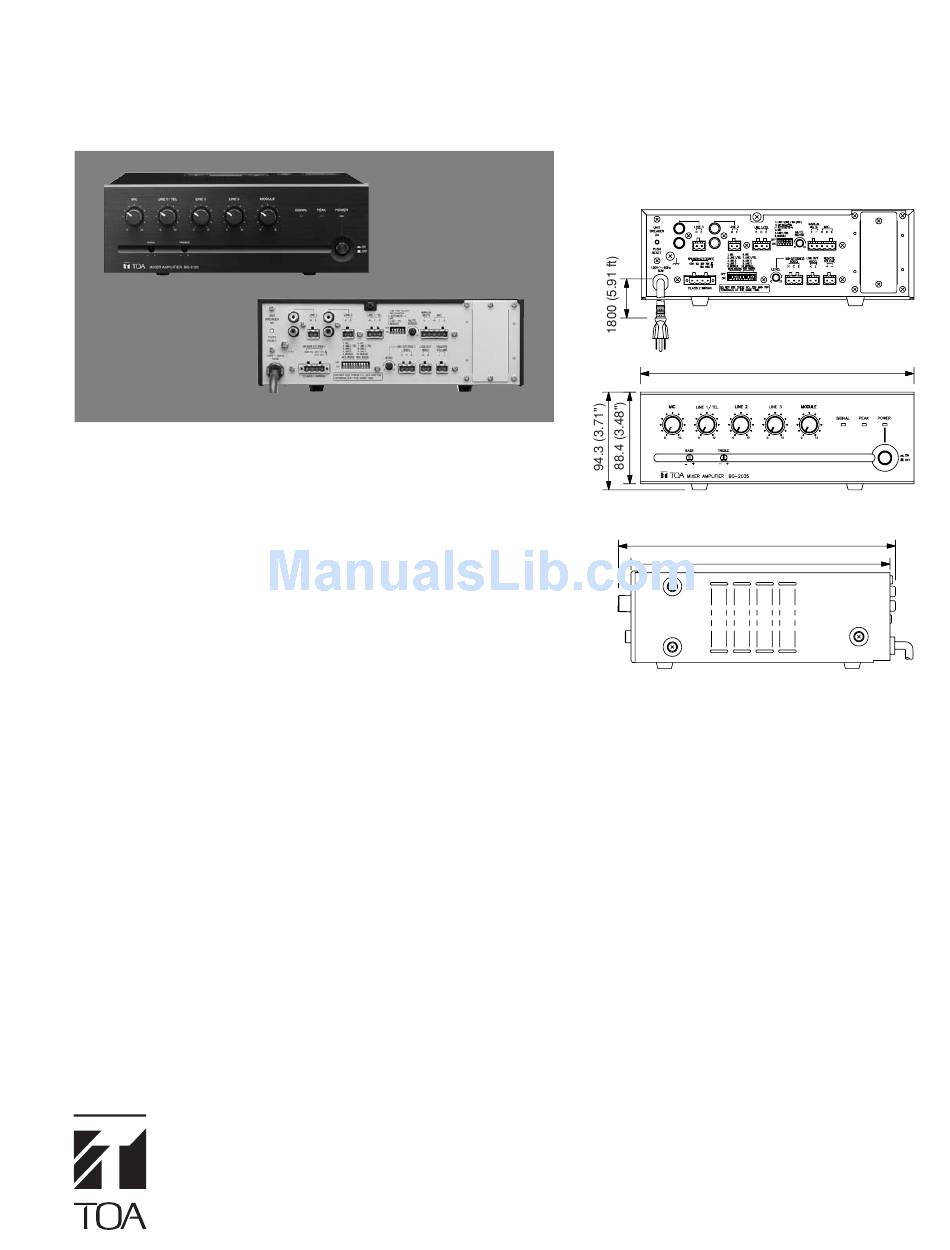

APPEARANCE AND
DIMENSIONAL DIAGRAM
Rear View
264 (10.39")
Front View
267.3 (10.52")
250 (9.84")
Side View
TOA Corporation BG-2000 Series 1/3
unit:mm
