- Page 1 WHITE WHITE MODEL W1750C D’LITE INSTRUCTION BOOK Call Toll Free 800-331-3164 www.whitesewing .com...
- Page 5 20.Carrying Handle 21 .Power Switch 22.Controller Plug 23.Terminal Box 24.Power Line Cord 25.Foot Controfler 26.Lower Thread Guide 27.Needle Threader Lever 28.Needle Threader 29.Buttonhole Lever 30.Presser Foot Thumb screw 31 .Needle Plate 32.Slide Cover 33.Presser Foot Lifter 34.Thread Cutter 5 NeedI Clamp Screw 36.Needle Thread Guide 37Presser Foot 38.Drop Feed Lever...
- Page 8 _______ _______...
- Page 9 Place the machine on a stable table. POLARIZED PLUG INFORMATION This appliance has a polarized plug (one 1 .Connect the power line cord to the blade wider than the other). To reduce the machine by inserting the 2hole plug into risk of electric shock, this plug is intended t the terminal box.
- Page 12 <>...
- Page 13 1 Remove the slide cover by sliding the locker to right and push down the left corner of slide cover. At the same time. 2.Remov e the bobbin from the machine . 1 .Pivot spool pin into highest horizont al spool pin position . 2.Pass a spool of thread on the spool pin.
- Page 15 THREADING THE MACHINE THREADING THE UPPER THREAD 1 Raise the presser foot lifter. 2.Press the needle up/down button and set needle in up position. 3.Place a spool of thread onto spool pin and set the spool cap. 4.Pass thread through thread guide. 5.Pass thread along the arrow marks on machine.
- Page 19 ADJUST ING THE THREA D TENSIO NS The thread tension must be properly it can be balanced. If adjustment is required, made by changing the upper thread tension. A. Correct Thread Tension Upper and bobbin threads should lock approximately in the middle of fabric. B.When bobbin thread appears on top side of fabric.
- Page 27 —...
- Page 28 FEED DOG CONTROL The feed dogs control the movement of the fabric that is being sewn. They should be raised for all general sewing purposes and lowered for darning, freehand embroidery and monogramming so that you, not the feed dogs, are moving the fabric. -26-...
- Page 30 INSERT ZIPPER S AND PIPING ZIPPER S Attach the zipper foot which can be snapped on to the right or the or left of the foot sew you can stitch close to the zipper on the right or left side. Illustration 1 :Needle to the left of foot 2:Needle to the right of foot To insert zippers, consult the zipper package for...
- Page 31 =-—...
Need help?
Do you have a question about the White W1750C and is the answer not in the manual?
Questions and answers

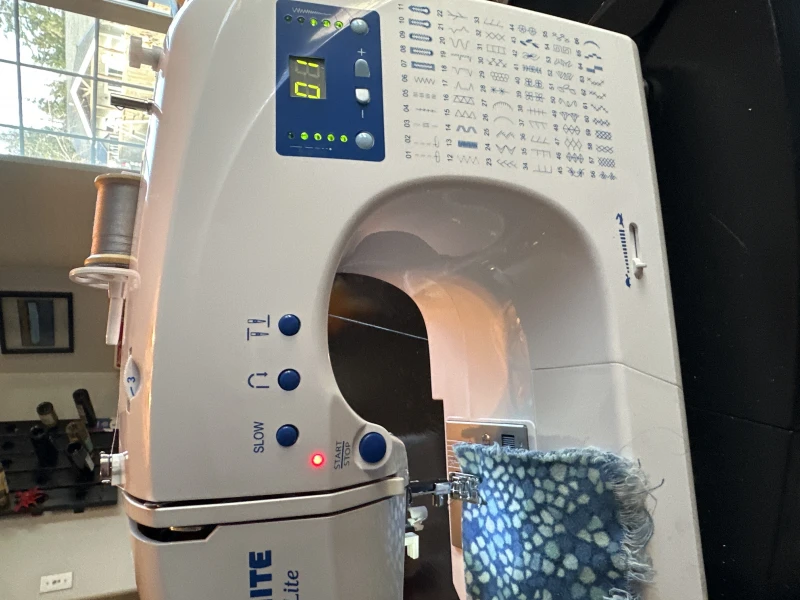

Impress the presser foot and the machine beeps but does not sew?
