  • Page 1 H67MS-E33 seres MS-7680 (v1.x) Manboard G52-76801X6...

  • Page 2: CopyrGht NotCe

    Alternatvely, please try the followng help resources for further gudance. ◙ Vst the MSI webste for FAQ, techncal gude, BIOS updates, drver updates, and other nformaton: http://www.ms.com/ndex.php?func=servce ◙ Contact our techncal staff at: http://ocss.ms.com...

  • Page 3: Safety InstructOns

    MS-7680 MS-7680 Safety Instructons ￭ Always read the safety nstructons carefully. ￭ Keep ths User’s Manual for future reference. ￭ Keep ths equpment away from humdty. ￭ Lay ths equpment on a relable flat surface before settng t up. ￭ The openngs on the enclosure are for ar convecton hence protects the equpment from overheatng.

  • Page 4: Fcc-B RadO Frequency Interference Statement

    Preface Preface FCC-B Rado Frequency Interference Statement Ths equpment has been tested and found to comply wth the lmts for a Class B dg- tal devce, pursuant to Part 15 of the FCC Rules. These lmts are desgned to provde reasonable protecton aganst harmful nter- ference n a resdental nstallaton.

  • Page 5: Weee (Waste ElectrCal And ElectronC EquPment) Statement

    MSI wll com- ply wth the product take back requrements at the end of lfe of MSI-branded products that are sold nto the EU.
  • Page 6 MSI će poštovat zahtev o preuzmanju ovakvh prozvoda kojma je stekao vek trajanja, koj maju MSI oznaku  koj su prodat u EU. Ove proz- vode možete vratt na lokalnm mestma za prkupljanje.
  • Page 7  produttor d dett materal saranno obblgat a rtrare ogn prodotto alla fine del suo cclo d vta. MSI s adeguerà a tale Drettva rtrando tutt  prodott marchat MSI che sono stat vendut all’nterno dell’Unone Europea alla fine del loro...

  • Page 8: Table Of Contents

    Preface Preface CONTENTS ▍ Copyrght Notce ....................  Trademarks .................... Revson Hstory.....................  Techncal Support.................. Safety Instructons .................. FCC-B Rado Frequency Interference Statement.......... v WEEE (Waste Electrcal and Electronc Equpment) Statement ....v Chapter 1 Gettng Started................1-1 Manboard Specficatons ..................1-2 Manboard Layout ....................
  • Page 9 MS-7680 MS-7680 Appendx A Realtek Audo ................A-1 Installng the Realtek HD Audo Drver ..............A-2 Software Configuraton ..................A-3 Hardware Default Settng ..................A-5 Appendx B Intel RAID ................B-1 Introducton ......................B-2 BIOS Configuraton ....................B-3 Installng Drver ....................B-10 Degraded RAID Array ..................B-12...

  • Page 11: Chapter 1 GettNg Started

    Chapter 1 Gettng Started Thank you for choosng the H67MS-E33 Seres (MS- 7680 v1.X) Mcro-ATX manboard. The H67MS-E33 Seres manboards are based on Intel H67 chpsets for ® optmal system efficency. Desgned to fit the advanced Intel LGA1155 processor, the H67MS-E33 Seres ®...

  • Page 12: MaNboard SpecFicatOns

    Gettng Started Manboard Specficatons Processor Support ■ Intel Sandy Brdge processor n the LGA1155 package ® (For the latest nformaton about CPU, please vst http://www.ms.com/ndex. php?func=cpuform2) Base Clock ■ 100 MHz Chpset ■ Intel H67 chpset ® Memory Support ■ 2 DDR3 DIMMs support DDR3 1333/ 1066 DRAM (8GB Max) ■...
  • Page 13 MS-7680 Connectors ■ Back panel 1 PS/2 keyboard port 1 PS/2 mouse port 6 USB 2.0 ports 1 HDMI port* 1 VGA port* 1 DVI-D port* 1 LAN port 6 flexble audo ports *(The HDMI, DVI-D and VGA ports only work wth Integrated Graphcs Processor) ■...

  • Page 14: MaNboard Layout

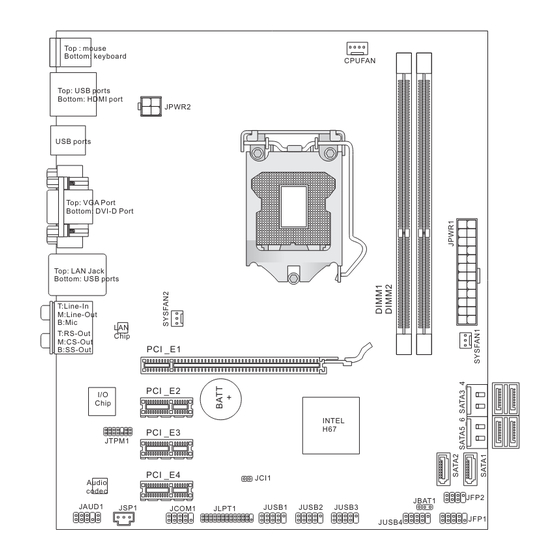

    Bottom: USB ports Line-In Line-Out T:RS-Out Chip M:CS-Out PCI _E1 B:SS-Out PCI _E2 Chip INTEL PCI _E3 JTPM1 PCI _E4 JCI1 Audio codec JFP2 JBAT1 JAUD1 JUSB1 JUSB2 JUSB3 JSP1 JCOM1 JLPT1 JFP1 JUSB4 H67MS-E33 Seres (MS-7680 v1.X) Mcro-ATX Manboard...

  • Page 15: PackNg ChecklSt

    MS-7680 Packng Checklst MSI Drver/Utlty DVD MSI manboard SATA Cable User’s Gude USB Bracket (Optonal) Power Cable Back IO Sheld * The pctures are for reference only and may vary from the packng contents of the product you purchased. If you need to purchase accessores and request the part numbers, you could search the product web page and find detals on our web address below http://www.ms.com/ndex.php...

  • Page 17: Chapter 2 Hardware Setup

    Chapter 2 Hardware Setup Ths chapter provdes you wth the nformaton about hardware setup procedures. Whle performng the nstal- laton, be careful n holdng the components and follow- ng the nstallaton procedures. For some components, f you nstall n the wrong orentaton, the components wll not work properly.

  • Page 18: QuCk Components GuDe

    Hardware Setup Hardware Setup Quck Components Gude SYSFAN2, p.2-14 CPUFAN, p.2-14 CPU, p.2-4 JPWR2, p.2-10 DDR3, p.2-8 JBAT1, p.2-19 Back Panel, p.2-11 JPWR1, p.2-10 SYSFAN1, p.2-14 PCIE, p.2-20 SATA, p.2-13 JFP1, JFP2, p.2-14 JAUD1, p.2-15 JUSB1~4, p.2-15 JTPM1, p.2-17 JLPT1, p.2-18 JSP1, p.2-16 JCOM1, p.2-16 JCI1, p.2-18...

  • Page 19: Screw Holes

    MS-7680 MS-7680 Screw Holes When you nstall the manboard, you have to place the manboard nto the chasss n the correct drecton. The locatons of screws holes on the manboard are shown as below. The sde has to toward the rear, the poston for the I/O sheld of the chasss.

  • Page 20: Cpu (Central ProcessNg UnT)

    Hardware Setup Hardware Setup CPU (Central Processng Unt) When you are nstallng the CPU, make sure to nstall the cooler to prevent overheatng. If you do not have the CPU cooler, consult your dealer before turnng on the computer. For the latest nformaton about CPU, please vst http://www.ms.com/ndex. php?func=cpuform2 Important Overheatng...
  • Page 21 MS-7680 MS-7680 CPU & Cooler Installaton When you are nstallng the CPU, make sure the CPU has a cooler attached on the top to prevent overheatng. Meanwhle, do not forget to apply some thermal paste on CPU before nstallng the heat snk/cooler fan for better heat dsperson. Follow the steps below to nstall the CPU &...
  • Page 22 Hardware Setup Hardware Setup Vsually nspect f the CPU s seated Engage the load lever whle pressng well nto the socket. If not, take out down lghtly onto the load plate. the CPU wth pure vertcal moton and renstall. Algnment Key Secure the lever near the hook end Make sure the four hooks are n por- under the retenton tab.
  • Page 23 MS-7680 MS-7680 Algn the holes on the manboard wth Press the four hooks down to fasten the heatsnk. Push down the cooler the cooler. untl ts four clps get wedged nto the holes of the manboard. Turn over the manboard to confirm Fnally, attach the CPU Fan cable to that the clp-ends are correctly n- the CPU fan connector on the man-...

  • Page 24: Memory

    Hardware Setup Hardware Setup Memory These DIMM slots are used for nstallng memory modules. For more nformaton on compatble components, please vst http://www.ms.com/ndex.php?func=testreport DDR3 240-pn, 1.5V 48x2=96 pn 72x2=144 pn Dual-Channel mode Populaton Rule In Dual-Channel mode, the memory modules can transmt and receve data wth two data bus lnes smultaneously.
  • Page 25 MS-7680 MS-7680 Installng Memory Modules The memory module has only one notch on the center and wll only fit n the rght orentaton. Insert the memory module vertcally nto the DIMM slot. Then push t n untl the golden finger on the memory module s deeply nserted n the DIMM slot. The plastc clp at each sde of the DIMM slot wll automatcally close when the memory module s properly seated.

  • Page 26: Power Supply

    Hardware Setup Hardware Setup Power Supply ATX 24-pn Power Connector: JPWR1 Ths connector allows you to connect an ATX 24-pn power supply. To connect the ATX 24-pn power supply, make sure the plug of the power supply s nserted n the proper orentaton and the pns are algned.

  • Page 27: Back Panel

    MS-7680 MS-7680 Back Panel USB 2.0 Port Mouse VGA Port RS-Out Lne-In USB 2.0 Port CS-Out Lne-Out Keyboard HDMI Port DVI-D Port USB 2.0 Port SS-Out ▶ Mouse/Keyboard The standard PS/2 mouse/keyboard DIN connector s for a PS/2 mouse/keyboard. ® ®...
  • Page 28 Hardware Setup Hardware Setup ▶ The standard RJ-45 LAN jack s for connecton to Yellow Green/ Orange the Local Area Network (LAN). You can connect a network cable to t. Color LED State Condton Left Yellow LAN lnk s not establshed. On(Steady state) LAN lnk s establshed.

  • Page 29: Connectors

    MS-7680 MS-7680 Connectors Seral ATA Connector: SATA1~6 Ths connector s a hgh-speed Seral ATA nterface port. Each connector can connect to one Seral ATA devce. * The MB layout n ths figure s for reference only. SATA2 SATA1~2 (6Gb/s) SATA3~6 (3Gb/s) SATA3_4 supported by Intel H67 PCH...

  • Page 30: Fan Power Connectors

    Hardware Setup Hardware Setup Fan Power Connectors: CPUFAN,SYSFAN1~2 The fan power connectors support system coolng fan wth +12V. When connectng the wre to the connectors, always note that the red wre s the postve and should be con- nected to the +12V; the black wre s Ground and should be connected to GND. If the manboard has a System Hardware Montor chpset on-board, you must use a specally desgned fan wth speed sensor to take advantage of the CPU fan control.
  • Page 31 MS-7680 MS-7680 Front USB Connector: JUSB1~4 Ths connector, complant wth Intel I/O Connectvty Desgn Gude, s deal for con- ® nectng hgh-speed USB nterface perpherals such as USB HDD, dgtal cameras, MP3 players, prnters, modems and the lke. * The MB layout n ths figure s for reference only. USB Bracket (optonal) Important Note that the pns of VCC and GND must be connected correctly to avod possble...
  • Page 32 Hardware Setup Hardware Setup S/PDIF-Out Connector: JSP1 Ths connector s used to connect S/PDIF (Sony & Phlps Dgtal Interconnect Format) nterface for dgtal audo transmsson. * The MB layout n ths figure s for reference only. S/PDIF-Out Bracket (optonal) Seral Port Connector: JCOM1 Ths connector s a 16550A hgh speed communcaton port that sends/receves 16 bytes FIFOs.
  • Page 33 MS-7680 MS-7680 TPM Module connector: JTPM1 Ths connector connects to a TPM (Trusted Platform Module) module (optonal). Please refer to the TPM securty platform manual for more detals and usages. 2-17...
  • Page 34 Hardware Setup Hardware Setup Parallel Port Connector: JLPT1 Ths connector s used to connect an optonal parallel port bracket. The parallel port s a standard prnter port that supports Enhanced Parallel Port (EPP) and Extended Capa- bltes Parallel Port (ECP) mode. Chasss Intruson Connector: JCI1 Ths connector connects to the chasss ntruson swtch cable.

  • Page 35: Jumpers

    MS-7680 MS-7680 Jumpers Clear CMOS Jumper: JBAT1 There s a CMOS RAM on board wth an external battery power supply to preserve the system configuraton data. Wth the CMOS RAM, the system can automatcally boot OS every tme t s turned on. If you want to clear the system configuraton, set the jumper to clear data.

  • Page 36: Slots

    Hardware Setup Slots PCIE (Perpheral Component Interconnect Express) Slot The PCIE slot supports the PCIE nterface expanson card. PCIE x16 Slot PCIE x1 Slot Important When addng or removng expanson cards, make sure that you unplug the power sup- ply first. Read the documentaton for the expanson card to configure any necessary hardware or software settngs, such as jumpers, swtches or BIOS configuraton.

  • Page 37: Chapter 3 Bios Setup

    Chapter 3 BIOS Setup Ths chapter provdes nformaton on the BIOS Setup program and allows you to configure the system for op- tmum use. You may need to run the Setup program when: ■ An error message appears on the screen durng the system bootng up, and requests you to run SETUP.

  • Page 38: EnterNg Setup

    BIOS Setup BIOS Setup Enterng Setup Power on the computer and the system wll start POST (Power On Self Test) process. When the message below appears on the screen, press <DEL> key to enter Setup. Press DEL to enter Setup Menu, F11 to enter Boot Menu If the message dsappears before you respond and you stll wsh to enter Setup, restart the system by turnng t OFF and On or pressng the RESET button.
  • Page 39 MS-7680 MS-7680 Control Keyboard Mouse Descrpton <↑ ↓ > Select Item Move the cursor <Enter> Select Icon/ Feld Clck/ Double- clck the left but- <Esc> Jumps to the Ext menu or returns to the prevous from a submenu Clck the rght button <+>...

  • Page 40: The MaN Menu

    BIOS Setup BIOS Setup The Man Menu ▶ Language After enterng the Setup menu, you can see a “Language” button. Please clck t and select the language, at your desre, for the BIOS settng first. ▶ Green Power Clck “Green Power” con to enter the menu. Use ths menu to specfy the power phase.

  • Page 41: Green Power

    MS-7680 MS-7680 Green Power ▶ CPU Phase Control Ths tem allows you to select the power phase mode to reach the best power savng functon.

  • Page 42: UtLTy

    Ths tem s used to select the boot screen. Important Before you enter to the Lve Update/ HDD Backup menu, please place the MSI Drver • DVD that be ncluded n the manboard package nto the DVD-ROM drve . The Drver DVD provdes the necessary programs for these two utlty.
  • Page 43 MS-7680 MS-7680 ▶ Current CPU / DRAM Frequency These tems show the current clocks of CPU and Memory speed. Read-only. ▶ Adjust CPU Rato Ths tem controls the multpler that s used to determne the nternal clock speed of the processor relatve to the external or motherboard clock speed.
  • Page 44 BIOS Setup BIOS Setup ▶ OC Gene Button Operaton Ths field s used to enable/ dsable OC Gene functon. ▶ DRAM Rato Ths settng controls the rato of memory frequency to enable the memory to run at df- ferent frequency combnatons. ▶...
  • Page 45 MS-7680 MS-7680 ▶ Ths settng controls the number of cycles for Row Address Strobe (RAS) to be allowed to precharge. If nsufficent tme s allowed for the RAS to accumulate ts charge before DRAM refresh, refreshng may be ncomplete and DRAM may fal to retan data.
  • Page 46 BIOS Setup BIOS Setup ▶ GT OverClockng Ths tem allows you to enable/ dsable the overclockng of ntegrated graphcs. ▶ GT Rato Ths settng controls the rato of ntegrated graphcs frequency to enable the ntegrated graphcs to run at dfferent frequency combnatons. ▶...
  • Page 47 MS-7680 MS-7680 ▶ MEMORY-Z Press <Enter> to enter the sub-menu. ▶ DIMM1~2 Memory SPD Press <Enter> to enter the sub-menu. The sub-menu dsplays the nformatons of nstalled memory. ▶ X.M.P Support Informaton Press <Enter> to enter the sub-menu. These tems dsplay the current status of the X.M.P support nformaton.
  • Page 48 BIOS Setup BIOS Setup ▶ OverSpeed Protecton Overspeed Protecton functon can montor the current CPU draws as well as ts power consumpton. If t exceeds a certan level, the processor automatcally reduces ts clock speed. If you want to overclock your CPU, set t to [Dsabled]. ▶...

  • Page 49: Game

    t. Important Before you enter to the Game menu, please place the MSI Drver DVD that be ncluded n the manboard package nto the DVD-ROM drve . Ths DVD provdes the necessary programs for the game utlty.

  • Page 50: SettNgs

    BIOS Setup BIOS Setup Settngs System Status ▶ System Date Ths allows you to set the system to the date that you want (usually the current date). The format s <day> <month> <date> <year>. Day of the week, from Sun to Sat, determned by BIOS. Read-only.
  • Page 51 MS-7680 MS-7680 ▶ System Tme Ths allows you to set the system tme that you want (usually the current tme). The tme format s <hour> <mnute> <second>. ▶ SATA Port1~6 It wll show the devce nformaton that you connected to the SATA connector. Important SATA Port1~6 are avalable when you connect the HDD devces to the SATA connec- tors on the manboard.
  • Page 52 BIOS Setup BIOS Setup ▶ Integrated Perpherals Press <Enter> to enter the sub-menu. == Onboard Lan Configuraton == ▶ Onboard Lan Controller1 Ths tem allows you to enable/ dsable the onboard LAN controller. ▶ LAN Opton ROM Ths tem s used to decde whether to nvoke the Boot ROM of the onboard LAN. == SATA Configuraton == ▶...
  • Page 53 MS-7680 MS-7680 ▶ IGD Mult-Montor When “Enabled”, the ntegrated graphcs and extra graphcs card can be configured as mult-montor mode. ▶ USB Configuraton Press <Enter> to enter the sub-menu. ▶ USB Devces: Ths tem shows the type of nstalled USB devce. ▶...
  • Page 54 BIOS Setup BIOS Setup ▶ H/W Montor Press <Enter> to enter the sub-menu. ▶ CPU Smart Fan Target The Smart Fan functon controls the CPU fan speed automatcally dependng on the current temperature to keep t wth n a specfic range. You can enable a fan target value here.
  • Page 55 MS-7680 MS-7680 ▶ Wake Up Event Setup Press <Enter> to enter the sub-menu. ▶ Wake Up Event By Settng to [BIOS] actvates the followng fields, and use the followng fields to set the wake up events. Settng to [OS], the wake up events wll be defined by OS. ▶...
  • Page 56 BIOS Setup BIOS Setup ▶ Select one file to Boot When the BIOS Boot functon as sets to [Enabled], ths tem s selectable. Ths tem allows to select partcular BIOS file from the USB/ Storage (FAT/ 32 format only) drve. And the system wll boot from selected BIOS file.
  • Page 57 MS-7680 MS-7680 ▶ Make U-Key at When the “U-Key” as sets to [Enabled], ths tem s selectable. Ths tem allows you to specfy the USB drve. ▶ Chasss Intruson Configuraton Press <Enter> to enter the sub-menu. ▶ Chasss Intruson Ths tem enables or dsables the feature of recordng the chasss ntruson status and ssung a warnng message f the chasss s once opened.
  • Page 58 BIOS Setup Save & Ext ▶ Dscard Changes and Ext Use ths tem to abandon all changes and ext setup. ▶ Save Changes and Reset Use ths tem to save changes and reset the system. ▶ Save Changes Use ths tem to save changes. ▶...

  • Page 59: AppendX A Realtek AudO

    Appendx A Realtek Audo The Realtek audo provdes 10-channel DAC that smul- taneously supports 7.1 sound playback and 2 channels of ndependent stereo sound output (multple streamng) through the Front-Out-Left and Front-Out-Rght chan- nels.

  • Page 60: InstallNg The Realtek Hd AudO DrVer

    Realtek Audo Realtek Audo Installng the Realtek HD Audo Drver You need to nstall the HD audo drver for Realtek audo codec to functon properly before you can get access to 2-, 4-, 6-, 8- channel or 7.1+2 channel audo operatons. Follow the procedures descrbed below to nstall the drvers for dfferent operatng sys- tems.

  • Page 61: Software ConfiguratOn

    MS-7680 MS-7680 Software Configuraton After nstallng the audo drver, the “Realtek HD Audo Manager” con wll appear at the notficaton area (lower rght of the screen). You may double clck the con and the GUI wll pop up accordngly. Double clck the con It s also avalable to enable the audo drver by clckng the Realtek HD Audo Manager from the Control Panel.
  • Page 62 Realtek Audo Realtek Audo ■ Devce Selecton Here you can select a audo output source to change the related optons. The “check” sgn (n orange) ndcates the devces as default. ■ Volume Adjustment You can control the volume or balance the rght/left sde of the speakers that you plugged n front or rear panel by adjust the bar.

  • Page 63: Hardware Default SettNg

    MS-7680 MS-7680 Hardware Default Settng The followng dagrams are audo back panel default settng. ■ Backpanel audo jacks to 2-channel speakers dagram F r o ■ Backpanel audo jacks to 4-channel speakers dagram F r o R e a...
  • Page 64 Realtek Audo ■ Backpanel audo jacks to 6-channel speakers dagram F r o C e n R e a t e r & S u b w o o f ■ Backpanel audo jacks to 8-channel speakers dagram F r o C e n R e a t e r...

  • Page 65: AppendX B Intel Raid

    Appendx B Intel RAID Ths appendx wll assst users n configurng and en- ablng RAID functonalty on platforms...

  • Page 66: IntroductOn

    Intel RAID Intel RAID Introducton The manboard comes wth the Intel RAID controller that allows you to configure SATA hard drves as RAID sets. SATA hard drves delver blsterng transfer speeds up to 3 Gb/s. Seral ATA uses long, thn cables, makng t easer to connect your drve and mprovng the arflow nsde your PC.

  • Page 67: Bios ConfiguratOn

    MS-7680 MS-7680 BIOS Configuraton The Intel Matrx Storage Manager Opton ROM should be ntegrated wth the system BIOS on all motherboards wth a supported Intel chpset. The Intel Matrx Storage Man- ager Opton ROM s the Intel RAID mplementaton and provdes BIOS and DOS dsk servces.

  • Page 68: Create Raid Volume

    Intel RAID Intel RAID After pressng the <Ctrl> and <I> keys smultaneously, the followng wndow wll ap- pear: MAIN MENU MAIN MENU Reset Dsks to Non-RAID Create RAID Volume Recovery Volume Optons Delete RAID Volume Ext DISK / VOLUME INFORMATION RAID Volumes : None defined.
  • Page 69 MS-7680 MS-7680 In the Dsk field, press <Enter> key and use <Space> key to select the dsks you want to create for the RAID volume, then clck <Enter> key to finsh selecton. Ths field wll become avalable accordng to the selected RAID level. Then select the strp sze for the RAID array by usng the “upper arrow”...
  • Page 70 Intel RAID Intel RAID Go to the Create Volume field and press <Enter>, the followng screen appears for you to confirm f you are sure to create the RAID volume. Press <Y> to contnue. CREATE VOLUME MENU Name : Volume0 RAID Level : RAID1(Mrror) Dsks :...
  • Page 71 MS-7680 MS-7680 ■ Delete RAID Volume Here you can delete the RAID volume, but please be noted that all data on RAID drves wll be lost. Important If your system currently boots to RAID and you delete the RAID volume n the Intel RAID Opton ROM, your system wll become un-bootable.
  • Page 72 Intel RAID Intel RAID ■ Reset Dsks to Non-RAID Select opton 3 Reset Dsks to Non-RAID and press <Enter> to delete the RAID volume and remove any RAID structures from the drves. The followng screen appears: MAIN MENU Reset Dsks to Non-RAID Create RAID Volume Recovery Volume Optons Delete RAID Volume...
  • Page 73 MS-7680 MS-7680 ■ Recovery Volume Optons Select opton 4 Recovery Volume Optons and press <Enter> to change recovery volume mode. The followng screen appears: RECOVERY VOLUME OPTIONS Enable Only Recovery Dsk Enable Only Master Dsk HELP Enable Only Recovery Dsk - enables recovery dsk f avalable and dsables master dsk.

  • Page 74: InstallNg DrVer

    Please follow the nstructon below to make an “Intel RAID Drver” for yourself. ® • Insert the MSI DVD nto the DVD-ROM drve. Clck the “Browse CD” on the Setup screen. • Copy all the contents n \\Storage\Intel\PCH\f6flpy-x86 or f6flpy-x64 to a formatted •...
  • Page 75 MS-7680 MS-7680 ■ Exstng Wndows Drver Installaton Insert the MSI DVD nto the DVD-ROM drve. The DVD wll auto-run and the setup screen wll appear. Under the Drver tab, clck on Intel RAID Drvers. The drvers wll be automatcally nstalled.

  • Page 76: Degraded Raid Array

    Intel RAID Intel RAID Degraded RAID Array A RAID 1, RAID 5 or RAID 10 volume s reported as degraded when one of ts hard drve members fals or s temporarly dsconnected, and data mrrorng s lost. As a result, the system can only utlze the remanng functonal hard drve member.
  • Page 77 MS-7680 MS-7680 Ext Intel RAID Opton ROM, and then reboot to Wndows system. When prompted to rebuld the RAID volume, clck ‘Yes’. The Intel(R) Storage Utlty wll be launched. Rght-clck the new hard drve and select ‘Rebuld to ths Dsk’. The ‘Rebuld Wzard’ wll be launched whch wll gude you through the process of rebuldng to the new hard drve.
