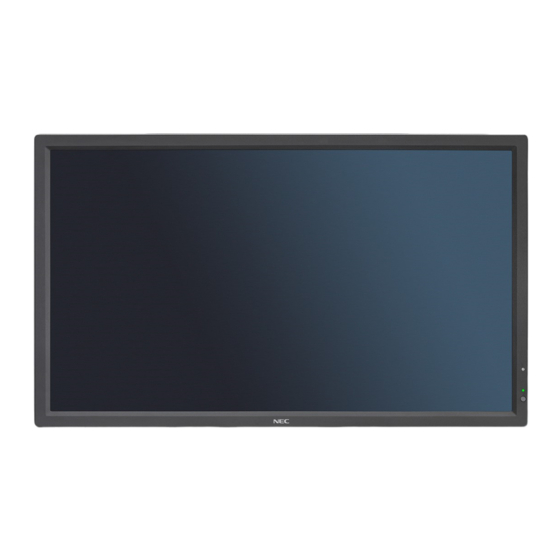

NEC MultiSync V323 User Manual
NEC MultiSync V323 User Manual

NEC MultiSync V323 User Manual

Display monitor

Advertisement

User's Manual
MultiSync V323

Advertisement

Table of Contents
loading

Summary of Contents for NEC MultiSync V323

  • Page 1 User’s Manual MultiSync V323...
  • Page 2: Table Of Contents

    Index DECLARATION OF CONFORMITY ......................English-1 Important Information ........................... English-2 WARNING ............................English-2 CAUTION ............................English-2 Safety Precautions, Maintenance & Recommended Use................English-3 Contents ............................... English-4 Installation ..............................English-5 Attaching Mounting Accessories ..................... English-6 Parts Name and Functions ........................... English-8 Control Panel ..........................
  • Page 3: Declaration Of Conformity

    FCC Rules. FCC Information 1. Use the attached specifi ed cables with the MultiSync V323 (V323) colour monitor so as not to interfere with radio and television reception. (1) Please use the supplied power cord or equivalent to ensure FCC compliance.
  • Page 4: Important Information

    Important Information WARNING TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE.
  • Page 5: Safety Precautions, Maintenance & Recommended Use

    Cable distribution system should be grounded (earthed) in cause the paint to deteriorate, crack or peel. accordance with ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section 820.93, Grounding of Outer Conductive Shield of a Coaxial Cable. • The screen of the coaxial cable is intended to be connected to earth in the building installation.
  • Page 6: Contents

    Contents Your new MultiSync monitor box* should contain the following: • LCD monitor • Power cord* • Video Signal Cable • Wireless Remote Control and AA Batteries • Setup Manual • CD-ROM Video Signal Cable (Mini D-SUB 15 pin to Mini D-SUB 15 pin) Power Cord* Setup Manual...
  • Page 7: Installation

    • When using mounting accessories other than those that • DO NOT install in areas where the unit will be subjected are NEC approved, they must comply with the VESA- to strong vibrations and dust. compatible (FDMlv1) mounting method. •...
  • Page 8: Attaching Mounting Accessories

    Make sure there is nothing on the table is imprinted on the surface of the stand. Use the that can damage the monitor. ST-322 for V323. When using mounting accessories other than NEC compliant 4. Ventilation Requirements and approved, they must comply with the VESA-compatible mounting method.
  • Page 9 5. Prevent Tipping When using the display with the optional table top stand fasten the LCD to a wall using a cord or chain that can support the weight of the monitor in order to prevent the monitor from falling. Fasten the cord or chain to the monitor using the provided clamps and screws.
  • Page 10: Parts Name And Functions

    Parts Name and Functions Control Panel POWER button EXIT button Switches the power on/off. See also page 16. Activates the OSD menu when the OSD menu is turned-off. Acts as EXIT button within the OSD to move to previous MUTE button menu.
  • Page 11: Terminal Panel

    Terminal Panel AC IN connector VGA IN (mini D-Sub 15 pin) Connects with the supplied power cord. To input analog RGB signals from a personal computer or from other RGB equipment. This input can be used with an Main Power Switch RGB, COMPONENT, SCART, VIDEO or S-VIDEO source.
  • Page 12: Wireless Remote Control

    Wireless Remote Control ASPECT button Selects picture aspect, [FULL], [WIDE], [DYNAMIC], [1:1], [ZOOM] and [NORMAL]. See page 17. SOUND button Artifi cial surround sound for internal/external speakers. Audio out is disabled when surround is set to ON. KEYPAD Press buttons to set and change passwords, change channel and set REMOTE ID.
  • Page 13: Operating Range For The Remote Control

    Operating Range for the Remote PIP (Picture In Picture) button Control ON/OFF button: Toggle switches between PIP, POP, PICTURE BY PICTURE-ASPECT and PICTURE BY Point the top of the remote control toward the LCD monitor’s PICTURE-FULL. See page 22. remote sensor during button operation. INPUT button: Selects the “picture in picture”...
  • Page 14: Setup

    Setup 1. Determine the installation location NEC recommends the following battery use: • Place “AA” size batteries matching the (+) and (-) signs CAUTION: Installing your LCD monitor must be done by a on each battery to the (+) and (-) signs of the battery qualifi...
  • Page 15 5. Switch on the power of all the attached external equipment When connected with a computer, switch on the power of the computer fi rst. 6. Operate the attached external equipment Display the signal from the desired input source. 7. Adjust the sound Make volume adjustments when required.
  • Page 16: Connections

    Connections NOTE: Do not connect/disconnect cables when turning on the monitor or other external equipment as this may result in a loss of the monitor image. NOTE: Use an audio cable without a built-in resistor. Using an audio cable with a built-in resistor turns down the sound. Before making connections: First turn off the power of all the attached equipment and make connections.
  • Page 17: Connecting A Personal Computer

    Connecting a Personal Computer Connecting your computer to your LCD monitor will enable you to display your computer’s screen image. Some video cards with a pixel clock over 162MHz may not display an image correctly. Your LCD monitor displays proper image by adjusting the factory preset timing signal automatically. <Typical factory preset signal timing>...
  • Page 18: Basic Operation

    Basic Operation Power ON and OFF Modes The LCD monitor power indicator will turn green while powered on and will turn red or amber while powered off. NOTE: The Main Power Switch must be in the ON position in order to power up the monitor using the remote control or the Power Button on the front of the LCD.
  • Page 19: Power Indicator

    Power Indicator Picture Aspect DVI, VGA, DPORT Mode Status Indicator Light FULL ZOOM NORMAL Power ON Green* Power OFF HDMI, DVD/HD, SCART, VIDEO1, VIDEO2, S-VIDEO Power consumption under 0.5 W FULL WIDE DYNAMIC ZOOM NORMAL Power Save Amber Power consumption under 1 W* Power Standby when “SCHEDULE Green and Amber blink alternately Aspect ratio...
  • Page 20: Information Osd

    Information OSD The Information OSD provides information such as: Monitor ID, Input Source, Picture Size, etc. Press the DISPLAY button on the remote to bring up the Information OSD. ID number assigned to current monitor* ID number assigned monitor to be controlled via RS-232C* Input Name Audio input mode Picture aspect...
  • Page 21: Osd (On-Screen-Display) Controls

    OSD (On-Screen-Display) Controls NOTE: Some functions may not be available depending on the model or optional equipment. Input source Main Menu Icons Main Menu Item Adjustment Settings Sub Menu THANK YOU FOR SAVING THE ENVIRONMENT. CARBON FOOTPRINT 86.0 % PICTURE MODE Select Goto Adjustment Return...
  • Page 22: Picture

    (S-Curve). DICOM SIM. DICOM GSDF curve simulated for LCD type. PROGRAMMABLE A programmable gamma curve can be loaded using NEC optional software. MOVIE SETTINGS NOISE REDUCTION Adjusts the amount of noise reduction. Press + or - to adjust. VIDEO1, VIDEO2, S-VIDEO inputs only TELECINE Automatically senses the sources frame rate for optimal picture quality.
  • Page 23: Audio

    H RESOLUTION Adjusts the horizontal size of the image. VGA input only V RESOLUTION Adjusts the vertical size of the image. VGA input only INPUT RESOLUTION If there is a problem with signal detection, this function forces the monitor to display the signal at AUTO VGA input only the desired resolution.
  • Page 24: Pip

    TIME Confi gures the time for the real-time clock. DAYLIGHT SAVING Confi gures daylight savings on or off. RESET Resets the following settings within the SCHEDULE menu back to factory setting: OFF TIMER, SCHEDULE SETTINGS and SCHEDULE LIST. KEEP PIP MODE Allows the monitor to remain in “PIP”...
  • Page 25: Multi Display

    INFORMATION OSD Selects whether the information OSD is displayed or not. The information OSD will be displayed ON, 3 Sec. when the input signal or source changes. The information OSD will also give a warning when there is no-signal or the signal is out-of range. An interval between 3 to 10 seconds for the Information OSD to appear is available.
  • Page 26: Display Protection

    LAN SETTING When you use this function, EXTERNAL CONTROL should be “LAN”. NOTE: When changing the LAN SETTING, you need to wait several seconds until the LAN SETTING is applied. DHCP Enabling this option automatically assigns an IP address to the monitor from your DHCP server. DISABLE Disabling this option allows you to register the IP address or subnet mask number obtained from your network administrator.
  • Page 27: Advanced Option

    SECURITY Locks the security password. DDC/CI ENABLE/DISABLE: Turns ON or OFF the two way communication and control of the monitor. ENABLE ALERT MAIL Selects whether or not to send an e-mail notifi cation of monitor error via wired LAN. RESET Resets the following settings within the DISPLAY PROTECTION menu back to factory setting: FAN CONTROL, SCREEN SAVER, SIDE BORDER COLOR, AUTO BRIGHTNESS, DDC/CI.
  • Page 28 OVER SCAN Some video formats may require different scanning modes in order to best display the image. HDMI, DVD/HD, SCART, VIDEO1, VIDEO2, S-VIDEO inputs only Image size is larger than what can be displayed. The image edge will appear cropped. Approximately 95% of the image will be shown on the screen.
  • Page 29 As with all personal display devices, NEC DISPLAY SOLUTIONS recommends displaying moving images and using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.
  • Page 30: Remote Control Function

    Remote Control Function REMOTE CONTROL ID FUNCTION Monitor ID:1 Monitor ID:2 Monitor ID:3 REMOTE CONTROL ID The remote control can be used to control up to 100 individual MultiSync monitors using Remote works Remote works Remote works what is called the REMOTE CONTROL ID mode. The REMOTE CONTROL ID mode works in conjunction with the Monitor ID, allowing control of up to 100 individual MultiSync monitors.
  • Page 31 3. Press the “DISPLAY” button on the remote control while aiming at the “PRIMARY” monitor. The Information OSD will be shown at top left side of the screen. Monitor ID: Displays the ID number of the current monitor within the daisy chain. Target ID: Displays the ID number of the monitor that to be controlled via daisy chain from the current monitor.
  • Page 32: Controlling The Lcd Monitor Via Rs-232C Remote Control

    Controlling the LCD monitor via RS-232C Remote Control This LCD monitor can be controlled by connecting a personal computer with a RS-232C terminal. NOTE: When you use this function, EXTERNAL CONTROL should be “RS-232C” (See page 23). Functions that can be controlled by a personal computer are: •...
  • Page 33 2) Control command diagram For other commands, please see “External_Control.pdf” fi le on the CD-ROM. Function (Monitor ID = 1) Code Data Power ON 01 30 41 30 41 30 43 02 43 32 30 33 44 36 30 30 30 31 03 73 0d Power OFF 01 30 41 30 41 30 43 02 43 32 30 33 44 36 30 30 30 34 03 76 0d Input Source Select DisplayPort...
  • Page 34: Controlling The Lcd Monitor Via Lan Control

    Controlling the LCD monitor via LAN Control Connecting to a Network Using a LAN cable allows you to specify the Network Settings and the Alert Mail Settings by using an HTTP server function. NOTE: When you use this function, EXTERNAL CONTROL should be “LAN” (See page 23). To use a LAN connection, you are required to assign an IP address.
  • Page 35: Network Settings

    Example 1: When the host name of the monitor has been set to “pd.nec.co.jp”, access is gained to the network setting by specifying http://pd.nec.co.jp/index.html for the address or the entry column of the URL.
  • Page 36 Alert Mail Setting http://<the Monitor’s IP address>/lanconfi g.html This option notifi es your computer of an error message via e-mail when using wired LAN. An error message notifi cation will be sent when an error occurs in the monitor. Alert Mail Checking [ENABLE] will turn on the Alert Mail feature.
  • Page 37 Alert error message list Error number Alert mail Message Explanation Measure * ErrorCode The monitor’s power supply is not Standby power Abnormal Please contact your supplier. 70h ~ 7Fh functioning normally. 80h ~ Fh The cooling fan has stopped. Cooling fan Abnormal Please contact your supplier.
  • Page 38 CRESTRON Setting Click “CRESTRON” on the left side of HOME. CRESTRON ROOMVIEW compatibility The monitor supports CRESTRON ROOMVIEW, allowing multiple devices connected in the network to be managed and controlled from a computer or a controller. For more information, visit http://www.crestron.com ROOMVIEW ROOMVIEW for managing from the computer.
  • Page 39: Features

    FullScan Capability: Allows you to use the entire screen area in most resolutions, signifi cantly expanding image size. VESA Standard (FDMIv1) Mounting Interface: Allows you to connect your LCD monitor to any VESA standard (FDMIv1) third party mounting arm or bracket. NEC recommends using mounting interface that comply with TÜV-GS and/or UL1678 standard in North America.
  • Page 40: Troubleshooting

    • Check if batteries are inserted correctly. NOTE: As with all personal display devices, NEC DISPLAY • Check if the Remote Control is pointing at the monitor’s SOLUTIONS recommends displaying moving images remote sensor.
  • Page 41: Specifi Cations

    Specifi cations Product Specifi cations LCD Module 31.5”/801.3 mm diagonal Pixel Pitch: 0.36375 mm Resolution: 1920 x 1080 Color: Over 16 million colors (depending on video card used) Brightness: 450 cd/m (Max.), 320 cd/m (Factory setting Typ.) @25°C Contrast Ratio: 1300:1 Viewing Angle: 89°...
  • Page 42: Pin Assignment

    Pin Assignment 1) Analog multi input (MiniDsub15p): VGA, DVD/HD, SCART, VIDEO2, S-VIDEO Pin No Name Red, DVD/HD_Pr, S-VIDEO_C Green, DVD/HD_Y, S-VIDEO_Y, VIDEO2 Blue, DVD/HD_Pb Mini D-SUB 15P DDC-GND Red-GND Green-GND Blue-GND +5V (DDC) SYNC-GND GND (B-SYNC) DDC-SDA H-SYNC V-SYNC DDC-SCL 2) RS-232C input/output Pin No Name...
  • Page 43: Manufacturer's Recycling And Energy Information

    Manufacturer’s Recycling and Energy Information NEC DISPLAY SOLUTIONS is strongly committed to environmental protection and sees recycling as one of the company’s top priorities in trying to minimize the burden placed on the environment. We are engaged in developing environmentally-friendly products, and always strive to help defi...
