Installation Guide
Color CCTV Camera
WV-CW324LE
Model No:
WV-CW314LE
WV-CW304LE

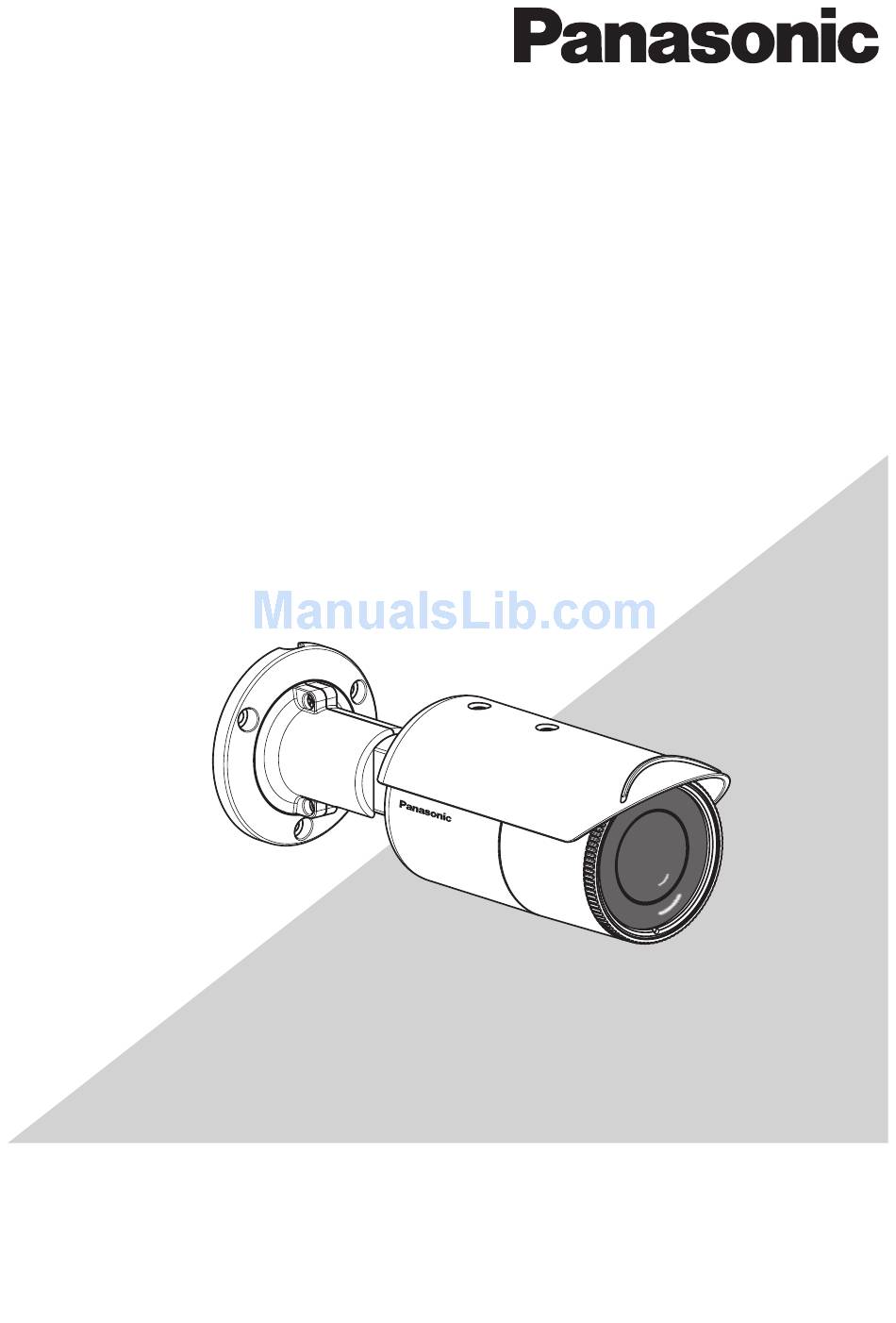

This illustration represents WV-CW324LE, WV-CW314LE, WV-CW304LE.
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.
Advertisement
Table of Contents
Related Manuals for Panasonic WV-CW324LE
Summary of Contents for Panasonic WV-CW324LE
-
Page 1: Installation Guide
Model No: WV-CW314LE WV-CW304LE This illustration represents WV-CW324LE, WV-CW314LE, WV-CW304LE. Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. The model number is abbreviated in some descriptions in this manual. - Page 2 We declare under our sole responsibility that the Wij verklaren als enige aansprakelijke, dat het product to which this declaration relates is in product waarop deze verklaring betrekking heeft, conformity with the standard or other normative voldoet aan de volgende norm of ander normatief document following the provisions of Directive dokument, overeenkomstig de bepalingen van 2004/108/EC.
-
Page 3: Table Of Contents
Contents Important safety instructions ......................4 Limitation of liability ......................... 5 Disclaimer of warranty ........................5 Preface ............................6 About notations ..........................6 Features ............................6 About the user manuals ........................7 Trademarks and registered trademarks ................... 7 Precautions ............................ 8 Precautions for installation ...................... -
Page 4: Important Safety Instructions
Important safety instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not block any ventilation openings. Install in accordance with the manufacturer's instruc- tions. 6) Do not install near any heat sources such as radiators, heat registers, stoves, or other appara- tus (including amplifiers) that produce heat. -
Page 5: Limitation Of Liability
IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S). Disclaimer of warranty IN NO EVENT SHALL Panasonic System Networks Co., Ltd. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:... -
Page 6: Preface
The following notations are used when describing the functions limited for specific models. The functions without the notations are supported by all models. CW324L : The functions with this notation are available when using the model WV-CW324LE. CW304L CW324L : The functions with this notation are available when using the model WV-CW314LE. -
Page 7: About The User Manuals
Note: • The VMD function is not the dedicated function to prevent thefts, fires, etc. We are not responsible for any accidents or damages caused by applying the function for the above purposes. About the user manuals The operating instructions of the camera consist of 2 sets: this book and operating instructions (PDF). -
Page 8: Precautions
Precautions Refer installation work to the dealer. Avoid installing this product in locations where it is subject to damage by salt or Installation work requires technique and corrosive gas. experiences. Otherwise injury or damage to this product may result. Otherwise the mounting fixtures will deterio- Be sure to consult the dealer. - Page 9 The measures of protection against Do not touch the front cover (transparent snowfall shall be taken. cover) with your bare hands. In areas where lots of snow accumulates, the A dirty cover causes deterioration of picture weight of snow may cause the product to fall quality.
- Page 10 Cleaning this product body Tur n th e p owe r of f wh e n c l e a ni ng thi s product. Do not use strong abrasive detergent when cleaning this product. Otherwise, it may cause discoloration. When using a chemical cloth for cleaning, read the caution provided with the chemical cloth product.
-
Page 11: Precautions For Installation
Precautions for installation Panasonic assumes no responsibility for Avoid installing and connecting during a injuries or property damage resulting from lightning storm. Otherwise, an electric failures arising out of improper installation shock or fire may be caused. or operation inconsistent with this documentation. - Page 12 Radio interference When the camera is used near T V/radio antenna, strong electric field or magnetic field (near a motor or a transformer), images may b e d i s to r te d a n d n o i s e s o u n d m ay b e produced.
-
Page 13: Major Operating Controls
Major operating controls Safety wire Camera mount Sunshield bracket Video output connector Power cord Yow lock screw Front cover Panning lock screw Tilting lock Rear cover screw <WV-CW324LE, WV-CW314LE> Packing Monitor output IR LED Lens button jack... -
Page 14: Preparations
<WV-CW304LE> Set button IR LED Packing Lens Monitor output jack Preparations The camera can be directly mounted on the wall or ceiling. Important: • Prepare the mounting screws according to the material of the area where the camera mount bracket is to be installed. In this case, wood screws and nails should not be used. Recom- mended tightening torque M4: 1.60 N·m {1.18 lbf·ft} • Required pull-out capacity of a single screw/bolt is 196 N {44.06 lbf} or more. -
Page 15: Installation
Installation Affix the installation template label (accessory) to the ceiling or wall, and use a pen to mark the positions of the screws and cable mounting hole in the ceiling or wall. Remove the installation template label and attach the camera with 3 screws (locally procured). Installation template label φ... -
Page 16: Connections
Connections Connect the video output Important: Video output Power cord connector • Be sure to turn off the power of each device before connecting. • Be sure to secure the coaxial cable connectors. Connect a coaxial cable (locally procured) to the video output connector. Connect the power supply Connect the two-color conductor cable of the camera to the power supply. - Page 17 12 V DC Calculation of the relation among the cable length, resistance, and power supply. The voltage supplied to the camera shall be between 10.8 V DC and 16 V DC. 10.8 V DC ≤ V - 2 (R x I x L) ≤ 16 V DC L : Cable length (m) Ω...
-
Page 18: Adjustment
1 Loosen the 2 fixing screws of the front cover to remove the front cover. Screw Sunshield 2 Unscrew and remove the front cover. <WV-CW324LE, WV-CW314LE> Front cover <WV-CW304LE> Front cover 3 Connect the adjustment monitor output jack to monitor output jack with φ ℃ 3 .5 mm miniature... - Page 19 Important: • This video output is intended for confirmation of view angle, etc. during installation or repair service, and not for recording or monitoring. Note: • Monitor output jack has higher priority than video output connector. Video cannot be output through the video output cable after connecting the adjustment monitor.
- Page 20 Note: • Do not put your hands on the safety warning label when the camera angle is adjusted, unless your hands will be clamped when the front portion of camera falls. • Use a hexagonal wrench with width across flats of 3 mm (locally procured) to loosen or tighten the yow lock screw, panning lock screw and tilting lock screw. • Approximately 1 rotation of loosening the yow lock screw, ℃ p anning lock screw and tilting lock screw allows camera angle adjustment. Do not loosen the screws beyond necessity. • The camera body shall be held when the yow lock screw, panning lock screw or tilting lock screw is loosened.
- Page 21 Note: • The ABF function is not available over the entire focus range. Be sure to perform approximate adjustment of the view angle before manual focusing, and then press the [ABF] button to enable the ABF function. • For the following subjects, select ELC control method, and then manually adjust the focus. • Frequently moving subject • Subject with large illuminance change • Subject with low illuminance • Too bright or reflective subject • Subject through a window • Place where the lens easily becomes dirty • Subject with less contrast such as white wall • Subject with remarkable depth • Subject with heavy flicker • Subject with horizontally parallel lines such as a shutter Install the front cover. Installation Location Rear cover Front cover indicating mark...
-
Page 22: Setup Menu
Setup menu Performing each setting item in the setup menu should be completed in advance to use this unit. Perform the settings for each item in accordance with the installation conditions and customer requirements. List of setup menu Setup item Description CAMERA ID This item specifies the camera title. -
Page 23: Basic Operation
The operations in the setup menu are performed with the operation buttons after calling up the setup menu on the connected video monitor. The description below explains how to operate the setup menu basically. Screenshots of WV-CW324LE are shown as an example. Screenshot 1 Hold down the [SET] button for about 2... - Page 24 Screenshot 3 The selected setup screen in the setup menu Step 4 appears on the screen. Perform the settings for each item. **CAMERA SETUP** • Selection of setting item: SCENE1 ALC/ELC Press the [UP] or [DOWN] button to move SHUTTER the cursor. ON(LOW) SENS UP •...
-
Page 25: Cw324L
Screen transition diagram CW324L Top screen “CAMERA ID” screen CW304L MODEL WV-CW324L **CAMERA ID** CW314L CAMERA ID 0123456789 CAMERA ABCDEFGHIJKLM SYSTEM NOPQRSTUVWXYZ BACK-FOCUS ().,'":;&#!?= SPECIAL +-*/%$ LANGUAGE SPACE POSI RET TOP END RESET ....SETUP DISABLE “CAMERA SETUP” screen **CAMERA SETUP** SCENE1 ALC/ELC SHUTTER... - Page 26 CW324L CW304L Screen transition diagram CW314L Top screen “CAMERA ID” screen MODEL WV-CW314L **CAMERA ID** CAMERA ID 0123456789 CAMERA ABCDEFGHIJKLM SYSTEM NOPQRSTUVWXYZ BACK-FOCUS ().,'":;&#!?= SPECIAL +-*/%$ LANGUAGE SPACE POSI RET TOP END RESET ....SETUP DISABLE “CAMERA SETUP” screen **CAMERA SETUP** SCENE1 ALC/ELC SHUTTER...
- Page 27 CW324L Screen transition diagram CW304L Top screen “CAMERA ID” screen CW314L MODEL WV-CW304L **CAMERA ID** CAMERA ID 0123456789 CAMERA ABCDEFGHIJKLM SYSTEM NOPQRSTUVWXYZ SPECIAL ().,'":;&#!?= LANGUAGE +-*/%$ SPACE POSI RET TOP END RESET ....SETUP DISABLE “CAMERA SETUP” screen **CAMERA SETUP** SCENE1 ALC/ELC SHUTTER...
-
Page 28: Troubleshooting
Troubleshooting Before asking for repairs, confirm the causes with the following table. Contact your dealer if a problem cannot be solved even after checking and trying the solution in the table or a problem is not described below. Symptom Cause/solution Reference page •... -
Page 29: Specifications
Specifications General WV-CW324LE WV-CW314LE WV-CW304LE Power source and 24 V AC: 3.2 W, 24 V AC 50/60 Hz: 5.2 W, 12 V DC: 560 mA power consumption 12 V DC: 320 mA Image sensor 1/3-type interline transfer CCD Effective pixels 976 (H) ×... -
Page 30: Standard Accessories
WV-CW324LE WV-CW314LE WV-CW304LE Digital noise reduction LOW/HIGH Day&Night (IR) AUTO1/AUTO2/ON/OFF IR LED irradiation distance 50 m 20 m IR LED lights OFF/AUTO/FIX Video motion detection OFF/MOTION DETECTION/SCENE CHANGE Number of scene file Privacy zone ON (1)/ON (2)/OFF Image stabilizer ON/OFF... - Page 31 Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households) This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis.
- Page 32 Panasonic Corporation http://panasonic.net Importer's name and address to follow EU rules: Panasonic Testing Centre Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, Germany sL0313-0 PGQX1305ZA Printed in China © Panasonic System Networks Co., Ltd. 2013...
