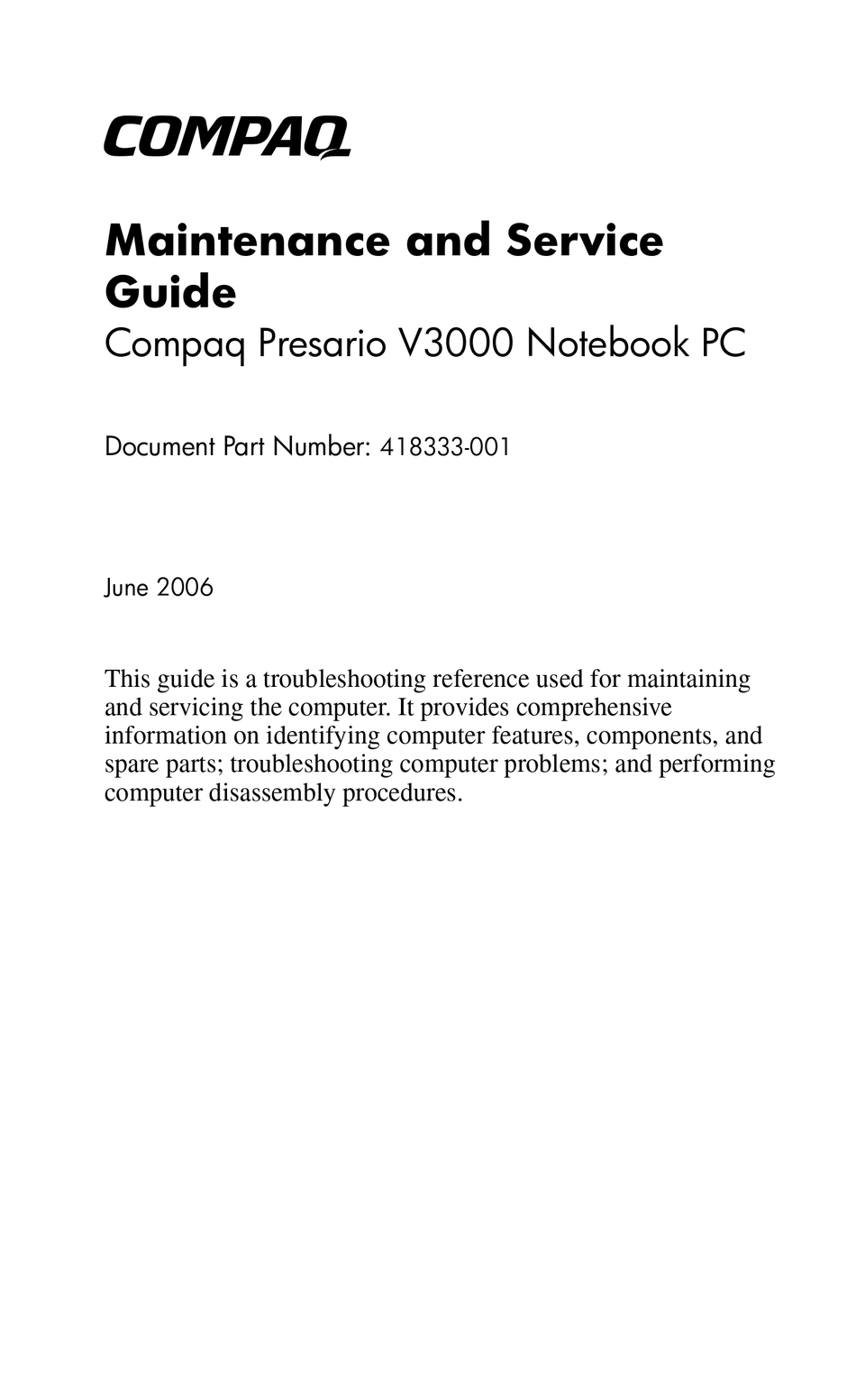

Page 1 Maintenance and Service Guide Compaq Presario V3000 Notebook PC Document Part Number: 418333-001 June 2006 This guide is a troubleshooting reference used for maintaining and servicing the computer. It provides comprehensive information on identifying computer features, components, and spare parts; troubleshooting computer problems; and performing...
Page 2 HP shall not be liable for technical or editorial errors or omissions contained herein. Maintenance and Service Guide Compaq Presario V3000 Notebook PC First Edition: June 2006 Document Part Number: 418333-001...
Page 3: Product Description
Contents 1 Product Description 1.1 Features ........1–2 1.2 Resetting the Computer.
Page 4: Table Of Contents
Contents 3 Illustrated Parts Catalog 3.1 Serial Number Location ..... . 3–1 3.2 Computer Major Components....3–2 3.3 Display Assembly Components .
Page 5: Removal And Replacement Procedures
Contents 5 Removal and Replacement Procedures 5.1 Serial Number ......5–1 5.2 Disassembly Sequence Chart .
Page 6: Specifications
Contents 6 Specifications A Screw Listing B Backup and Recovery C Display Component Recycling D Connector Pin Assignments E Power Cord Set Requirements Index Maintenance and Service Guide...
Page 7: Product Description
Product Description The Compaq Presario V3000 Notebook PC offers advanced modularity, Intel® Core™ Duo and Core Solo processors or AMD Turion™ 64 Mobile Technology and Mobile AMD Sempron™ processors, and extensive multimedia support. Compaq Presario V3000 Notebook PC Maintenance and Service Guide...
Page 8 Product Description 1.1 Features ■ The following processors are available, varying by computer model: ❏ Intel Core Duo T2600 (2.16-GHz) ❏ Intel Core Duo T2500 (2.00-GHz) ❏ Intel Core Duo T2400 (1.83-GHz) ❏ Intel Core Duo T2250 (1.73-GHz) ❏ Intel Core Duo T2300 (1.66-GHz) ❏...
Page 9 Product Description ■ Integrated wireless support for Mini Card IEEE 802.11b and 802.11b/g WLAN device ■ Support for ExpressCard ■ External 65-watt AC adapter with 3-wire power cord ■ 6-cell or 12-cell Li-Ion battery ■ Stereo speakers with volume up and down buttons ■...
Page 10: Resetting The Computer
Product Description 1.2 Resetting the Computer If the computer you are servicing has an unknown password, follow these steps to clear the password. These steps also clear CMOS: 1. Prepare the computer for disassembly (refer to Section 5.3, “Preparing the Computer for Disassembly,” for more information).
Page 11: Power Management
Product Description 1.3 Power Management The computer comes with power management features that extend battery operating time and conserve power. The computer supports the following power management features: ■ Standby ■ Hibernation ■ Setting customization by the user ■ Hotkeys for setting the level of performance ■...
Page 12: External Components
Product Description 1.4 External Components The external components on the front of the computer are shown below and described in Table 1-1. Front Components Table 1-1 Front Components Item Component Function Wireless switch Turns the wireless feature on or off, but (select models only) does not create a wireless connection.
Page 13: Right-Side Components
Product Description The external components on the right side of the computer are shown below and described in Table 1-2. Right-Side Components Table 1-2 Right-Side Components Item Component Function Optical drive Reads an optical disc. USB ports (2) Connect optional USB devices. RJ-11 (modem) jack Connects a modem cable.
Page 14 Product Description The external components on the left side of the computer are shown below and described in Table 1-3. Left-Side Components 1–8 Maintenance and Service Guide...
Page 15: Left-Side Components
Product Description Table 1-3 Left-Side Components Item Component Function S-Video-out jack Connects an optional S-Video device such as a television, VCR, camcorder, overhead projector, or video capture card. External monitor port Connects an external VGA monitor or projector. Expansion port 3 Connects the computer to an optional expansion product.
Page 16 Product Description The computer keyboard components are shown below and described in Table 1-4. Keyboard Components 1–10 Maintenance and Service Guide...
Page 17: Keyboard Components
Product Description Table 1-4 Keyboard Components Item Component Function Function keys (12) Execute frequently used system functions when pressed in combination with the fn key. caps lock key Enables caps lock and turns on the caps lock light. fn key Executes frequently used system functions when pressed in combination with a function key or the esc key.
Page 18 Product Description The computer top components are shown below and described in Table 1-5. Top Components, Part 1 Table 1-5 Top Components, Part 1 Item Component Function Power button When the computer is ■ Off, press to turn on the computer. ■...
Page 19 Product Description Table 1-5 Top Components, Part 1 (Continued) Item Component Function Media button If QuickPlay is not installed and the computer is ■ On, the media button opens the music program or Media menu, allowing you to select a multimedia program. ■...
Page 20 Product Description The computer TouchPad components are shown below and described in Table 1-6. TouchPad Components 1–14 Maintenance and Service Guide...
Page 21: Touchpad Components
Product Description Table 1-6 TouchPad Components Item Component Function TouchPad light Blue: TouchPad is enabled. Amber: TouchPad is disabled. TouchPad Moves the pointer and selects or activates items on the screen. Can be set to perform other mouse functions, such as scrolling, selecting, and double-clicking.
Page 22: Bottom Components
Product Description The external components on the bottom of the computer are shown below and described in Table 1-7. Bottom Components Table 1-7 Bottom Components Item Component Function Battery bay Holds the battery. Battery release latch Releases the battery from the battery bay.
Page 23 Product Description Table 1-7 Bottom Components (Continued) Item Component Function vents (4) Enable airflow to cool internal components. Ä To prevent overheating, do not obstruct vents. Use the computer only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or thick rugs, or clothing,...
Page 24: Design Overview
Product Description 1.5 Design Overview This section presents a design overview of key parts and features of the computer. Refer to Chapter 3, “Illustrated Parts Catalog,” to identify replacement parts, and Chapter 5, “Removal and Replacement Procedures,” for disassembly steps. The system board provides the following device connections: ■...
Page 25: Troubleshooting
Troubleshooting Å WARNING: Only authorized technicians trained by HP should repair this equipment. All troubleshooting and repair procedures are detailed to allow only subassembly-/module-level repair. Because of the complexity of the individual boards and subassemblies, do not attempt to make repairs at the component level or modifications to any printed wiring board.
Page 26: Using The Setup Utility
Troubleshooting 2.2 Using the Setup Utility Changing the Language of the Setup Utility The following procedure explains how to change the language of the Setup Utility. If the computer is not in the Setup Utility, begin at step 1. If the computer is in the Setup Utility, begin at step 2. 1.
Page 27: Navigating And Selecting In The Setup Utility
Troubleshooting Navigating and Selecting in the Setup Utility Because the Setup Utility is not Windows-based, it does not support the TouchPad. Navigation and selection are by keystroke. ■ To choose a menu or a menu item, use the arrow keys. ■...
Page 28: Using Advanced Setup Utility Features
Troubleshooting Restoring Default Settings in the Setup Utility The following procedure explains how to restore the Setup Utility default settings. If the computer is not in the Setup Utility, begin at step 1. If the computer is in the Setup Utility, begin at step 2. 1.
Page 29: Closing The Setup Utility
Troubleshooting The “Press <ESC> to change boot order” message that is displayed in the lower-left corner of the screen each time the computer is started or restarted in Windows or restored from hibernation is the prompt to change the boot order. Closing the Setup Utility You can close the Setup Utility with or without saving changes.
Page 30: Setup Utility Menus
Troubleshooting 2.3 Setup Utility Menus The menu tables in this section provide an overview of Setup Utility options. ✎ Some of the Setup Utility menu listed in this chapter may not be supported by your computer. Selecting from the Main Menu Table 2-1 Main Menu Select...
Page 31: System Configuration Menu
Troubleshooting Selecting from the System Configuration Menu Table 2-3 System Configuration Menu Select To Do This Language Support Change the Setup Utility language. Embedded WLAN Device Enable/disable an embedded wireless LAN Radio device. Embedded Bluetooth Enable/disable an embedded Bluetooth® device Device (select models only) (select models only).
Page 32: Selecting From The Diagnostics Menu
Troubleshooting Selecting from the Diagnostics Menu Table 2-4 Diagnostics Menu Select To Do This Hard Disk Self Test Run a comprehensive self-test on the hard drive. ✎ On models with two hard drives, this menu option is called the Primary Hard Disk Self Test.
Page 33: Troubleshooting Flowcharts
Troubleshooting 2.4 Troubleshooting Flowcharts Table 2-5 Troubleshooting Flowcharts Overview Flowchart Description “Flowchart 2.1—Initial Troubleshooting” “Flowchart 2.2—No Power, Part 1” “Flowchart 2.3—No Power, Part 2” “Flowchart 2.4—No Power, Part 3” “Flowchart 2.5—No Power, Part 4” “Flowchart 2.6—No Video, Part 1” “Flowchart 2.7—No Video, Part 2” “Flowchart 2.8—Nonfunctioning Docking Device (if applicable)”...
Page 34 Troubleshooting Table 2-5 Troubleshooting Flowcharts Overview (Continued) Flowchart Description 2.14 “Flowchart 2.14—No OS Loading, Optical Drive” 2.15 “Flowchart 2.15—No Audio, Part 1” 2.16 “Flowchart 2.16—No Audio, Part 2” 2.17 “Flowchart 2.17—Nonfunctioning Device” 2.18 “Flowchart 2.18—Nonfunctioning Keyboard” 2.19 “Flowchart 2.19—Nonfunctioning Pointing Device” 2.20 “Flowchart 2.20—No Network/Modem Connection”...
Page 35 Troubleshooting Flowchart 2.1—Initial Troubleshooting Begin troubleshooting. Go to Is there “Flowchart power? 2.2—No Power, Part 1.” Check Beeps, LED board, LEDs, or error speaker messages? connections. Go to All drives “Flowchart working? 2.17—Nonfunc- tioning Device.” Go to Is there video? “Flowchart Go to (no boot)
Page 36 Troubleshooting Flowchart 2.2—No Power, Part 1 No power (power LED is off). Remove from docking device (if applicable). Go to Power up Power up Reset “Flowchart on battery on battery power.* 2.3—No Power, power? power? Part 2.” Go to Power up Power up Reset “Flowchart...
Page 37 Troubleshooting Flowchart 2.3—No Power, Part 2 Continued from “Flowchart 2.2—No Power, Part 1.” Visually check for debris in battery socket and clean if necessary. Power on? Done Check battery by recharging it, moving it to another computer, or replacing it. Replace Power on? power supply...
Page 38 Troubleshooting Flowchart 2.4—No Power, Part 3 Continued from “Flowchart 2.3—No Power, Part 2.” Plug directly into AC outlet. Power LED Done Reseat AC adapter in computer and at power source. Power on? Done External Internal or Replace external Try different Power outlet external AC AC adapter.
Page 39 Troubleshooting Flowchart 2.5—No Power, Part 4 Continued from “Flowchart 2.4—No Power, Part 3.” Open computer. Reseat loose Loose or components and damaged boards and parts? replace damaged items. Close computer and retest. Replace the following items (if applicable). Check Power on? computer operation after each replacement: 1.
Page 40 Troubleshooting Flowchart 2.6—No Video, Part 1 No video. Docking Device Go to *NOTE: To change from internal to Stand-alone “Flowchart external display, use the hotkey or docking 2.7—No Video, combination. device? Part 2.” Stand-alone Internal or Adjust Video OK? Done external brightness.
Page 41 Troubleshooting Flowchart 2.7—No Video, Part 2 Continued from “Flowchart 2.6—No Video, Part 1.” Remove computer from docking device, if connected. Adjust Check brightness display of external brightness. monitor. Go to “A” in “Flowchart Video OK? Video OK? Done 2.6—No Video, Part 1.”...
Page 42 Troubleshooting Flowchart 2.8—Nonfunctioning Docking Device (if applicable) Nonfunctioning docking device. Reseat power cord in docking device and power outlet. Check voltage Reinstall setting on docking computer into device. docking device. Reset monitor cable connector at Docking docking device. Done device operating? Docking device...
Page 43 Troubleshooting Flowchart 2.9—No Operating System (OS) Loading No OS loading.* Reseat power cord in docking device and power outlet. No OS loading from hard drive, go to “Flowchart 2.10—No OS Loading, Hard Drive, Part 1.” No OS loading from diskette drive, go to “Flowchart 2.13—No OS Loading, Diskette Drive.”...
Page 44 Troubleshooting Flowchart 2.10—No OS Loading, Hard Drive, Part 1 OS not loading from hard drive. Go to “Flowchart Nonsystem 2.11—No OS disk message? Loading, Hard Drive, Part 2.” Reseat external hard drive. OS loading? Done Boot from Go to Boot “Flowchart from 2.13—No OS...
Page 45 Troubleshooting Flowchart 2.11—No OS Loading, Hard Drive, Part 2 Continued from “Flowchart 2.10—No OS Reseat Loading, hard drive. Hard Drive, Part 1.” 1. Replace Disc or hard drive. diskette in 2. Replace system drive? Hard drive board. Done accessible? Remove disc or diskette and Run FDISK.
Page 46 Troubleshooting Flowchart 2.12—No OS Loading, Hard Drive, Part 3 Continued from “Flowchart 2.11—No OS Loading, Hard Drive, Part 2.” System Install OS files on hard and reboot. drive? Virus loading from Clean virus. Done hard drive? hard drive? Run SCANDISK and Replace Diagnostics on check for...
Page 47 Troubleshooting Flowchart 2.13—No OS Loading, Diskette Drive OS not loading Reseat Done from diskette drive. loading? diskette drive. Bootable Install bootable Nonsystem diskette diskette and disk message? in drive? reboot computer. Check diskette for system files. Go to Boot Try different “Flowchart from another diskette.
Page 48 Troubleshooting Flowchart 2.14—No OS Loading, Optical Drive No OS Install bootable Bootable Disc loading from disc and disc in in drive? CD-ROM or reboot drive? DVD-ROM drive. computer. Install Try another bootable disc. bootable disc. Boots from Done CD or DVD? Boots from Reseat Done...
Page 49 Troubleshooting Flowchart 2.15—No Audio, Part 1 Turn up audio internally or No audio. Audio? Done externally. Go to Computer in Internal “Flowchart docking device Undock audio? 2.16—No Audio, (if applicable)? Part 2.” Go to “Flowchart Replace the docking device. 2.16—No Audio, Part 2.”...
Page 50 Troubleshooting Flowchart 2.16—No Audio, Part 2 Continued from “Flowchart 2.15—No Audio, Part 1.” Audio Reload driver in OS audio drivers. configured? Correct Load drivers and drivers for set configuration application? in OS. Connect to external speaker. Replace audio board and speaker Audio? Audio?
Page 51 Troubleshooting Flowchart 2.17—Nonfunctioning Device Nonfunctioning device. Reseat device. Unplug the nonfunctioning device from the computer and inspect cables and plugs for bent or broken pins or other damage. Fix or Clear Any physical replace CMOS. device detected? broken item. Go to “Flowchart Reattach device.
Page 52 Troubleshooting Flowchart 2.18—Nonfunctioning Keyboard Keyboard not operating properly. Connect computer to good external keyboard. External Replace device system works? board. Reseat internal keyboard connector (if applicable). Keyboard Replace internal operating keyboard or properly? cable. Keyboard operating Done Done properly? Replace system board.
Page 53 Troubleshooting Flowchart 2.19—Nonfunctioning Pointing Device Pointing device not operating properly. Connect computer to good external pointing device. Replace External system device board. works? Reseat internal pointing device connector (if applicable). Replace internal Pointing device pointing device operating or cable. properly? Pointing device Done Done...
Page 54 Troubleshooting Flowchart 2.20—No Network/Modem Connection No network or modem connection. Network Replace jack or modem jack or have jack active? activated. Connect Digital to nondigital line? line. Network Reload NIC/modem or modem Done drivers and configured connection reconfigure. in OS? working? Disconnect all Replace...
Page 55: Serial Number Location
Illustrated Parts Catalog This chapter provides an illustrated parts breakdown and a reference for spare part numbers and option part numbers. 3.1 Serial Number Location When ordering parts or requesting information, provide the computer serial number and model number located on the bottom of the computer.
Page 56: Computer Major Components
Illustrated Parts Catalog 3.2 Computer Major Components Computer Major Components 3–2 Maintenance and Service Guide...
Page 57 Illustrated Parts Catalog Table 3-1 Spare Parts: Computer Major Components Spare Part Item Description Number 14.0-inch, WXGA display assembly (includes 417049-001 wireless antenna transceivers and cables) ✎ Refer to Section 3.3, “Display Assembly Components,” display assembly internal component spare part number information.
Page 58 Illustrated Parts Catalog Computer Major Components 3–4 Maintenance and Service Guide...
Page 59 Illustrated Parts Catalog Table 3-1 Spare Parts: Computer Major Components (Continued) Spare Part Item Description Number Keyboards (Continued) For use only with computer models using AMD processors Denmark 417069-081 Latin America 417069-161 France 417069-051 Norway 417069-091 French Canada 417069-121 Spain 417069-071 Germany 417069-041...
Page 60 Illustrated Parts Catalog Computer Major Components 3–6 Maintenance and Service Guide...
Page 61 Illustrated Parts Catalog Table 3-1 Spare Parts: Computer Major Components (Continued) Spare Part Item Description Number Modem modules (include modem module cable) For use with computer models using Intel processors 417083-001 For use with computer models using AMD processors 431852-001 Modem module cable ExpressCard assembly 417112-001...
Page 62 Illustrated Parts Catalog Computer Major Components 3–8 Maintenance and Service Guide...
Page 63 Illustrated Parts Catalog Table 3-1 Spare Parts: Computer Major Components (Continued) Spare Part Item Description Number Processors (include thermal pad) Intel Core Duo T2600 (2.16-GHz) 417044-001 Intel Core Duo T2500 (2.00-GHz) 417043-001 Intel Core Duo T2400 (1.83-GHz) 417042-001 Intel Core Duo T2250 (1.73-GHz) 430455-001 Intel Core Duo T2300 (1.66-GHz) 417041-001...
Page 64 Illustrated Parts Catalog Computer Major Components 3–10 Maintenance and Service Guide...
Page 65 Illustrated Parts Catalog Table 3-1 Spare Parts: Computer Major Components (Continued) Spare Part Item Description Number USB board (includes USB board cable) 417085-001 Base enclosures For use with full-featured computer models 417094-001 For use with defeatured computer models 430470-001 Rubber Feet Kit (includes computer feet, not 417096-001 illustrated) Batteries...
Page 66 Illustrated Parts Catalog Computer Major Components 3–12 Maintenance and Service Guide...
Page 67 Illustrated Parts Catalog Table 3-1 Spare Parts: Computer Major Components (Continued) Spare Part Item Description Number Memory modules, 1-DIMM, DDR2 PC2-5300, 667-MHz 1024 MB 417055-001 512 MB 417054-001 256 MB 417503-001 PC2-4200, 533-MHz 1024 MB 417052-001 512 MB 417051-001 256 MB 417050-001 Mini Card modules ■...
Page 68 Illustrated Parts Catalog Computer Major Components 3–14 Maintenance and Service Guide...
Page 69 Illustrated Parts Catalog Table 3-1 Spare Parts: Computer Major Components (Continued) Spare Part Item Description Number Mini Card modules (Continued) ■ 802.11b/g WLAN Mini Card module for use in the 409407-002 countries listed below. These countries are categorized as most of the world (MOW 2). Aruba Egypt The Philippines...
Page 70 Illustrated Parts Catalog Computer Major Components 3–16 Maintenance and Service Guide...
Page 71 Illustrated Parts Catalog Table 3-1 Spare Parts: Computer Major Components (Continued) Spare Part Item Description Number Mini Card modules (Continued) For use with computer models using AMD processors: ■ 802.11a/b/g LJ WLAN Mini Card module for use in 416377-001 the United States and Canada. ■...
Page 72: Display Assembly Components
Illustrated Parts Catalog 3.3 Display Assembly Components Display Assembly Components 3–18 Maintenance and Service Guide...
Page 73 Illustrated Parts Catalog Table 3-2 Display Assembly Components Spare Part Number Information Spare Part Item Description Number Display Plastics Kit For use with full-featured computer models 430472-001 For use with defeatured computer models 417101-001 Includes: ■ Display bezel ■ Display enclosure Display inverter, includes 417097-001 Display inverter bracket...
Page 74: Mass Storage Devices
Illustrated Parts Catalog 3.4 Mass Storage Devices Mass Storage Devices 3–20 Maintenance and Service Guide...
Page 75 Illustrated Parts Catalog Table 3-3 Mass Storage Devices Spare Part Number Information Spare Part Item Description Number Hard drives (include frame and connector) 5400-rpm, 120-GB 417059-001 5400-rpm, 100-GB 417058-001 5400-rpm, 80-GB 417057-001 5400-rpm, 60-GB 417056-001 5400-rpm, 40-GB 430460-001 Optical drives DVD/CD-RW Combo Drive 417063-001 DVD±RW/R and CD-RW Double-Layer Combo...
Page 76: Plastics Kit
Illustrated Parts Catalog 3.5 Plastics Kit Plastics Kit Contents Table 3-4 Plastics Kit Spare Part Number Information Spare Part Item Description Number Plastics Kit 417074-001 Includes: Mini Card compartment cover (includes 1 captive screw, secured by a C-clip) Hard drive cover (includes 2 captive screws, secured by C-clips) Memory module compartment cover (includes 2 captive screws, secured by C-clips) ExpressCard slot bezel...
Page 77: Cable Kit
Illustrated Parts Catalog 3.6 Cable Kit Cable Kit Contents Table 3-5 Cable Kit Spare Part Number Information Spare Part Item Description Number Cable Kit 430474-001 Includes: LED board cable TouchPad cable USB board cable (includes num lock light cable) Bluetooth module cable Maintenance and Service Guide 3–23...
Page 78: Miscellaneous
Illustrated Parts Catalog 3.7 Miscellaneous Table 3-6 Spare Parts: Miscellaneous (not illustrated) Spare Part Description Number Analog TV tuner 407941-001 Composite S-Video and audio input cable 407939-001 DVB-T TV tuner 412175-001 DVB-T TV tuner antenna 412176-001 Earbud headset 371693-001 HP 65W AC Adapter 409843-001 HP Remote Control 407313-001...
Page 79 Illustrated Parts Catalog Table 3-6 Spare Parts: Miscellaneous (not illustrated) (Continued) Spare Part Description Number Power cords For use in: Australia and New Zealand 383496-011 Belgium, Europe, Finland, France, Germany, Greece, 383496-021 the Netherlands, Norway, Portugal, Spain, and Sweden Brazil 383496-201 Canada, French Canada, Latin America, Thailand, and the 383496-001...
Page 80: Sequential Part Number Listing
Illustrated Parts Catalog 3.8 Sequential Part Number Listing Table 3-7 Spare Parts: Sequential Part Number Listing Spare Part Number Description 309674-001 USB travel mouse 364727-001 USB digital drive (not illustrated) 371693-001 Earbud headset 383496-001 Power cord for use in Canada, French Canada, Latin America, Thailand, and the United States 383496-011 Power cord for use in Australia and New Zealand...
Page 81 Illustrated Parts Catalog Table 3-7 Spare Parts: Sequential Part Number Listing (Continued) Spare Part Number Description 408483-001 USB infrared receiver 408485-001 RF cable 409407-001 802.11b/g WLAN Mini Card module for use with computer models using Intel processors in the MOW1 countries listed below: Antigua &...
Page 82 Illustrated Parts Catalog Table 3-7 Spare Parts: Sequential Part Number Listing (Continued) Spare Part Number Description 409497-001 802.11a/b/g WLAN Mini Card module for use with computer models using Intel processors in the ROW countries listed below: China Honduras Qatar Ecuador Pakistan South Korea Haiti...
Page 83 Illustrated Parts Catalog Table 3-7 Spare Parts: Sequential Part Number Listing (Continued) Spare Part Number Description 416377-002 802.11a/b/g WLAN Mini Card module for use with computer models using AMD processors in the ROW countries listed below: China Honduras Qatar Ecuador Pakistan South Korea Haiti...
Page 84 Illustrated Parts Catalog Table 3-7 Spare Parts: Sequential Part Number Listing (Continued) Spare Part Number Description 417051-001 1-DIMM, DDR2, PC2-4200, 533-MHz, 512-MB memory module 417052-001 1-DIMM, DDR2, PC2-4200, 533-MHz, 1024-MB memory module 417053-001 1-DIMM, DDR2, PC2-5300, 667-MHz, 256-MB memory module 417054-001 1-DIMM, DDR2, PC2-5300, 667-MHz, 512-MB memory module...
Page 85 Illustrated Parts Catalog Table 3-7 Spare Parts: Sequential Part Number Listing (Continued) Spare Part Number Description 417068-031 Keyboard for use only with computer models using Intel processors in the United Kingdom 417068-041 Keyboard for use only with computer models using Intel processors in Germany 417068-051 Keyboard for use only with computer models using...
Page 86 Illustrated Parts Catalog Table 3-7 Spare Parts: Sequential Part Number Listing (Continued) Spare Part Number Description 417068-161 Keyboard for use only with computer models using Intel processors in Latin America 417068-171 Keyboard for use only with computer models using Intel processors in Saudi Arabia 417068-201 Keyboard for use only with computer models using Intel processors in Brazil...
Page 87 Illustrated Parts Catalog Table 3-7 Spare Parts: Sequential Part Number Listing (Continued) Spare Part Number Description 417069-071 Keyboard for use with computer models using AMD processors in Spain 417069-081 Keyboard for use with computer models using AMD processors in Denmark 417069-091 Keyboard for use with computer models using AMD processors in Norway...
Page 88 Illustrated Parts Catalog Table 3-7 Spare Parts: Sequential Part Number Listing (Continued) Spare Part Number Description 417082-001 TouchPad cable 417083-001 Modem module for use only with computer models using Intel processors 417085-001 USB board (includes USB board cable) 417089-001 Speaker assembly 417091-001 Top cover for use with full-featured computer models (includes TouchPad)
Page 89 Illustrated Parts Catalog Table 3-7 Spare Parts: Sequential Part Number Listing (Continued) Spare Part Number Description 430455-001 Intel Core Duo T2250 (1.73-GHz) processor (includes thermal pad) 430456-001 Intel Core Solo T1350 (1.80-GHz) processor (includes thermal pad) 430459-001 Display panel 430460-001 5400-rpm, 40-GB hard drive (includes frame and connector) 430461-001 Power connector cable for use only with computer models...
Page 90 Illustrated Parts Catalog Table 3-7 Spare Parts: Sequential Part Number Listing (Continued) Spare Part Number Description 431483-001 System board for use with full-featured computer models using AMD processors 431484-001 Mobile AMD Sempron 3200+ (1.60-GHz) processor (includes thermal pad) 431844-001 System board for use with defeatured computer models using AMD processors 431845-001 AMD Turion ML-50 1.60-GHz processor (includes...
Page 91: Removal And Replacement Procedures
Removal and Replacement Preliminaries This chapter provides essential information for proper and safe removal and replacement service. 4.1 Tools Required You will need the following tools to complete the removal and replacement procedures: ■ Magnetic screwdriver ■ Phillips P0 and P1 screwdrivers ■...
Page 92: Service Considerations
Removal and Replacement Preliminaries 4.2 Service Considerations The following sections include some of the considerations that you should keep in mind during disassembly and assembly procedures. ✎ As you remove each subassembly from the computer, place the subassembly (and all accompanying screws) away from the work area to prevent damage.
Page 93: Preventing Damage To Removable Drives
Removal and Replacement Preliminaries 4.3 Preventing Damage to Removable Drives Removable drives are fragile components that must be handled with care. To prevent damage to the computer, damage to a removable drive, or loss of information, observe the following precautions: ■...
Page 94: Preventing Electrostatic Damage
Removal and Replacement Preliminaries 4.4 Preventing Electrostatic Damage Many electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, the discharge contains enough power to alter device parameters or melt silicon junctions.
Page 95: Packaging And Transporting Precautions
Removal and Replacement Preliminaries 4.5 Packaging and Transporting Precautions Use the following grounding precautions when packaging and transporting equipment: ■ To avoid hand contact, transport products in static-safe containers, such as tubes, bags, or boxes. ■ Protect all electrostatic-sensitive parts and assemblies with conductive or approved containers or packaging.
Page 96: Workstation Precautions
Removal and Replacement Preliminaries 4.6 Workstation Precautions Use the following grounding precautions at workstations: ■ Cover the workstation with approved static-shielding material Table 4-2, “Static-Shielding Materials” (refer to ■ Use a wrist strap connected to a properly grounded work surface and use properly grounded tools and equipment. ■...
Page 97: Grounding Equipment And Methods
Removal and Replacement Preliminaries 4.7 Grounding Equipment and Methods Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation. ■ When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps with a minimum of one megohm ±10% resistance in the ground cords.
Page 98: Typical Electrostatic Voltage Levels
Removal and Replacement Preliminaries Table 4-1 shows how humidity affects the electrostatic voltage levels generated by different activities. Table 4-1 Typical Electrostatic Voltage Levels Relative Humidity Event Walking across carpet 35,000 V 15,000 V 7,500 V Walking across vinyl floor 12,000 V 5,000 V 3,000 V...
Page 99: Serial Number
Removal and Replacement Procedures This chapter provides removal and replacement procedures. There are as many as 89 screws, in 10 different sizes, that must be removed, replaced, or loosened when servicing the computer. Make special note of each screw size and location during removal and replacement.
Page 100: Disassembly Sequence Chart
Removal and Replacement Procedures 5.2 Disassembly Sequence Chart Use the chart below to determine the section number to be referenced when removing computer components. Disassembly Sequence Chart Section Description # of Screws Removed Preparing the Computer for Disassembly Battery Hard Drive 2 loosened to remove the hard drive cover 2 removed to remove the...
Page 101 Removal and Replacement Procedures Disassembly Sequence Chart (Continued) Section Description # of Screws Removed 5.10 Keyboard 5.11 Switch Cover 3 to remove the switch cover 2 to remove the power button board 5.12 Display Assembly Display bezel Display inverter Display hinges Display lid switch module Display panel Wireless antenna transceivers...
Page 102 Removal and Replacement Procedures 5.3 Preparing the Computer for Disassembly Before you begin any removal or installation procedures: 1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. 2.
Page 103 Removal and Replacement Procedures b. Slide and hold the battery release latch 1 to the left. (The front edge of the battery disengages from the computer.) c. Lift the front edge of the battery 2 up and swing it back. d.
Page 104: Hard Drive
Removal and Replacement Procedures 5.4 Hard Drive Hard Drive Spare Part Number Information For use only with computer models using Intel processors: 5400-rpm, 120-GB 417059-001 For use with all computer models: 5400-rpm, 100-GB 417058-001 5400-rpm, 80-GB 417057-001 5400-rpm, 60-GB 417056-001 5400-rpm, 40-GB 430460-001 1.
Page 105 Removal and Replacement Procedures 2. Loosen the two Phillips PM2.0×5.0 screws 1 that secure the hard drive cover to the computer. 3. Lift the left side of the cover 2 and swing it to the right. 4. Remove the hard drive cover. ✎...
Page 106 Removal and Replacement Procedures 5. Remove the two black Phillips PM2.5×5.0 screws 1 that secure the hard drive to the computer. 6. Use the mylar tab 2 to lift the hard drive 3 until it disconnects from the computer. 7. Remove the hard drive from the hard drive bay. Removing the Hard Drive 5–8 Maintenance and Service Guide...
Page 107 Removal and Replacement Procedures 8. Remove the four Phillips PM3.0×3.0 screws 1 that secure the hard drive frame to the hard drive. 9. Lift the frame 2 straight up to remove if from the hard drive. Removing the Hard Drive Frame and Connector Reverse the above procedure to install and reassemble the hard drive.
Page 108: Rtc Battery
Removal and Replacement Procedures 5.5 RTC Battery RTC Battery Spare Part Number Information RTC battery 417076-001 1. Prepare the computer for disassembly (refer to Section 5.3). 2. Remove the hard drive cover (Section 5.4). 3. Disconnect the RTC battery cable 1 from the system board. 4.
Page 109: Computer Feet
Removal and Replacement Procedures 5.6 Computer Feet The computer feet are adhesive-backed rubber pads. The feet are included in the Rubber Feet Kit, spare part number 417096-001. The feet attach to the base enclosure in the locations illustrated below. Replacing the Computer Feet Maintenance and Service Guide 5–11...
Page 110: Memory Module
Removal and Replacement Procedures 5.7 Memory Module Memory Module Spare Part Number Information PC2-5300, 667-MHz 1024-MB 417055-001 512-MB 417054-001 256-MB 417503-001 PC2-4200, 533-MHz 1024-MB 417052-001 512-MB 417051-001 256-MB 417050-001 1. Prepare the computer for disassembly (refer to Section 5.3). 5–12 Maintenance and Service Guide...
Page 111 Removal and Replacement Procedures 2. Loosen the two Phillips PM2.0×5.0 screws 1 that secure the memory module compartment cover to the computer. 3. Lift the right edge of the memory module compartment cover 2, and then swing it to the left. 4.
Page 112 Removal and Replacement Procedures 5. Spread the retaining tabs 1 on each side of the memory module socket to release the memory module. (The edge of the module opposite the socket rises away from the computer.) 6. Slide the module 2 away from the socket at an angle. ✎...
Page 113: Mini Card Module
Removal and Replacement Procedures 5.8 Mini Card Module Mini Card Module Spare Part Number Information For use with computer models using Intel processors: ■ 802.11b/g WLAN module for use in the MOW 1 countries 409407-001 listed below: Antigua & Canada Panama Paraguay Barbuda...
Page 114 Removal and Replacement Procedures Mini Card Module Spare Part Number Information (Continued) ■ 802.11a/b/g WLAN module for use in the ROW countries 409497-001 listed below: China Honduras Qatar Uruguay Ecuador Pakistan South Korea Venezuela Haiti Peru For use with computer models using AMD processors: ■...
Page 115 Removal and Replacement Procedures 1. Prepare the computer for disassembly (Section 5.3). 2. Loosen the Phillips PM2.0×5.0 screw 1 that secures the Mini Card compartment cover to the computer. 3. Lift the right edge of the Mini Card compartment cover 2, and then swing it to the left.
Page 116 Removal and Replacement Procedures 5. Make note of which wireless antenna cable is attached to which antenna clip on the Mini Card module before disconnecting the cables, then disconnect the cables 1 from the module. 6. Remove the two Phillips PM2.0×3.0 screws 2 that secure the Mini Card module to the computer.
Page 117: Optical Drive
Removal and Replacement Procedures 5.9 Optical Drive Optical Drive Spare Part Number Information DVD/CD-RW Combo Drive 417063-001 DVD±RW/R and CD-RW Double-Layer Combo Drive 417064-001 DVD±RW/R and CD-RW Double-Layer Combo Drive with 417065-001 LightScribe 1. Prepare the computer for disassembly (Section 5.3).
Page 118 Removal and Replacement Procedures 6. Position the optical drive with the optical drive bracket toward you. 7. Remove the two Phillips PM2.0×3.0 screws 1 that secure the optical drive bracket to the optical drive. 8. Remove the optical drive 2. Removing the Optical Drive Bracket Reverse the above procedure to reassemble and install the optical drive.
Page 119 Removal and Replacement Procedures 5.10 Keyboard Keyboard Spare Part Number Information For use with all computer models: Denmark 417068-081 Latin America 417068-161 France 417068-051 Norway 417068-091 French Canada 417068-121 Spain 417068-071 Germany 417068-041 Switzerland 417068-111 International 417068-B31 The United Kingdom 417068-031 Israel 417068-BB1...
Page 120 Removal and Replacement Procedures 2. Remove the three Phillips PM2.5×7.0 screws that secure the keyboard to the computer. Removing the Keyboard Screws 3. Turn the computer display-side up with the front panel toward you. 4. Open the computer as far as possible. 5–22 Maintenance and Service Guide...
Page 121 Removal and Replacement Procedures 5. Slide the keyboard 1 back to release the tabs on the front of the keyboard from the top cover. 6. Lift the rear edge of the keyboard 2 and swing it forward until it rests on the palm rest. Releasing the Keyboard Maintenance and Service Guide 5–23...
Page 122 Removal and Replacement Procedures 7. Release the zero insertion force (ZIF) connector 1 to which the keyboard cable is connected and disconnect the keyboard cable 2 from the system board. Disconnecting the Keyboard Cable 8. Remove the keyboard. Reverse the above procedure to install the keyboard. 5–24 Maintenance and Service Guide...
Page 123: Switch Cover
Removal and Replacement Procedures 5.11 Switch Cover Switch Cover Spare Part Number Information For use with full-featured computer models 417077-001 For use with defeatured computer models 417078-001 1. Prepare the computer for disassembly (Section 5.3). 2. Remove the keyboard (Section 5.10).
Page 124 Removal and Replacement Procedures 4. Turn the computer upside down with the front panel toward you. 5. Remove the two Phillips PM2.5×9.0 screws 1 and the silver Phillips PM2.5×5.0 screw 2 that secure the switch cover to the computer. Removing the Switch Cover Screws 5–26 Maintenance and Service Guide...
Page 125 Removal and Replacement Procedures 6. Turn the computer display-side up with the front toward you. 7. Open the computer as far as possible. 8. Disconnect the power button board cable 1 from the system board. 9. Release the ZIF connector to which the LED board cable 2 is connected and disconnect the cable from the system board.
Page 126 Removal and Replacement Procedures 10. Lift the front edge of the switch cover 1 to disengage it from the computer. 11. Remove the switch cover 2. Removing the Switch Cover 5–28 Maintenance and Service Guide...
Page 127 Removal and Replacement Procedures 12. If it is necessary to replace the power button board, remove the two Phillips PM2.0×3.0 screws 1 that secure the board to the switch cover, and then remove the power button board 2. 13. If it is necessary to replace the LED board cable, release the ZIF connector 3 to which the cable is connected and disconnect the cable 4 from the LED board.
Page 128: Display Assembly
Removal and Replacement Procedures 5.12 Display Assembly Display Assembly Spare Part Number Information 14.0-inch, WXGA display assembly (includes wireless antenna 417049-001 transceivers and cables) 1. Prepare the computer for disassembly (Section 5.3). 2. Disconnect the Mini Card WLAN antenna cables from the Mini Card WLAN module (Section 5.8).
Page 129 Removal and Replacement Procedures 4. Turn the computer display-side up with the front toward you. 5. Open the display as far as possible. 6. Disconnect the following cables: 1 Display cable 2 Display lid switch module cable 3 Microphone cable 7.
Page 130 Removal and Replacement Procedures Ä CAUTION: Support the display assembly when removing the following screws. Failure to support the display assembly can result in damage to the display assembly and other computer components. 8. Remove the five Phillips PM2.5×7.0 screws 1 that secure the display assembly to the computer.
Page 131 Removal and Replacement Procedures 10. Remove the following: 1 Six rubber screw covers 2 Two rubber screw covers 3 Eight Phillips PM2.5×7.0 screws ✎ There are two different sizes of display bezel rubber screw covers. The thicker covers 2 should be installed in the bottom center screw holes.
Page 132: Display Assembly Subcomponents
Removal and Replacement Procedures Display Assembly Subcomponents Spare Part Number Information Display Plastics Kit For use with full-featured computer models 430472-001 For use with defeatured computer models 417101-001 Includes: ■ Display bezel ■ Display enclosure 11. Flex the insides edges of the left and right sides 1 and the top and bottom sides 2 of the display bezel until the bezel disengages from the display enclosure.
Page 133 Removal and Replacement Procedures Display Assembly Subcomponents Spare Part Number Information Display inverter 417097-001 13. Remove the two black Phillips PM2.5×5.0 screws 1 that secure the inverter to the display enclosure. 14. Remove the inverter 2 from the display enclosure. 15.
Page 134 Removal and Replacement Procedures 16. Remove the two black Phillips PM2.5×5.0 screws 1 that secure the inverter to the inverter bracket. 17. Remove the inverter 2 from the bracket. Removing the Display Inverter 5–36 Maintenance and Service Guide...
Page 135 Removal and Replacement Procedures Display Assembly Subcomponents Spare Part Number Information Display Hinge Kit 417103-001 18. Remove the black Phillips PM2.5×5.0 screw 1 that secures each hinge to the display enclosure. 19. Slide the hinges 2 back to release them from the display enclosure.
Page 136 Removal and Replacement Procedures Display Assembly Subcomponents Spare Part Number Information Display lid switch module 431881-001 21. Remove the black Phillips PM2.5×5.0 screw 1 that secures the display lid switch module to the display enclosure. 22. Remove the display lid switch module 3. Removing the Display Lid Switch Module 5–38 Maintenance and Service Guide...
Page 137 Removal and Replacement Procedures Display Assembly Subcomponents Spare Part Number Information 14.0-inch, WXGA, SVA display panel with BrightView 430459-001 23. Remove the display panel from the display enclosure. Removing the Display Panel Maintenance and Service Guide 5–39...
Page 138 Removal and Replacement Procedures Display Assembly Subcomponents Spare Part Number Information Wireless antenna transceivers and cables 417107-001 24. If it is necessary to replace the wireless transceivers and cables, remove the two Phillips PM2.5×4.0 screws 1 that secure the left and right transceivers to the display enclosure. 25.
Page 139 Removal and Replacement Procedures ✎ The microphone and cable are included in the Display Cable Kit, spare part number 430904-001. 28. If it is necessary to replace the microphones and cables, release the retention tabs 1 built in to the display enclosure lining that secure the microphones and cables to the display enclosure.
Page 140: Top Cover
Removal and Replacement Procedures 5.13 Top Cover Top Cover Spare Part Number Information Top cover (include TouchPad) 417091-001 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: ❏ Hard drive (Section 5.4) ❏ Mini Card compartment cover (Section 5.8) ❏...
Page 141 Removal and Replacement Procedures 3. Remove the two Phillips PM2.0×3.0 screws 1 and the four Phillips PM2.0×4.0 screws 2 that secure the top cover to the computer. Removing the Top Cover Screws, Part 2 Maintenance and Service Guide 5–43...
Page 142 Removal and Replacement Procedures 4. Turn the computer right-side up with the front toward you. 5. Release the ZIF connector 1 to which the TouchPad cable is connected and disconnect the cable 2 from the system board. Disconnecting the TouchPad Cable 5–44 Maintenance and Service Guide...
Page 143 Removal and Replacement Procedures 6. Remove the two Phillips PM2.0×4.0 screws 1 and the Phillips PM2.5×9.0 screw 2 that secure the top cover to the computer. Removing the Top Cover Screws, Part 3 7. Lift up the front edge of the top cover and remove it. Removing the Top Cover Reverse the above procedure to install the top cover.
Page 144 Removal and Replacement Procedures 5.14 TouchPad TouchPad Spare Part Number Information TouchPad 430464-001 TouchPad bracket TouchPad cable 417082-001 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: ❏ Hard drive (Section 5.4) ❏ Mini Card compartment cover (Section 5.8) ❏...
Page 145 Removal and Replacement Procedures 2. Release the ZIF connector 1 to which the TouchPad cable is connected and disconnect the cable 2 from the TouchPad board. Removing the TouchPad Cable Maintenance and Service Guide 5–47...
Page 146 Removal and Replacement Procedures 3. Remove the five Phillips PM2.0×3.0 screws 1 that secure the TouchPad bracket to the top cover. 4. Remove the TouchPad bracket 2 and TouchPad board 3 from the top cover. ✎ When removing the TouchPad bracket and TouchPad board, make note of the location of the TouchPad button actuators 4.
Page 147 Removal and Replacement Procedures 5. Remove the two Phillips PM2.0×2.0 screws 1 that secure the TouchPad board to the TouchPad bracket. 6. Remove the TouchPad board 2 from the TouchPad bracket. Removing the TouchPad Board Reverse the above procedure to install the TouchPad. Maintenance and Service Guide 5–49...
Page 148: Wireless Switch Board
Removal and Replacement Procedures 5.15 Wireless Switch Board Wireless Switch Board Spare Part Number Information Wireless switch board (includes wireless switch board cable) 417092-001 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: ❏ Hard drive (Section 5.4) ❏...
Page 149 Removal and Replacement Procedures 2. Disconnect the wireless switch board cable 1 from the system board. 3. Remove the two Phillips PM2.0×3.0 screws 2 that secure the wireless switch board to the computer. 4. Remove the wireless switch board 3. Removing the Wireless Switch Board Reverse the above procedure to install the wireless switch board.
Page 150: Modem Module
Removal and Replacement Procedures 5.16 Modem Module Modem Module Spare Part Number Information For use with computer models using Intel processors 417083-001 For use with computer models using AMD processors 431852-001 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: ❏...
Page 151 Removal and Replacement Procedures 2. Disconnect the modem module cable 1 from the modem module. 3. Remove the two Phillips PM2.0×4.0 screws 2 that secure the modem module to the system board. 4. Lift up on the front of the modem module 3 to disconnect it from the system board.
Page 152: Audio/Infrared Board
Removal and Replacement Procedures 5.17 Audio/Infrared Board Audio/Infrared Board Spare Part Number Information Audio/infrared board (includes audio/infrared board cable) 430465-001 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: ❏ Hard drive (Section 5.4) ❏ Mini Card compartment cover (Section 5.8) ❏...
Page 153 Removal and Replacement Procedures 2. Release the ZIF connector to which the audio/infrared board cable is connected and disconnect the cable 1 from the system board. 3. Remove the silver Phillips PM2.5×5.0 screw 2 that secures the audio/infrared board to the computer. 4.
Page 154: Bluetooth Module
Removal and Replacement Procedures 5.18 Bluetooth Module Bluetooth Module Spare Part Number Information Bluetooth module (includes Bluetooth module cable) 397923-001 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: ❏ Hard drive (Section 5.4) ❏ Mini Card compartment cover (Section 5.8) ❏...
Page 155 Removal and Replacement Procedures 2. Disconnect the Bluetooth module cable 1 from the system board. 3. Remove the Bluetooth module 2. Removing the Bluetooth Module Reverse the above procedure to install the Bluetooth module. Maintenance and Service Guide 5–57...
Page 156: Usb Board
Removal and Replacement Procedures 5.19 USB Board USB Board Spare Part Number Information USB board (includes USB board cable) 417085-001 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: ❏ Hard drive (Section 5.4) ❏ Mini Card compartment cover (Section 5.8) ❏...
Page 157 Removal and Replacement Procedures 2. Disconnect the USB board cable 1 from the system board. 3. Remove the silver Phillips PM2.5×5.0 screw 2 that secures the USB board to the computer. 4. Lift the USB board 3 straight up to remove it from the computer.
Page 158: Speaker Assembly
Removal and Replacement Procedures 5.20 Speaker Assembly Speaker Assembly Spare Part Number Information Speaker assembly 417089-001 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: ❏ Hard drive (Section 5.4) ❏ Mini Card compartment cover (Section 5.8) ❏...
Page 159 Removal and Replacement Procedures 2. Disconnect the speaker cable 1 from the system board. 3. Remove the four Phillips PM2.5×4.0 screws 2 that secure the speakers to the computer. 4. Lift the speakers 3 straight up to remove them from the computer.
Page 160: System Board
Removal and Replacement Procedures 5.21 System Board System Board Spare Part Number Information For use only with computer models using Intel processors: PM/G72M-V for use with full-featured computer models using 417035-001 Intel processors GM for use with full-featured computer models using 417036-001 Intel processors GMZ for use with defeatured computer models using...
Page 161 Removal and Replacement Procedures 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: ❏ Hard drive (Section 5.4) ❏ Optical drive (Section 5.9) ❏ Keyboard (Section 5.10) ❏ Switch cover (Section 5.11) ❏ Display assembly (Section 5.12) ❏...
Page 162 Removal and Replacement Procedures 3. Disconnect the power connector cable 1 from the system board. 4. Remove the two black Phillips PM2.5×5.0 screws 2 that secure the system board to the top cover. Removing the System Board Screws 5–64 Maintenance and Service Guide...
Page 163 Removal and Replacement Procedures 5. Use the optical drive connector 1 to lift the right side of the system board until it rests at an angle. 6. Slide the system board 2 to the right until the connectors on the left side of the system board disengage from the base enclosure.
Page 164 Removal and Replacement Procedures 8. If it is necessary to replace the modem cable, remove the modem cable 1 from the routing channel in the base enclosure. 9. Remove the modem connector 2 from the clips in the base enclosure. Removing the Modem Cable 10.
Page 165: Expresscard Assembly
Removal and Replacement Procedures 5.22 ExpressCard Assembly ExpressCard Assembly Spare Part Number Information ExpressCard assembly 417112-001 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: ❏ Hard drive (Section 5.4) ❏ Optical drive (Section 5.9) ❏ Keyboard (Section 5.10)
Page 166 Removal and Replacement Procedures 3. Lift the insulation material 1 from the system board to expose the ExpressCard assembly rear screws. 4. Remove the two Phillips PM2.0×4.0 screws 2 and the two Phillips PM2.0×8.0 screws 3 that secure the ExpressCard assembly to the system board. Removing the Fan/Heat Sink Assembly 5–68 Maintenance and Service Guide...
Page 167 Removal and Replacement Procedures 5. Turn the system board right-side up with the front toward you. 6. Remove the ExpressCard assembly from the system board. Removing the ExpressCard Assembly Reverse the above procedure to install the ExpressCard assembly. Maintenance and Service Guide 5–69...
Page 168: Fan/Heat Sink Assembly
Removal and Replacement Procedures 5.23 Fan/Heat Sink Assembly Fan/Heat Sink Assembly Spare Part Number Information For use with computer models using Intel processors: ■ For use on UMA system boards 430463-001 ■ For use on discrete system boards 417081-001 For use with computer models using AMD processors 431851-001 1.
Page 169 Removal and Replacement Procedures 2. Turn the computer upside down with the front toward you. 3. Disconnect the fan cable from the system board. Disconnecting the Fan Cable Maintenance and Service Guide 5–71...
Page 170 Removal and Replacement Procedures ✎ Steps 4 and 5 apply only to computer models using Intel processors. 4. Loosen the four Phillips PM2.0×13.0 screws 1 and the Phillips PM2.0×9.0 screw 2 that secure the fan/heat sink assembly to the system board. 5.
Page 171 Removal and Replacement Procedures ✎ Steps 6 and 7 apply only to computer models using AMD processors. 6. Loosen the Phillips PM2.0×9.0 screw 1 and the four Phillips PM2.0×13.0 screws 2 that secure the fan/heat sink assembly to the system board. 7.
Page 172 Removal and Replacement Procedures ✎ The following note applies only to computer models using Intel processors: The thermal pads should be thoroughly cleaned from the surfaces of the fan/heat sink assembly 1 and 3, video memory chip 2, and processor 4 each time the fan/heat sink assembly is removed. Thermal pads should be installed on all surfaces before the fan/heat sink assembly is reinstalled.
Page 173 Removal and Replacement Procedures ✎ The following note applies only to computer models using AMD processors: The thermal pads should be thoroughly cleaned from the surfaces of the fan/heat sink assembly 1 and 3, video memory chip 2, and processor 4 each time the fan/heat sink assembly is removed. Thermal pads should be installed on all surfaces before the fan/heat sink assembly is reinstalled.
Page 174 Removal and Replacement Procedures ✎ The following note applies only to computer models using Intel processors: The fan/heat sink assembly mounting bracket should be replaced as shown in the following illustration when installing the fan/heat sink assembly. The fan/heat sink assembly mounting bracket is available using spare part number 417114-001.
Page 175 Removal and Replacement Procedures ✎ The following note applies only to computer models using AMD processors: The fan/heat sink assembly mounting bracket should be replaced as shown in the following illustration when installing the fan/heat sink assembly. The fan/heat sink assembly mounting bracket is available using spare part number 417114-001.
Page 176 Removal and Replacement Procedures 5.24 Processor Processor Spare Part Number Information Intel Core Duo T2600 (2.16-GHz) 417044-001 Intel Core Duo T2500 (2.00-GHz) 417043-001 Intel Core Duo T2400 (1.83-GHz) 417042-001 Intel Core Duo T2250 (1.73-GHz) 430455-001 Intel Core Duo T2300 (1.66-GHz) 417041-001 Intel Core Duo T2050 (1.60-GHz) 430454-001...
Page 177 Removal and Replacement Procedures ✎ Steps 2 and 3 apply only to computer models using Intel processors. 2. Turn the processor locking screw 1 one-half turn counterclockwise until you feel a click. 3. Lift the processor 2 straight up and remove it. ✎...
Page 178 Removal and Replacement Procedures ✎ Steps 4 and 5 apply only to computer models using AMD processors. 4. Turn the processor locking screw 1 one-half turn counterclockwise until you feel a click. 5. Lift the processor 2 straight up and remove it. ✎...
Page 179 Specifications This chapter provides physical and performance specifications. Table 6-1 Computer Dimensions Length 33.4 cm 13.2 in Width 23.7 cm 9.33 in Height (varies front to rear) 2.6 to 3.9 cm 1.02 to 1.54 in Weight (varies by configuration) 2.41 kg 5.31 lb Stand-alone power requirements Operating voltage...
Page 180 Specifications Table 6-1 Computer (Continued) Shock Operating 125 g, 2 ms, half-sine Nonoperating 200 g, 2 ms, half-sine Random Vibration Operating 0.75 g zero-to-peak, 10 Hz to 500 Hz, 0.25 oct/min sweep rate Nonoperating 1.50 g zero-to-peak, 10 Hz to 500 Hz, 0.5 oct/min sweep rate *Applicable product safety standards specify thermal limits for plastic surfaces.
Page 181 Specifications Table 6-2 14.0-inch, WXGA, SVA Display Dimensions Height 27.94 cm 11.0 in Width 20.83 cm 8.2 in Diagonal 35.56 cm 14.0 in Number of colors Up to 16.8 million Contrast ratio 250:1 Brightness 180 nits typical Pixel resolution Pitch 0.279 ×...
Page 182: Hard Drives
Specifications Table 6-3 Hard Drives 120-GB* 100-GB* Dimensions Height 9.5 mm 9.5 mm Width 70 mm 70 mm Weight 99 g 99 g Interface type ATA-5 ATA-5 Transfer rate Synchronous (maximum) 100 MB/sec 100 MB/sec Security ATA security ATA security Seek times (typical read, including setting) Single track 3 ms...
Page 183 Specifications Table 6-3 Hard Drives (Continued) 80-GB* 60-GB* 40-GB* Dimensions Height 9.5 mm 9.5 mm 9.5 mm Width 70 mm 70 mm 70 mm Weight 102 g 99 g 99 g Interface type ATA-5 ATA-5 ATA-5 Transfer rate Synchronous (maximum) 100 MB/sec 100 MB/sec 100 MB/sec...
Page 184 Specifications Table 6-4 Primary 6-cell, Li-Ion Battery Dimensions Height 2.00 cm 0.79 in Width 9.40 cm 3.70 in Depth 13.40 cm 5.28 in Weight 0.34 kg 0.75 lb Energy Voltage 11.1 V Amp-hour capacity 4.4 Ah Watt-hour capacity 48 Wh Temperature Operating 5°C to 45°C...
Page 185 Specifications Table 6-5 DVD/CD-RW Combo Drive Applicable disc Read: Write: DVD-R, DVD-RW, CD-R and CD-RW DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), CD-ROM (Mode 1 and 2) CD Digital Audio CD-XA ready (Mode 2, Form 1 and 2) CD-I ready (Mode 2, Form 1 and 2) CD-R, CD-RW Photo CD (single and...
Page 186 Specifications Table 6-5 DVD/CD-RW Combo Drive (Continued) Disc thickness 1.2 mm (0.047 in) Track pitch 0.74 µm Access time CD media DVD media Random < 110 ms < 130 ms Full stroke < 210 ms < 225 ms Audio output level Line-out, 0.7 V rms Cache buffer 2 MB...
Page 187 Specifications Table 6-6 DVD±RW/R and CD-RW Double-Layer Combo Drive Applicable disc Read: Write: DVD-R, DVD-RW, CD-R and CD-RW DVD-ROM (DVD-5, DVD-R and DVD-RW DVD-9, DVD-10, DVD-18), CD-ROM (Mode 1 and 2) CD Digital Audio CD-XA ready (Mode 2, Form 1 and 2) CD-I ready (Mode 2, Form 1 and 2) CD-R, CD-RW...
Page 188 Specifications Table 6-6 DVD±RW/R and CD-RW Double-Layer Combo Drive (Continued) Disc thickness 1.2 mm (0.047 in) Track pitch 0.74 µm Access time CD media DVD media Random < 175 ms < 230 ms Full stroke < 285 ms < 335 ms Audio output level Audio-out, 0.7 Vrms Cache buffer...
Page 189: System Dma
Specifications Table 6-7 System DMA Hardware DMA System Function DMA0 Not applicable DMA1 Not applicable DMA2 Not applicable DMA3 Not applicable DMA4 Direct memory access controller DMA5 Available for ExpressCard DMA6 Not assigned DMA7 Not assigned Maintenance and Service Guide 6–11...
Page 190: System Interrupts
Specifications Table 6-8 System Interrupts Hardware IRQ System Function IRQ0 System timer IRQ1 Quick Launch buttons IRQ2 Cascaded IRQ3 USB2 Enhanced Host Controller—24CD IRQ4 COM1 IRQ5* Conexant AC—Link Audio SMBus Controller—24C3 Data Fax Modem with SmartCP IRQ6 Diskette drive IRQ7* Parallel port IRQ8 System CMOS/real-time clock...
Page 191 Specifications Table 6-8 System Interrupts (Continued) Hardware IRQ System Function IRQ12 Synaptics PS/2 port pointing device IRQ13 Numeric data processor IRQ14 Primary IDE channel IRQ15 Secondary IDE channel IRQ17 Conexant AC -Link Audio IRQ17 Soft V90 Data Fax Modem with SmartCP IRQ17 ATi Mobility Radeon Xpress 200 Series IRQ19...
Page 192 Specifications Table 6-9 System I/O Addresses I/O Address (hex) System Function (shipping configuration) 0x00000000-0x00000CF7 PCI bus 0x00000000-0x00000CF7 Direct memory access controller 0x00000020-0x00000021 Programmable interrupt controller 0x0000002E-0x0000002F System board resources 0x00000040-0x00000043 System timer 0x00000060-0x00000060 Quick Launch Buttons 0x00000061-0x00000061 System speaker 0x00000062-0x00000062 Microsoft ACPI-Compliant Embedded Controller 0x00000064-0x00000064...
Page 193 Specifications Table 6-9 System I/O Addresses (Continued) I/O Address (hex) System Function (shipping configuration) 0x000001F0-0x000001F7 Primary IDE Channel 0x00000220-0x0000022F System board resources 0x00000274-0x00000277 ISAPNP Read Data Port 0x00000279-0x00000279 ISAPNP Read Data Port 0x00000280-0x00000293 System board resources 0x00000376-0x00000376 Secondary IDE Channel 0x000003B0-0x000003BB PCI standard PCI-to-PCI bridge 0x000003B0-0x000003BB...
Page 194 Specifications Table 6-9 System I/O Addresses (Continued) I/O Address (hex) System Function (shipping configuration) 0x00000C6F-0x00000C6F System board resources 0x00000CD4-0x00000CD5 System board resources 0x00000CD6-0x00000CD7 System board resources 0x00000CD8-0x00000CDF System board resources 0x00000D00-0x0000FFFF PCI bus 0x00000F40-0x00000F47 System board resources 0x00001080-0x00001080 System board resources 0x00008000-0x0000805F System board resources 0x00008100-0x000081FF...
Page 195: System Memory Map
Specifications Table 6-10 System Memory Map Memory Map Address (hex) System Function (shipping configuration) 0xD4100000-0xD41FFFFF PCI standard PCI-to-PCI bridge 0xD4100000-0xD41FFFFF ATI MOBILITY RADEON Xpress 200 Series 0xD8000000-0xDBFFFFFF PCI standard PCI-to-PCI bridge 0xD8000000-0xDBFFFFFF ATI MOBILITY RADEON Xpress 200 Series 0xFAC00000-0xFEBFFFFF PCI standard PCI-to-PCI bridge 0xF6C00000-0xFABFFFFF PCI standard PCI-to-PCI bridge 0xD4000000-0xD4000FFF...
Page 196 Specifications Table 6-10 System Memory Map (Continued) Memory Map Address (hex) System Function (shipping configuration) 0xF2C00000-0xF6BFFFFF Texas Instruments PCIxx21/x515 Cardbus Controller 0xD4206000-0xD4207FFF Texas Instruments PCIxx21 Integrated FlashMedia Controller 0xD4209000-0xD42090FF SDA Standard Compliant SD Host Controller 0xD4208C00-0xD4208CFF SDA Standard Compliant SD Host Controller 0xD4208800-0xD42088FF SDA Standard Compliant SD Host Controller 0xD4209400-0xD42094FF...
Page 197: Screw Listing
Screw Listing This appendix provides specification and reference information for the screws used in the computer. All screws listed in this appendix are available in the Screw Kit, spare part number 417109-001, and the Display Screw Kit, spare part number 417105-001.
Page 198 Screw Listing Table A-2 Black Phillips PM2.0×5.0 Captive Screw Head Color Qty. Length Thread Width Black 5.0 mm 2.0 mm 4.0 mm Where used: Two screws that secure the hard drive cover to the computer (screws are captured on the cover by C-clips; documented in Section 5.4) Two screws that secure the memory module compartment cover to the...
Page 199 Screw Listing Table A-3 Black Phillips PM2.5×5.0 Screw Head Color Qty. Length Thread Width Black 5.0 mm 2.5 mm 4.0 mm Where used: 2 screws that secure the hard drive to the computer (documented in Section 5.4) Black Phillips PM2.5×5.0 Screw Locations Maintenance and Service Guide A–3...
Page 200 Screw Listing Table A-3 Black Phillips PM2.5×5.0 Screw (Continued) Head Color Qty. Length Thread Width Black 5.0 mm 2.5 mm 4.0 mm Where used: 2 screws that secure the display inverter bracket to the display assembly (documented in Section 5.12) Black Phillips PM2.5×5.0 Screw Locations A–4 Maintenance and Service Guide...
Page 201 Screw Listing Table A-3 Black Phillips PM2.5×5.0 Screw (Continued) Head Color Qty. Length Thread Width Black 5.0 mm 2.5 mm 4.0 mm Where used: 2 screws that secure the display inverter to the display inverter bracket (documented in Section 5.12) Black Phillips PM2.5×5.0 Screw Locations Maintenance and Service Guide A–5...
Page 202 Screw Listing Table A-3 Black Phillips PM2.5×5.0 Screw (Continued) Head Color Qty. Length Thread Width Black 5.0 mm 2.5 mm 4.0 mm Where used: 2 screws that secure the display hinges to the display assembly (documented in Section 5.12) Black Phillips PM2.5×5.0 Screw Locations A–6 Maintenance and Service Guide...
Page 203 Screw Listing Table A-3 Black Phillips PM2.5×5.0 Screw (Continued) Head Color Qty. Length Thread Width Black 5.0 mm 2.5 mm 4.0 mm Where used: One screw that secures the display lid switch module to the display enclosure (documented in Section 5.12) Black Phillips PM2.5×5.0 Screw Location Maintenance and Service Guide...
Page 204 Screw Listing Table A-3 Black Phillips PM2.5×5.0 Screw (Continued) Head Color Qty. Length Thread Width Black 5.0 mm 2.5 mm 4.0 mm Where used: 2 screws that secure the wireless antenna transceivers to the display enclosure (documented in Section 5.12) Black Phillips PM2.5×5.0 Screw Locations A–8 Maintenance and Service Guide...
Page 205 Screw Listing Table A-3 Black Phillips PM2.5×5.0 Screw (Continued) Head Color Qty. Length Thread Width Black 5.0 mm 2.5 mm 4.0 mm Where used: 2 screws that secure the system board to the computer (documented in Section 5.21) Black Phillips PM2.5×5.0 Screw Locations Maintenance and Service Guide A–9...
Page 206 Screw Listing Table A-4 Phillips PM2.0×3.0 Screw Head Color Qty. Length Thread Width Black 3.0 mm 2.0 mm 4.0 mm Where used: 2 screws that secure the Mini Card module to the computer (documented in Section 5.8) Phillips PM2.0×3.0 Screw Locations A–10 Maintenance and Service Guide...
Page 207 Screw Listing Table A-4 Phillips PM2.0×3.0 Screw (Continued) Head Color Qty. Length Thread Width Black 3.0 mm 2.0 mm 4.0 mm Where used: 2 screws that secure the optical drive bracket to the optical drive (documented in Section 5.9) Phillips PM2.0×3.0 Screw Locations Maintenance and Service Guide A–11...
Page 208 Screw Listing Table A-4 Phillips PM2.0×3.0 Screw (Continued) Head Color Qty. Length Thread Width Black 3.0 mm 2.0 mm 4.0 mm Where used: 2 screws that secure the power button board to the switch cover (documented in Section 5.11) Phillips PM2.0×3.0 Screw Locations A–12 Maintenance and Service Guide...
Page 209 Screw Listing Table A-4 Phillips PM2.0×3.0 Screw (Continued) Head Color Qty. Length Thread Width Black 3.0 mm 2.0 mm 4.0 mm Where used: 2 screws that secure the top cover to the computer (documented in Section 5.13) Phillips PM2.0×3.0 Screw Locations Maintenance and Service Guide A–13...
Page 210 Screw Listing Table A-4 Phillips PM2.0×3.0 Screw (Continued) Head Color Qty. Length Thread Width Black 3.0 mm 2.0 mm 4.0 mm Where used: 5 screws that secure the TouchPad to the top cover (documented in Section 5.14) Phillips PM2.0×3.0 Screw Locations A–14 Maintenance and Service Guide...
Page 211 Screw Listing Table A-4 Phillips PM2.0×3.0 Screw (Continued) Head Color Qty. Length Thread Width Black 3.0 mm 2.0 mm 4.0 mm Where used: 2 screws that secure the wireless switch board to the computer (documented in Section 5.15) Phillips PM2.0×3.0 Screw Locations Maintenance and Service Guide A–15...
Page 212 Screw Listing Table A-5 Phillips PM2.5×7.0 Screw Head Color Qty. Length Thread Width Black 7.0 mm 2.5 mm 4.0 mm Where used: One screw that secures the optical drive to the computer (documented in Section 5.9 Phillips PM2.5×7.0 Screw Location A–16 Maintenance and Service Guide...
Page 213 Screw Listing Table A-5 Phillips PM2.5×7.0 Screw (Continued) Head Color Qty. Length Thread Width Black 7.0 mm 2.5 mm 4.0 mm Where used: 3 screws that secure the keyboard to the computer (documented in Section 5.10) Phillips PM2.5×7.0 Screw Locations Maintenance and Service Guide A–17...
Page 214 Screw Listing Table A-5 Phillips PM2.5×7.0 Screw (Continued) Head Color Qty. Length Thread Width Black 7.0 mm 2.5 mm 4.0 mm Where used: 5 screws that secure the display assembly to the computer (documented in Section 5.12) Phillips PM2.5×7.0 Screw Locations A–18 Maintenance and Service Guide...
Page 215 Screw Listing Table A-5 Phillips PM2.5×7.0 Screw (Continued) Head Color Qty. Length Thread Width Black 7.0 mm 2.5 mm 4.0 mm Where used: 8 screws that secure the display bezel to the display assembly (documented in Section 5.12) Phillips PM2.5×7.0 Screw Locations Maintenance and Service Guide A–19...
Page 216 Screw Listing Table A-5 Phillips PM2.5×7.0 Screw (Continued) Head Color Qty. Length Thread Width Black 7.0 mm 2.5 mm 4.0 mm Where used: One screw that secures the top cover to the computer (documented in Section 5.13) Phillips PM2.5×7.0 Screw Location A–20 Maintenance and Service Guide...
Page 217 Screw Listing Table A-6 Phillips PM2.5×9.0 Screw Head Color Qty. Length Thread Width Black 9.0 mm 2.5 mm 4.0 mm Where used: 2 screws that secure the switch cover to the computer (documented in Section 5.11) Phillips PM2.5×9.0 Screw Locations Maintenance and Service Guide A–21...
Page 218 Screw Listing Table A-6 Phillips PM2.5×9.0 Screw (Continued) Head Color Qty. Length Thread Width Black 9.0 mm 2.5 mm 4.0 mm Where used: One screw that secures the display assembly to the computer (documented in Section 5.12) Phillips PM2.5×9.0 Screw Location A–22 Maintenance and Service Guide...
Page 219 Screw Listing Table A-6 Phillips PM2.5×9.0 Screw (Continued) Head Color Qty. Length Thread Width Black 9.0 mm 2.5 mm 4.0 mm Where used: 6 screws that secure the top cover to the computer (documented in Section 5.13) Phillips PM2.5×9.0 Screw Locations Maintenance and Service Guide A–23...
Page 220 Screw Listing Table A-6 Phillips PM2.5×9.0 Screw (Continued) Head Color Qty. Length Thread Width Black 9.0 mm 2.5 mm 4.0 mm Where used: One screw that secures the top cover to the computer (documented in Section 5.13) Phillips PM2.5×9.0 Screw Location A–24 Maintenance and Service Guide...
Page 221 Screw Listing Table A-7 Silver Phillips PM2.5×5.0 Screw Head Color Qty. Length Thread Width Silver 5.0 mm 2.5 mm 4.0 mm Where used: One screw that secures the switch cover to the computer (documented in Section 5.11) Silver Phillips PM2.5×5.0 Screw Location Maintenance and Service Guide A–25...
Page 222 Screw Listing Table A-7 Silver Phillips PM2.5×5.0 Screw (Continued) Head Color Qty. Length Thread Width Silver 5.0 mm 2.5 mm 4.0 mm Where used: One screw that secures the audio/infrared board to the computer (documented Section 5.17) Silver Phillips PM2.5×5.0 Screw Location A–26 Maintenance and Service Guide...
Page 223 Screw Listing Table A-7 Silver Phillips PM2.5×5.0 Screw (Continued) Head Color Qty. Length Thread Width Silver 5.0 mm 2.5 mm 4.0 mm Where used: One screw that secures the USB board to the computer (documented in Section 5.19) Silver Phillips PM2.5×5.0 Screw Location Maintenance and Service Guide A–27...
Page 224 Screw Listing Table A-8 Phillips PM2.0×4.0 Screw Head Color Qty. Length Thread Width Black 4.0 mm 2.5 mm 4.0 mm Where used: 4 screws that secure the top cover to the computer (documented in Section 5.13) Phillips PM2.0×4.0 Screw Locations A–28 Maintenance and Service Guide...
Page 225 Screw Listing Table A-8 Phillips PM2.0×4.0 Screw (Continued) Head Color Qty. Length Thread Width Black 4.0 mm 2.5 mm 4.0 mm Where used: 2 screws that secure the top cover to the computer (documented in Section 5.13) Phillips PM2.0×4.0 Screw Locations Maintenance and Service Guide A–29...
Page 226 Screw Listing Table A-8 Phillips PM2.0×4.0 Screw (Continued) Head Color Qty. Length Thread Width Black 4.0 mm 2.5 mm 4.0 mm Where used: 2 screws that secure the modem module to the computer (documented in Section 5.16) Phillips PM2.0×4.0 Screw Locations A–30 Maintenance and Service Guide...
Page 227 Screw Listing Table A-8 Phillips PM2.0×4.0 Screw (Continued) Head Color Qty. Length Thread Width Black 4.0 mm 2.5 mm 4.0 mm Where used: 2 screws that secure the ExpressCard assembly to the system board (documented in Section 5.22) Phillips PM2.0×4.0 Screw Locations Maintenance and Service Guide A–31...
Page 228 Screw Listing Table A-9 Phillips PM2.0×2.0 Screw Head Color Qty. Length Thread Width Silver 2.0 mm 2.0 mm 4.0 mm Where used: 2 screws that secure the TouchPad board to the TouchPad bracket (documented in Section 5.14) Phillips PM2.0×2.0 Screw Locations A–32 Maintenance and Service Guide...
Page 229 Screw Listing Table A-10 Phillips PM2.5×4.0 Screw Head Color Qty. Length Thread Width Black 4.0 mm 2.5 mm 4.0 mm Where used: 4 screws that secure the speaker assembly to the computer (documented in Section 5.20) Phillips PM2.5×4.0 Screw Locations Maintenance and Service Guide A–33...
Page 230 Screw Listing Table A-11 Phillips PM2.0×8.0 Screw Head Color Qty. Length Thread Width Black 8.0 mm 2.0 mm 4.0 mm Where used: 2 screws that secure the ExpressCard assembly to the system board (documented in Section 5.22) Phillips PM2.0×8.0 Screw Locations A–34 Maintenance and Service Guide...
Page 231 Screw Listing Table A-12 Phillips PM2.0×13.0 Spring-Loaded Shoulder Screw Head Color Qty. Length Thread Width Silver 13.0 mm 2.0 mm 4.0 mm Where used: 4 screws that secure the fan/heat sink assembly to the system board on computer models using Intel processors (documented in Section 5.23) Phillips PM2.0×13.0 Spring-Loaded Shoulder Screw Locations...
Page 232 Screw Listing Table A-12 Phillips PM2.0×13.0 Spring-Loaded Shoulder Screw (Continued) Head Color Qty. Length Thread Width Silver 13.0 mm 2.0 mm 4.0 mm Where used: 4 screws that secure the fan/heat sink assembly to the system board on computer models using AMD processors (documented in Section 5.23) Phillips PM2.0×13.0 Spring-Loaded Shoulder Screw Locations...
Page 233 Screw Listing Table A-13 Phillips PM2.0×9.0 Spring-Loaded Shoulder Screw Head Color Qty. Length Thread Width Silver 9.0 mm 2.0 mm 4.0 mm Where used: One screw that secures the fan/heat sink assembly to the system board on computer models using Intel processors (documented in Section 5.23) Phillips PM2.0×9.0 Spring-Loaded Shoulder Screw Location...
Page 234 Screw Listing Table A-13 Phillips PM2.0×9.0 Spring-Loaded Shoulder Screw (Continued) Head Color Qty. Length Thread Width Silver 9.0 mm 2.0 mm 4.0 mm Where used: One screw that secures the fan/heat sink assembly to the system board on computer models using AMD processors (documented in Section 5.23) Phillips PM2.0×9.0 Spring-Loaded Shoulder Screw Location...
Page 235: Backup And Recovery
Backup and Recovery Recovering System Information Tools provided by the operating system and PC Recovery software are designed to help you with the following tasks for safeguarding your information and restoring it in case of a system failure: ■ Back up your information regularly to protect your important system files.
Page 236: Backing Up Your Information
Backup and Recovery Backing Up Your Information When to Back Up ■ On a regularly scheduled basis. ✎ Set reminders to back up your information periodically. ■ Before the computer is repaired or restored. ■ Before you add or modify hardware or software. Backup Suggestions ■...
Page 237: Using System Restore Points
Backup and Recovery Using System Restore Points When you back up your system, you are creating a system restore point. A system restore point allows you to save and name a snapshot of your hard drive at a specific point in time. You can then recover back to that point if you want to reverse subsequent changes made to your system.
Page 238: Create A System Restore Point
Backup and Recovery Create a System Restore Point 1. Select Start > Help and Support, and then click System Restore. The System Restore window opens. 2. Click Create a restore point, and then click Next. 3. Follow the on-screen instructions. Restore to a Previous Date and Time To revert to a restore point (created at a previous date and time), when the computer was functioning optimally:...
Page 239: Creating Recovery Discs
Backup and Recovery Creating Recovery Discs PC Recovery Disc Creator creates a set of recovery CDs or DVDs for the computer. Use recovery discs to restore the operating system and software programs to factory settings, in case of system failure or instability. ✎...
Page 240 Backup and Recovery To create a set of recovery discs: 1. Select Start > All Programs > System Recovery > PC Recovery Disc Creator. The PC Recovery Disc Creator tool opens. 2. Click Next. ✎ If you are operating the computer on battery power, you will be prompted to connect to AC power before you can go to the next step.
Page 241: Reinstalling Software Programs And Drivers
Backup and Recovery Reinstalling Software Programs and Drivers If a program or driver preinstalled at the factory is accidentally erased or is damaged, the Application and Driver Recovery tool allows you to reinstall it. ✎ Software not provided with this computer must be reinstalled from the disc provided by the manufacturer or downloaded from the manufacturer's Web site.
Page 242: Reinstalling Programs From Discs
Backup and Recovery Reinstalling Preinstalled Programs and Drivers 1. Remove the program or driver: ✎ In some cases, drivers are not listed in the Add or Remove Programs list. If the driver is not listed, it does not need to be removed.
Page 243: Performing A Recovery
Backup and Recovery Performing a Recovery PC Recovery software allows you to repair or restore the system if you experience system failure or instability. PC Recovery works from recovery discs that you create or from a dedicated recovery partition on the hard drive. ✎...
Page 244 Backup and Recovery Recovering from the Partition on the Hard Drive You can perform a recovery from the partition on the hard drive from either the Start button or To restore the system from the partition: 1. Access the PC Recovery tool: ❏...
Page 245 Backup and Recovery Deleting the Recovery Partition on the Hard Drive The PC Recovery Advanced Options menu provides the option of deleting the recovery partition, which will increase space on the hard drive. Delete the recovery partition only if you have already created recovery discs.
Page 246: Updating Reinstalled Software
Backup and Recovery Updating Reinstalled Software After you perform a system recovery, connect to the Internet to update all reinstalled software. To access update links for the operating system and other software provided on your computer: » Select Start > Help and Support. To update optional software, follow the instructions provided by the software manufacturer.
Page 247 Display Component Recycling Å WARNING: The backlight contains mercury. Caution should be exercised when removing and handling the backlight to avoid damaging this component and causing exposure to the mercury. Ä CAUTION: The procedures in this appendix can result in damage to display components.
Page 248 Display Component Recycling This appendix provides disassembly instructions for the display assembly. The display assembly must be disassembled to gain access to the backlight 1 and the LCD panel 2. ✎ Disassembly procedures differ from one display assembly to another. The procedures provided in this appendix are general disassembly instructions.
Page 249 Display Component Recycling Perform the following steps to disassemble the display assembly: 1. Remove all screw covers 1 and screws 2 that secure the display bezel to the display assembly. Removing the Display Bezel Screw Covers and Screws Maintenance and Service Guide C–3...
Page 250 Display Component Recycling 2. Lift up and out on the left and right inside edges 1 and the top and bottom inside edges 2 of the display bezel until the bezel disengages from the display assembly. 3. Remove the display bezel 3. Removing the Display Bezel C–4 Maintenance and Service Guide...
Page 251 Display Component Recycling 4. Disconnect all LCD panel cables 1 from the display inverter board and remove the inverter board 2. Removing the Display Inverter Board Maintenance and Service Guide C–5...
Page 252 Display Component Recycling 5. Remove all screws 1 that secure the LCD panel to the display enclosure. 6. Remove the LCD panel 2 from the display enclosure. Removing the LCD Panel C–6 Maintenance and Service Guide...
Page 253: Lcd Panel
Display Component Recycling 7. Turn the LCD panel upside down. 8. Remove all screws that secure the LCD panel frame to the LCD panel. Removing the LCD Panel Frame Screws Maintenance and Service Guide C–7...
Page 254 Display Component Recycling 9. Use a sharp-edged tool to cut the tape 1 that secures the side of the LCD panel to the LCD panel frame. 10. Remove the LCD panel frame 2 from the display panel. Removing the LCD Panel Frame C–8 Maintenance and Service Guide...
Page 255 Display Component Recycling 11. Remove the screws 1 that secure the backlight cover to the LCD panel. 12. Lift the top edge of the backlight cover 2 and swing it forward. 13. Remove the backlight cover. Removing the Backlight Cover Maintenance and Service Guide C–9...
Page 256 Display Component Recycling 14. Turn the LCD panel right-side up. 15. Remove the backlight cables 1 from the clip 2 in the LCD panel. Releasing the Backlight Cables C–10 Maintenance and Service Guide...
Page 257 Display Component Recycling 16. Turn the LCD panel upside down. 17. Remove the backlight frame from the LCD panel. Removing the Backlight Frame Maintenance and Service Guide C–11...
Page 258 Display Component Recycling Å WARNING: The backlight contains mercury. Caution should be exercised when removing and handling the backlight to avoid damaging this component and causing exposure to the mercury. 18. Slide the backlight out of the backlight frame. Removing the Backlight C–12 Maintenance and Service Guide...
Page 259 Display Component Recycling 19. Disconnect the display cable 1 from the LCD panel. 20. Remove the screws 2 that secure the LCD panel to the LCD rear panel. 21. Release the LCD panel 3 from the LCD rear panel. 22. Release the tape 4 that secures the LCD panel to the LCD rear panel.
Page 260 Display Component Recycling 23. Remove the LCD panel. Removing the LCD Panel 24. Recycle the backlight and LCD panel. C–14 Maintenance and Service Guide...
Page 261: Connector Pin Assignments
Connector Pin Assignments Table D-1 Universal Serial Bus Signal Signal +5 VDC Data + Data – Ground Maintenance and Service Guide D–1...
Page 262 Connector Pin Assignments Table D-2 RJ-45 (Network) Signal Signal Transmit + Unused Transmit – Receive – Receive + Unused Unused Unused D–2 Maintenance and Service Guide...
Page 263 Connector Pin Assignments Table D-3 S-Video-Out Signal Signal TV-Ground TV-CD TV-CVBS TV-Ground TV-Ground TV-YD TV-Ground Maintenance and Service Guide D–3...
Page 264: External Monitor
Connector Pin Assignments Table D-4 External Monitor Signal Signal Red analog +5 VDC Green analog Ground Blue analog Monitor detect Not connected DDC 2B data Ground Horizontal sync Ground analog Vertical sync Ground analog DDC 2B clock Ground analog D–4 Maintenance and Service Guide...
Page 265 Connector Pin Assignments Table D-5 RJ-11 (Modem) Signal Signal Unused Unused Unused Ring Unused Maintenance and Service Guide D–5...
Page 266 Connector Pin Assignments Table D-6 Audio-In (Microphone) Signal Signal Audio signal in Ground Audio signal in Table D-7 Audio-Out (Headphone) Signal Signal Audio out, left channel Ground Audio out, right channel D–6 Maintenance and Service Guide...
Page 267: Power Cord Set Requirements
Power Cord Set Requirements 3-Conductor Power Cord Set The wide range input feature of the computer permits it to operate from any line voltage from 100 to 120 or 220 to 240 volts AC. The power cord set included with the computer meets the requirements for use in the country where the equipment is purchased.
Page 268: General Requirements
Power Cord Set Requirements General Requirements The requirements listed below are applicable to all countries. ■ The length of the power cord set must be at least 1.5 m (5.0 ft) and a maximum of 2.0 m (6.5 ft). ■ All power cord sets must be approved by an acceptable accredited agency responsible for evaluation in the country where the power cord set will be used.
Page 269 Power Cord Set Requirements Country-Specific Requirements 3-Conductor Power Cord Set Requirements Country/Region Accredited Agency Applicable Note Number Australia EANSW Austria Belgium CEBC Canada Denmark DEMKO Finland FIMKO France Germany Italy Japan METI ✎ NOTES: 1. The flexible cord must be <HAR> Type HO5VV-F, 3-conductor, 1.0 mm² conductor size.
Page 270 Power Cord Set Requirements 3-Conductor Power Cord Set Requirements (Continued) Country/Region Accredited Agency Applicable Note Number Korea The Netherlands KEMA Norway NEMKO People’s Republic of China Sweden SEMKO Switzerland Taiwan BSMI United Kingdom United States ✎ NOTES: 1. The flexible cord must be <HAR> Type HO5VV-F, 3-conductor, 1.0 mm² conductor size.
Page 271 Index 1394 port 1–9 battery release latch 1–16 Bluetooth module removal 5–56 AC adapter, spare part spare part number 3–9 numbers 3–24 3–28 3–26 5–56 analog TV tuner, spare part Bluetooth module cable, number 3–24 3–26 illustrated 3–23 arrow keys 1–11 bottom components 1–16 audio troubleshooting 2–25 audio/infrared board...
Page 272 Index Computer Setup Display Label Kit, spare part Advanced Menu 2–8 number 3–19 3–34 File Menu 2–6 display lid switch module Security Menu 2–6 removal 5–38 Tools Menu 2–7 spare part number 3–19 computer specifications 6–1 3–36 5–38 connector pin assignments display panel external monitor D–4 removal 5–39...
Page 273 Index spare part numbers 3–11 no OS loading from 3–21 3–30 5–19 diskette drive 2–23 specifications 6–9 no OS loading from hard drive 2–20 2–21 2–22 no OS loading from optical electrostatic discharge 4–4 drive 2–24 4–8 no power 2–12 2–14 2–15 expansion port 3 1–9...
Page 274 Index headphone jack memory module location 1–6 removal 5–12 pin assignments D–6 spare part numbers 3–13 headset, spare part number 3–29 3–30 5–12 3–24 3–26 memory module compartment 1–17 memory module compartment I/O address specifications cover 6–14 illustrated 3–22 infrared port 1–6 removal 5–13 interrupt specifications 6–12 Memory Reader 1–9...
Page 275 Index monitor port location 1–9 pin assignments D–4 mouse, spare part number 3–24 3–26 3–35 network jack location 1–9 pin assignments D–2 network, troubleshooting 2–30 nonfunctioning device, troubleshooting 2–18 2–27 key 1–11 num lock optical drive location 1–7 1–16 OS loading problems 2–24 precautions 4–3 removal 5–19 spare part numbers 3–11...
Page 276 Index power button board right-side components 1–7 removal 5–29 RJ-11 (modem) jack spare part number 3–3 location 1–7 3–35 5–29 pin assignments D–5 power connector 1–7 RJ-45 (network) jack power connector cable location 1–9 removal 5–66 pin assignments D–2 spare part numbers 3–9 RTC battery 3–35 removal 5–10...
Page 277 Index I/O addresses 6–14 TouchPad horizontal scroll interrupts 6–12 zone 1–15 optical drive 6–7 TouchPad light 1–15 system DMA 6–11 TouchPad on/off button 1–15 static shielding materials 4–8 TouchPad vertical scroll zone S-Video-out jack 1–15 location 1–9 transporting precautions 4–5 pin assignments D–3 troubleshooting switch cover...
Page 278 Index USB infrared receiver, spare part number 3–24 3–27 USB travel mouse, spare part number 3–24 3–26 vents 1–17 video troubleshooting 2–16 volume buttons 1–13 volume scroll zone 1–13 Windows applications key 1–11 Windows logo key 1–11 wireless antenna removal 5–40 spare part number 3–19 3–34 5–40...

Compaq Presario V3000 Service Manual

1 Product Description

2 Troubleshooting

3 Illustrated Parts Catalog

4 Removal and Replacement Preliminaries

5 Removal and Replacement Procedures

Quick Links

Troubleshooting

Related Manuals for Compaq Presario V3000

Summary of Contents for Compaq Presario V3000

Table of Contents
